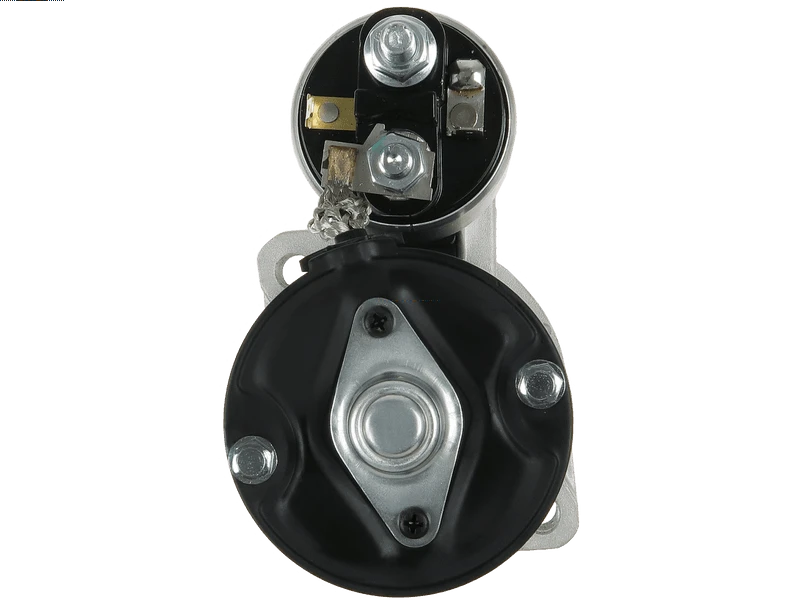

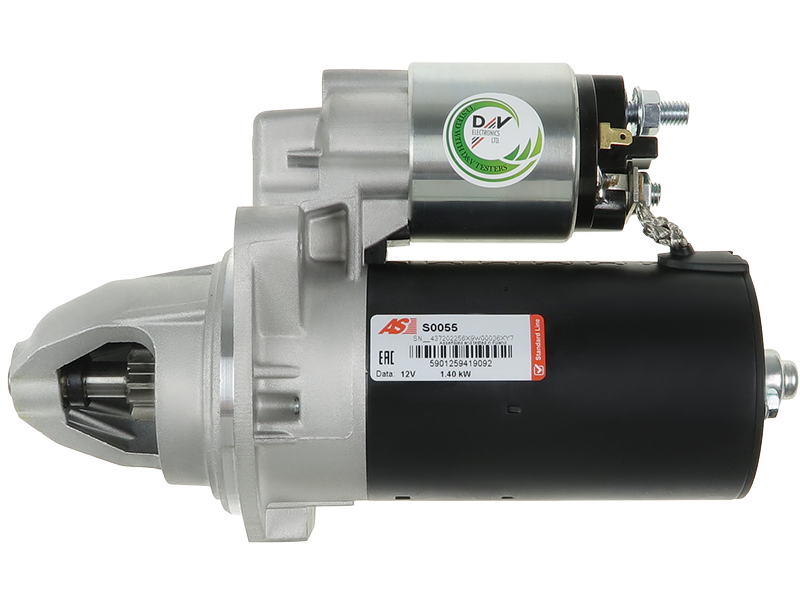

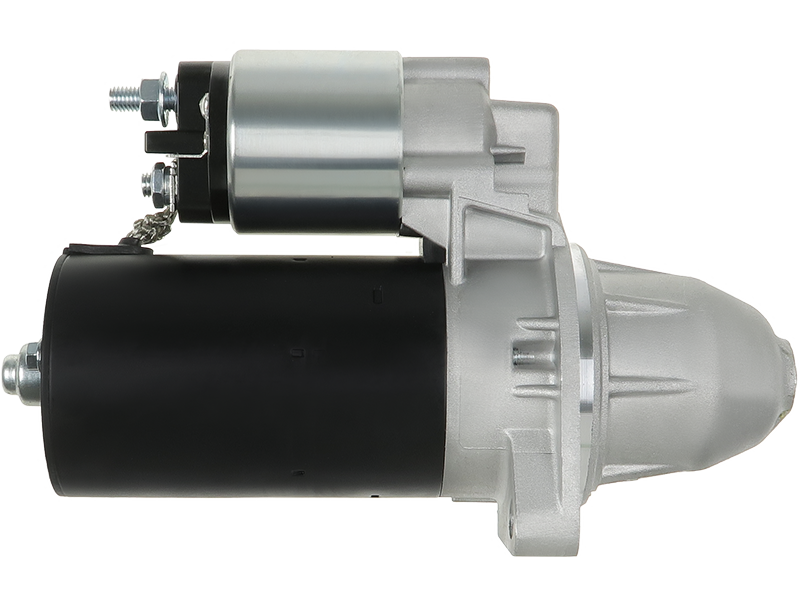

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 222.67 including GST
NZ$ 193.63 excluding GST
or four payments of $55.67
with
Learn More
each
S0055
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001108030Associated Numbers
0001108030 0001108088 0986013600 10389 11.130.777 111489 11424 1357199 17135N 20401901BN 20500729 20510159 22.0389 22.0389M 26-1446 3523301 3586 42013600 436085 5003564 6010109 8013600 8174 8212849 88212849 8EA726137-001 AES7129 CS389 CST10109AS DRS3600 EAA-121373 LRS00729 LRS02136 S0055 SS236 SS852 STR50080 VS344Specifications
| Kilowatt | 1.4 kW |
| Length (L.1) | 243 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | M12x1.75 mm |
| Mount Hole Diameter (C.2) | M12x1.75 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 36.5 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.5 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | 240 2.0 | [B19ET] | 10.1982-08.1984 |
| VOLVO | 240 2.1 Turbo | [B230F] | 03.1987-07.1993 |
| VOLVO | 240 2.1 Turbo | [B230K] | 08.1984-07.1990 |
| VOLVO | 240 2.1 Turbo | [B23E] | 08.1988-12.1989 |
| VOLVO | 360 2.0 | [B200E] | 08.1988-07.1989 |
| VOLVO | 360 2.0 | [B200F] | 08.1988-07.1990 |
| VOLVO | 740 2.0 | [B19ET] | 12.1983-07.1984 |
| VOLVO | 740 2.0 | [B200E] | 08.1985-07.1991 |
| VOLVO | 740 2.0 | [B200ET] | 01.1986-07.1989 |
| VOLVO | 740 2.0 | [B200F] | 08.1989-07.1991 |
| VOLVO | 740 2.0 | [B200K] | 08.1985-07.1989 |
| VOLVO | 740 2.3 | [B230A] | 08.1984-07.1987 |
| VOLVO | 740 2.3 | [B230E] | 08.1985-07.1988 |
| VOLVO | 740 2.3 | [B230F] | 08.1987-07.1992 |
| VOLVO | 740 2.3 | [B230FB] | 08.1990-07.1995 |
| VOLVO | 740 2.3 | [B230K] | 09.1985-07.1990 |
| VOLVO | 740 2.3 | [B234F] | 08.1988-07.1990 |
| VOLVO | 740 2.3 | [B23A] | 08.1985-07.1990 |
| VOLVO | 740 2.3 16V | [B234F] | 08.1988-07.1990 |
| VOLVO | 740 2.3 i | [B234F] | 07.1989-07.1990 |
| VOLVO | 740 2.3 Turbo | [B230ET] | 08.1985-07.1988 |
| VOLVO | 740 2.3 Turbo | [B230FT] | 08.1989-07.1991 |
| VOLVO | 740 2.3 Turbo | [B230GT] | 08.1989-07.1990 |
| VOLVO | 760 2.3 | [B230FT] | 08.1985-07.1992 |
| VOLVO | 760 2.3 Turbo | [B230ET] | 08.1984-07.1992 |
| VOLVO | 940 2.0 | [B200F] | 09.1991-08.1995 |
| VOLVO | 940 2.0 Turbo | [B200FT] | 09.1991-09.1998 |
| VOLVO | 940 2.3 | [B230FB] | 08.1990-12.1994 |
| VOLVO | 940 2.3 | [B230FD] | 08.1992-07.1994 |
| VOLVO | 940 2.3 | [B230G] | 08.1990-07.1995 |
| VOLVO | 940 2.3 | [B234F] | 08.1988-07.1991 |
| VOLVO | 940 2.3 | [B234G] | 08.1990-07.1992 |
| VOLVO | 940 2.3 Turbo | [B230FK] | 01.1995-08.1997 |
| VOLVO | 940 2.3 Turbo | [B230FT] | 08.1990-08.1997 |
| VOLVO | 960 2.0 | [B204E] | 09.1991-07.1994 |
| VOLVO | 960 2.0 | [B204FT] | 09.1991-07.1994 |
Reference Information
MAV221310 PRSL892 20401901BN 13571990 8EA726137-001 CST10109AS S114-232 S114-237 0001108030 810.503.092.311 8174 STM621 13571997 SS236 AES7129 S114-232A 436085 DRS3600 330292 11.130.777 STX200315R 11424 LRS2136 50035640 LRS00729 3253301 50035641 0986013600 88212849 STRL892 20500729 204284 STX200315 17135N 8212849 10389 MAV6820 42013600 STR79062 STR50080 LRS729 8013600 SS852 330541 1357199 CS389 220061 LRS02136 3523301 810.503.092.461 810.503.092.460 ANM15820X 22.0389 5003564 S0055 35233014 20510159 26-1446 35233010 5003564-1 111489 STR1487 0001108088 6010109.0 MS266 STX200692 1357200 STX201344 VS344 22.0389M 810.503.092.010 3586 5002046 3523301-4Video/Publications
