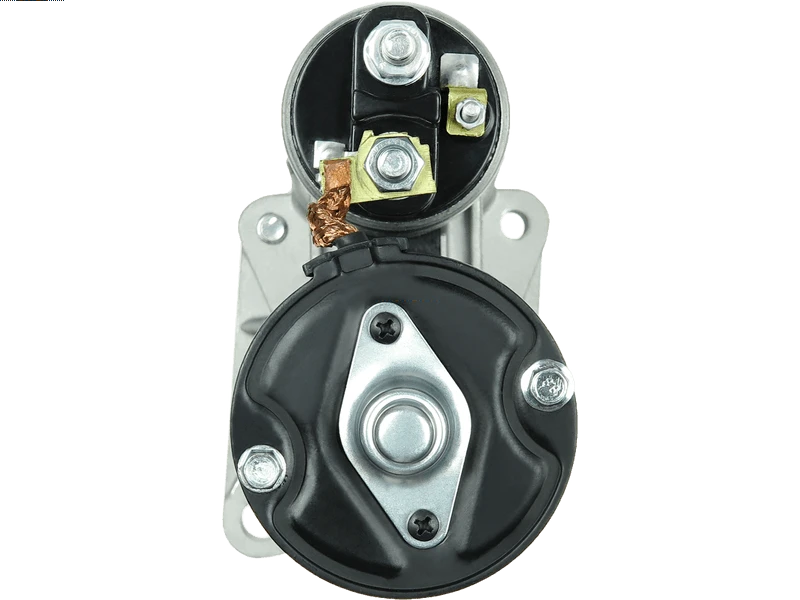

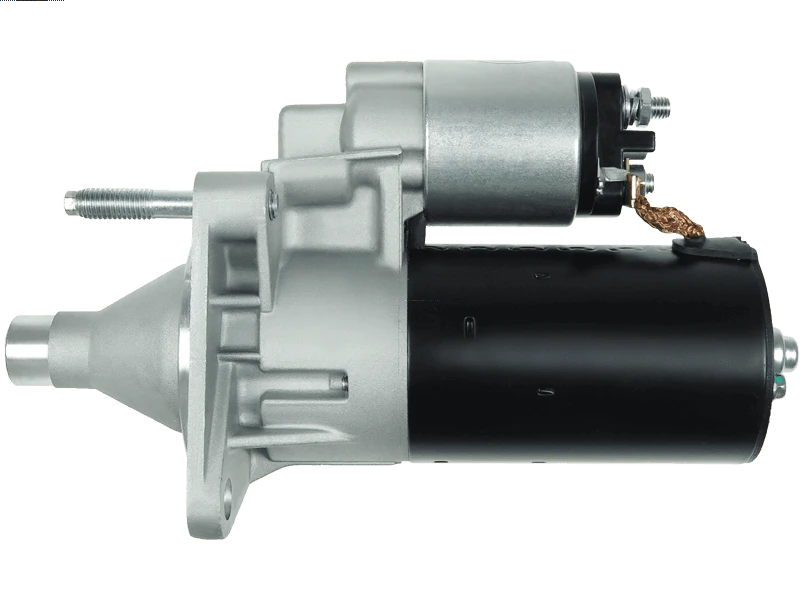

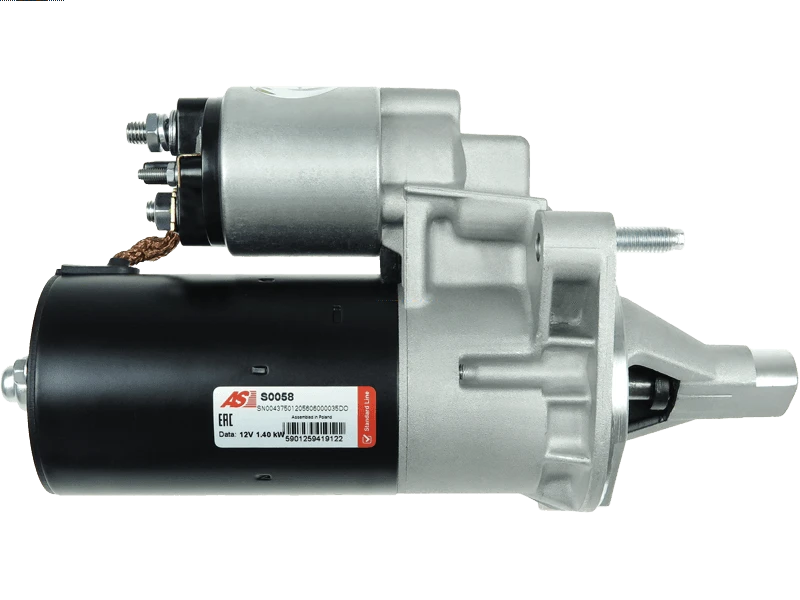

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 231.46 including GST
NZ$ 201.27 excluding GST
or four payments of $57.87
with
Learn More
each
S0058
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001108032Associated Numbers
0001108032 0001108046 0001108066 0001108068 0001108069 0001108103 0001108104 0001108134 101044 101044B 101044V 10979 111425 11846 16963N 16963R 17218N 22.0979 22.3136 25-2100 3851 4557209 5226444 5227342 5233007 726008 726808 8080102 8212788 8EA737180-001 AEU0979 CS979 DRZ5150 DRZ5161 EAA-121642 IS9421 LRS01323 S1053B STR50269Specifications
| Kilowatt | 1.4 kW |
| Length (L.1) | 266 mm |
| Mount Hole Center - Center (O.1) | 72 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 120 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | 12.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 8 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | Daytona 2.5 i Turbo GS | [EDT] | 01.1988-01.1990 |
| CHRYSLER | LeBaron 2.2 i | [EDG] | 09.1986-08.1995 |
| CHRYSLER | LeBaron 2.2 i Turbo | [EDG] | 09.1986-12.1990 |
| CHRYSLER | LeBaron 2.2 i Turbo | [EDR] | 09.1986-12.1990 |
| CHRYSLER | LeBaron 2.5 i | [EDM] | 09.1986-12.1993 |
| CHRYSLER | LeBaron 2.5 i Turbo | [EDT] | 01.1989-12.1993 |
| CHRYSLER | Voyager 2.5 i | [K] | 04.1992-09.1995 |
| CHRYSLER | Voyager 2.5 i SE | [K00] | 01.1988-12.1995 |
| DAEWOO | LeBaron 2.2 i | [EDG] | 09.1986-08.1995 |
| DAEWOO | LeBaron 2.2 i Turbo | [EDG] | 09.1986-12.1990 |
| DAEWOO | LeBaron 2.2 i Turbo | [EDR] | 09.1986-12.1990 |
| DAEWOO | LeBaron 2.5 i | [EDM] | 09.1986-12.1993 |
| DAEWOO | LeBaron 2.5 i Turbo | [EDT] | 01.1989-12.1993 |
Reference Information
| 0001108032 | BOSCH |
| 0001108046 | BOSCH |
| 0001108066 | BOSCH |
| 0001108068 | BOSCH |
| 0001108069 | BOSCH |
| 0001108103 | BOSCH |
| 0001108104 | BOSCH |
| 0001108134 | BOSCH |
| 10979 | KUHNER |
| 111425 | CARGO |
| 11846 | EAI |
| 16963N | WAI / TRANSPO |
| 16963R | WAI / TRANSPO |
| 17218N | WAI / TRANSPO |
| 220177 | ERA |
| 22.0979 | LAUBER |
| 22.3136 | LAUBER |
| 25-2100 | ELSTOCK |
| 3851 | CEVAM |
| 4557130 | CHRYSLER |
| 4557209 | CHRYSLER |
| 4671130 | CHRYSLER |
| 5226444 | CHRYSLER |
| 5227282 | CHRYSLER |
| 5227342 | CHRYSLER |
| 5233007 | CHRYSLER |
| 726008 | VALEO |
| 726808 | VALEO |
| 8080102 | FRIESEN |
| 8212788 | POWERMAX |
| 830.505.093.010 | PSH |
| 830.505.093.215 | PSH |
| 830.505.093.461 | PSH |
| 830.505.093.462 | PSH |
| 830.505.093.510 | PSH |
| 830.505.093.550 | PSH |
| 830.505.093.606 | PSH |
| 830.505.093.608 | PSH |
| 830.505.093.609 | PSH |
| 8EA737180-001 | HELLA |
| AEU0979 | AUTOELECTRO |
| CGB-25161 | AINDE |
| CS979 | HC PARTS |
| DRZ5150 | DELCO |
| DRZ5161 | DELCO |
| F032111425 | CARGO |
| IS9421 | ISKRA / LETRIKA |
| LRS01323 | LUCAS |
| LRS1323 | LUCAS |
| MS 53 | MAHLE |
| PRSF062 | 3EFFE |
| S0058 | AS-PL |
| S1053B | PRESTOLITE |
| STM1019 | ROLLCO |
| STR1934 | ELECTROLOG |
| STR1938 | ELECTROLOG |
| STR1940 | ELECTROLOG |
| STR50269 | WOODAUTO |
| STRF062 | 3EFFE |
| STX201165 | STARDAX |
Video/Publications
S0058View your shopping basket or Browse other items in Starter Motors.
