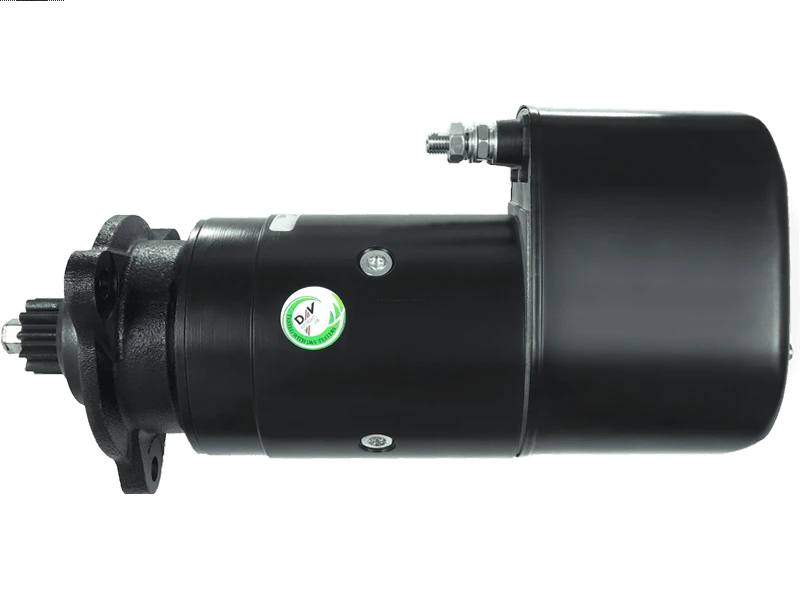

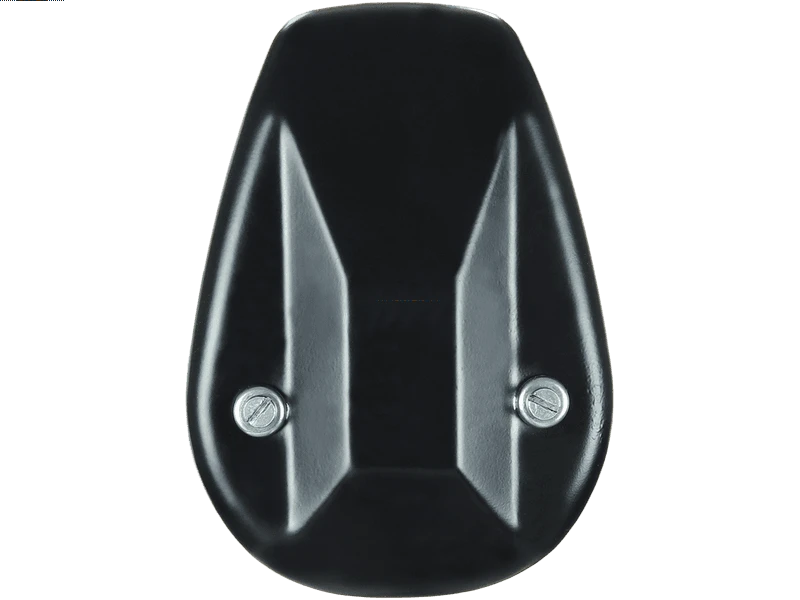

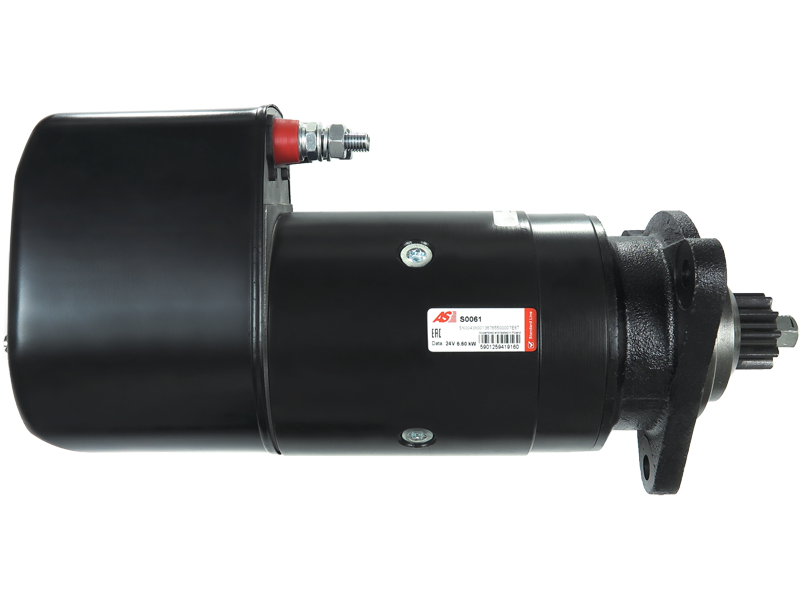

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 824.62 including GST
NZ$ 717.06 excluding GST
or four payments of $206.16
with
Learn More
each
S0061
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001417047Associated Numbers
0001411013 0001417047 015.000.0 101284 101284P 110211 18382N 20401746BN 20401746EL 28.1284 33674 349579 45-3262 571461 6010647 860544GB 8608 8EA012527-091 8EA738111-001 CS1284 CST10647AS CST10647ES DRS3765 IM647 LRS01959 R22-15 STR50427Specifications
| Insulated Earth | Yes |
| Kilowatt | 6.60 kW |
| Length (L.1) | 406 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SCANIA | 113 M/400 11.0 | [DTC11.01][DTC11.02] | 01.1992-05.1997 |
| SCANIA | 143 E/420 14.2 | [DSC14.08] | 01.1991-12.1996 |
| SCANIA | 143 E/450 14.2 | [DSC14.03][DSC14.10] | 01.1990-12.1996 |
| SCANIA | 143 E/500 14.2 | [DSC14.09] | 01.1991-12.1996 |
| SCANIA | 143 E/500 14.2 | [DSC14.16] | 12.1994-12.1996 |
| SCANIA | 143 H/400 14.2 | [DSC14.06] | 01.1990-12.1996 |
| SCANIA | 143 H/420 14.2 | [DSC14.08] | 01.1991-12.1996 |
| SCANIA | 143 H/450 14.2 | [DSC14.03] | 05.1988-12.1996 |
| SCANIA | 143 H/450 14.2 | [DSC14.06] | 05.1988-12.1996 |
| SCANIA | 143 H/470 14.2 | [DSC14.04] | 01.1990-12.1996 |
| SCANIA | 143 H/500 14.2 | [DSC14.09] | 01.1991-12.1996 |
| SCANIA | 143 H/500 14.2 | [DSC14.16] | 12.1994-12.1996 |
| SCANIA | 143 M/420 14.2 | [DSC14.08] | 01.1991-12.1996 |
| SCANIA | 143 M/450 14.2 | [DSC14.03][DSC14.10] | 01.1990-12.1996 |
| SCANIA | 143 M/470 14.2 | [DSC14.04] | 01.1990-12.1996 |
| SCANIA | 143 M/500 14.2 | [DSC14.09] | 01.1991-12.1996 |
| SCANIA | 143 M/500 14.2 | [DSC14.16] | 12.1994-12.1996 |
| SCANIA | R 142 E 14.2 | [DS14.06] | 05.1980-03.1988 |
| SCANIA | R 142 H 14.2 | [DS14.06][DSC14.01][DSC14.02] | 05.1980-03.1988 |
| SCANIA | R 142 M 14.2 | [DS14.06] | 05.1980-03.1988 |
| SCANIA | T 142 E 14.2 | [DS14.06] | 01.1984-03.1988 |
| SCANIA | T 143 E/450 14.2 | [DSC14.03][DSC14.10] | 01.1990-12.1996 |
| SCANIA | T 143 E/500 14.2 | [DSC14.09] | 01.1991-12.1996 |
| SCANIA | T 143 E/500 14.2 | [DSC14.16] | 12.1994-12.1996 |
| SCANIA | T 143 H/420 14.2 | [DSC14.08] | 01.1991-12.1996 |
| SCANIA | T 143 H/450 14.2 | [DSC14.03][DSC14.10] | 01.1990-12.1996 |
| SCANIA | T 143 H/500 14.2 | [DSC14.09] | 01.1990-12.1996 |
| SCANIA | T 143 H/500 14.2 | [DSC14.16] | 12.1994-12.1996 |
Reference Information
| 0001410005 | BOSCH |
| 0001411013 | BOSCH |
| 0001417047 | BOSCH |
| 015.000.0 | ELMOT |
| 064512 | SCANIA |
| 0986019620 | BOSCH |
| 101284 | KUHNER |
| 101284P | KUHNER |
| 110211 | CARGO |
| 18382N | WAI / TRANSPO |
| 20401746BN | REAL |
| 20401746EL | REAL |
| 220324 | ERA |
| 225944 | SCANIA |
| 225947 | SCANIA |
| 28.1284 | LAUBER |
| 33674 | EAI |
| 349579 | SCANIA |
| 42498185 | IVECO |
| 45-3262 | ELSTOCK |
| 4710406 | IVECO |
| 4732240 | IVECO |
| 571423 | SCANIA |
| 571424 | SCANIA |
| 571461 | SCANIA |
| 6010647 | SANDO |
| 860544GB | PRESTOLITE |
| 8608 | CEVAM |
| 8EA012527-091 | HELLA |
| 8EA738111-001 | HELLA |
| CS1284 | HC PARTS |
| CST10647AS | CASCO |
| CST10647ES | CASCO |
| DRS3765 | DELCO |
| F032110211 | CARGO |
| IM647 | AVF |
| LRS01959 | LUCAS |
| LRS1959 | LUCAS |
| MAV1215 | SIOM |
| R22-15 | ELMOT |
| STB1284 | KRAUF |
| STR1433 | ELECTROLOG |
| STR50427 | WOODAUTO |
| STRF044 | 3EFFE |
