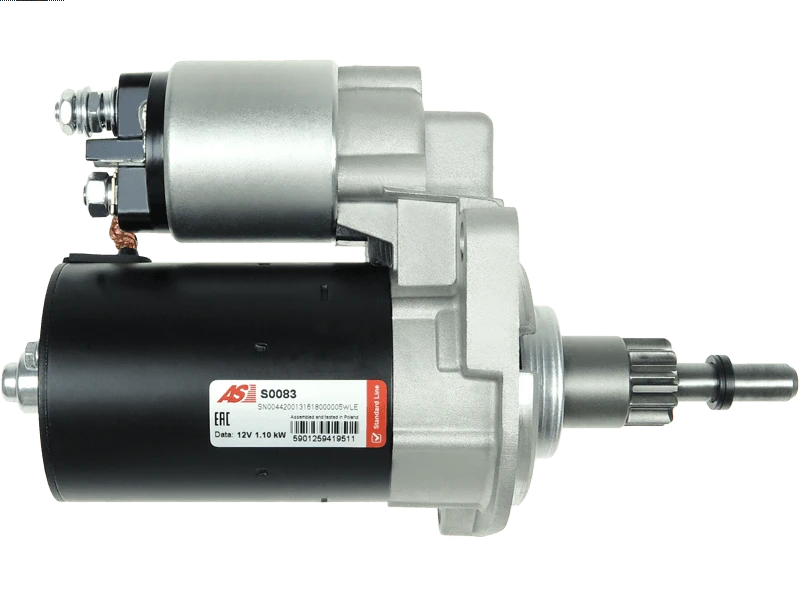

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 218.63 including GST
NZ$ 190.11 excluding GST
or four payments of $54.66
with
Learn More
each
S0083
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001107003Associated Numbers
0001107003 0001107004 02A911023E 02A911023EX 10559 10601 112131 11657 17223N 20401691BN 22.0601 22.0601M 26-1323 3634 42016110 455942 6010196 66925299 66925336 8016110 8212802 88212802 8EA730171-001 AES7131 CS601 CST10196AS DRS4820 EAA-121432 LRS00731 SS801 STR50193Specifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 244 mm |
| Mount Hole Center - Center (O.1) | 110.50 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 53 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | CoRado 1.8 16V | [KR] | 08.1990-07.1991 |
| VW | CoRado 1.8 G60 | [PG] | 08.1990-07.1991 |
| VW | Golf II 1.8 G60 GTi | [PG] | 08.1990-07.1991 |
| VW | Golf II 1.8 G60 Syncro | [PG] | 08.1990-07.1991 |
| VW | Passat 1.6 | [EZ] | 08.1990-07.1991 |
| VW | Passat 1.8 | [AAM] | 08.1990-07.1991 |
| VW | Passat 1.8 | [RP] | 08.1990-07.1991 |
| VW | Passat 1.8 16V | [KR] | 08.1990-07.1991 |
| VW | Passat 1.8 G60 Syncro | [PG] | 08.1990-07.1993 |
| VW | Passat 2.0 | [2E] | 08.1990-07.1991 |
| VW | Passat 2.0 16V | [9A] | 08.1990-07.1991 |
| VW | Passat 2.0 16V GT | [9A] | 08.1990-07.1991 |
| VW | Passat 2.0 Syncro | [2E] | 10.1990-07.1991 |
Reference Information
| 0001107003 | BOSCH |
| 0001107004 | BOSCH |
| 02A911023A | VW |
| 02A911023AX | VW |
| 02A911023D | VW |
| 02A911023DX | VW |
| 02A911023E | VW |
| 02A911023EX | VW |
| 02A911203 | VW |
| 10559 | KUHNER |
| 10601 | KUHNER |
| 112131 | CARGO |
| 11657 | EAI |
| 17223N | WAI / TRANSPO |
| 20401691BN | REAL |
| 220113 | ERA |
| 22.0601 | LAUBER |
| 22.0601M | LAUBER |
| 26-1323 | ELSTOCK |
| 2A911023D | VW |
| 2A911023DX | VW |
| 2A911023E | VW |
| 2A911023EX | VW |
| 300.511.102.010 | PSH |
| 300.511.102.215 | PSH |
| 300.511.102.310 | PSH |
| 300.511.102.462 | PSH |
| 300.511.102.463 | PSH |
| 300.511.102.464 | PSH |
| 330753 | LOGISTIK |
| 3634 | CEVAM |
| 42016110 | HERTH+BUSS |
| 455942 | VALEO |
| 6010196 | SANDO |
| 66925299 | PRESTOLITE |
| 66925336 | PRESTOLITE |
| 8016110 | FRIESEN |
| 8212802 | POWERMAX |
| 88212802 | POWERMAX |
| 8EA730171-001 | HELLA |
| AES7131 | AUTOELECTRO |
| ANM17040X | ANDEL |
| CS601 | HC PARTS |
| CST10196AS | CASCO |
| DRS4820 | DELCO |
| F032112131 | CARGO |
| LRS00731 | LUCAS |
| LRS731 | LUCAS |
| MAV3000 | SIOM |
| S0083 | AS-PL |
| S12BH0621A2 | SIDAT |
| SS801 | SOVEREIGN |
| STA0336R | BOVEZ |
| STR1108 | ELECTROLOG |
| STR50193 | WOODAUTO |
| STRF082 | 3EFFE |
| STRS703 | 3EFFE |
| STX200215 | STARDAX |
| STX200215R | STARDAX |
| STX200300 | STARDAX |
| STX200300R | STARDAX |
| STX200793 | STARDAX |
Video/Publications
