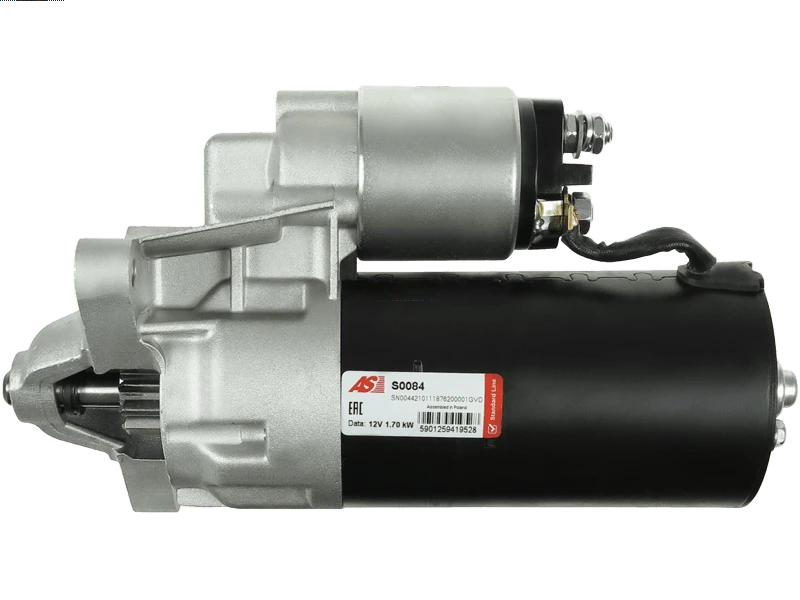

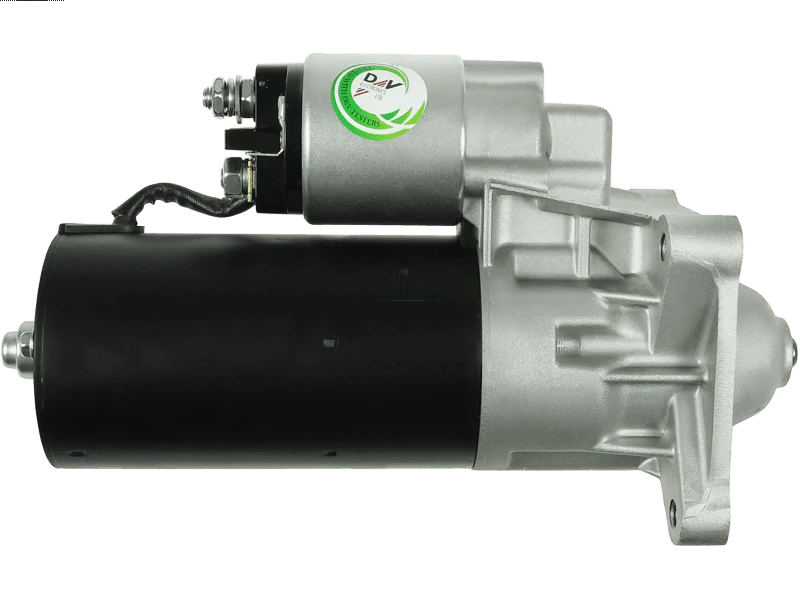

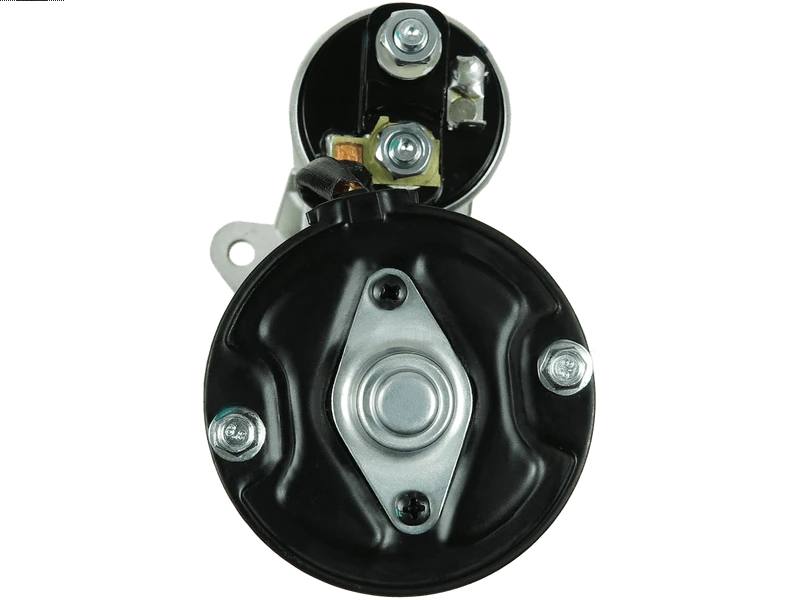

S0084 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.7 kW
Length (L.1)	267 mm
Mount Hole Center - Center (O.1)	84 mm
Mount Hole Center - Center (O.2)	120 mm
Mount Hole Center - Center (O.3)	84 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	M10x1.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	11 qty
No./Teeth (Replaces)	10. 11 qty
Pinion at Rest (B)	-5 mm
Rotation	CW
Spigot Diameter (A)	66 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CITROEN	BX 16 1.9	[BAZ(XU5CP)]	07.1986-12.1994
CITROEN	BX 17 1.8 Diesel	[161A(XUD7)]	10.1985-09.1993
CITROEN	BX 17 1.8 Diesel	[161(XUD7)]	10.1985-09.1993
CITROEN	BX 19 1.9 4x4	[D2F]	04.1989-02.1993
CITROEN	BX 19 1.9 4x4	[DDZ(XU9M)]	10.1990-05.1991
CITROEN	BX 19 1.9 Diesel	[162(XUD9)]	09.1985-12.1987
CITROEN	BX 19 1.9 Diesel	[D9A(XUD9)]	09.1985-12.1987
CITROEN	BX 19 1.9 Diesel	[D9B(XUD9A/U)]	03.1987-12.1994
CITROEN	BX 19 1.9 Turbo TRD	[A8A(XUD7TE)]	03.1988-12.1994
CITROEN	BX 19 1.9 Turbo TRD	[AJZ(XUD7TE)]	02.1988-12.1994
CITROEN	C15 1.8 Diesel	[161A(XUD7)]	07.1986-
CITROEN	C25 1.9 Diesel	[D9B(XUD9A/U)]	07.1987-02.1994
CITROEN	C25 2.5 Diesel 4x4	[CRD93L]	01.1987-02.1994
CITROEN	C4 2.0 HDi Grand Picasso	[RHJ(DW10BTED4)]	10.2006-
CITROEN	C4 2.0 HDi Grand Picasso	[RHR(DW10BTED4)]	10.2006-
CITROEN	C5 2.2 HDi	[4HT(DW12BTED4)]	04.2006-
CITROEN	C8 2.0 HDi	[RHR(DW10BTED4)]	03.2006-
CITROEN	C-Crosser 2.2 HDi	[DW12MTED4]	02.2007-
CITROEN	Evasion 1.9 TD	[D8B(XUD9TF)]	11.1994-07.2002
CITROEN	Evasion 1.9 TD	[DHX(XUD9TF/BTF)]	11.1994-07.2002
CITROEN	Evasion 2.0 TD	[XUD9TE]	10.1994-07.2002
CITROEN	Jumper 1.9 Diesel	[D9B(XUD9A/U)]	02.1994-12.1998
CITROEN	Jumper 1.9 TD	[D8C(XUD9UTF)]	01.1997-04.2002
CITROEN	Jumper 1.9 TD	[DHX(XUD9TF/BTF)]	03.1994-12.1998
CITROEN	Jumper 1.9 TD 4x4	[D8C(XUD9UTF)]	08.1996-12.1998
CITROEN	Xantia 1.9 Diesel	[DHW(XUD9SD)]	02.1996-01.1998
CITROEN	Xantia 1.9 TD	[D8B(XUD9TF)]	09.1995-12.1996
CITROEN	XM 2.1 Diesel	[P9A(XUD11A)]	05.1989-06.1994
CITROEN	XM 2.1 TD 12V	[P8A(XUD11ATE)]	05.1989-06.1994
CITROEN	XM 2.1 TD 12V	[P8C(XUD11BTE)]	05.1989-06.1994
CITROEN	XM 2.1 TD 12V	[PHZ(XUD11ATE)]	05.1989-06.1994
CITROEN	XM 2.1 TD 12V	[PJZ(XUD11ATE)]	05.1989-06.1994
CITROEN	Xsara 1.8 Diesel	[161A(XUD7)]	04.1997-09.1998
CITROEN	Xsara 1.8 Diesel	[A9A(XUD7)]	07.1997-09.1998
CITROEN	Xsara 1.9 Diesel	[DHW(XUD9BSD)]	01.1998-09.2000
CITROEN	Xsara 1.9 Diesel	[DJY(XUD9A)]	04.1997-09.1998
CITROEN	Xsara 1.9 TD	[DHY(XUD9TE/Y)]	07.1997-02.2001
FIAT	Ulysse 1.9 TD	[DHX(XUD9TF/L)]	10.1994-12.1999
LANCIA	Phedra 2.0 JTD	[RHW(DW10ATED4)]	09.2002-
LANCIA	Phedra 2.0 Multijet	[RHR]	07.2006-
LANCIA	Zeta 2.1 TD	[P8C]	05.1996-09.1999
PEUGEOT	205 1.7 Diesel	[161A(XUD7)]	07.1987-09.1998
PEUGEOT	205 1.8 Diesel	[161A(XUD7)]	08.1983-12.1989
PEUGEOT	205 1.8 Diesel	[A8B(XUD7TE)]	11.1990-09.1998
PEUGEOT	205 1.9 Diesel	[DJZ(XUD9Y)]	10.1987-09.1998
PEUGEOT	305 1.9 Diesel	[162(XUD9)]	10.1982-07.1990
PEUGEOT	305 1.9 Diesel	[D9A(XUD9)]	10.1982-07.1990
PEUGEOT	306 1.8 Diesel	[A9A(XUD7)]	05.1993-04.1997
PEUGEOT	306 1.9 Diesel	[DJY(XUD9A)]	06.1994-10.2003
PEUGEOT	306 1.9 Diesel	[DJZ(XUD9Y)]	05.1993-06.1994
PEUGEOT	306 1.9 Diesel SRDT	[DHY(XUD9TE)]	05.1993-10.2003
PEUGEOT	306 1.9 TD	[DHY(XUD9TE)]	05.1993-10.2003
PEUGEOT	309 1.8 Diesel	[161A(XUD7)]	07.1989-12.1993
PEUGEOT	309 1.8 TD	[A8B(XUD7TE)]	08.1989-12.1993
PEUGEOT	309 1.9 Diesel	[162(XUD9)]	06.1986-12.1993
PEUGEOT	309 1.9 Diesel	[D9A(XUD9)]	06.1986-07.1989
PEUGEOT	309 1.9 Diesel	[DJZ(XUD9Y)]	06.1986-12.1993
PEUGEOT	4007 2.2 HDi	[DW12MTED4]	02.2007-
PEUGEOT	405 1.8 TD	[A8A(XUD7TE)]	03.1988-12.1992
PEUGEOT	405 1.8 TD	[AJZ(XUD7TEY)]	10.1990-12.1992
PEUGEOT	405 1.9 Diesel	[D9B(XUD9A)]	03.1988-12.1992
PEUGEOT	405 1.9 Diesel	[DJY(XUD9A)]	07.1988-12.1992
PEUGEOT	405 1.9 Diesel	[DJZ(XUD9Y)]	07.1988-09.1992
PEUGEOT	406 1.9 Diesel	[DHW(XUD9SD)]	10.1996-03.1999
PEUGEOT	605 2.1 TD	[PHZ(XUD11ATE)]	06.1989-10.1996
PEUGEOT	806 1.9 TD	[DHX(XUD9TE)]	08.1994-08.2002
PEUGEOT	806 1.9 TD	[DHY(XUD9TE)]	03.1994-08.2002
PEUGEOT	806 2.1 TD	[P8C(XUD11BTE)]	06.1996-08.2000
PEUGEOT	Boxer 1.9 TD	[D8C(XUD9UTF)]	02.1996-04.2002
PEUGEOT	J5 1.9 Diesel	[D9B(XUD9A)]	11.1987-12.1993
PEUGEOT	Partner 1.9 Diesel	[XUD9]	05.1996-12.1998
SUZUKI	Vitara 1.9 Diesel	[XUD9A]	01.1995-03.1998
SUZUKI	Vitara 1.9 Diesel 4WD	[XUD9A]	01.1995-03.1998
TALBOT	Express 1.9 Diesel	[XUD9A]	11.1987-12.1993
TALBOT	Horizon 1.9 Diesel	[XUD9]	10.1985-06.1986

Reference Information

71782363 96054384 433324 6015111.1 5802H7 CGB-5407 5802H8 9624291480 IS0642 STB0373 9639846780 0001109010 STR50019 96035036R SG0319 580292 10373K CST15111GS M1T80841 10373M M1T50171 M1T50172 9635659580 91040098 9670983080 5802-H8 VS285 95514125 VS283 95607234R 96365597 220.504.113.210 STRL055 96035035R 0001109026 432595 63521100170 8EA012528-211 21215-3708010 9151431280 CST15104AS CST15168GS LRS00476 5802J4 455928 220.504.113.000 CS342 96125588R 220.504.113.008 220.504.113.006 5802-F2 71719599 31100-86CB1 M1T80381 20479111BN K9639846780 VS140 5802-V5 71719595 201075 71719598 CST15104RS 96398467 EAA-112226 5802-V6 330525 ND138 5.80E+05 M1T80071 5802CP MQS1177 5802CQ 5802CJ 580236 20479401RC STR1370 580235 9827007180 96035036 96035035 432561 9625382780 11153 63720373010 71724272 M1T80082 9.4428E+11 M1T80081 63984678 20479401BN 220.504.113.770 11.130.642 71794326 9625383080 M001T80071 5802-35 MQS373 0001986S00716 433305 M2T90071 M0T80082 0001314034 5802EQ 5802F2 0001110017 1516753R 1516741R 9101009880 ND123 MRS13240 5802V5 5802V6 580250 5802-S3 10373V STA0044R 9625382680 71716564 71716565 5802G9 8EA011610-071 943251144 3107 5802G0 71716562 5802W7 432630 AZE2521 71719600 71719602 71719601 151412580 71719604 71719603 71719606 71719605 CST15104GS 220.504.113.500 K1332419080 95656489R STM509 3110086CB1 10373 220.504.113.505 438068 438069 1320921080 20479861OE 88212253 5802A6 6015104.2 6015104.1 20479401OE K9603503680 MSN2147 K9625382780 MSR912 ND053 M000T80082 5802Q5 580200 986012401 986012400 LRS476 111070 9625383280 91514125 MS150 1314034 1516680R 95125288 72735778 96356597 9104009880 S0084 M002T90071 5802C3 5802C4 9947830 CST15111AS 42432561 K9603503580 63280090010 5802S3 MSR377 000986012401 MSR5062 000986012400 1332419080 PRSL055 K9625383280 36100-29000 9151412580 5802-M7 CS1177 M0T20871 986013240 5802L4 555836 6015104 000986013240 A04009880 K9624291480 9603503680 5802-M3 MSR381 555838 M001T80481 STR79038 K9635659580 K1320921080 63721177010 M1T80481 25-0407 71722375 5802M4 963984678 5802M7 1986S00716 220.504.113.010 6015111 71722374 5802M3 M1T90281 9.43251E+11 1110017 D9R121 1109026 D7R8 M001T50171 M001T50172 ANM15460X 9603503580 582036 220.504.113.968 M001T80381 D9R84 20479111OE M001T90281 95607234 5802-J4 1109010 220.504.113.280 6015168.1 201028 1516821R 71728811 9.43212E+11 91536044
