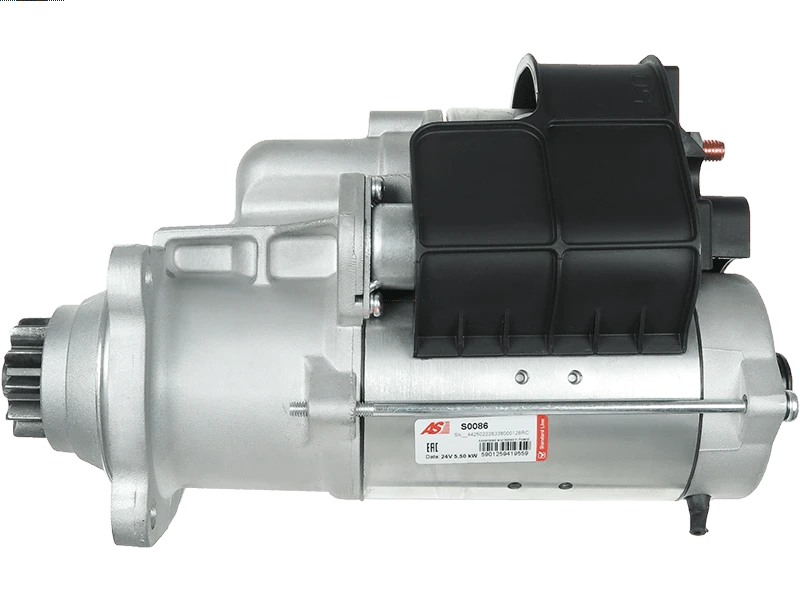

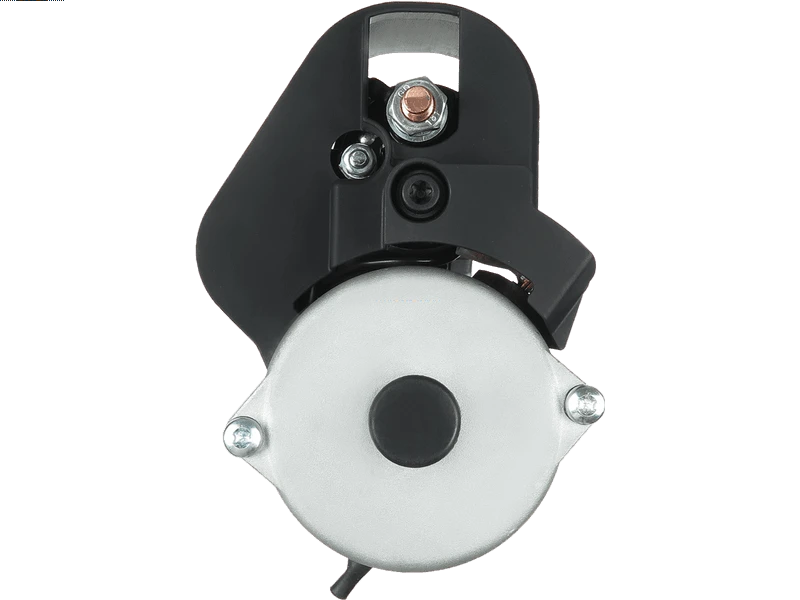

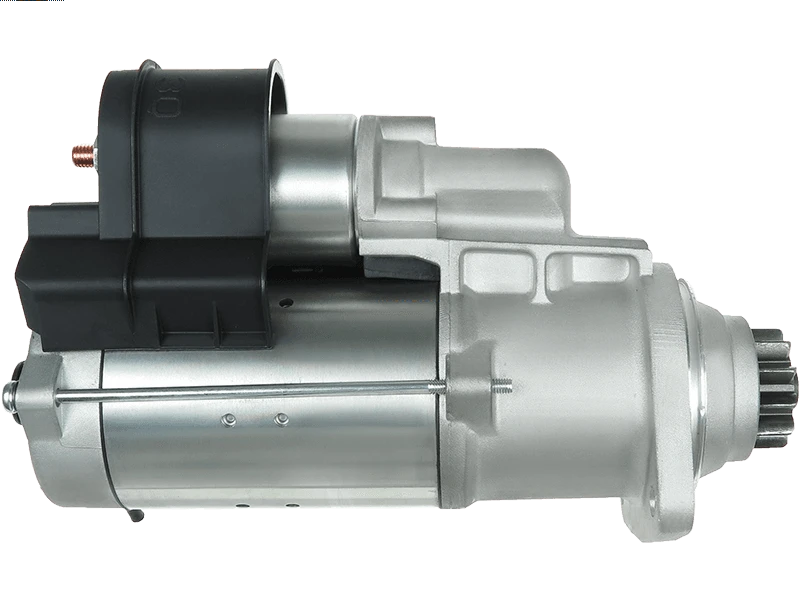

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 815.73 including GST
NZ$ 709.33 excluding GST
or four payments of $203.93
with
Learn More
each
S0086
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001241008Associated Numbers
0001241008 0001241012 0001261016 114327 20401308BN 254213 30153N 6010803 CST10803AS EAA-121694 STR50295Specifications
| Kilowatt | 5.50 kW |
| Length (L.1) | 319 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HOWO | WD615 | ||
| SCANIA | WD615 | ||
| WEICHAI | WD615 |
Reference Information
6010803 0001261022 0001241008 612600090293J PRSF161 0001261032 20401308BN 612600090293 6010803.0 0001241012 114327 0001261016 8090 254213 STRF161 551.520.113.210 STR50295 551.520.113.010 STR1260 CST10803AS 30153N CGB-23126Video/Publications
