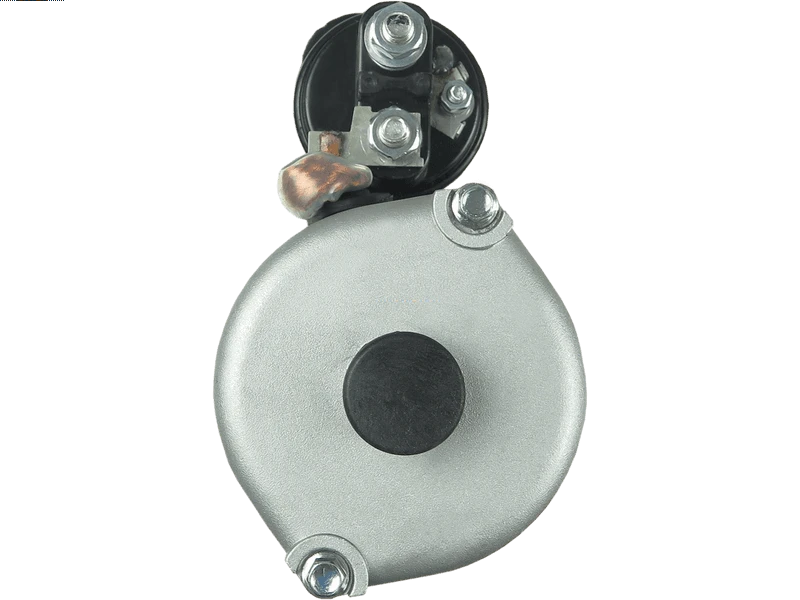

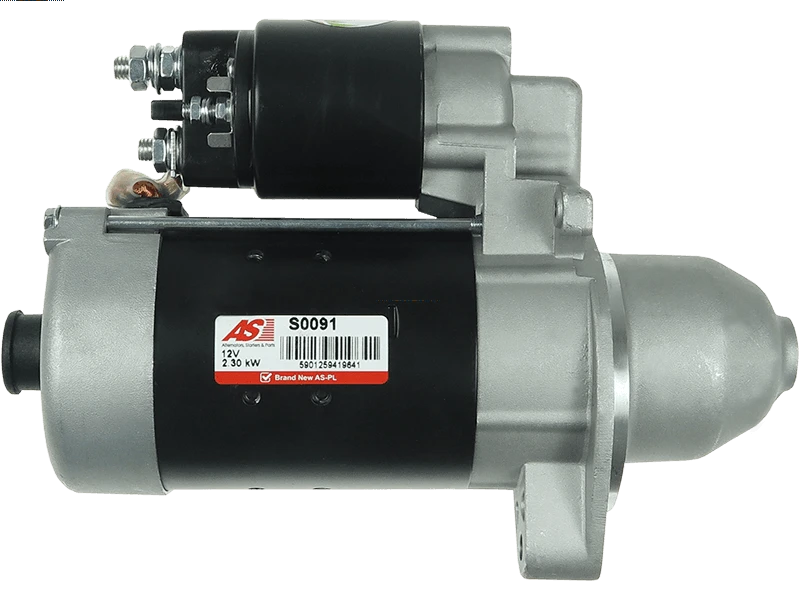

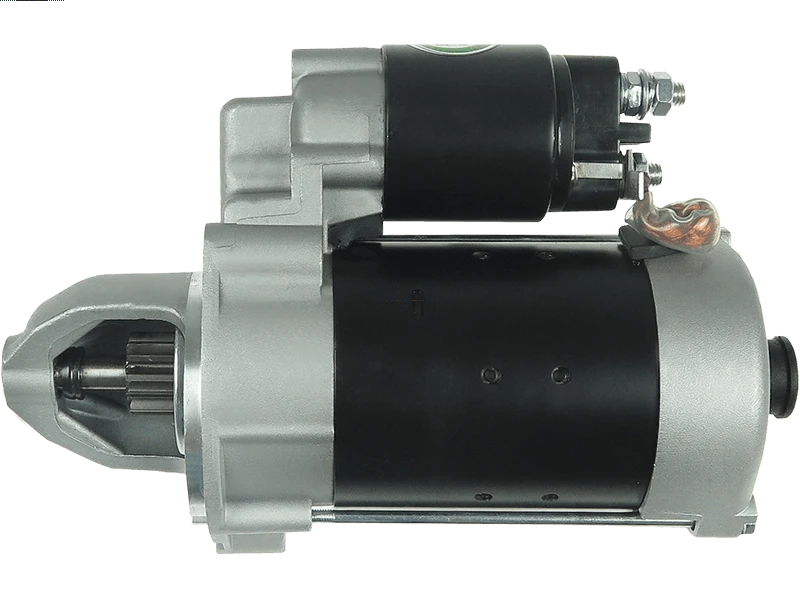

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 390.26 including GST
NZ$ 339.36 excluding GST
or four payments of $97.57
with
Learn More
UOM:
each
Alternative Item:
S0026,S0143,S0419,S3040,S3040(VALEO),S6468(DENSO
Product Code:
S0091
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001223005Associated Numbers
0001223005 0051512901 063721202010 0986018270 101202 101202V 112440 11938 1516688R 19997R 20401103BN 20401103RC 20510134 220135 25-2450 42018270 458469 550.516.102 6010301 8EA737864-001 91-15-7162 943253148010 944280182700 A0051512901 AEU1202 CS1202 CST10301 CST10301AS CST10301ES CST10301GS CST10301OS CST10301RS DRS8270 DS9380 EAA-121198 LRS01499 LRS1499 MQS1202 MRS18270 MSR5348 S-6248 S0091 S1053BSpecifications
| Kilowatt | 2.30 kW |
| Length (L.1) | 250 mm |
| Mount Hole Center - Center (O.1) | 104 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 26 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | C 180 1.8 Kompressor | (S204)[M271.952 | 08.2007-08.2014 |
| MERCEDES BENZ | C 180 1.8 Kompressor | (S204)[M271.952] | 08.2007-08.2014 |
| MERCEDES BENZ | C 200 1.8 Kompressor | (S204)[M271.950] | 08.2007-08.2014 |
| MERCEDES BENZ | C 200 2.2 CDi | (S204)[OM646.811] | 08.2007-12.2011 |
| MERCEDES BENZ | C 200 2.2 CDI | (S204)[OM646.811] | 08.2007-12.2011 |
| MERCEDES BENZ | C 220 2.2 CDi | (S204)[OM646.811] | 08.2007-11.2008 |
| MERCEDES BENZ | C 220 2.2 CDI | (S204)[OM646.811] | 08.2007-11.2008 |
| MERCEDES BENZ | C 230 2.5 | (S204)[M272.921] | 08.2007-08.2014 |
| MERCEDES BENZ | C 280 3.0 | (S204)[M272.947] | 08.2007-08.2014 |
| MERCEDES BENZ | C 350 3.5 | (S204)[M272.961] | 08.2007-08.2014 |
| MERCEDES BENZ | CLK 200 1.8 CGi | (C209)[M271.942] | 07.2003-05.2009 |
| MERCEDES BENZ | CLK 200 1.8 CGI | (C209)[M271.942] | 07.2003-05.2009 |
| MERCEDES BENZ | CLK 200 1.8 Kompressor | (C209)[M271.940] | 09.2002-05.2009 |
| MERCEDES BENZ | CLK 200 1.8 Kompressor | (C209)[M271.955] | 10.2006-05.2009 |
| MERCEDES BENZ | CLK 200 2.0 | (C208)[M111.945] | 06.1997-06.2002 |
| MERCEDES BENZ | CLK 200 2.0 Kompressor | (C208)[M111.944] | 06.1997-06.2002 |
| MERCEDES BENZ | CLK 200 2.0 Kompressor | (C208)[M111.956] | 06.2000-06.2002 |
| MERCEDES BENZ | CLK 220 2.2 CDi | (C209)[OM646.966] | 01.2005-05.2009 |
| MERCEDES BENZ | CLK 220 2.2 CDI | (C209)[OM646.966] | 01.2005-05.2009 |
| MERCEDES BENZ | CLK 230 2.3 Kompressor | (C208)[M111.973] | 06.1997-06.2002 |
| MERCEDES BENZ | CLK 230 2.3 Kompressor | (C208)[M111.975] | 06.1997-06.2002 |
| MERCEDES BENZ | CLK 230 2.3 Kompressor | (C208)[M111.982] | 06.2000-06.2002 |
| MERCEDES BENZ | CLK 240 2.6 | (C209)[M112.912] | 06.2002-05.2009 |
| MERCEDES BENZ | CLK 270 2.7 CDi | (C209)[OM612.962] | 10.2002-05.2009 |
| MERCEDES BENZ | CLK 270 2.7 CDi | (C209)[OM612.967] | 10.2002-05.2009 |
| MERCEDES BENZ | CLK 270 2.7 CDI | (C209)[OM612.962] | 10.2002-05.2009 |
| MERCEDES BENZ | CLK 270 2.7 CDI | (C209)[OM612.967] | 10.2002-05.2009 |
| MERCEDES BENZ | CLK 280 3.0 | (C209)[M272.940] | 01.2005-05.2009 |
| MERCEDES BENZ | CLK 320 3.0 CDi | (C209)[OM642.910] | 01.2005-05.2009 |
| MERCEDES BENZ | CLK 320 3.0 CDI | (C209)[OM642.910] | 01.2005-05.2009 |
| MERCEDES BENZ | CLK 320 3.2 | (C208)[M112.940] | 06.1997-06.2002 |
| MERCEDES BENZ | CLK 320 3.2 | (C209)[M112.955] | 06.2002-05.2009 |
| MERCEDES BENZ | CLK 350 3.5 | (C209)[M272.960] | 01.2005-05.2009 |
| MERCEDES BENZ | CLK 430 4.3 | (C208)[M113.943] | 07.1998-06.2002 |
| MERCEDES BENZ | CLK 500 5.0 | (C209)[M113.968] | 06.2006-05.2009 |
| MERCEDES BENZ | CLK 500 5.5 | (C209)[M273.965] | 06.2006-05.2009 |
| MERCEDES BENZ | CLK 55 5.4 AMG | (C208)[M113.981] | 08.1999-06.2002 |
| MERCEDES BENZ | CLK 55 5.4 AMG | (C208)[M113.984] | 08.1999-06.2002 |
| MERCEDES BENZ | CLK 55 5.4 AMG | (C209)[M113.987] | 09.2002-05.2009 |
| MERCEDES BENZ | CLK 63 6.2 AMG | (C209)[M156.982] | 04.2006-05.2009 |
| MERCEDES BENZ | CLK DTM 5.4 AMG | (C209)[M113.994] | 06.2004-05.2009 |
| MERCEDES-BENZ | C-CLASS Coupe (CL203) C 220 CDI | OM611.962 | 03.2001-01.2004 |
| MERCEDES-BENZ | C-CLASS Coupe (CL203) C 30 CDI AMG (203.718) | OM612.990 | 09.2002-05.2008 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C 200 CDI (203.204) | OM611.962 | 03.2001-08.2007 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C 200 CDI (203.207) | OM646.962 | 04.2003-08.2007 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C 200 CDI (203.207) | OM646.963 | 04.2003-08.2007 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C 220 CDI (203.206, 203.208) | OM611.962 | 03.2001-08.2007 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C 220 CDI (203.206, 203.208) | OM646.963 | 03.2001-08.2007 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C 270 CDI (203.216) | OM612.962 | 03.2001-08.2007 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C 270 CDI (203.216) | OM612.962 | 03.2001-08.2007 |
| MERCEDES-BENZ | C-CLASS T-Model (S203) C 30 CDI AMG (203.218) | OM612.990 | 01.2003-08.2007 |
| MERCEDES-BENZ | C-CLASS (W203) C 220 CDI (203.006) | OM611.962 | 05.2000-02.2007 |
| MERCEDES-BENZ | C-CLASS (W203) C 220 CDI (203.008) | OM646.963 | 04.2003-02.2007 |
| MERCEDES-BENZ | C-CLASS (W203) C 270 CDI (203.016) | OM612.962 | 12.2000-02.2007 |
| MERCEDES-BENZ | C-CLASS (W203) C 270 CDI (203.016) | OM612.962 | 12.2000-02.2007 |
| MERCEDES-BENZ | C-CLASS (W203) C 30 CDI AMG (203.018) | OM612.990 | 01.2003-02.2007 |
| MERCEDES-BENZ | CLK (C209) CLK 220 CDI (209.308) | OM646.966 | 01.2005-05.2009 |
| MERCEDES-BENZ | CLK (C209) CLK 270 CDI (209.316) | OM612.962 | 10.2002-05.2009 |
| MERCEDES-BENZ | CLK (C209) CLK 270 CDI (209.316) | OM612.967 | 02.2003-06.2005 |
| MERCEDES-BENZ | CLK (C209) CLK 270 CDI (209.316) | OM612.967 | 10.2002-05.2009 |
| MERCEDES-BENZ | E-CLASS Platform/Chassis (VF210) E 270 CDI (210.616) | OM612.961 | 07.1999-12.2002 |
| MERCEDES-BENZ | E-CLASS Platform/Chassis (VF211) E 220 CDI (211.606) | OM646.961 | 10.2003-07.2006 |
| MERCEDES-BENZ | E-CLASS Platform/Chassis (VF211) E 270 CDI (211.616) | OM647.961 | 03.2003-07.2009 |
| MERCEDES-BENZ | E-CLASS Platform/Chassis (VF211) E 270 CDI (211.616) | OM647.961 | 10.2003-07.2005 |
| MERCEDES-BENZ | E-CLASS T-Model (S124) E 300 T Turbo-D (124.193) | OM603.960 | 06.1993-06.1996 |
| MERCEDES-BENZ | E-CLASS T-Model (S210) E 270 T CDI | OM612.961 | 02.2000-03.2003 |
| MERCEDES-BENZ | E-CLASS T-Model (S210) E 270 T CDI (210.216) | OM612.961 | 07.1999-03.2003 |
| MERCEDES-BENZ | E-CLASS T-Model (S210) E 320 T CDI (210.226) | OM613.961 | 07.1999-03.2003 |
| MERCEDES-BENZ | E-CLASS T-Model (S211) E 220 CDI (211.206) | OM646.961 | 03.2003-07.2009 |
| MERCEDES-BENZ | E-CLASS T-Model (S211) E 220 T CDI (211.206) | OM646.961 | 03.2003-07.2009 |
| MERCEDES-BENZ | E-CLASS T-Model (S211) E 270 T CDI (211.216) | OM647.961 | 03.2003-07.2009 |
| MERCEDES-BENZ | E-CLASS T-Model (S211) E 270 T CDI (211.216) | OM647.961 | 03.2003-07.2009 |
| MERCEDES-BENZ | E-CLASS T-Model (S211) E 280 T CDI (211.223) | OM648.961 | 05.2004-07.2009 |
| MERCEDES-BENZ | E-CLASS T-Model (S211) E 320 T CDI (211.226) | OM648.961 | 03.2003-07.2009 |
| MERCEDES-BENZ | E-CLASS (W210) E 270 CDI (210.016) | OM612.961 | 07.1999-03.2002 |
| MERCEDES-BENZ | E-CLASS (W210) E 270 CDI (210.016) | OM612.961 | 07.1999-03.2002 |
| MERCEDES-BENZ | E-CLASS (W210) E 300 Turbo-D (210.025) | OM606.962 | 12.1996-07.1999 |
| MERCEDES-BENZ | E-CLASS (W210) E 320 CDI (210.026) | OM613.961 | 07.1999-03.2002 |
| MERCEDES-BENZ | E-CLASS (W211) E 200 CDI (211.004) | OM646.951 | 07.2002-12.2008 |
| MERCEDES-BENZ | E-CLASS (W211) E 200 CDI (211.004) | OM646.951 | 07.2002-12.2008 |
| MERCEDES-BENZ | E-CLASS (W211) E 270 CDI (211.016) | OM647.961 | 03.2002-12.2008 |
| MERCEDES-BENZ | E-CLASS (W211) E 270 CDI (211.016) | OM647.961 | 03.2002-12.2008 |
| MERCEDES-BENZ | E-CLASS (W211) E 280 CDI (211.023) | OM648.961 | 05.2004-12.2008 |
| MERCEDES-BENZ | E-CLASS (W211) E 320 CDI (211.026) | OM648.961 | 11.2002-12.2008 |
| MERCEDES-BENZ | G-CLASS Cabrio (W463) G 300 TD (463.308) | OM606.964 | 09.1996-07.2000 |
| MERCEDES-BENZ | G-CLASS (W461) G 270 CDI | OM612.966 | 01.2003-12.2006 |
| MERCEDES-BENZ | G-CLASS (W463) G 270 CDI (463.322, 463.323) | OM612.965 | 10.2001-07.2003 |
| MERCEDES-BENZ | G-CLASS (W463) G 300 TD (463.330, 463.331) | OM606.964 | 08.1996-07.2000 |
| MERCEDES-BENZ | M-CLASS (W163) ML 270 CDI (163.113) | OM612.963 | 12.1999-06.2005 |
| MERCEDES-BENZ | S-CLASS (W140) S 300 Turbo-D (140.135) | OM606.961 | 05.1996-10.1998 |
| MERCEDES-BENZ | S-CLASS (W220, V220) S 320 CDI (220.025, 220.125) | OM648.960 | 09.2002-08.2005 |
| MERCEDES-BENZ | S-CLASS (W220, V220) S 320 CDI (220.026, 220.126) | OM613.960 | 08.1999-09.2002 |
| MERCEDES-BENZ | SPRINTER 2-t Bus (B901, B902) 216 CDI (902.671, 902.672) | OM612.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 2-t Platform/Chassis (B901, B902) 216 CDI (902.611, 902.612, 902.621, 902.622) | OM612.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 2-t Van (B901, B902) 216 CDI (902.661, 902.662) | OM612.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Bus (B903) 311 CDI (903.671, 903.672) | OM611.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Bus (B903) 316 CDI 4x4 (903.672, 903.673) | OM612.981 | 08.2002-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Bus (B903) 316 CDI 4x4 (903.672, 903.673) | OM647.981 | 08.2002-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Bus (B903) 316 CDI (903.671, 903.672, 903.673) | OM612.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Bus (B903) 316 CDI (903.671, 903.672, 903.673) | OM647.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (B903) 311 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... | OM611.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (B903) 316 CDI 4x4 (903.612, 903.613, 903.622, 903.623) | OM612.981 | 08.2002-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (B903) 316 CDI 4x4 (903.612, 903.613, 903.622, 903.623) | OM647.981 | 08.2002-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (B903) 316 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... | OM612.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Platform/Chassis (B903) 316 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... | OM647.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Van (B903) 311 CDI (903.661, 903.662, 903.663) | OM611.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Van (B903) 316 CDI 4x4 (903.662, 903.663) | OM612.981 | 02.2001-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Van (B903) 316 CDI 4x4 (903.662, 903.663) | OM647.981 | 02.2001-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Van (B903) 316 CDI (903.661, 903.662, 903.663) | OM612.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 3-t Van (B903) 316 CDI (903.661, 903.662, 903.663) | OM647.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 4-t Bus (B904) 416 CDI (904.662, 904.663) | OM612.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 4-t Platform/Chassis (B904) 416 CDI | OM612.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 4-t Platform/Chassis (B904) 416 CDI | OM647.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 4-t Platform/Chassis (B904) 416 CDI 4x4 | OM612.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 4-t Platform/Chassis (B904) 416 CDI 4x4 | OM647.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 4-t Van (B904) 416 CDI | OM612.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 4-t Van (B904) 416 CDI | OM647.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 4-t Van (B904) 416 CDI 4x4 | OM612.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 4-t Van (B904) 416 CDI 4x4 | OM647.981 | 04.2000-05.2006 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B905) 616 CDI (905.612, 905.613, 905.622, 905.623) | OM612.981 | 04.2001-05.2006 |
| MERCEDES-BENZ | SPRINTER CLASSIC 3,5-t Van (B909) 313 CDI (909.632, 909.633) | OM646.701 | 01.2017- |
| MERCEDES-BENZ | SPRINTER CLASSIC 4,6-t Van (B909) 413 CDI (909.643) | OM646.701 | 01.2017- |
| SSANGYONG | ACTYON I 200 Xdi 4WD | D20DT | 07.2007-06.2013 |
| SSANGYONG | ACTYON I 200 Xdi 4WD | D20DT | 10.2006- |
| SSANGYONG | ACTYON I 2.0 Xdi | D20DT | 07.2007-06.2013 |
| SSANGYONG | ACTYON I 2.0 Xdi | D20DT | 11.2005- |
| SSANGYONG | ACTYON SPORTS I (QJ) 2.0 Xdi 4WD | D20DT | 04.2007- |
| SSANGYONG | REXTON / REXTON II (GAB_) 2.9 TD | OM662.925 | 04.2002-08.2006 |
| SSANGYONG | RODIUS I 2.7 Xdi | D27DT | 05.2005- |
| SSANGYONG | RODIUS I 2.7 Xdi | D27DT | 05.2005- |
| SSANGYONG | RODIUS I 2.7 Xdi 4WD | D27DT | 05.2005- |
| SSANGYONG | RODIUS I 2.7 Xdi 4WD | D27DT | 05.2005- |
Reference Information
| 0001223005 | BOSCH |
| 0041516301 | MERCEDES |
| 004151630180 | MERCEDES |
| 0041516701 | MERCEDES |
| 004151670180 | MERCEDES |
| 0041517101 | MERCEDES |
| 004151710180 | MERCEDES |
| 004151790180 | MERCEDES |
| 0051512901 | MERCEDES |
| 005151290180 | MERCEDES |
| 063721202010 | MAGNETI MARELLI |
| 0986018270 | BOSCH |
| 101202 | KUHNER |
| 101202V | KUHNER |
| 112440 | CARGO |
| 11938 | EAI |
| 1516671R | DAF |
| 1516688R | DAF |
| 19997R | WAI |
| 20401103BN | REAL |
| 20401103RC | REAL |
| 220135 | ERA |
| 25-2450 | ELSTOCK |
| 331354 | LOGISTIK |
| 3324 | CEVAM |
| 42018270 | HERTH+BUSS |
| 458469 | VALEO |
| 550.516.102.010 | WAI |
| 550.516.102.018 | WAI |
| 550.516.102.605 | WAI |
| 550.516.102.609 | WAI |
| 6010301.0 | SANDO |
| 6010301.2 | SANDO |
| 6033AC0076 | BOSCH |
| 6611513701 | SSANGYONG |
| 6611514101 | SSANGYONG |
| 726974 | VALEO |
| 88212637 | POWERMAX |
| 8EA737864-001 | HELLA |
| 91-15-7162 | WILSON |
| 943253148010 | MAGNETI MARELLI |
| 944280182700 | MAGNETI MARELLI |
| A0041516301 | MERCEDES |
| A004151630180 | MERCEDES |
| A0041516701 | MERCEDES |
| A004151670180 | MERCEDES |
| A0041517101 | MERCEDES |
| A004151710180 | MERCEDES |
| A004151790180 | MERCEDES |
| A0051511301 | MERCEDES |
| A0051512901 | MERCEDES |
| A005151290180 | MERCEDES |
| AEU1202 | AUTOELECTRO |
| ANM10490X | ANDEL |
| CGB-52450 | AINDE |
| CGB-93005 | AINDE |
| CS1202 | HC PARTS |
| CST10301AS | CASCO |
| CST10301RS | CASCO |
| DRS8270 | DELCO |
| DS9380 | DELCO |
| F032112440 | CARGO |
| LRS01499 | LUCAS |
| LRS1499 | LUCAS |
| MAV123010 | SIOM |
| MQS1202 | MAGNETI MARELLI |
| MRS18270 | MAGNETI MARELLI |
| MSR5348 | MAGNETI MARELLI |
| PRSS047 | 3EFFE |
| S0091 | AS-PL |
| S1053B | PRESTOLITE |
| S12BH0357A2 | SIDAT |
| S133.239 | WAI |
| S-6248 | DIXIE |
| STR1859 | ELECTROLOG |
| STR22089 | WOODAUTO |
| STR22110 | WOODAUTO |
| STRS047 | 3EFFE |
| STX200002 | STARDAX |
| STX200002R | STARDAX |
| STX200074 | STARDAX |
| STX200074R | STARDAX |
| STX200104 | STARDAX |
| STX200104R | STARDAX |
| STX200122 | STARDAX |
| STX200122R | STARDAX |
Video/Publications
S0091View your shopping basket or Browse other items in Starter Motors.
