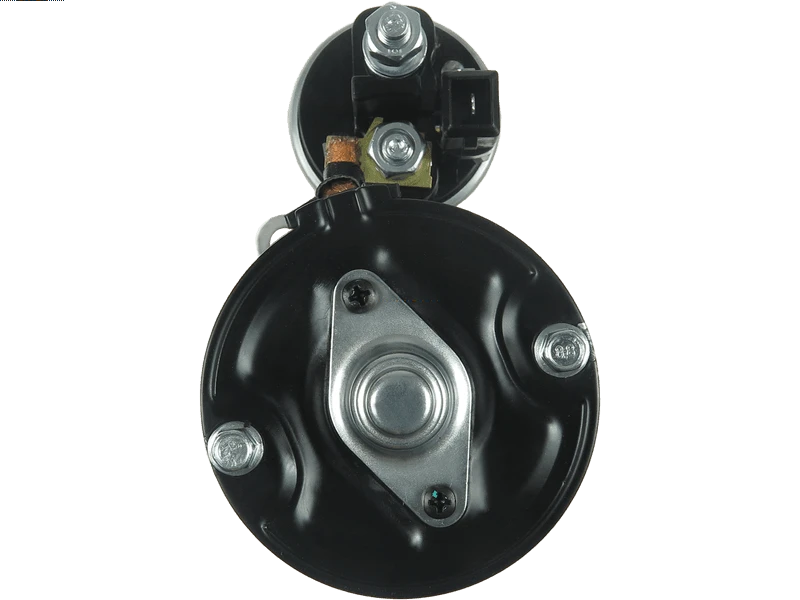

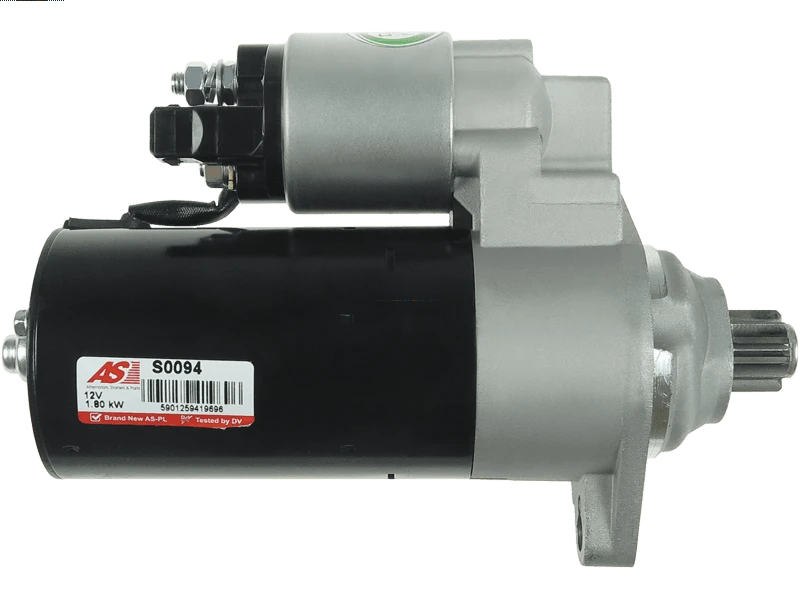

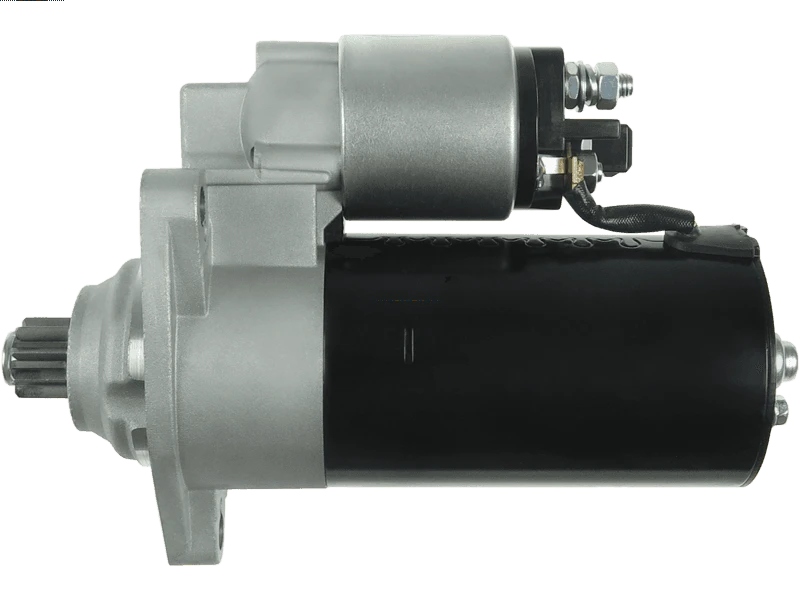

S0094 - Brand new AS-PL Starter motor

Associated Numbers

0001124007 0001124008 0001124011 0001124012 0001124022 0001124023 0001124024 0001124025 0001124026 0001124027 0001125003 063521240220 085911023A 085911023AX 085911023K 085911023L 085911023M 0986017450 10988 11.139.439 111904 11806 20401751BN 20401751OE 20500966 20510172 22.0988 25-2106 300.524.092 31227N 35258640 3836 42017450 458492 6010157 8017450 8213290 88213290 8EA011610-591 8EA737237-001 943253107010 944280174500 AES1272 AZE2665 CS988 CST10157AS CST10157GS DRS7450 EAA-121116 GS124022-A IS9432 LRT00172 MRS17450 MSR5307 S0094 S1060B STB0988 STB9988 STR50012

Specifications

Kilowatt	1.80 kW
Length (L.1)	245 mm
Mount Hole Center - Center (O.1)	111 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
OEM Product	No
Pinion at Rest (B)	46 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	ACW
Spigot Diameter (A)	66 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	A2 1.2 TDi	[ANY]	10.2003-
SEAT	Arosa 1.7 SDi	[AKU]	08.1997-10.2003
SEAT	Ibiza 1.7 SDi	[AKU]	07.1997-08.1999
VW	Lupo 1.2 TDi 3L	[AYZ]	11.2000-07.2005
VW	Lupo 1.7 SDi	[AKU]	04.1998-07.2005
VW	Polo 1.6 GTi 16V	[AVY]	04.1997-12.1999
VW	Polo 1.7 SDi	[AKU]	05.1997-09.2001
VW	Polo 1.9 Diesel	[AEF]	10.1994-09.2001
VW	Polo 1.9 Diesel	[AGD]	07.1996-12.1999
VW	Polo 1.9 SDi	[AGD]	10.1999-09.2001
VW	Polo 1.9 SDi	[ASX]	10.1999-09.2001

Reference Information

0001124007	BOSCH
0001124008	BOSCH
0001124011	BOSCH
0001124012	BOSCH
0001124022	BOSCH
0001124023	BOSCH
0001124024	BOSCH
0001124025	BOSCH
0001124026	BOSCH
0001124027	BOSCH
0001125003	BOSCH
011-001-000261R	REMANTE
021099	DA SILVA
063521240220	MAGNETI MARELLI
085911023A	VW
085911023AV	VW
085911023AX	VW
085911023FX	VW
085911023K	VW
085911023KX	VW
085911023L	VW
085911023M	VW
085911023MX	VW
0986017450	BOSCH
10010157AV	ITAB AUTOMOTIVE
103650	FARCOM
10440686	ALANKO
10988	KUHNER
11017450	EUROTEC
11.139.439	ISKRA / LETRIKA
111904	CARGO
11806	EAI
13869	MAPCO
1638128180	EUROREPAR
20401751BN	REAL
20401751OE	REAL
20510172	PRESTOLITE
220130	ERA
220130A	ERA
220130R	ERA
22.0988	LAUBER
25-2106	ELSTOCK
2S0129	RIDEX
2S0129R	RIDEX
30-0314	AIRSTAL
300.524.092.010	PSH
300.524.092.210	PSH
300.524.092.215	PSH
300.524.092.340	PSH
300.524.092.440	PSH
300.524.092.461	PSH
311062092	DRI
3116735	HENKEL PARTS
3116736	HENKEL PARTS
3116738	HENKEL PARTS
31227N	WAI / TRANSPO
331140	LOGISTIK
3836	CEVAM
42017450	HERTH+BUSS
458492	VALEO
4717450	NK
5010316	MEAT & DORIA
6010157.0	SANDO
6010157.1	SANDO
726050	VALEO
726850	VALEO
8017450	FRIESEN
806ST11	STARTCAR
8213290	POWERMAX
85911023A	VW
85911023AV	VW
85911023AX	VW
85911023FX	VW
85911023K	VW
85911023KX	VW
88213290	POWERMAX
8EA011610-591	HELLA
8EA011610-592	HELLA
8EA737237-001	HELLA
943253107010	MAGNETI MARELLI
944280174500	MAGNETI MARELLI
A17450	ATL AUTOTECHNIK
AC-CBS0988	ACAUTO
AES1272	AUTOELECTRO
AI-80156	AINDE
ANM19670	ANDEL
ANM19670X	ANDEL
AZE2665	ISKRA / LETRIKA
BOL-B051080	BOLK
BREF0320986017450	CARWOOD GROUP
BREF032111904	CARWOOD GROUP
BST2190	BORG & BECK
CS988	HC PARTS
CST10157AS	CASCO
CST10157GS	CASCO
DRS7450	DELCO
F032111904	CARGO
GS124022-A	GPARTS
IR8342	PROTECH
IS9432	ISKRA / LETRIKA
JD021099	DA SILVA
LES0508	LE PART
LRT00172	LUCAS
LRT172	LUCAS
MAV172100	SIOM
MAV6760	SIOM
MRS17450	MAGNETI MARELLI
MS 125	MAHLE
MSQ0165	DA SILVA
MSR5307	MAGNETI MARELLI
PRSF516	3EFFE
PRSL017	3EFFE
QRS2152	QUINTON HAZELL
RE81020N	THE NEWLINE
S0094	AS-PL
S100401	BTS TURBO
S1060B	PRESTOLITE
S12BH0438A2	SIDAT
S132.200	PSH
S148.606	PSH
S-50012	DTS
SBO157	AUTOTEAM
SBO157A	AUTOTEAM
SG0394	GHIBAUDI
SG0394RB	GHIBAUDI
SKSTR-0330128	STARK
ST00778	TMI
STA0211R	BOVEZ
STR1581	ELECTROLOG
STR50012	WOODAUTO
STR79673	ELECTROLOG
STRF516	3EFFE
STRL017	3EFFE
STX200108	STARDAX
STX200108R	STARDAX
TT15606PRO	TESLA TECHNICS
VW9040	SNRA
WST00654	WALKER
