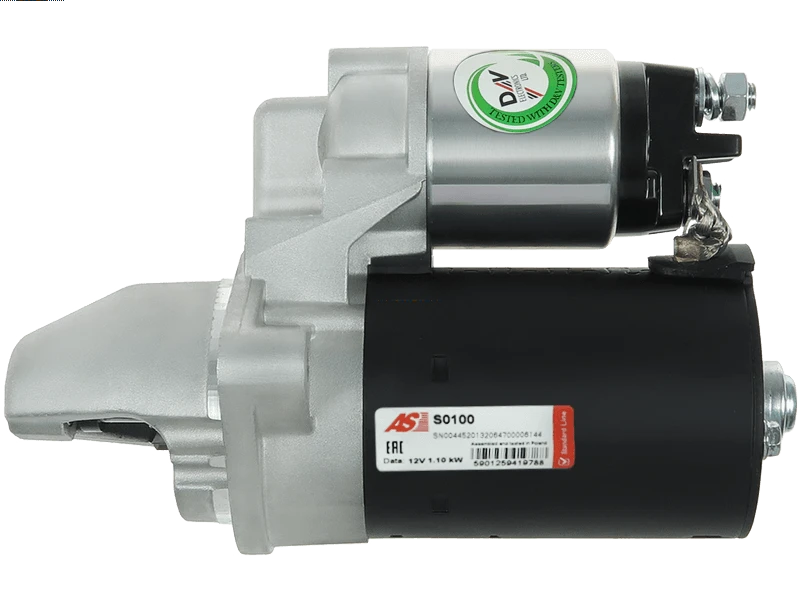

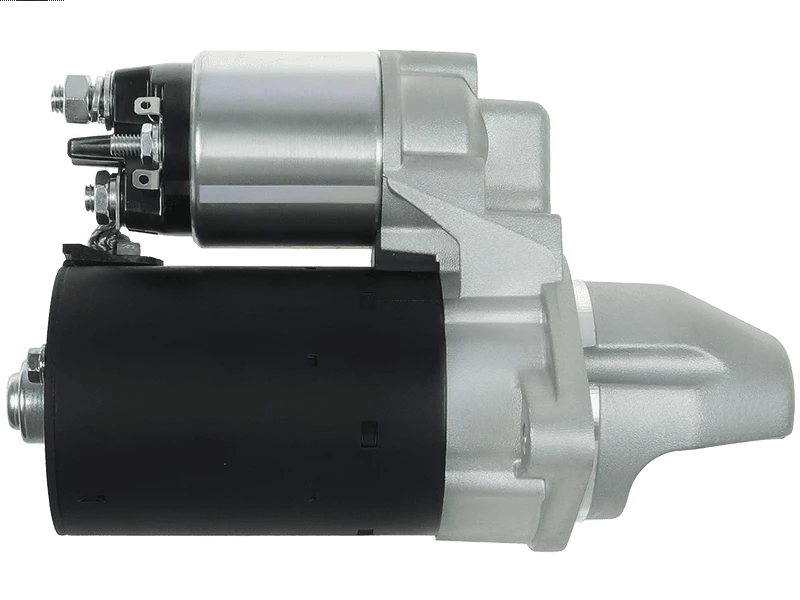

S0100 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 224.80 including GST

NZ$ 195.48 excluding GST
each
S0100
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

063521074370 063721334010 0986021240 101334 101334B 101334K 101334M 101334V 11131902 113843 11958 130.540.092 20401152 20479821 220211 25-4476 254307V 31100-84EC0 31100-85E00 31100M86J01 3141 33169N 33353237 42107429 438211 438212 438270 458375 458430 55353257 553532570 55561503 55569540 55578093 6.0116.9 6010251 6015128 6202071 6202083 6202099 72735663 88212820 8EA012526-971 8EA738232-001 93178138 93186246 93189232 944280212400 AZD2125 BOS0001107444 CS1334 CST10251 CST10251AS CST10251ES CST10251GS CST10251OS CST10251RS CST15128 CST15128AS CST15128ES CST15128GS CST15128OS CST15128RS D6G33 D6G332 DRT1240 DT2350 EAA-121022 EAA-121040 G201334B-R GS107437-A IS1286 LRS03803 MRS21240 MS35 NEU1334 R1540025 RAS42351 RNL2124 RNLD6G33 S1207V SG0101 SS094 STB1334 STR50387 STR54081 VAL438270 S0100 0001107437
Kilowatt1.1 kW
Length (L.1)203.5 mm
Mount Hole Center - Center (O.1)102 mm
Mount Hole Diameter (C.1)8.5 mm
Mount Hole Diameter (C.2)M8x1.25 mm
No./Mount holes2 qty
No./Mount holes with thread1 qty
No./Teeth9 qty
No./Teeth (Replaces)9 qty
Pinion at Rest (B)24 mm
RotationCW
Spigot Diameter (A)64 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
FIAT Linea 1.3 Multijet [199A3.000] 06.2007-
FIAT Panda 1.3 JTD [188A8.000] 03.2004-
LANCIA Musa 1.3 Multijet [199A3.000] 09.2006-
OPEL Agila 1.3 CDTi [Z13DT] 08.2003-12.2007
OPEL Astra 1.3 CDTi [Z13DTH] 02.2007-
OPEL Astra 1.3 CDTi [Z13DTH] 08.2005-
OPEL Astra 1.3 CDTi GTC [Z13DTH] 01.2006-
OPEL Combo 1.3 CDTi 16V [Y13DT] 10.2004-
OPEL Combo 1.3 CDTi 16V [Z13DT] 08.2005-
OPEL Combo 1.3 CDTi 16V [Z13DT] 10.2004-
OPEL Combo 1.3 CDTi 16V [Z13DTJ] 10.2005-
OPEL Corsa 1.2 CDTi [B13DTC] 09.2014-
OPEL Corsa 1.3 CDTi [Z13DT] 06.2003-
OPEL Corsa 1.3 CDTi [Z13DTH] 07.2006-
OPEL Corsa 1.3 CDTi [Z13DTJ] 07.2006-
OPEL Corsa 1.3 CDTi 16V [Z13DT] 08.2005-
OPEL Meriva 1.3 CDTi [Z13DT] 04.2005-
OPEL Tigra 1.3 CDTi [Z13DT] 06.2004-
SUZUKI Ignis 1.3 DDiS [Z13DT] 09.2003-
SUZUKI Splash 1.3 CDTi [D13A] 01.2008-
SUZUKI Splash 1.3 CDTi [Z13DTJ] 01.2008-
SUZUKI Swift 1.3 DDiS [D13A] 08.2005-
SUZUKI Swift 1.3 DDiS [Z13DT] 08.2005-
SUZUKI Wagon R+ 1.25 DDiS [Z13DT] 09.2003-
VAUXHALL Astra 1.3 CDTi [Z13DTH] 08.2005-
VAUXHALL Astra 1.3 CDTi [Z13DTH] 10.2005-
VAUXHALL Combo 1.3 CDTi 16V [Z13DT] 09.2004-
VAUXHALL Combo Tour 1.3 CDTi 16V [Y13DT] 09.2004-09.2006
VAUXHALL Combo Tour 1.3 CDTi 16V [Z13DT] 09.2004-09.2006
VAUXHALL Corsa 1.3 CDTi [Z13DTJ] 07.2006-
VAUXHALL Corsa 1.3 CDTi 16V [Z13DT] 08.2003-
VAUXHALL Corsa 1.3 CDTi 16V [Z13DTJ] 09.2005-09.2006
VAUXHALL Corsavan 1.3 CDTi 16V [Z13DT] 04.2004-06.2006
VAUXHALL Corsavan 1.3 CDTi 16V [Z13DTH] 07.2006-
VAUXHALL Corsavan 1.3 CDTi 16V [Z13DTJ] 07.2006-
VAUXHALL Meriva 1.3 CDTi [Y13DT] 04.2005-06.2010
VAUXHALL Meriva 1.3 CDTi [Z13DT] 04.2005-06.2010
VAUXHALL Tigra 1.3 CDTi [Z13DT] 06.2004-08.2009
31100-M86J20 33353237 55353257 6202071 6010251 130.540.092.280 95519003 31100M86J20 55561503 8EA012526-971 55584688 STRL075V 000986021240 101334B 63521074370 DRT1240 000986021243 1202224 STB1334 6202083 CST15128AS 20479821BN 438211 55217673 1107444 STR1479 9.43213E+11 MSN2078 31100-M86J01 331877 3141 6202099 31100-84EC0 6202095 3110085 55353237 6015128 93178138 5015836 6015128.1 3110084EC0000 11.131.902 20401152OE STRL075 130.540.092.010 55353247 88212820 1107437 31100-85E00 55234810 CST10251GS 31100M86J01000 STRL075NE CS1334 55578093 98186246 42107429 130.540.092.000 55569540 33169N S1207V 1107429 63721334010 3110086J01000 458430 93190320 95518997 5010005 STM1324 113843 6010251.1 20479821OE UD16893S STR79291 MS35 553532570 93186246 SG0101 93189232 LRS2168 0001107444 CST10251AS 31100-86J20 130.540.092.502 220211 CST15128GS 95918997 MSRC1334 STM766 1202399 GS107437B-R 25-3342 R1540025 986021243 986021240 458375 31100M86J01 31100M86J12000 0001107437 GS107437-A S12BH0033A2 LRS02168 MRS21240 438270 3110084EC0 101334 0001107429 STR50387 20401152BN UD20827S
0001107437 063521074370 063721334010 0986021240 1005831433 101334 101334B 101334K 101334M 101334V 11131902 113843 11958 130.540.092 20401152 20479821 220211 25-3342 254307V 31100-84EC0 31100-85E00 31100M86J01 3141 33169N 33353237 42107429 438211 438212 438270 458375 458430 55353257 553532570 55561503 55569540 55578093 6.0116.9 6010251 6015128 6202071 6202083 6202099 72735663 88212820 8EA012526-971 8EA738232-001 93178138 93186246 93189232 944280212400 AZD2125 BOS0001107444 CS1334 CST10251 CST10251AS CST10251ES CST10251GS CST10251OS CST10251RS CST15128 CST15128AS CST15128ES CST15128GS CST15128OS CST15128RS D6G33 D6G332 DRT1240 DT2350 EAA-121022 EAA-121040 G201334B-R GS107437-A IS1286 LRS03803 LRS3803 MAV122510 MAV4780 MRS21240 MS 35 MS35 NEU1334 R1540025 RAS42351 RNL2124 RNLD6G33 S0100 S1207V SG0101 SS094 STB1334 STR50387 STR54081 STRL075 UD16893S UD20827S VAL438270 220432 0001107429
