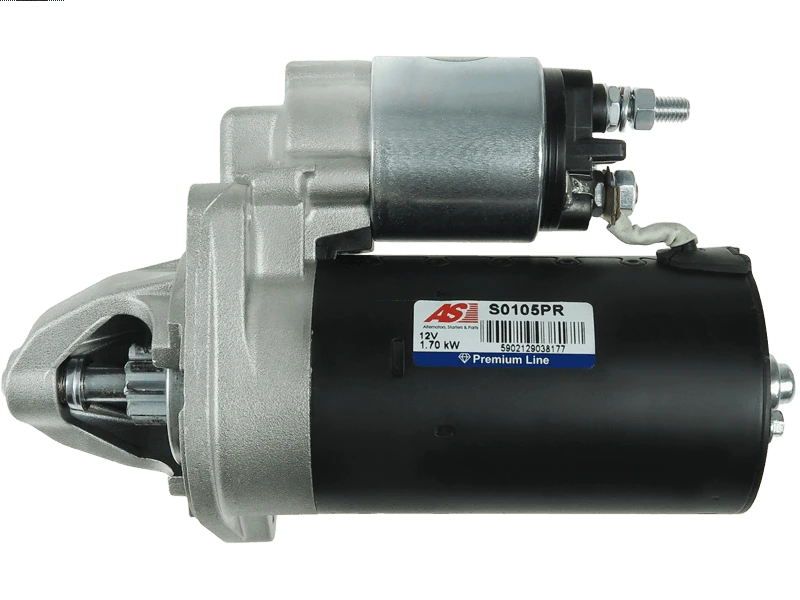

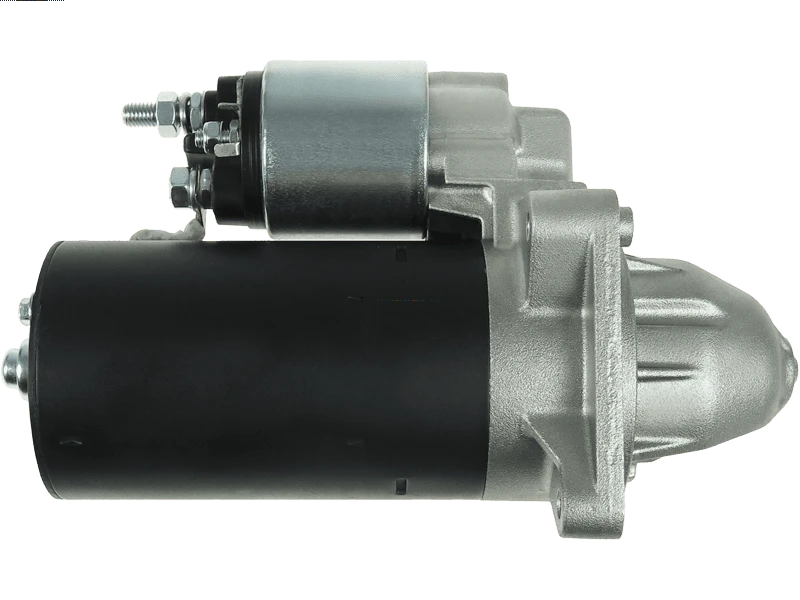

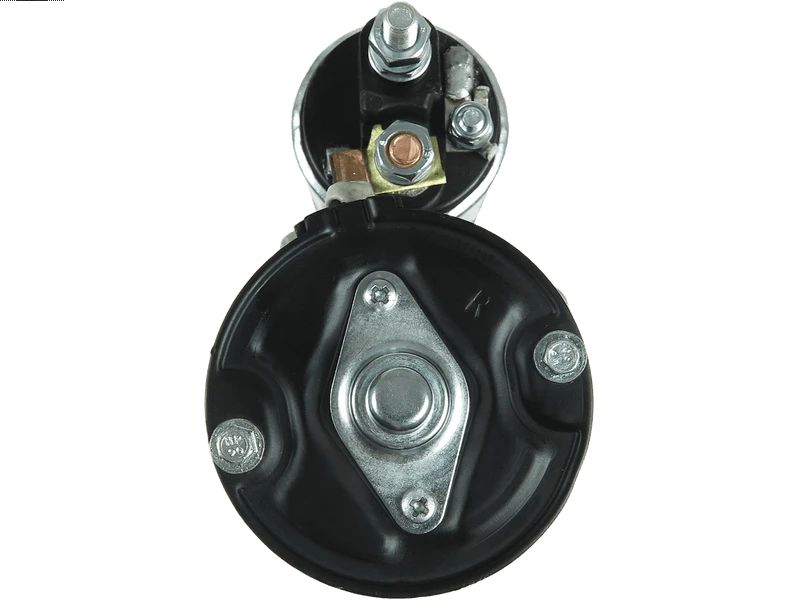

Remanufactured AS-PL Starter motor
PREMIUM LINE
AS-PL
BOSCH
Price:
NZ$ 218.12 including GST
NZ$ 189.67 excluding GST
or four payments of $54.53
with
Learn More
each
S0105PR
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
0001109018 0001110092 0001110102 0001110124 0986016870 101037 113752 11682 220185 220460 25-2166 254858 26943 26945 26946 31199N 31199R 35258485 35258840 3647 42016870 46430721 4643970 46439700 46554407 500.510.093 6010148 63112003 7692102 7770210 8EA012526-641 8EA737254-001 AES1250 AES6165 CS1037 CST10148 CST10148AS CST10148ES CST10148GS CST10148OS CST10148RS EAA-121143 GS109018-A GS109018B-R LRT00150 SG0112 STR50113Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 240 mm |
| Mount Hole Center - Center (O.1) | 80 mm |
| Mount Hole Center - Center (O.2) | 114 mm |
| Mount Hole Center - Center (O.3) | 75 mm |
| Mount Hole Diameter (C.1) | M8x1.25 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 23 mm |
| Product Line | Premium Line |
| Product Type | Remanufactured |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Fiorino 1.7 D | [146B2.000] | 10.1993-10.1999 |
| FIAT | Fiorino 1.7 D | [146B3.000] | 01.1999-12.2001 |
| FIAT | Fiorino 1.7 TD | [146D7.000] | 01.1997-05.2001 |
| FIAT | Fiorino 1.7 TD S | [146D7.000] | 11.1996-05.2000 |
| FIAT | Palio 1.7 TD | [178B3.000] | 01.1997-12.2000 |
| FIAT | Punto 1.7 D | [176B3.000] | 04.1994-09.1997 |
| FIAT | Punto 1.7 D | [176B3.000] | 04.1996-02.2000 |
| FIAT | Punto 1.7 TD | [176A3.000] | 01.1994-09.1999 |
| FIAT | Punto 1.7 TD | [176A5.000] | 01.1994-09.1999 |
| FIAT | Punto 1.7 TD | [176A5.000] | 04.1996-02.2000 |
| FIAT | Punto 1.7 TD | [176B7.000] | 09.1996-09.1999 |
| FIAT | Punto 55 1.7 D | [176B3.000] | 01.1993-12.1999 |
| FIAT | Punto 60 1.7 TD | [176B7.000] | 01.1996-12.1999 |
| FIAT | Siena 1.7 D GL | [176A3.000] | 02.2006- |
| FIAT | Siena 1.7 TD | [176A3.000] | 01.2005- |
| FIAT | Strada 1.7 TD | [176A3.000] | 06.1999- |
| FIAT | Uno 1.7 D | [146B2.000] | 09.1989-12.1993 |
Reference Information
| 0001109018 | BOSCH |
| 0001110092 | BOSCH |
| 0001110102 | BOSCH |
| 0001110124 | BOSCH |
| 0986016870 | BOSCH |
| 101037 | KUHNER |
| 113752 | CARGO |
| 11682 | EAI |
| 220185 | ERA |
| 220460 | ERA |
| 25-2166 | ELSTOCK |
| 254858 | KUHNER |
| 26943 | LUCAS |
| 26945 | LUCAS |
| 26946 | LUCAS |
| 31199N | WAI / TRANSPO |
| 31199R | WAI / TRANSPO |
| 35258485 | VALEO |
| 35258840 | PRESTOLITE |
| 3647 | CEVAM |
| 42016870 | HERTH+BUSS |
| 46430721 | FIAT |
| 46439669 | FIAT |
| 4643970 | FIAT |
| 46439700 | FIAT |
| 46440079 | FIAT |
| 46554407 | FIAT |
| 500.510.093 | PSH |
| 500.510.093.010 | PSH |
| 500.510.093.215 | PSH |
| 500.510.093.461 | PSH |
| 500.510.093.463 | PSH |
| 5010064 | MEAT & DORIA |
| 6010148 | SANDO |
| 63112003 | MAGNETI MARELLI |
| 71782403 | FIAT |
| 7692102 | FIAT |
| 7770210 | FIAT |
| 8EA012526-641 | HELLA |
| 8EA737254-001 | HELLA |
| AES1250 | AUTOELECTRO |
| CS1037 | HC PARTS |
| CST10148 | CASCO |
| CST10148AS | CASCO |
| CST10148ES | CASCO |
| CST10148GS | CASCO |
| CST10148OS | CASCO |
| CST10148RS | CASCO |
| F032113752 | CARGO |
| GS109018-A | GPARTS |
| GS109018B-R | GPARTS |
| LRT00150 | LUCAS |
| MAV175000 | SIOM |
| MAV6340 | SIOM |
| MAV6700 | SIOM |
| PRSL007 | 3EFFE |
| S12BH0029A2 | SIDAT |
| SG0112 | GHIBAUDI |
| STM529 | ROLLCO |
| STR1328 | ELECTROLOG |
| STR1367 | ELECTROLOG |
| STR50113 | WOODAUTO |
| STRL007 | 3EFFE |
| STX200234 | STARDAX |
| STX200234R | STARDAX |
| STX200464 | STARDAX |
| STX200690 | STARDAX |
Video/Publications
