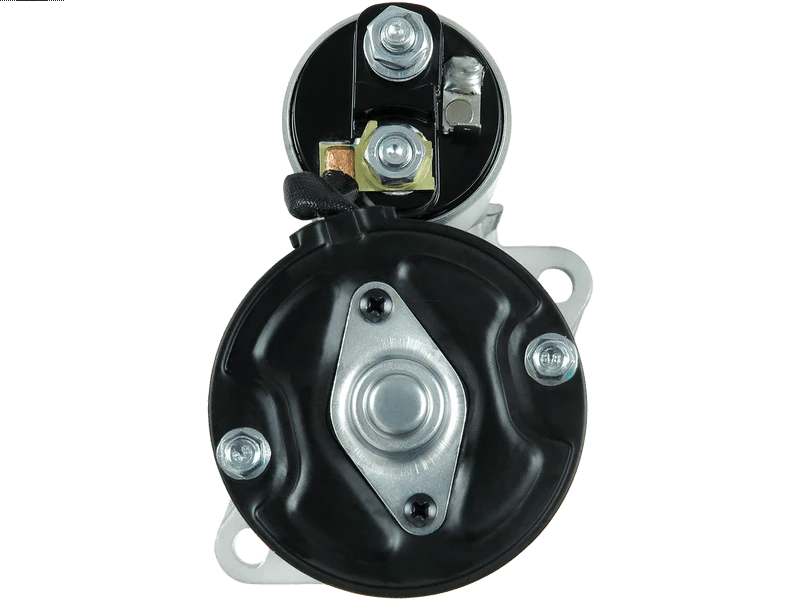

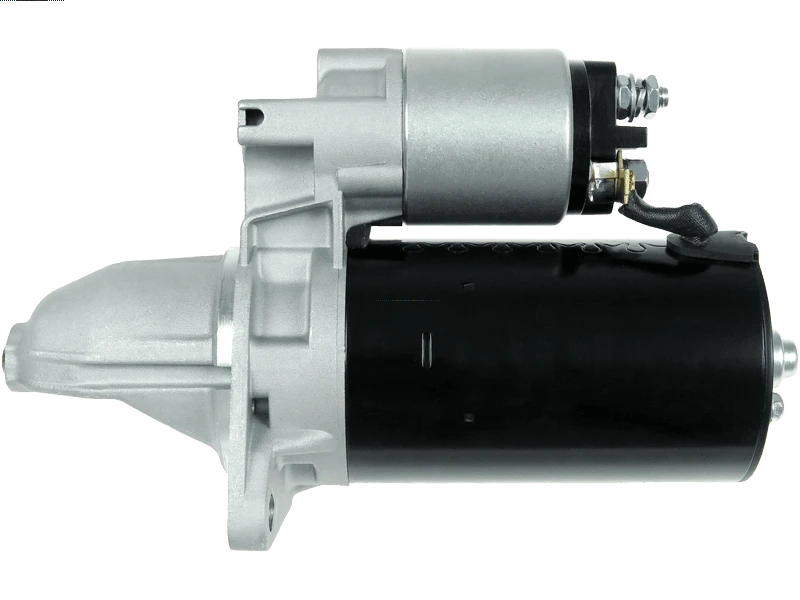

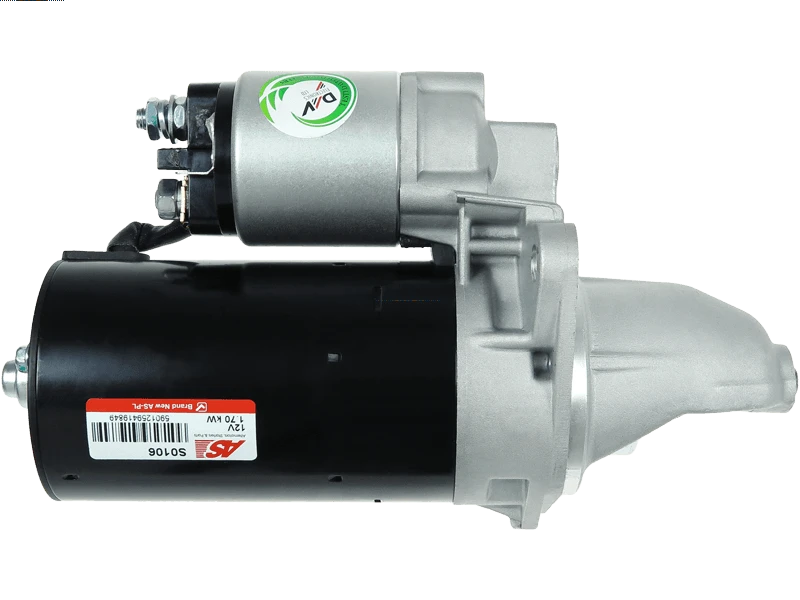

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 261.28 including GST
NZ$ 227.20 excluding GST
or four payments of $65.32
with
Learn More
each
S0106
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001109040Associated Numbers
0001109040 0001110090 0001110120 0986017440 101049 11.139.432 111865 11881 17792N 17792R 20510169 22.1049 22.1049M 25-2103 3819 450.544.092 458566 6010208 72735800 8017440 88212283 8EA737314-001 91-15-7105 943226801010 943253138010 944280174400 AES1269 AZE2201 B001116118 CS1049 CST10208 CST10208AS CST10208ES CST10208GS CST10208OS CST10208RS DRS3719 DS4829 EAA-121445 ERR6087 ESR2191 F042002077 IS9425 LRT00169 MRS17440 MS172 MSR139 MSR5338 NAD10038 NAD10119 NAD101190 NAD10149 NAD101490 RAS34820 RTC6061N S-6171 SG0719 STB1049 STB8049 STR50059Specifications
| Kilowatt | 1.7 kW |
| Length (L.1) | 256 mm |
| Mount Hole Center - Center (O.1) | 118 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 40 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 73 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LAND ROVER | Defender 3.5 V8 | 01.1993-12.1998 | |
| LAND ROVER | Defender 3.9 V8 | 09.1995-12.2001 | |
| LAND ROVER | Discovery 4.0 | [35D] | 10.1993-11.1998 |
| LAND ROVER | Discovery 4.0 | [36D] | 10.1993-11.1998 |
| LAND ROVER | Discovery 4.0 V8 | 11.1998- | |
| LAND ROVER | Range Rover 3.5 | [31D] | 01.1987-09.1990 |
| LAND ROVER | Range Rover 3.5 Vogue | [11D] | 08.1981-09.1990 |
| LAND ROVER | Range Rover 3.9 | [37D] | 11.1988-04.1996 |
| LAND ROVER | Range Rover 3.9 | [38D] | 11.1988-04.1996 |
| LAND ROVER | Range Rover 3.9 | [42D] | 07.1994-09.2002 |
| LAND ROVER | Range Rover 3.9 Vogue SEI | [35D] | 09.1994-04.1996 |
| LAND ROVER | Range Rover 3.9 Vogue SEI | [36D] | 09.1994-04.1996 |
| LAND ROVER | Range Rover 4.0 | 09.1994-09.2002 | |
| LAND ROVER | Range Rover 4.3 Vogue LSE | [40D] | 09.1992-04.1996 |
| LAND ROVER | Range Rover 4.6 | [46D] | 07.1994-09.2002 |
Reference Information
BREF0321986S00723 TT15212 944280174400 F042002077 MS172 S12BH0459A2 AES1269 220479 PRSW408 943253138010 011-001-000326R 111865 5010443 ST00776 0001110120 F032111865 DRS3719 0001110090 S0106 25-2103 881ST11 S-6171 6010208.0 22.1049 LRT169 72735800 11.139.432 88212283 AC-CBS0589 NAD10149 STB8049 RTC6061N PRC6578 NAD101190E LRT00169 193422 3819 CST10208AS 17792R 17792N 17453N 339011092 SG0719 ANM15939X 11017440 ERR6087 CMA-621445 DS4829 ERR6087E 450.544.092.340 S100199 MSR139 STR79667 ANM15939 QRS1952 LES0068 AZE2201 20510169 22.1049M NAD101190 MSR5338 1986S00723 STR50059 AZMT-53-010-1340 103648 AC-CBS1049 943226801010 MAV4050 NAD10038E 0986017440 CS1049 NAD10119 LR9005 91-15-7105 PRC5658 331201 BREF032111865 2S0319 ESR2192 RTC5228 SKSTR-0330318 STRW408 458566 8EA737314-001 3118160 8017440 B001116118 NAD101490 450.544.092.010 STB1049 STX200285 V48-12-17440 11881 101049 MRS17440 STR1166 S104912 BREF0320986017440 MAV4050A RAS34820 20401802BN 0001109040 IS9425 WG2044928Video/Publications
