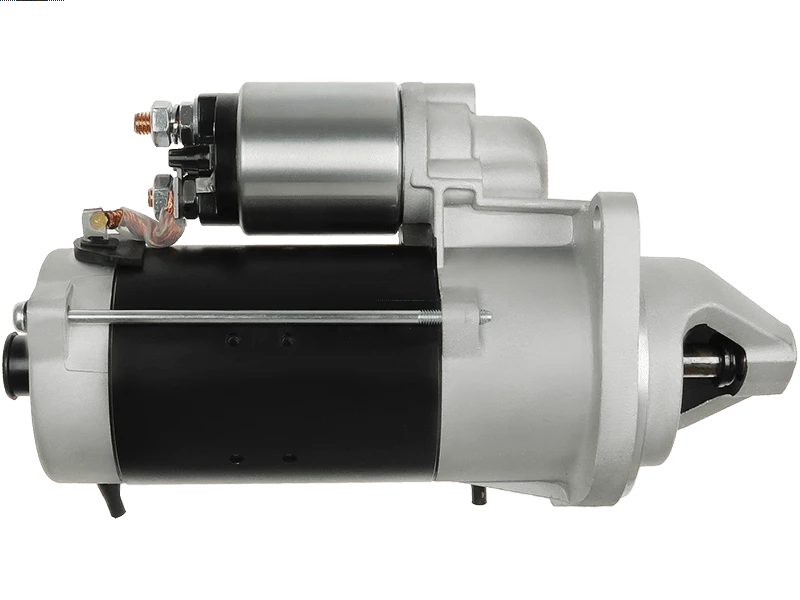

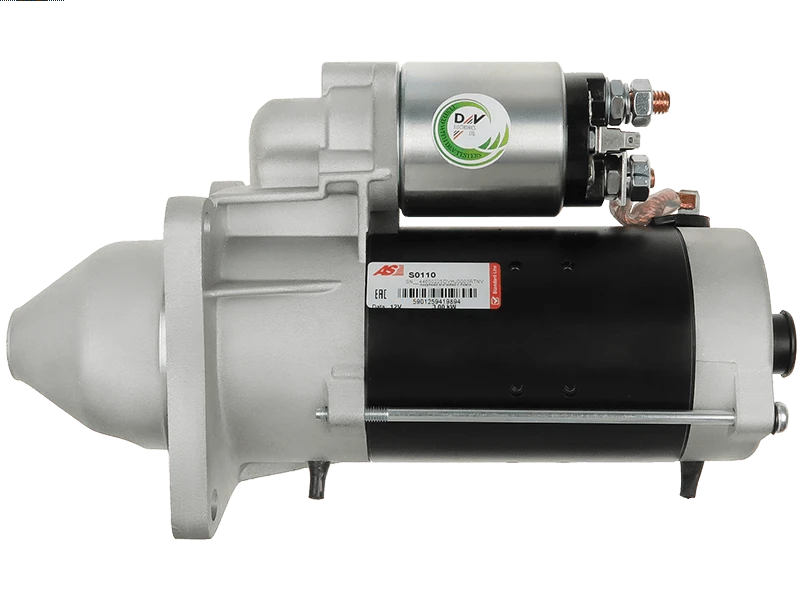

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 491.25 including GST
NZ$ 427.17 excluding GST
or four payments of $122.81
with
Learn More
UOM:
each
Product Code:
S0110
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001230009Associated Numbers
0001230009 0001359122 0001367029 101184 10370 10682 10682M 11.130.366 11.130.697 110522 11420 14650 17092N 19024202 19024263 20401353BN 20401732BN 20401732EL 20404771OE 25-0472 25-472 254321 33340 35259940 436044 4804376 4807376 500.539.093 500325146 6010237 6010353 6030177 63216896 8597 8EA730198-001 AES9140 AZJ3237 AZJ3594 CS682 CST10237AS CST10237ES CST10353AS CST10353GS CST30177GS DRS0025 DRS2720 EAA-121422 LRS00940 LRS01103 M1301 MT68LB MT68LC SS667 STR52022 VS251Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 315 mm |
| Mount Hole Center - Center (O.1) | 103 mm |
| Mount Hole Center - Center (O.2) | 146 mm |
| Mount Hole Center - Center (O.3) | 103 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| Mount Hole Diameter (C.3) | 12 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 27 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 110 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | 100.90 5.4 Diesel | [8065.06.200] | 06.1984-08.1988 |
| FIAT | 110.90 5.9 Diesel | [8065.05.220] | 11.1986-08.1988 |
| FIAT | 115.90 5.9 Diesel | [8065.05.000] | 01.1984-08.1988 |
| FIAT | 130.90 5.9 Diesel | [8065.25.010] | 01.1984-08.1988 |
| FIAT | 140.90 5.9 Diesel | [8065.25.000] | 01.1984-08.1988 |
| FIAT | 160.90 8.1 Diesel | [OM8365.25.5..] | 01.1984-08.1988 |
| FIAT | 180.90 8.1 Diesel | [OM8365.25.5..] | 01.1984-08.1988 |
| FIAT | 90.90 4.9 Diesel | [8055.05.200] | 06.1984-08.1988 |
| FIAT | 95.55 4.9 Diesel | [8055.05.205] | 10.1984-08.1988 |
| IVECO | 8361 8.1 | [8361.25..] | 06.1983-12.2000 |
| URSUS | 1614 | 07.1981-12.1989 |
Reference Information
| 0001230009 | BOSCH |
| 10010353AV | ITAB AUTOMOTIVE |
| 20401353BN | REAL |
| 20401353OE | REAL |
| 220858 | ERA |
| 220858A | ERA |
| 254321 | KUHNER |
| 3118776 | HENKEL PARTS |
| 330834 | LOGISTIK |
| 500325146 | IVECO |
| 6010353.0 | SANDO |
| 6010353.1 | SANDO |
| 8027 | CEVAM |
| AM-2614L | AUTO MAGNETO |
| ANM12245 | ANDEL |
| CGB-93009 | AINDE |
| CST10353AS | CASCO |
| CST10353GS | CASCO |
| LES0560 | LE PART |
| S0110 | AS-PL |
| S12BH0662A2 | SIDAT |
| STB0682 | KRAUF |
| STR1720 | ELECTROLOG |
| STR52022 | WOODAUTO |
| STR7917 | ELECTROLOG |
| WG2013427 | WILMINK GROUP |
Video/Publications
