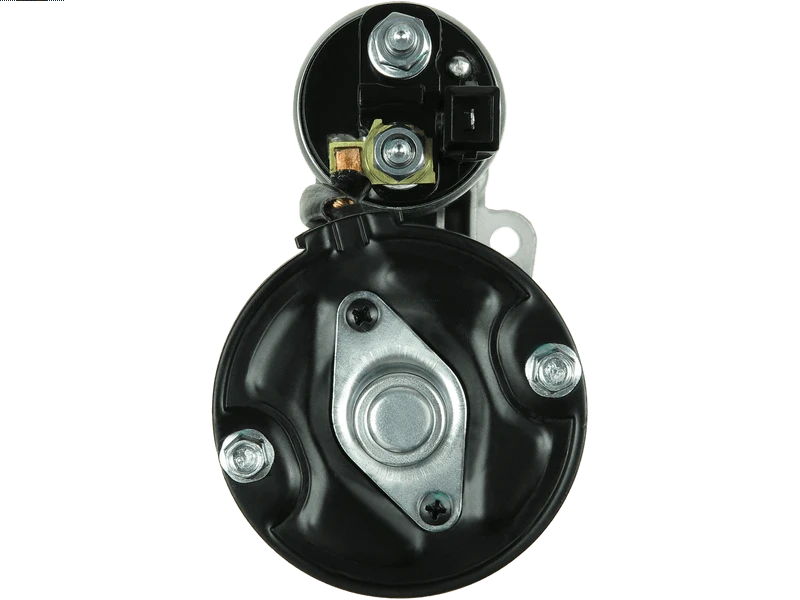

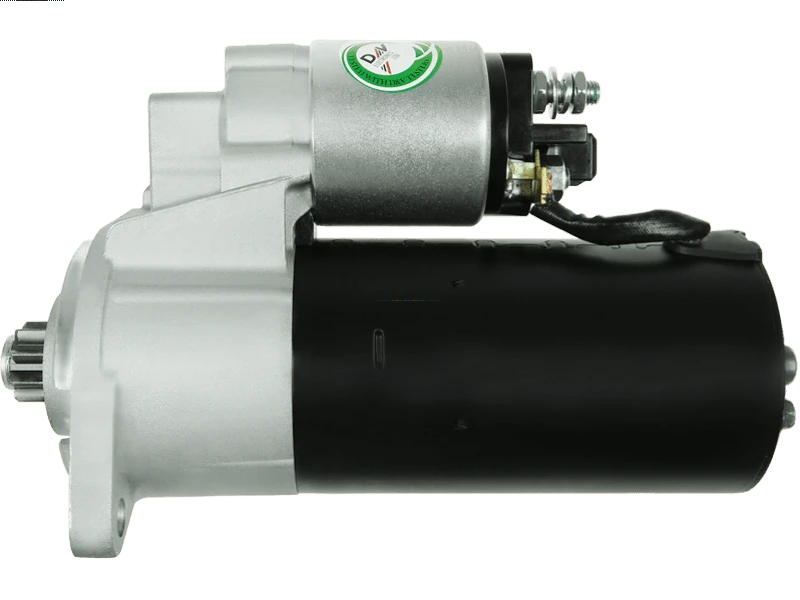

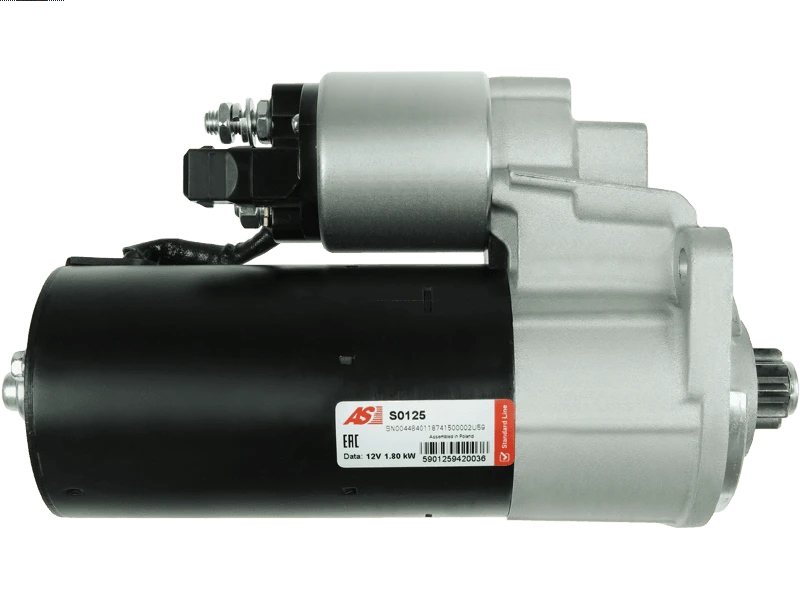

S0125 - Brand new AS-PL Starter motor

Associated Numbers

0001124013 0001124014 0986015701 0986018410 101047 103743 10561 112236 11802 20401453BN 20401453OE 20510110 20510219 22.1047 22.1047M 25-2204 31219N 3685 441.04009-219.6 441040092196 441040092206 458552 6010354 6U0911023 6U0911023A 6U0911023AX 6U0911023B 8018410 8213354 88213354 8EA012526-531 8EA726737306 8EA737306-001 9141399 943253156010 A18410 AES2219 B001127041 CS1047 CST10354AS CST10354GS DRS3636 EAA-121146 LRT00219 M1204E MSR5356 RNL1841 S0125 S1047B S1048B SS456 STR50179

Specifications

Kilowatt	1.80 kW
Length (L.1)	246 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	10.50 mm
Mount Hole Diameter (C.2)	10.50 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
OEM Product	No
Pinion at Rest (B)	26.50 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	ACW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
SEAT	Cordoba 1.8 i	[ADZ]	02.1993-06.1999
SEAT	Cordoba 1.8 i 16V	[ADL]	10.1993-08.1996
SKODA	Felicia 1.9 Diesel	[AEF]	01.1998-06.2001
SKODA	Felicia 1.9 Diesel	[AEF]	05.1996-08.2001
SKODA	Felicia 1.9 Diesel	[AEF]	06.1997-
SKODA	Felicia 1.9 Diesel	[AEF]	10.1995-03.1998
SKODA	Octavia 1.6	[AEF]	07.1998-
VW	Caddy 1.6	[1F]	11.1995-05.1997
VW	Caddy 1.6	[AEE]	11.1995-09.2000
VW	Caddy 1.6	[AEF]	11.1995-05.1997
VW	Caddy 1.9 Diesel	[1F]	06.1996-12.2000
VW	Caddy 1.9 Diesel	[AEF]	06.1996-12.2000
VW	Golf III 1.4	[1F]	11.1991-08.1997
VW	Golf III 1.4	[ABD]	07.1993-04.1999
VW	Golf III 1.4	[ABS]	07.1993-04.1999
VW	Golf III 1.4	[AEX]	07.1993-04.1999
VW	Golf III 1.6	[ABD]	09.1992-08.1997
VW	Golf III 1.6	[AEA]	09.1992-08.1997
VW	Golf III 1.6	[AEK]	07.1994-04.1999
VW	Golf III 1.6	[AEK]	07.1995-08.1997
VW	Golf III 1.6	[AFT]	10.1994-05.1998
VW	Golf III 1.6	[AGG]	07.1995-08.1997
VW	Golf III 1.6	[AKS]	07.1994-04.1999
VW	Golf III 1.8	[AAM]	11.1991-08.1997
VW	Golf III 1.8	[ADZ]	11.1991-08.1997
VW	Golf III 1.8	[AEE]	11.1991-08.1997
VW	Golf III 1.8	[APQ]	07.1993-05.1998
VW	Golf III 1.8 Syncro	[ACC]	01.1993-08.1997
VW	Golf III 2.0	[ADY]	07.1993-05.1998
VW	Golf III 2.0	[ADZ]	07.1993-05.1998
VW	Golf IV 1.6	[AEK]	06.1998-06.2002
VW	Polo 1.8 Classic Hybrid	[AKS]	04.1997-09.1998
VW	Vento 1.4	[AEX]	11.1991-09.1998
VW	Vento 1.4		11.1991-09.1998
VW	Vento 1.6	[ADZ]	10.1994-09.1998
VW	Vento 1.6	[AEA]	09.1992-09.1998
VW	Vento 1.6	[AEK]	10.1994-09.1998
VW	Vento 1.6	[AEX]	09.1992-09.1998
VW	Vento 1.6	[AFT]	10.1994-09.1998
VW	Vento 1.8	[AAM]	11.1991-09.1998
VW	Vento 1.8	[AEE]	11.1991-09.1998

Reference Information

0001124013	BOSCH
0001124014	BOSCH
0986018410	BOSCH
101047	KUHNER
103743	FARCOM
112236	CARGO
11802	EAI
20401453BN	REAL
20401453OE	REAL
20401453RC	REAL
20408301BN	REAL
20510219	PRESTOLITE
220053	ERA
22.1047	LAUBER
22.1047M	LAUBER
25-2204	ELSTOCK
31219N	WAI / TRANSPO
331199	LOGISTIK
3685	CEVAM
438466	VALEO
440.502.092.010	PSH
440.502.092.018	PSH
440.502.092.210	PSH
440.502.092.215	PSH
440.502.092.350	PSH
441040092196	MAGNETON
441040092206	MAGNETON
458552	VALEO
5010383	MEAT & DORIA
6010354.0	SANDO
6010354.1	SANDO
6010354.2	SANDO
6048103.0	SANDO
6U0911023	MAGNETON
6U0911023A	VW
6U0911023AX	VW
6UO911023AX	VW
8018410	FRIESEN
88213354	POWERMAX
8EA012526-531	HELLA
8EA737306-001	HELLA
9141399	MAGNETON
943253156010	MAGNETI MARELLI
944280184100	MAGNETI MARELLI
A18410	DELCO
AES2219	AUTOELECTRO
ANM15856X	ANDEL
B001127041	BOSCH
CS1047	HC PARTS
CST10354AS	CASCO
CST10354GS	CASCO
CST10354RS	CASCO
CST48103AS	CASCO
DRS3636	DELCO
F032112236	CARGO
LRT00219	LUCAS
LRT219	LUCAS
MAV123540	SIOM
MRS18410	MAGNETI MARELLI
MSR5356	MAGNETI MARELLI
PRSS012	3EFFE
RNL1841	RNL
S0125	AS-PL
S1048B	PRESTOLITE
S12BH0255A2	SIDAT
S132.649	PSH
SS456	SOVEREIGN
STA0073R	BOVEZ
STB1047	KRAUF
STR1563	ELECTROLOG
STR50179	WOODAUTO
STRS012	3EFFE

Video/Publications

S0125
