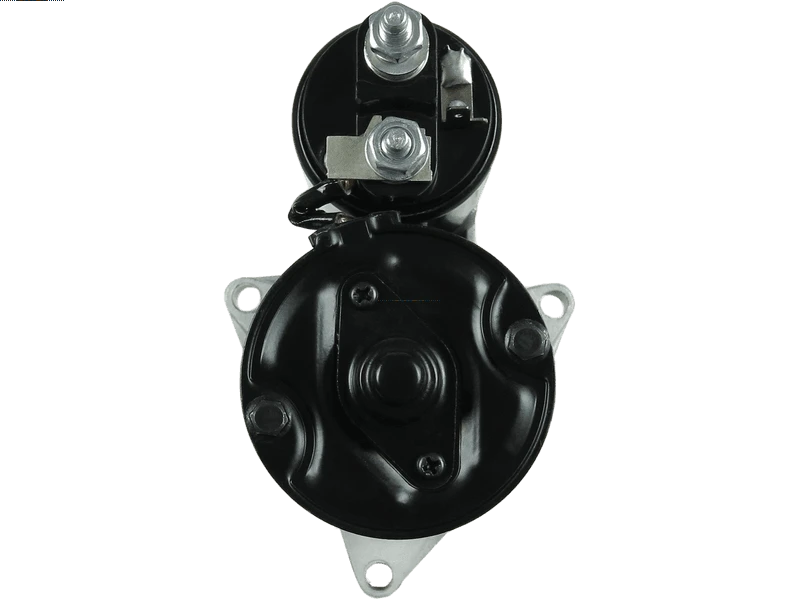

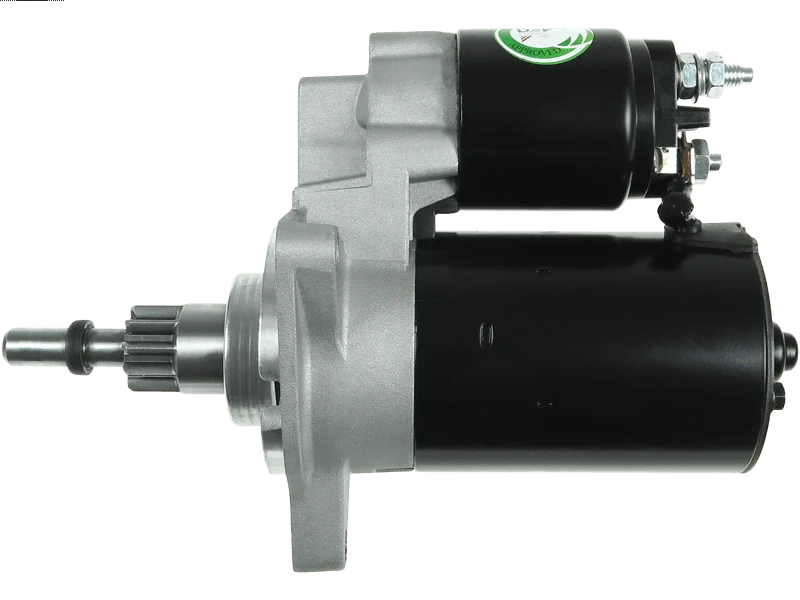

S0131 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.1 kW
Length (L.1)	243 mm
Mount Hole Center - Center (O.1)	103 mm
Mount Hole Center - Center (O.2)	103 mm
Mount Hole Center - Center (O.3)	107 mm
Mount Hole Diameter (C.1)	9 mm
Mount Hole Diameter (C.2)	9 mm
Mount Hole Diameter (C.3)	9 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	52 mm
Rotation	ACW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
VW	Caravelle 1.8	[J]	12.1990-07.1992
VW	Transporter 2.0	[AAC]	09.1990-04.2003

Reference Information

AZE2640 300.519.103 EAA-121456 33031N SS314 986016750 LRS02033 11.131.178 000986016750 STRF047 331328 ANM18970X STR78000 MS STR1707 CST10327GS 2B911023F 2B911023B 11717 455979 22.0597 112306 330749 0001107006 0001107005 1107005 1107006 8016750 S12BH0625A2 02B911023B MAV123270 02B911023F 2B911023BX 412 2B911023BV 88213006 3654 S0131 LRS2033 8EA726221-001 10597 STR50431 DRS6750 02B911023FX AEY2033 8213006 02B911023BX 20401723OE 02B911023BV CST10327AS 42016750 25-1312 CS597 20401723BN 6010327

Video/Publications

0001107005 0001107006 02B911023BX 0986016750 10597 11.131.178 112306 11717 20401723BN 20401723OE 22.0597 25-1312 300.519.103 33031N 3654 42016750 455979 6010327 8016750 8213006 88213006 8EA726221-001 AEY2033 AZE2640 CS597 CST10327AS CST10327GS DRS6750 EAA-121456 LRS02033 LRS2033 MAV123270 MS 412 S0131 SS314 STR50431 STRF047
