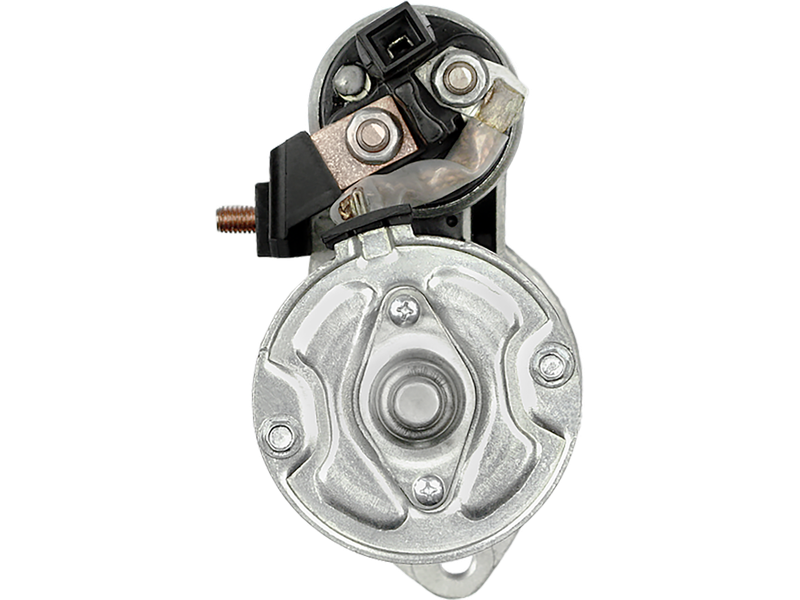

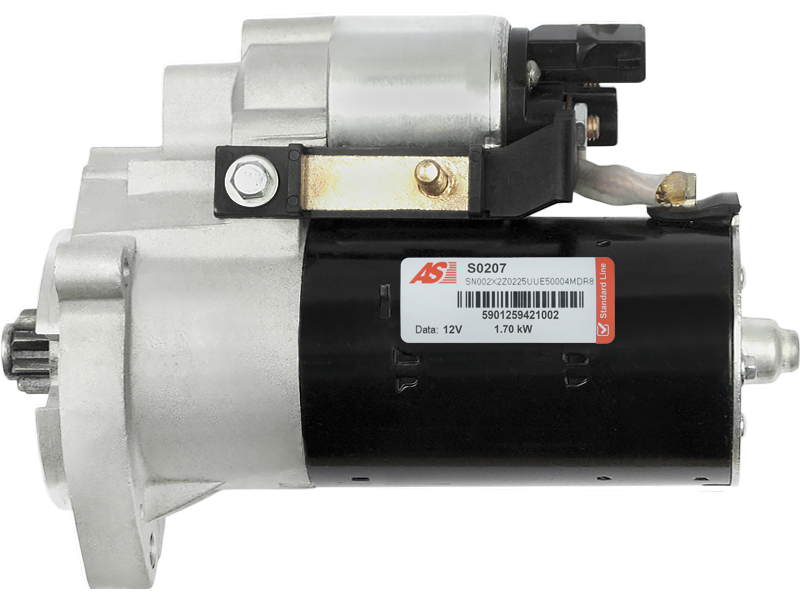

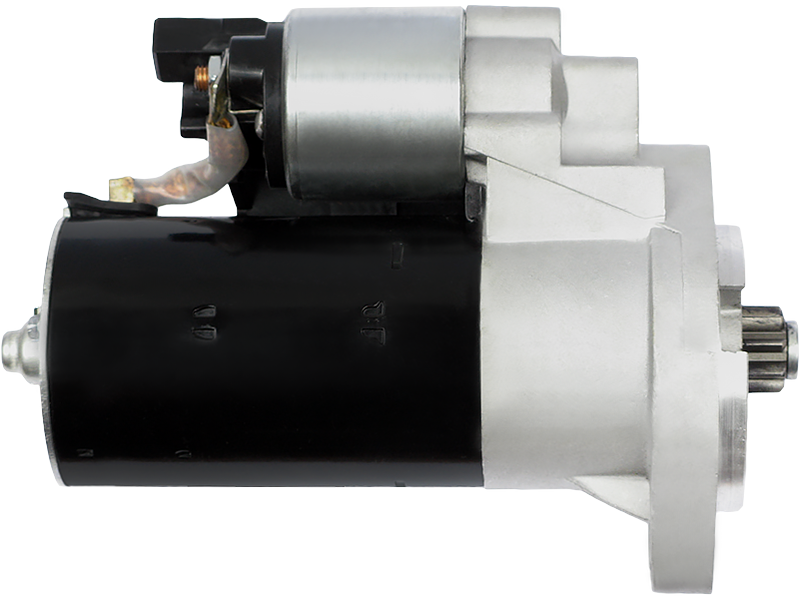

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 338.16 including GST
NZ$ 294.05 excluding GST
or four payments of $84.54
with
Learn More
UOM:
each
Product Code:
S0207
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently
Associated Numbers
0001126016 101165 20513047 8018380 88213980 DRS8380 DRS8380NSpecifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 228 mm |
| Mount Hole Center - Center (O.1) | 105.50 mm |
| Mount Hole Diameter (C.1) | M12x1.75 mm |
| Mount Hole Diameter (C.2) | M12x1.75 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 20 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | LT 28-35 2.5 TDi | [AHD] | 05.1996-05.1999 |
| VW | LT 28-35 2.5 TDi | [APA] | 05.1999-04.2001 |
| VW | LT 28-35 2.5 TDi | [BBE] | 05.2001-07.2006 |
| VW | LT 28-35 2.5 TDi | [BBF] | 09.2001-10.2001 |
| VW | LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 SDI | AGX | 07.1996-07.2006 |
| VW | LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI | AHD | 05.1996-08.1999 |
| VW | LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI | ANJ | 05.1999-07.2006 |
| VW | LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI | APA | 05.1999-07.2006 |
| VW | LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI | AVR | 05.1999-07.2006 |
| VW | LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI | BBE | 05.2001-07.2006 |
| VW | LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI | BBF | 05.2001-07.2006 |
| VW | LT 28-46 2.5 TDi | [AHD] | 05.1996-05.1999 |
| VW | LT 28-46 2.5 TDi | [APA] | 05.1999-04.2001 |
| VW | LT 28-46 2.5 TDi | [BBE] | 09.2001-10.2001 |
| VW | LT 28-46 2.5 TDi | [BBF] | 09.2001-10.2001 |
| VW | LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI | AHD | 06.1996-08.1999 |
| VW | LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI | ANJ | 05.1999-07.2006 |
| VW | LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI | APA | 05.1999-07.2006 |
| VW | LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI | AVR | 05.1999-07.2006 |
| VW | LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI | BBE | 05.2001-07.2006 |
| VW | LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI | BBF | 05.2001-07.2006 |
| VW | LT 28-46 II Van (2DA, 2DD, 2DH) 2.5 TDI | AHD | 05.1996-08.1999 |
| VW | LT 28-46 II Van (2DA, 2DD, 2DH) 2.5 TDI | ANJ | 05.1999-07.2006 |
| VW | LT 28-46 II Van (2DA, 2DD, 2DH) 2.5 TDI | APA | 05.1999-07.2006 |
| VW | LT 28-46 II Van (2DA, 2DD, 2DH) 2.5 TDI | AVR | 05.1999-07.2006 |
| VW | LT 28-46 II Van (2DA, 2DD, 2DH) 2.5 TDI | BBE | 05.2001-07.2006 |
| VW | LT 28-46 II Van (2DA, 2DD, 2DH) 2.5 TDI | BBF | 05.2001-07.2006 |
| VW | PASSAT B5 (3B2) 1.9 TDI | AHH | 10.1996-11.2000 |
| VW | PASSAT B5 (3B2) 1.9 TDI | AHU | 10.1996-11.2000 |
Reference Information
| 0001126016 | BOSCH |
| 101165 | KUHNER |
| 20513047 | PRESTOLITE |
| 220581 | ERA |
| 8018380 | FRIESEN |
| 88213980 | POWERMAX |
| DRS8380 | DELCO |
| DRS8380N | DELCO |
| MAV122810 | SIOM |
| STR1830 | ELECTROLOG |
Video/Publications
