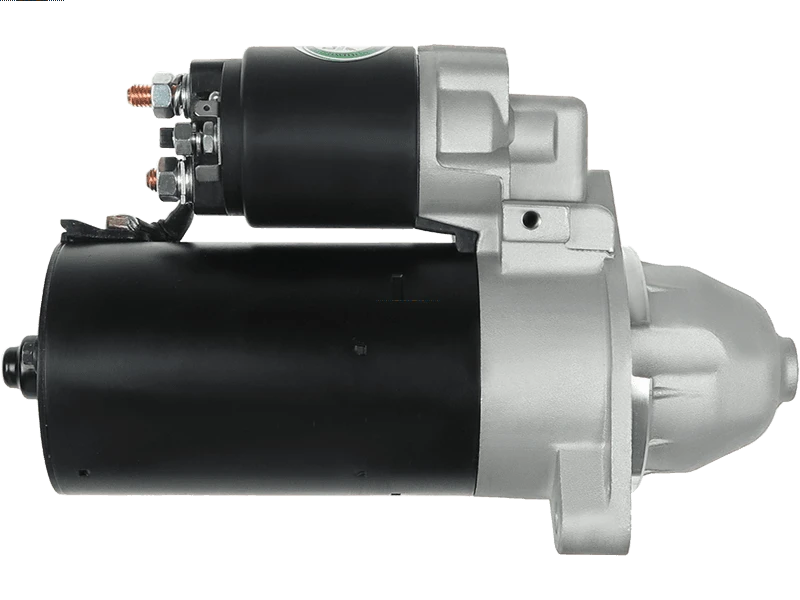

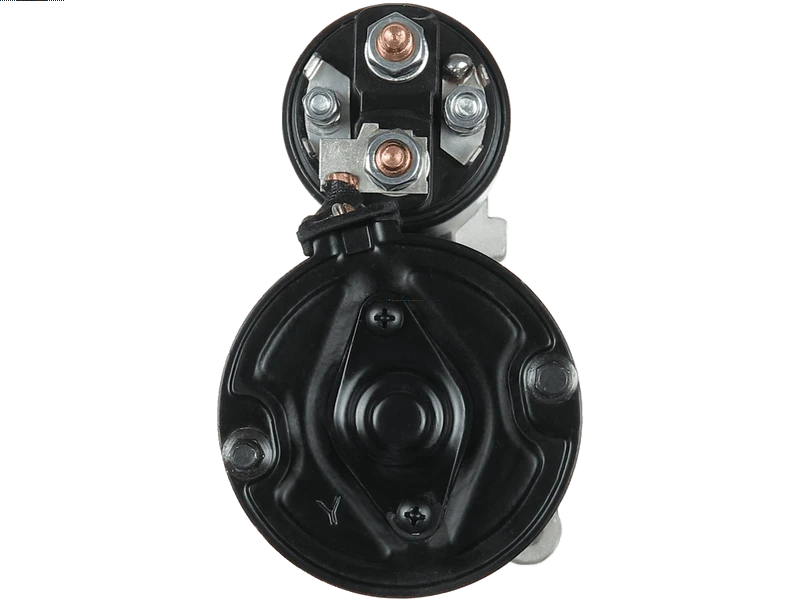

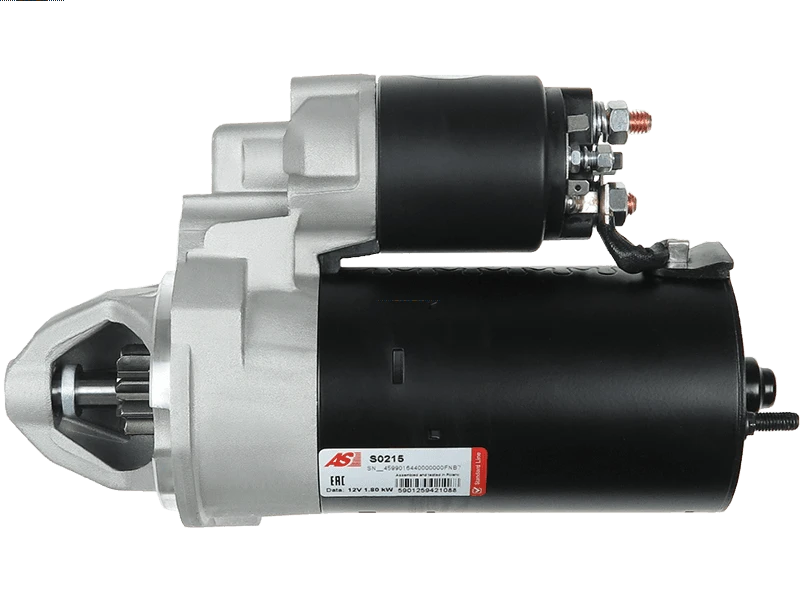

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 267.89 including GST
NZ$ 232.95 excluding GST
or four payments of $66.97
with
Learn More
each
S0215
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001109057Associated Numbers
0001109057 12417508634 12417508636 20401924BN 20401924OE 25-4103 254233 6010429 CST10429AS CST10429GS DRS3686 EAA-121683 LRS03431 STR50327Specifications
| Kilowatt | 1.80 kW |
| Length (L.1) | 244 mm |
| Mount Hole Center - Center (O.1) | 101 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76.50 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 735 3.6 i | (E65) | 11.2001-12.2005 |
| BMW | 735 3.6 i | (E66) | 11.2001-12.2005 |
| BMW | 745 4.4 i | (E65) | 11.2001-12.2005 |
| BMW | 745 4.4 i | (E66) | 01.2002-12.2005 |
Reference Information
6010429 STRL738 ANM15906X STX210267R 115940 331941 STX210267 STR1515 25-4103 12417508636 S0215 3306 CST10429AS 254233 LRS03431 7508636 12417508634 20401924OE STR50327 DRS3686 0001109057 LRS3431 20401924BN CST10429GSVideo/Publications
