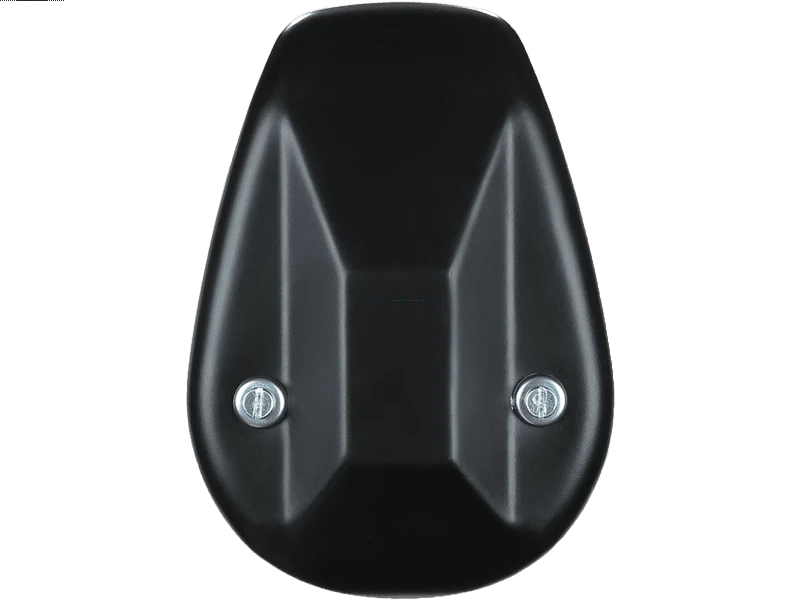

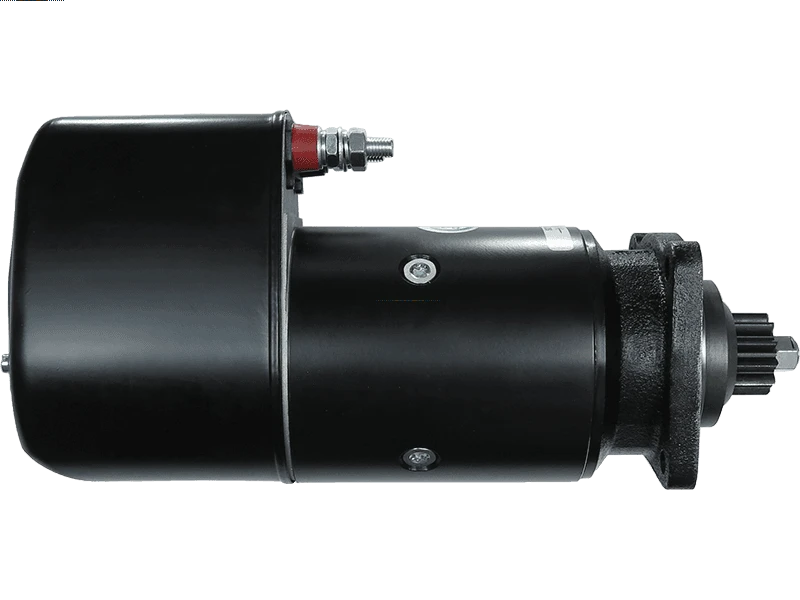

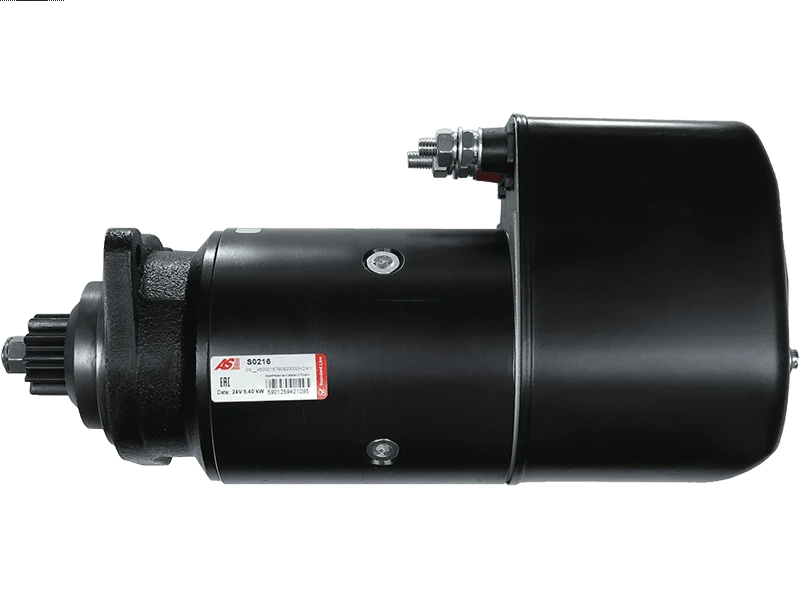

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 751.92 including GST
NZ$ 653.84 excluding GST
or four payments of $187.98
with
Learn More
UOM:
each
Product Code:
S0216
Quantity In Stock Nationally
1 in stock nationally
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001416009Associated Numbers
0001411016 0001415016 0001416008 0001416009 0001416021 0001416076 002/703 0986013260 10506 10506P 110208 11030906 12950 18253N 19024016 20401077BN 22.0506 22606 22622 255869M 33446 45-0488 45-3352 458340 465929 5003027 51.26201-7100 521.201.113 6010770 8044 81466003 81466009 81468009 860504GB 860519GB 8813260 AES8160 CS506 CST10770AS DRS3260 EAA-112232 IM508 IM509 LRS00860 LRS02149 LRS02178 R23.18 STB0506 STR50137 UD16617S
|
0001416076 |
Bosch |
|---|---|
|
11030906 |
Volvo |
|
11129121 |
Volvo |
|
11139128 |
Mahle |
|
11139528 |
Mahle |
|
19024110 |
Delco Remy |
|
521202113 |
PSH |
|
72736173 |
Mahle |
|
72741805 |
Mahle |
|
9011030906 |
Volvo |
|
AZK5477 |
Mahle |
|
AZK5567 |
Mahle |
|
BOS0001416076 |
Wood Auto |
|
DRS0316 |
Delco Remy |
|
IS9115 |
Mahle |
|
LRS02178 |
Lucas |
|
LRS2178 |
Lucas |
|
MS545 |
Mahle |
|
MS705 |
Mahle |
|
STR50777 |
Wood Auto |
Specifications
| Kilowatt | 5.40 kW |
| Length (L.1) | 387 mm |
| Mount Hole Center - Center (O.1) | 128 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FIAT | Series 260 260 | 01.1971-12.1976 | |
| FIAT | Series 260 260T | 01.1971-12.1976 | |
| FIAT | Various Models | - | |
| FIAT-ALLIS | Various Models | ||
| MERCEDES-BENZ | UNIMOG U 1300 | OM353.973 | 01.1977-12.1984 |
| MERCEDES-BENZ | UNIMOG U 1300 | OM353.995 | 01.1977-12.1984 |
| MERCEDES-BENZ | UNIMOG U 1300,U 1300L | OM353.961 | 01.1977-05.1988 |
| MERCEDES-BENZ | UNIMOG U 1300,U 1300L | OM353.973 | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 1300 5.7 | [OM353.961] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 1300 5.7 | [OM353.973] | 01.1977-05.1988 |
| MERCEDES BENZ TRUCKS & BUSES | U 1300 5.7 | [OM353.973] | 01.1977-12.1984 |
| MERCEDES BENZ TRUCKS & BUSES | U 1300 5.7 | [OM353.995] | 01.1977-12.1984 |
| STEYR | 1290.320 12.0 | [WD815.60] | 01.1971-12.1978 |
| STEYR | 1290.320 12.0 | [WD815.70] | 01.1971-12.1978 |
| STEYR | 1290-Serie 1290.320 | WD815.60 | 01.1971-12.1978 |
| STEYR | 1290-Serie 1290.320 | WD815.60 | 01.1971-12.1978 |
| STEYR | 1290-Serie 1290.320 | WD815.60 | 01.1971-12.1978 |
| STEYR | 1290-Serie 1290.320 | WD815.60 | 01.1973-12.1978 |
| STEYR | 1290-Serie 1290.320 | WD815.60 | 01.1973-12.1978 |
| STEYR | 1290-Serie 1290.320 | WD815.70 | 01.1971-12.1978 |
| STEYR | 1290-Serie 1290.320 | WD815.70 | 01.1971-12.1978 |
| STEYR | 1290-Serie 1290.320 | WD815.70 | 01.1971-12.1978 |
| STEYR | 1290-Serie 1290.320 | WD815.70 | 01.1973-12.1978 |
| STEYR | 1290-Serie 1290.320 | WD815.70 | 01.1973-12.1978 |
| STEYR | 1490.320 12.0 | [WD815.60] | 01.1971-12.1978 |
| STEYR | 1490.320 12.0 | [WD815.60] | 01.1972-12.1978 |
| STEYR | 1490.320 12.0 | [WD815.70] | 01.1971-12.1978 |
| STEYR | 1490.320 12.0 | [WD815.70] | 01.1972-12.1978 |
| STEYR | 1490-Serie 1490.320 | WD815.60 | 01.1971-12.1978 |
| STEYR | 1490-Serie 1490.320 | WD815.60 | 01.1971-12.1978 |
| STEYR | 1490-Serie 1490.320 | WD815.60 | 01.1971-12.1978 |
| STEYR | 1490-Serie 1490.320 | WD815.60 | 01.1971-12.1978 |
| STEYR | 1490-Serie 1490.320 | WD815.60 | 01.1972-12.1978 |
| STEYR | 1490-Serie 1490.320 | WD815.60 | 01.1972-12.1978 |
| STEYR | 1490-Serie 1490.320 | WD815.70 | 01.1971-12.1978 |
| STEYR | 1490-Serie 1490.320 | WD815.70 | 01.1971-12.1978 |
| STEYR | 1490-Serie 1490.320 | WD815.70 | 01.1971-12.1978 |
| STEYR | 1490-Serie 1490.320 | WD815.70 | 01.1971-12.1978 |
| STEYR | 1490-Serie 1490.320 | WD815.70 | 01.1972-12.1978 |
| STEYR | 1490-Serie 1490.320 | WD815.70 | 01.1972-12.1978 |
| STEYR | 1890-Serie 1890.320 | WD815.60 | 01.1975-12.1979 |
| STEYR | 1890-Serie 1890.320 | WD815.70 | 01.1975-12.1979 |
| STEYR | 19 S 34 12.0 | [WD815..] | 10.1987-06.1996 |
| STEYR | 19 S 37 12.0 | [WD815..] | 10.1987-06.1996 |
| STEYR | 19 S 39 12.0 | [WD815..] | 05.1990-06.1996 |
| STEYR | 22 S 34 12.0 | [WD815..] | 10.1987-06.1996 |
| STEYR | 22 S 37 12.0 | [WD815..] | 10.1987-06.1996 |
| STEYR | 26 S 34 12.0 | [WD815..] | 10.1987-06.1996 |
| STEYR | 26 S 37 12.0 | [WD815..] | 10.1987-06.1996 |
| STEYR | 32 S 34 12.0 | [WD815..] | 10.1987-06.1996 |
| STEYR | 32 S 37 12.0 | [WD815..] | 10.1987-06.1996 |
| STEYR | 33 S 34 12.0 | [WD815..] | 10.1987-06.1996 |
| STEYR | 40 S 34 12.0 | [WD815..] | 01.1988-06.1996 |
| STEYR | 40 S 37 12.0 | [WD815..] | 01.1988-06.1996 |
| VOLVO | B10 9.6 | [DH10A360] | 01.1996-12.2001 |
| VOLVO | B10 9.6 | [THD101GB] | 01.1996-12.2003 |
| VOLVO | B10 9.6 | [THD101GD] | 01.1996-12.2003 |
| VOLVO | B10 9.6 | [THD101KC] | 01.1996-12.2003 |
| VOLVO | B10 9.6 | [THD101KE] | 01.1978-12.2003 |
| VOLVO | B10 9.6 | [THD102KD] | 01.1988-12.2003 |
| VOLVO | B10 9.6 | [THD102KE] | 01.1978-12.2003 |
| VOLVO | B10 9.6 | [THD103KD] | 01.1988-12.2003 |
| VOLVO | B10 B10 | D10A360 | 01.1996-12.2003 |
| VOLVO | B10 B10 | DH10A245 | 01.1992-12.2001 |
| VOLVO | B10 B10 | DH10A285 | 01.1988-12.2003 |
| VOLVO | B10 B10 | DH10A285 | 01.1988-12.2003 |
| VOLVO | B10 B10 | DH10A360 | 01.1996-12.2001 |
| VOLVO | B10 B10 | DH10A360 | 01.1996-12.2003 |
| VOLVO | B10 B10 | DH10A360 | 01.1996-12.2003 |
| VOLVO | B10 B10 | THD100DA | 01.1978-12.2003 |
| VOLVO | B10 B10 | THD100DC | 01.1994- |
| VOLVO | B10 B10 | THD100DD | 01.1985-12.2003 |
| VOLVO | B10 B10 | THD100EA | 01.1978-12.2003 |
| VOLVO | B10 B10 | THD101GB | 01.1985-12.2003 |
| VOLVO | B10 B10 | THD101GB | 01.1985-12.2003 |
| VOLVO | B10 B10 | THD101GB | 01.1985-12.2003 |
| VOLVO | B10 B10 | THD101GC | 01.1990-12.2001 |
| VOLVO | B10 B10 | THD101GD | 01.1985-12.2003 |
| VOLVO | B10 B10 | THD101GD | 01.1985-12.2003 |
| VOLVO | B10 B10 | THD101GD | 01.1990-12.2001 |
| VOLVO | B10 B10 | THD101KB | 01.1988-12.2003 |
| VOLVO | B10 B10 | THD101KB | 01.1988-12.2003 |
| VOLVO | B10 B10 | THD101KC | 01.1985-12.2003 |
| VOLVO | B10 B10 | THD101KC | 01.1985-12.2003 |
| VOLVO | B10 B10 | THD101KC | 01.1985-12.2003 |
| VOLVO | B10 B10 | THD102KB | 01.1988-12.2003 |
| VOLVO | B10 B10 | THD102KB | 01.1988-12.2003 |
| VOLVO | B10 B10 | THD102KD | 01.1988-12.2003 |
| VOLVO | B10 B10 | THD102KD | 01.1988-12.2003 |
| VOLVO | B10 B10 | THD102KD | 01.1988-12.2003 |
| VOLVO | B10 B10 | THD102KD | 01.1990-12.2001 |
| VOLVO | B10 B10 | THD102KF | 01.1992-12.2001 |
| VOLVO | B10 B10 | THD103KB | 01.1988-12.2003 |
| VOLVO | B10 B10 | THD103KB | 01.1988-12.2003 |
| VOLVO | B10 B10 | THD103KD | 01.1988-12.2003 |
| VOLVO | B10 B10 | THD103KD | 01.1988-12.2003 |
| VOLVO | B10 B10 | THD103KD | 01.1988-12.2003 |
| VOLVO | B10 B10 | THD103KD | 01.1990-12.2001 |
| VOLVO | B10 B10 | THD103KF | 01.1992-12.2001 |
| VOLVO | B10M 9.6 | [THD100DA] | |
| VOLVO | B10M 9.6 | [THD100DC] | |
| VOLVO | B10M 9.6 | [THD100DD] | |
| VOLVO | B10M 9.6 | [THD100EA] | |
| VOLVO | F16 F 16/470 | TD162F | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162F | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162F | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162F | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162FJ | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162FJ | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162FJ | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162FJ | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162FL | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162FL | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162FL | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162FL | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162FS | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162FS | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162FS | 01.1988-12.1989 |
| VOLVO | F16 F 16/470 | TD162FS | 01.1988-12.1989 |
| VOLVO | F16 F 16/485 | TD162F | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162F | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162F | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162F | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162F | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162F | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FJ | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FJ | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FJ | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FJ | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FJ | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FJ | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FL | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FL | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FL | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FL | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FL | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FL | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FS | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FS | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FS | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FS | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FS | 01.1990-12.1992 |
| VOLVO | F16 F 16/485 | TD162FS | 01.1990-12.1992 |
| VOLVO | F16 F 16/500 | TD163ES | 01.1992-12.1994 |
| VOLVO | F16 F 16/500 | TD163ES | 01.1992-12.1994 |
| VOLVO | F16 F 16/500 | TD163ES | 01.1992-12.1994 |
| VOLVO | F16 F 16/500 | TD163ES | 01.1992-12.1994 |
| VOLVO | F16 F 16/500 | TD163ES | 01.1992-12.1994 |
| VOLVO | F16 F 16/500 | TD163ES | 01.1992-12.1994 |
| VOLVO | FH16 FH 16/520 | D16A520 | 01.1995- |
| VOLVO | FH16 FH 16/520 | D16A520 | 08.1993-12.2002 |
| VOLVO | FH16 FH 16/520 | D16A520 | 08.1993-12.2002 |
| VOLVO | FH16 FH 16/520 | D16A520 | 08.1993-12.2002 |
| VOLVO | FH16 FH 16/520 | D16A520 | 08.1993-12.2002 |
| VOLVO | FH16 FH 16/520 | D16A520 | 08.1993-12.2002 |
| VOLVO | FH16 FH 16/520 | D16A520 | 08.1993-12.2002 |
| VOLVO | FH16 FH 16/520 | D16B520 | 01.1995- |
| VOLVO | FH16 FH 16/520 | D16B520 | 08.1993-12.2002 |
| VOLVO | FH16 FH 16/520 | D16B520 | 08.1993-12.2002 |
| VOLVO | FH16 FH 16/520 | D16B520 | 08.1993-12.2002 |
| VOLVO | FH16 FH 16/520 | D16B520 | 08.1993-12.2002 |
| VOLVO | FH16 FH 16/520 | D16B520 | 08.1993-12.2002 |
| VOLVO | FH16 FH 16/520 | D16B520 | 08.1993-12.2002 |
Reference Information
| 0001411016 | BOSCH |
| 0001415016 | BOSCH |
| 0001416008 | BOSCH |
| 0001416009 | BOSCH |
| 0001416021 | BOSCH |
| 0001416076 | BOSCH |
| 0011512901 | MERCEDES |
| 001151290180 | MERCEDES |
| 002/703 | AVF |
| 01161280 | KHD |
| 01161563 | KHD |
| 061227993 | UNIC-SIMCA |
| 0986013260 | BOSCH |
| 10506 | KUHNER |
| 10506P | KUHNER |
| 110208 | CARGO |
| 11030906 | VOLVO |
| 1161280 | KHD |
| 1161563 | KHD |
| 1199872 | VOLVO |
| 12950 | EFEL |
| 1516764R | DAF |
| 1516800R | DAF |
| 18253N | WAI |
| 19024016 | DELCO |
| 19082008 | DELCO |
| 220251 | ERA |
| 22.0506 | LAUBER |
| 22606 | EFEL |
| 22622 | EFEL |
| 240504 | VOLVO |
| 255869M | KUHNER |
| 293020 | DAF |
| 293020 | SCANIA |
| 330348 | LOGISTIK |
| 33446 | EAI |
| 45-0488 | ELSTOCK |
| 45-3352 | ELSTOCK |
| 458340 | VALEO |
| 465929 | VOLVO |
| 469414 | VOLVO |
| 5000270909 | RENAULT |
| 5001683 | VOLVO |
| 5003027 | VOLVO |
| 51.26201-7034 | MAN |
| 51.26201-7048 | MAN |
| 51.26201-7100 | MAN |
| 51.26201-9034 | MAN |
| 51.26201-9100 | MAN |
| 521.201.113 | WAI |
| 521.201.113.461 | WAI |
| 6000733 | LIEBHERR |
| 61227993 | FIAT |
| 636306 | DAF |
| 8044 | CEVAM |
| 81400090003 | STEYR |
| 81466003 | MONARK |
| 81466009 | MONARK |
| 81468009 | MONARK |
| 81500090049 | STEYR |
| 81500090049 | VALEO |
| 860504GB | PRESTOLITE |
| 860519GB | PRESTOLITE |
| 8790 | EFEL |
| 8813260 | FRIESEN |
| 9004778060 | VOLVO |
| 9011030906 | VOLVO |
| A0011512901 | MERCEDES |
| A001151290180 | MERCEDES |
| AES8160 | AUTOELECTRO |
| AM-2009 | AUTO MAGNETO |
| AM-2009 | AUTO MAGNETO |
| ANM15480X | ANDEL |
| C2R24X4H7622 | KHD |
| CGB-11509 | AINDE |
| CS506 | HC PARTS |
| D2R24X6H7622 | KHD |
| DRS3260 | DELCO |
| F032110208 | CARGO |
| IM508 | AVF |
| IM509 | AVF |
| LRS00860 | LUCAS |
| LRS02149 | LUCAS |
| LRS02178 | LUCAS |
| LRS2149 | LUCAS |
| LRS2178 | LUCAS |
| LRS860 | LUCAS |
| R23.18 | ELMOT |
| S0216 | AS-PL |
| S133.186 | WAI |
| S145.165 | WAI |
| STR10105 | ELECTROLOG |
| STR10111 | ELECTROLOG |
| STR50137 | WOODAUTO |
| STRF896 | 3EFFE |
| UD16617S | AS-PL |
Video/Publications
S0216View your shopping basket or Browse other items in Starter Motors.
