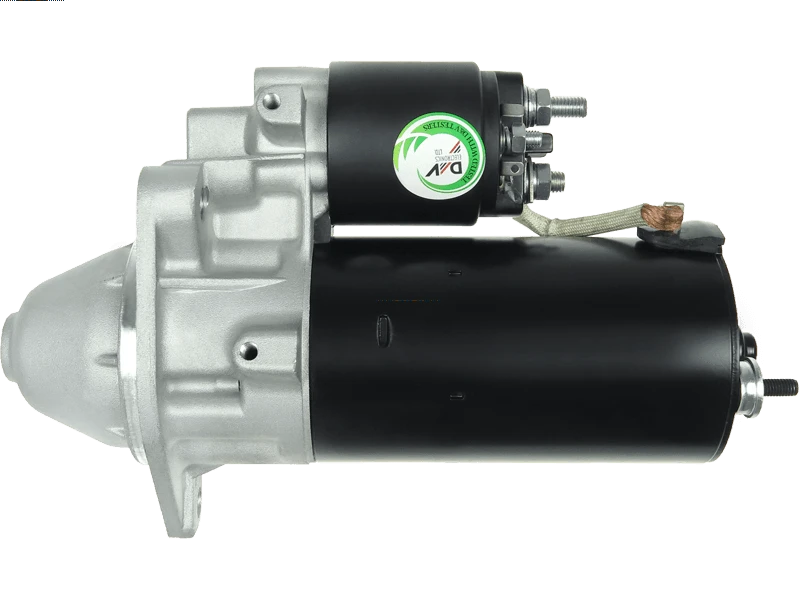

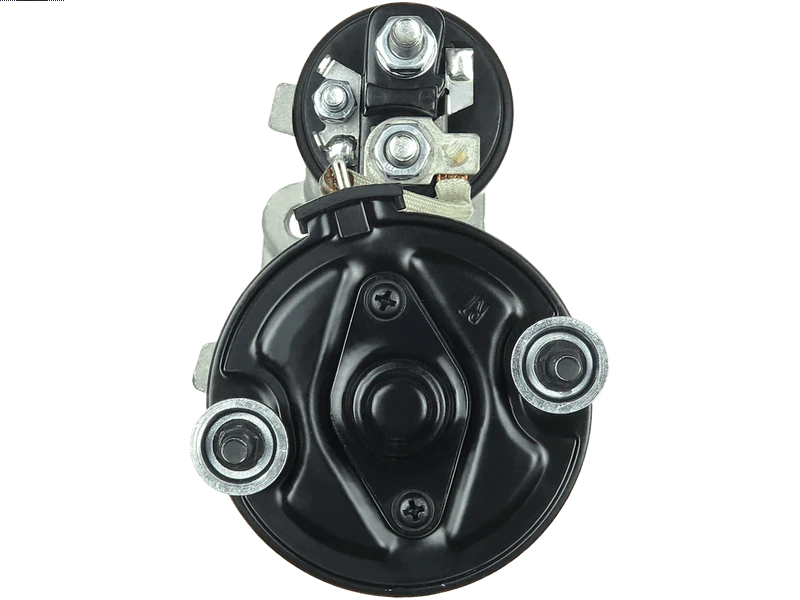

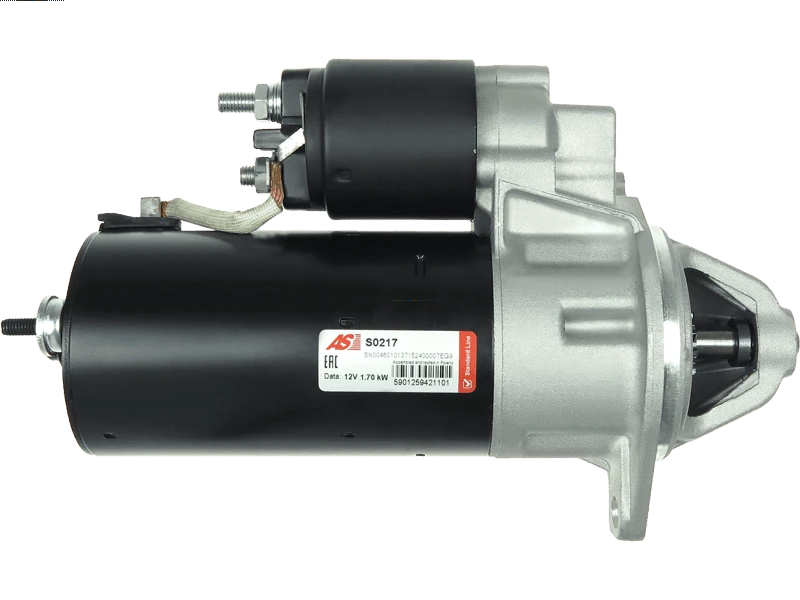

S0217 - Brand new AS-PL Starter motor

Associated Numbers

0001110115 10322 10322R 110839 111057 1202016 1202045 1202143 1202156 130.514.092 20401512BN 20500657 22.0322 220052 25-4037 3674 455696 6010215 8018210 8212948 88212948 8EA012526-631 90443488 90511841 90519332 90540586 944280182100 AES6157 B001117012 CS322 CST10215 CST10215AS CST10215ES CST10215GS CST10215OS CST10215RS DRS3080 LRS02365 STB0322

Specifications

Kilowatt	1.70 kW
Length (L.1)	268 mm
Mount Hole Center - Center (O.1)	116 mm
Mount Hole Diameter (C.1)	M12x1.75 mm
Mount Hole Diameter (C.2)	10.50 mm
No./Mount holes	2 qty
No./Mount holes with thread	1 qty
No./Teeth	10 qty
No./Teeth (Replaces)	9. 10 qty
OEM Product	No
Pinion at Rest (B)	19 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
OPEL	Ascona C 1.6 D	[16D]	03.1982-08.1988
OPEL	Ascona C 1.6 D	[16DA]	03.1982-08.1988
OPEL	ASCONA C Hatchback (J82) 1.6 D (F68, M68)	16D	03.1982-08.1988
OPEL	ASCONA C Hatchback (J82) 1.6 D (F68, M68)	16DA	03.1982-08.1988
OPEL	ASCONA C (J82) 1.6 D (F11, M11, F68, M68)	16D	03.1982-08.1988
OPEL	ASCONA C (J82) 1.6 D (F11, M11, F68, M68)	16DA	03.1982-08.1988
OPEL	Astra F 1.7 D	[17D]	03.1992-09.1992
OPEL	Astra F 1.7 D	[17D]	12.1991-09.1992
OPEL	Astra F 1.7 D	[17DR]	07.1992-01.1998
OPEL	Astra F 1.7 D	[17DR]	07.1992-01.1999
OPEL	Astra F 1.7 D	[17DR]	07.1992-09.1998
OPEL	Astra F 1.7 TD	[X17DTL]	08.1994-01.1999
OPEL	Astra F 1.7 TD	[X17DTL]	11.1994-01.1998
OPEL	Astra F 1.7 TD	[X17DTL]	11.1994-09.1998
OPEL	ASTRA F Estate (T92) 1.7 D (F35, M35)	17D	12.1991-09.1992
OPEL	ASTRA F Estate (T92) 1.7 D (F35, M35)	17DR	07.1992-01.1998
OPEL	ASTRA F Estate (T92) 1.7 TD (F35, M35)	X17DTL	11.1994-01.1998
OPEL	ASTRA F Estate Van (T92) 1.7 D (F70)	17D	12.1991-09.1992
OPEL	ASTRA F Estate Van (T92) 1.7 D (F70)	17DR	07.1992-01.1999
OPEL	ASTRA F Estate Van (T92) 1.7 TD (F70)	X17DTL	08.1994-01.1999
OPEL	ASTRA F Hatchback (T92) 1.7 D (F08, M08, F68, M68)	17D	12.1991-09.1992
OPEL	ASTRA F Hatchback (T92) 1.7 D (F08, M08, F68, M68)	17DR	07.1992-01.1998
OPEL	ASTRA F Hatchback (T92) 1.7 TD (F08, M08, F68, M68)	X17DTL	11.1994-01.1998
OPEL	ASTRA F Saloon (T92) 1.7 D (F19, M19)	17D	03.1992-09.1992
OPEL	ASTRA F Saloon (T92) 1.7 D (F19, M19)	17DR	07.1992-09.1998
OPEL	ASTRA F Saloon (T92) 1.7 TD (F19, M19)	X17DTL	11.1994-09.1998
OPEL	Astra G 1.7 TD	[X17DTL]	01.1999-04.2005
OPEL	Astra G 1.7 TD	[X17DTL]	02.1998-08.2000
OPEL	Astra G 1.7 TD	[X17DTL]	09.1998-08.2000
OPEL	ASTRA G Estate (T98) 1.7 TD (F35)	X17DTL	02.1998-08.2000
OPEL	ASTRA G Estate Van (F70) 1.7 TD (F70)	X17DTL	01.1999-04.2005
OPEL	ASTRA G Hatchback (T98) 1.7 TD (F08, F48)	X17DTL	02.1998-08.2000
OPEL	ASTRA G Saloon (T98) 1.7 TD (F69)	X17DTL	09.1998-08.2000
OPEL	Kadett D 1.6 D	[16D]	03.1982-08.1984
OPEL	KADETT D (31_-34_, 41_-44_) 1.6 D	16D	03.1982-08.1984
OPEL	KADETT D (32_,37_,39, _42) 1.6 D	16D	03.1982-08.1984
OPEL	KADETT D Estate (35_, 36_, 45_, 46_) 1.6 D	16D	03.1982-08.1984
OPEL	Kadett E 1.6 D	[16D]	08.1984-08.1988
OPEL	Kadett E 1.6 D	[16D]	09.1984-01.1989
OPEL	Kadett E 1.6 D	[16DA]	08.1984-08.1988
OPEL	Kadett E 1.6 D	[16DA]	09.1984-01.1989
OPEL	Kadett E 1.7 D	[17D]	02.1989-08.1991
OPEL	KADETT E Combo (T85) 1.6 D (C25, D25)	16D	01.1986-12.1989
OPEL	KADETT E Combo (T85) 1.6 D (C25, D25)	16DA	01.1986-12.1989
OPEL	KADETT E Combo (T85) 1.7 D (C25, D25)	17D	01.1989-07.1994
OPEL	KADETT E Combo (T85) 1.7 D (C25, D25)	17DR	07.1992-07.1994
OPEL	KADETT E Estate (T85) 1.6 D (C15, C35, D15, D35)	16D	09.1984-01.1989
OPEL	KADETT E Estate (T85) 1.6 D (C15, C35, D15, D35)	16DA	09.1984-01.1989
OPEL	KADETT E Estate (T85) 1.7 D (C15, C35, D15, D35)	17D	02.1989-08.1991
OPEL	KADETT E Estate Van (T85) 1.6 D (C70, D70)	16D	08.1984-08.1988
OPEL	KADETT E Estate Van (T85) 1.6 D (C70, D70)	16DA	08.1984-08.1988
OPEL	KADETT E Estate Van (T85) 1.7 D (C70, D70)	17D	08.1988-09.1992
OPEL	KADETT E Hatchback (T85) 1.6 D (C08, C48, D08, D48)	16D	09.1984-01.1989
OPEL	KADETT E Hatchback (T85) 1.6 D (C08, C48, D08, D48)	16DA	09.1984-01.1989
OPEL	KADETT E Hatchback (T85) 1.7 D (C08, C48, D08, D48)	17D	02.1989-08.1991
OPEL	KADETT E (T85) 1.6 D (C19, D19)	16D	09.1984-01.1989
OPEL	KADETT E (T85) 1.6 D (C19, D19)	16DA	09.1984-01.1989
OPEL	KADETT E (T85) 1.7 D (C19, D19)	17D	02.1989-08.1991
OPEL	Vectra A 1.7 D	[17D]	09.1988-09.1992
OPEL	Vectra A 1.7 D	[17D]	10.1988-09.1992
OPEL	Vectra A 1.7 D	[17DR]	07.1992-11.1995
OPEL	Vectra A 1.7 TD	[17DT]	03.1990-11.1995
OPEL	Vectra A 1.7 TD	[X17DT]	03.1990-11.1995
OPEL	VECTRA A Hatchback (J89) 1.7 D (F68, M68)	17D	09.1988-09.1992
OPEL	VECTRA A Hatchback (J89) 1.7 D (F68, M68)	17DR	07.1992-11.1995
OPEL	VECTRA A Hatchback (J89) 1.7 TD (F68, M68)	17DT	03.1990-11.1995
OPEL	VECTRA A Hatchback (J89) 1.7 TD (F68, M68)	X17TD	03.1990-11.1995
OPEL	VECTRA A (J89) 1.7 D (F19, M19)	17D	10.1988-09.1992
OPEL	VECTRA A (J89) 1.7 D (F19, M19)	17DR	07.1992-11.1995
OPEL	VECTRA A (J89) 1.7 TD (F19, M19)	17TD	03.1990-11.1995
VAUXHALL	Astra D 1.6 D	[16D]	02.1982-08.1986
VAUXHALL	Astra D 1.6 D	[16D]	03.1982-08.1986
VAUXHALL	Astra D 1.6 D	16D	02.1982-08.1986
VAUXHALL	Astra E 1.6 D	[16DA]	09.1984-12.1989
VAUXHALL	Astra E 1.6 D	16DA	09.1984-12.1989
VAUXHALL	Astra F 1.7 D	[17D]	03.1992-09.1992
VAUXHALL	Astra F 1.7 D	[17D]	12.1991-02.1998
VAUXHALL	Astra F 1.7 D	17D	01.1991-12.1998
VAUXHALL	Astra F 1.7 D	[17DR]	07.1992-09.1998
VAUXHALL	Astra F 1.7 D	17DR	01.1991-12.1998
VAUXHALL	Astra F 1.7 TD	[X17DTL]	11.1994-09.1998
VAUXHALL	Astra G 1.7 TD	[X17DTL]	02.1998-08.2000
VAUXHALL	Astra G 1.7 TD	[X17DTL]	09.1998-08.2000
VAUXHALL	Astra G 1.7 TD	X17DTL	01.1998-12.2000
VAUXHALL	ASTRA Mk II Belmont (T85) 1.7 D	17D	01.1989-12.1991
VAUXHALL	Astra MK III 1.7 D	[17DR]	03.1991-12.1994
VAUXHALL	Astra MK III 1.7 D	[17DR]	09.1991-12.1994
VAUXHALL	Astra MK III 1.7 D	17DR	03.1991-12.1994
VAUXHALL	Astra MK III 1.7 TD	[X17DTL]	01.1994-02.1998
VAUXHALL	Astra MK III 1.7 TD	[X17DTL]	11.1994-02.1998
VAUXHALL	Astra MK III 1.7 TD	X17DTL	01.1994-02.1998
VAUXHALL	ASTRA Mk III (F) Estate (T92) 1.7 TD	X17DTL	01.1994-02.1998
VAUXHALL	Astravan III 1.7 D	[17DR]	01.1991-08.1994
VAUXHALL	Astravan III 1.7 TD	[X17DTL]	01.1994-08.1998
VAUXHALL	ASTRAVAN Mk III (F) Estate Van (T92) 1.7 D (F70)	17DR	10.1991-12.1994
VAUXHALL	ASTRAVAN Mk III (F) Estate Van (T92) 1.7 TD (F70)	X17DTL	09.1994-08.1998
VAUXHALL	Belmont 1.6 D	[16DA]	09.1985-08.1991
VAUXHALL	Belmont 1.6 D	16DA	01.1985-12.1991
VAUXHALL	Belmont 1.7 D	[17D]	01.1989-12.1991
VAUXHALL	Cavalier 1.6 D	[16D]	03.1982-08.1988
VAUXHALL	Cavalier 1.6 D	[16DA]	03.1982-08.1988
VAUXHALL	Cavalier 1.7 D	[17D]	09.1988-09.1992
VAUXHALL	Cavalier 1.7 D	[17DR]	07.1992-11.1995
VAUXHALL	CAVALIER Mk II Estate (J82) 1.6 D	16DA	03.1982-08.1988
VAUXHALL	CAVALIER Mk III Hatchback (J89) 1.7 D	17D	09.1988-09.1992
VAUXHALL	CAVALIER Mk III Hatchback (J89) 1.7 D	17DR	07.1992-11.1995

Reference Information

0001110115	BOSCH
09193455	OPEL
09512420	OPEL
10322	KUHNER
10322R	KUHNER
110839	CARGO
111057	CARGO
1202016	OPEL
1202045	OPEL
1202118	OPEL
1202143	OPEL
1202156	OPEL
1202264	OPEL
1202956	OPEL
130.514.092	WAI
130.514.092.018	WAI
130.514.092.508	WAI
202143	OPEL
20401512BN	REAL
20500657	PRESTOLITE
220052	ERA
22.0322	LAUBER
25-4037	ELSTOCK
3674	CEVAM
455696	VALEO
6010215	SANDO
6010215.0	SANDO
6202046	OPEL
8018210	FRIESEN
8212948	POWERMAX
88212948	POWERMAX
8EA012526-631	HELLA
90008257	GM
90008257	OPEL
90055369	OPEL
90166122	OPEL
90197192	OPEL
90243160	OPEL
90337030	OPEL
90349285	OPEL
90443488	OPEL
90511841	OPEL
90519332	OPEL
90540586	OPEL
93175881	OPEL
93175881	VAUXHALL
93175899	OPEL
944280182100	MAGNETI MARELLI
9512763	OPEL
AES6157	AUTOELECTRO
ANM15300X	ANDEL
B001117012	BOSCH
CS322	HC PARTS
CST10215	CASCO
CST10215AS	CASCO
CST10215ES	CASCO
CST10215GS	CASCO
CST10215OS	CASCO
CST10215RS	CASCO
DRS3080	DELCO
ESA59	FORD
F032110839	CARGO
F032111057	CARGO
LRS02365	LUCAS
LRS2365	LUCAS
MAV6710	SIOM
R1040009	OPEL
R1040028	OPEL
R1040028	VAUXHALL
R1540000	VAUXHALL
S0217	AS-PL
S129.647	WAI
STA0166R	BOVEZ
STB0322	KRAUF
STR1438	ELECTROLOG
STRS015	3EFFE
STX200126	STARDAX
STX200126R	STARDAX
STX200396	STARDAX

Video/Publications

S0217
