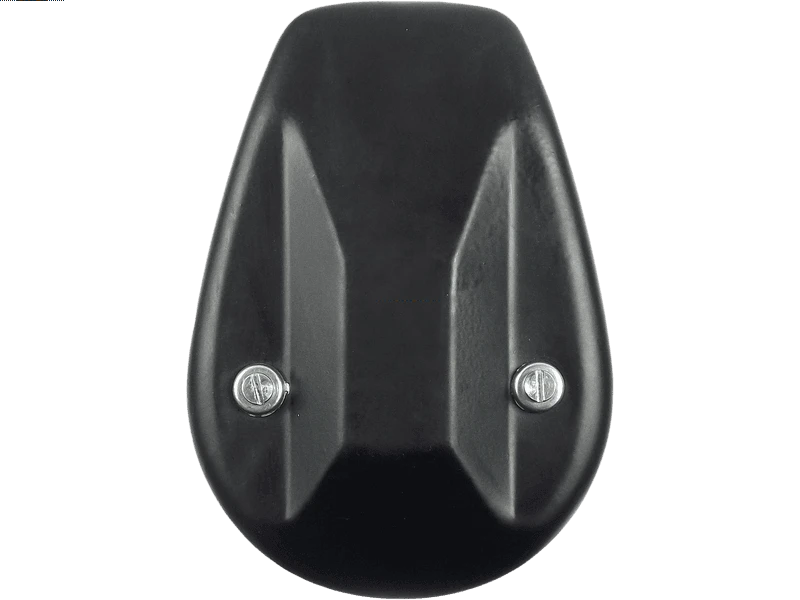

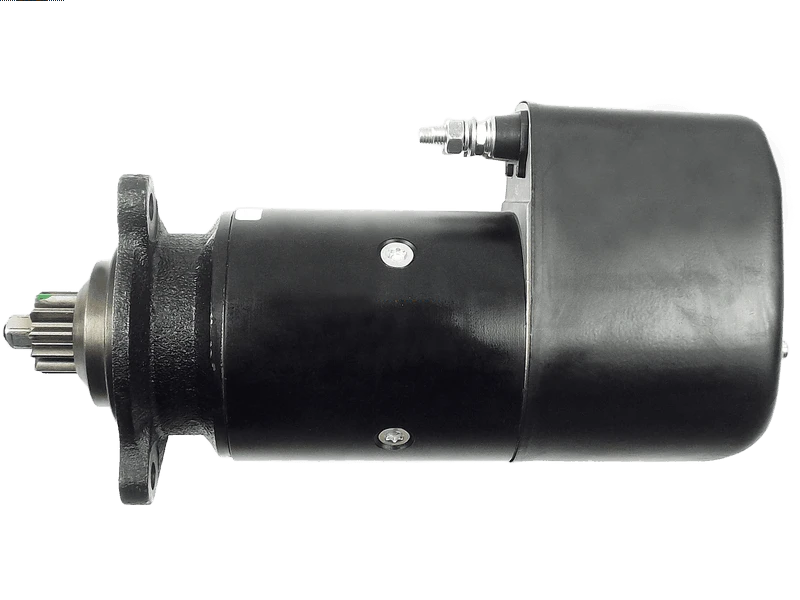

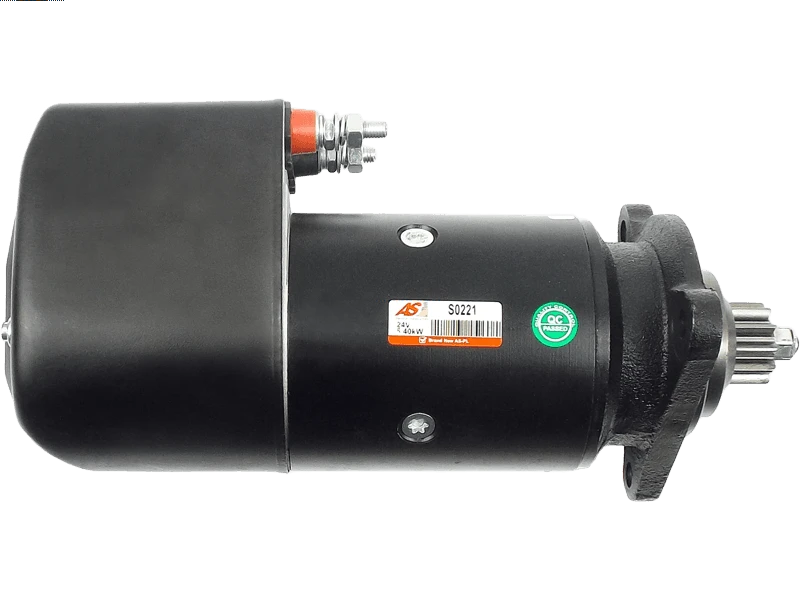

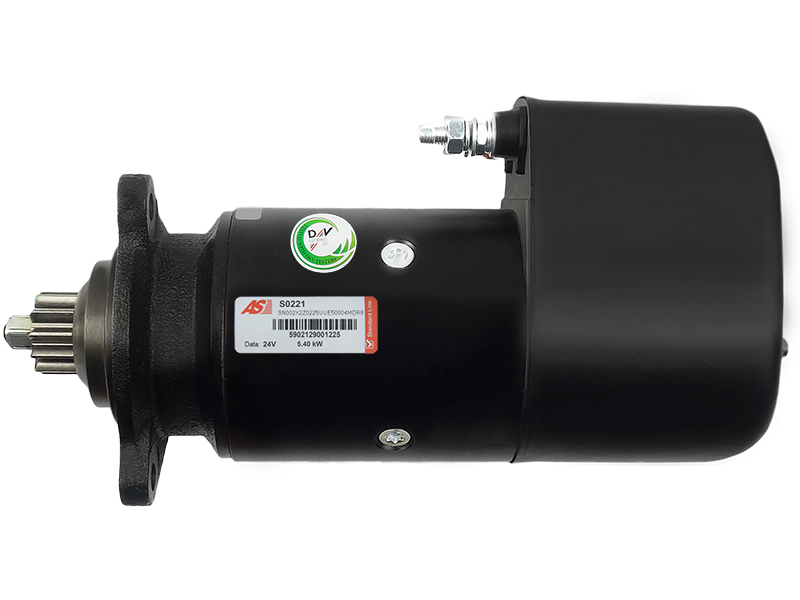

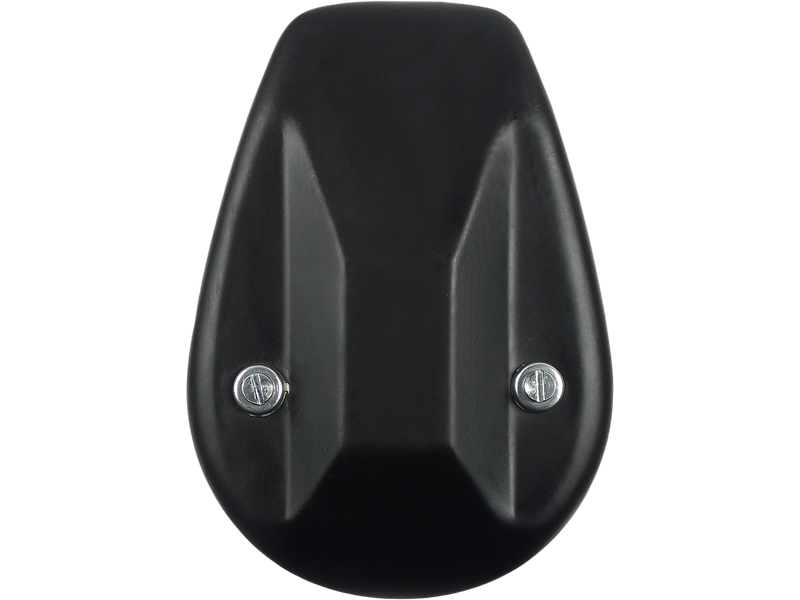

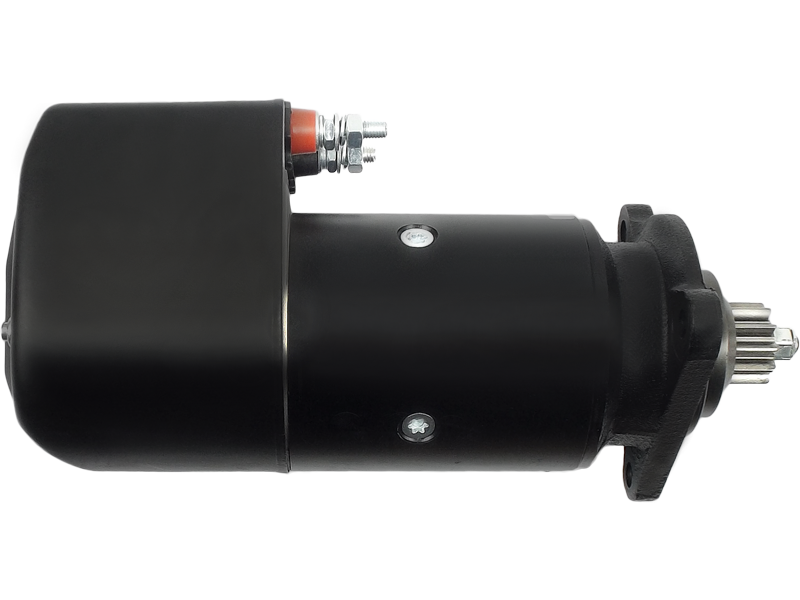

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 735.25 including GST
NZ$ 639.35 excluding GST
or four payments of $183.81
with
Learn More
UOM:
each
Product Code:
S0221
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001416011Associated Numbers
0001415017 0001416011 0001416052 0986013420 0986018420 10502 10502P 110582 19784N 20401226BN 20401226EL 20401436BN 20401436EL 20401436RC 22608 28.0502 33532 42498148 42498619 45-1368 45-2459 455522 4784745 4784747 6010622 6010634 81466052 860516GB 8704 8813420 88212396 8EA726150-001 AES9186 CS502 CST10622AS CST10622ES CST10622RS CST10634AS CST10634ES CST10634GS CST10634RS DRS3420 DRS8420 EAA-121507 IM511 LRS00986 S0221 STR22057Specifications
| Kilowatt | 5.40 kW |
| Length (L.1) | 386 mm |
| Mount Hole Center - Center (O.1) | 125 mm |
| Mount Hole Center - Center (O.2) | 125 mm |
| Mount Hole Center - Center (O.3) | 125 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| IVECO | 180 E 25 9.5 | [8460.41T] | 05.1999-11.2004 |
| IVECO | 180 E 30 9.5 | [8460.41C.320] | 01.1992-12.1996 |
| IVECO | 180 E 30 9.5 | [8460.41C.320] | 07.1992-12.1996 |
| IVECO | 180 E 34 9.5 | [8460.41K.406] | 01.1992-12.1993 |
| IVECO | 180 E 34 9.5 | [8460.41K.406] | 04.1992-07.2000 |
| IVECO | 180 E 38 9.5 | [8460.41L.5020] | 01.1992-12.1993 |
| IVECO | 180 E 38 9.5 | [8460.41L.5020] | 09.1992-12.1993 |
| IVECO | 190-26 9.5 | [8460.21.102] | 01.1990-12.1992 |
| IVECO | 190-26 9.5 | [8460.21.102] | 09.1986-09.1994 |
| IVECO | 190-32 9.5 | [8460.41.102] | 01.1990-12.1992 |
| IVECO | 190-32 9.5 | [8460.41.102] | 10.1988-01.1998 |
| IVECO | 190 E 30 9.5 | [8460.41C.] | 11.1999-11.2004 |
| IVECO | 190 E 30 9.5 | [8460.41C] | 01.1993-07.2000 |
| IVECO | 190 E 30 9.5 | [8460.41C] | 01.1993-11.2004 |
| IVECO | 190 E 30 9.5 | [8460.41C.320] | 01.1997-07.2002 |
| IVECO | 190 E 30 9.5 | [8460.41C.320] | 01.1997-08.1998 |
| IVECO | 190 E 34 9.5 | [8460.41K] | 01.1993-07.2000 |
| IVECO | 190 E 34 9.5 | [8460.41K] | 01.1993-11.2004 |
| IVECO | 190 E 34 9.5 | [8460.41K.406] | 01.1993- |
| IVECO | 190 E 34 9.5 | [8460.41K.406] | 04.1992-07.2000 |
| IVECO | 190 E 34 9.5 | [8460.41K.TCA] | 11.1999-11.2004 |
| IVECO | 190 E 38 9.5 | [8460.41LTCA] | 01.1993-02.2002 |
| IVECO | 190 E 38 9.5 | [8460.41LTCA] | 01.1993-07.2000 |
| IVECO | 240 E 30 9.5 | [8460.41C.TCA] | 01.1997- |
| IVECO | 240 E 34 9.5 | [8460.41K.TCA] | 09.1995-12.1996 |
| IVECO | 240 E 38 9.5 | [8460.41L.5020] | 01.1992- |
| IVECO | 240 E 38 9.5 | [8460.41L.5020] | 01.1993-02.2002 |
| IVECO | 240 E 38 9.5 | [8460.41L.5020] | 09.1992-02.2002 |
| IVECO | 260 E 30 9.5 | [8460.41C] | 01.1993-07.2000 |
| IVECO | 260 E 30 9.5 | [8460.41C] | 01.1993-11.2004 |
| IVECO | 260 E 30 9.5 | [8460.41C.TCA | 11.1999-11.2004 |
| IVECO | 260 E 34 9.5 | [8460.41C.TCA | 11.1999-11.2004 |
| IVECO | 260 E 34 9.5 | [8460.41K] | 01.1993-07.2000 |
| IVECO | 260 E 34 9.5 | [8460.41K] | 01.1993-11.2004 |
| IVECO | 260 E 34 9.5 | [8460.41K.TCA] | 11.1999-11.2004 |
| IVECO | 260 E 38 9.5 | [8460.41LTCA] | 01.1993-02.2002 |
| IVECO | 260 E 38 9.5 | [8460.41N] | 01.1994- |
| IVECO | 340 E 34 9.5 | [8460.41K.] | 11.1999-11.2004 |
| IVECO | 340 E 34 9.5 | [8460.41K] | 01.1993-11.2004 |
| IVECO | 340 E 34 9.5 | [8460.41K] | 04.1992-07.2000 |
| IVECO | 370 370.20, 370.24 | 01.1976-12.1999 | |
| IVECO | 380 E 34 9.5 | [8460.41K.] | 11.1999-11.2004 |
| IVECO | 380 E 34 9.5 | [8460.41K] | 01.1993-07.2000 |
| IVECO | 380 E 34 9.5 | [8460.41K] | 01.1993-11.2004 |
| IVECO | 400 E 34 9.5 | [8460.41K] | 01.1993-11.2004 |
| IVECO | 400 E 34 9.5 | [8460.41K] | 01.1993-12.2000 |
| IVECO | 400 E 34 9.5 | [8460.41K.406] | 01.1992- |
| IVECO | 400 E 34 9.5 | [8460.41K.406] | 01.1992-08.1998 |
| IVECO | 400 E 34 9.5 | [8460.41K.406] | 04.1992-12.2000 |
| IVECO | 400 E 38 9.5 | [8460.41L.5020] | 01.1992- |
| IVECO | 400 E 38 9.5 | [8460.41L.5020] | 01.1993-02.2002 |
| IVECO | 400 E 38 9.5 | [8460.41L.5020] | 09.1992-11.2000 |
| IVECO | 400 E 38 9.5 | [8460.41LTCA] | 01.1993-02.2002 |
| IVECO | 400 E 38 9.5 | [8460.41LTCA] | 01.1994-11.2000 |
| IVECO | 400 E 38 9.5 | [8460.41N] | 01.1993-02.2002 |
| IVECO | 400 E 38 9.5 | [8460.41N] | 09.1992-11.2000 |
| IVECO | 440 E 34 9.5 | [8460.41K] | 01.1993-11.2004 |
| IVECO | 440 E 34 9.5 | [8460.41K] | 01.1994-07.2000 |
| IVECO | 440 E 34 9.5 | [8460.41K.406] | 01.1992- |
| IVECO | 440 E 34 9.5 | [8460.41K.406] | 04.1992-12.2000 |
| IVECO | 440 E 38 9.5 | [8460.41L.5020] | 01.1992-11.2000 |
| IVECO | 440 E 38 9.5 | [8460.41L.5020] | 01.1993-02.2002 |
| IVECO | 440 E 38 9.5 | [8460.41LTCA] | 01.1993-02.2002 |
| IVECO | 440 E 38 9.5 | [8460.41N] | 01.1992-02.2002 |
| IVECO | 440 E 38 9.5 | [8460.41N] | 01.1993-02.2002 |
| IVECO | 8460 9.5 | [5460.41.970] | 10.1989- |
| IVECO | 8460 9.5 | [5460.41.970] | 10.1989-12.1999 |
| IVECO | 8460 9.5 | [8460SI..] | 10.1989- |
| IVECO | 8460 9.5 | [8460SI..] | 10.1989-12.1999 |
| IVECO | EUROSTAR LD 190 E 38 P | 8460.41LTCA | 01.1993-02.2002 |
| IVECO | EUROSTAR LD 240 E 38 | 8460.41L.5020 | 01.1993-02.2002 |
| IVECO | EUROSTAR LD 240 E 38 | 8460.41L.5020 | 01.1993-02.2002 |
| IVECO | EUROSTAR LD 260 E 38 P | 8460.41LTCA | 01.1993-02.2002 |
| IVECO | EUROSTAR LD 400 E 38 TX/P,LD 440 E 38 TX/P | 8460.41L.5020 | 01.1993-02.2002 |
| IVECO | EUROSTAR LD 400 E 38 TX/P,LD 440 E 38 TX/P | 8460.41LTCA | 01.1993-02.2002 |
| IVECO | EUROSTAR LD 400 E 38 TX/P,LD 440 E 38 TX/P | 8460.41N | 01.1993-02.2002 |
| IVECO | EUROSTAR LD 440 E 38 T | 8460.41LTCA | 01.1993-02.2002 |
| IVECO | EUROSTAR LD 440 E 38 T | 8460.41N | 01.1993-02.2002 |
| IVECO | EUROSTAR LD 440 E 38 TZ | 8460.41LTCA | 01.1993-02.2002 |
| IVECO | EUROSTAR LD 440 E 38 TZ | 8460.41N | 01.1993-02.2002 |
| IVECO | EUROTECH MP 180 E 34 | 8460.41K.406 | 01.1992-12.1993 |
| IVECO | EUROTECH MP 180 E 38 | 8460.41L.5020 | 01.1992-12.1993 |
| IVECO | EUROTECH MP 190 E 34 | 8460.41K.406 | 01.1993- |
| IVECO | EUROTECH MP 190 E 38 | 8460.41LTCA | 01.1993- |
| IVECO | EUROTECH MP 240 E 30 PS | 8460.41C.TCA | 01.1997- |
| IVECO | EUROTECH MP 240 E 34 | 8460.41K.TCA | 09.1995-12.1996 |
| IVECO | EUROTECH MP 240 E 38 | 8460.41L.5020 | 01.1992- |
| IVECO | EUROTECH MP 240 E 38 | 8460.41L.5020 | 01.1992- |
| IVECO | EUROTECH MP 240 E 42 | 8210.42L.400 | 01.1992- |
| IVECO | EUROTECH MP 260 E 38 P | 8460.41N | 01.1994- |
| IVECO | EUROTECH MP 400 E 34 T, 440 E 34 T | 8460.41K.406 | 01.1992- |
| IVECO | EUROTECH MP 400 E 38 T, 440 E 38 T, 440 E 38 T /P | 8460.41L.5020 | 01.1992- |
| IVECO | EUROTECH MP 400 E 38 T, 440 E 38 T, 440 E 38 T /P | 8460.41N | 01.1992- |
| IVECO | EUROTECH MP 400 E 38 TXP | 8460.41L.5020 | 11.1993-12.1996 |
| IVECO | EUROTECH MP 400 E 38 TXP | 8460.41N | 11.1993-12.1996 |
| IVECO | EUROTECH MP 440 E 38 TZ | 8460.41LTCA | 01.1993- |
| IVECO | EUROTECH MT 180 E 30 R | 8460.41C.320 | 01.1992-12.1996 |
| IVECO | EUROTECH MT 180 E 34 R | 8460.41K.406 | 01.1992-12.1993 |
| IVECO | EUROTECH MT 190 E 30 | 8460.41C.320 | 01.1997-08.1998 |
| IVECO | EUROTECH MT 190 E 30 K | 8460.41C.320 | 01.1997-08.1998 |
| IVECO | EUROTECH MT 400 E 30 T | 8460.41C.320 | 01.1992-08.1998 |
| IVECO | EUROTECH MT 400 E 34 T | 8460.41K.406 | 01.1992-08.1998 |
| IVECO | EUROTRAKKER MP 180 E 25 W | 8460.41T | 05.1999-11.2004 |
| IVECO | EUROTRAKKER MP 190 E 30 H | 8460.41C. | 01.1993-11.2004 |
| IVECO | EUROTRAKKER MP 190 E 30 W | 8460.41C. | 01.1993-11.2004 |
| IVECO | EUROTRAKKER MP 190 E 30 W | 8460.41C. | 11.1999-11.2004 |
| IVECO | EUROTRAKKER MP 190 E 34 H | 8460.41K. | 01.1993-11.2004 |
| IVECO | EUROTRAKKER MP 190 E 34 W | 8460.41K. | 01.1993-11.2004 |
| IVECO | EUROTRAKKER MP 190 E 34 W | 8460.41K.TCA | 11.1999-11.2004 |
| IVECO | EUROTRAKKER MP 260 E 30 H | 8460.41C. | 01.1993-11.2004 |
| IVECO | EUROTRAKKER MP 260 E 34 H | 8460.41K. | 01.1993-11.2004 |
| IVECO | EUROTRAKKER MP 260 E 34 H | 8460.41K. | 11.1999-11.2004 |
| IVECO | EUROTRAKKER MP 260 E 34 H | 8460.41K.TCA | 11.1999-11.2004 |
| IVECO | EUROTRAKKER MP 260 E 34 W | 8460.41K. | 01.1993-11.2004 |
| IVECO | EUROTRAKKER MP 260 E 34 W | 8460.41K. | 11.1999-11.2004 |
| IVECO | EUROTRAKKER MP 260 E 34 W | 8460.41K.TCA | 11.1999-11.2004 |
| IVECO | EUROTRAKKER MP 340 E 34 H | 8460.41K. | 01.1993-11.2004 |
| IVECO | EUROTRAKKER MP 340 E 34 H | 8460.41K. | 11.1999-11.2004 |
| IVECO | EUROTRAKKER MP 340 E 34 H | 8460.41K.TCA | 11.1999-11.2004 |
| IVECO | EUROTRAKKER MP 380 E 34 H | 8460.41K. | 01.1993-11.2004 |
| IVECO | EUROTRAKKER MP 380 E 34 H | 8460.41K. | 11.1999-11.2004 |
| IVECO | EUROTRAKKER MP 380 E 34 H | 8460.41K.TCA | 11.1999-11.2004 |
| IVECO | EUROTRAKKER MP 380 E 34 W | 8460.41K. | 11.1999-11.2004 |
| IVECO | EUROTRAKKER MP 380 E 34 W | 8460.41K.TCA | 11.1999-11.2004 |
| IVECO | EUROTRAKKER MP 400 E 34 HT | 8460.41K. | 01.1993-11.2004 |
| IVECO | EUROTRAKKER MP 400 E 34 HT | 8460.41K.TCA | 01.1993-11.2004 |
| IVECO | EUROTRAKKER MP 440 E 34 HT | 8460.41K. | 01.1993-11.2004 |
| IVECO | EUROTRAKKER MP 440 E 34 HT | 8460.41K.TCA | 01.1993-11.2004 |
| IVECO | M 165-24 9.6 | [8220.22.002] | 01.1985-12.1985 |
| IVECO | M 165-24 9.6 | [8220.22.002] | 06.1982-09.1986 |
| IVECO | M 165-24 9.6 | [8220.22.002] | 06.1982-09.1989 |
| IVECO | M 165-24 9.6 | [8220.22.102] | 01.1985-12.1985 |
| IVECO | M 165-24 9.6 | [8220.22.102] | 06.1982-09.1986 |
| IVECO | M 165-24 9.6 | [8220.22.102] | 06.1982-09.1989 |
| IVECO | M 175-24 | 8460.21.002 | 09.1986-11.1992 |
| IVECO | M 175-24 | 8460.21.010 | 09.1986-11.1992 |
| IVECO | M 175-24 9.5 | [8460.21.002] | 09.1986-07.1992 |
| IVECO | M 175-24 9.5 | [8460.21.002] | 09.1986-11.1992 |
| IVECO | M 175-24 9.5 | [8460.21.010] | 09.1986-07.1992 |
| IVECO | M 175-24 9.5 | [8460.21.010] | 09.1986-11.1992 |
| IVECO | M 175-24 T | 8460.21.002 | 09.1986-11.1992 |
| IVECO | M 175-24 T | 8460.21.010 | 09.1986-11.1992 |
| IVECO | TURBOCITY 480.9.21, 480.10.21, 480.12.21, 580.10.21, 580.12.21 | 8460.21.611 | 01.1989-12.1992 |
| IVECO | TURBOCITY 680.12.24 | 01.1991-12.1996 | |
| IVECO | TURBOTECH 190-26 | 8460.21.102 | 01.1990-12.1992 |
| IVECO | TURBOTECH 190-26 T | 8460.21.102 | 01.1990-12.1992 |
| IVECO | TURBOTECH 190-32 | 8460.41.102 | 01.1990-12.1992 |
| IVECO | TURBOTECH 190-32 T | 8460.41.102 | 01.1990-12.1992 |
Reference Information
| 0001415017 | BOSCH |
| 0001416011 | BOSCH |
| 0001416052 | BOSCH |
| 0986013420 | BOSCH |
| 0986018420 | BOSCH |
| 10502 | KUHNER |
| 10502P | KUHNER |
| 10825 | EFEL |
| 110582 | CARGO |
| 1516763R | DAF |
| 19784N | WAI |
| 20401226BN | REAL |
| 20401226EL | REAL |
| 20401436BN | REAL |
| 20401436EL | REAL |
| 20401436RC | REAL |
| 220022 | ERA |
| 220220 | ERA |
| 22608 | EFEL |
| 28.0502 | LAUBER |
| 2995116 | IVECO |
| 2997384 | IVECO |
| 33532 | EAI |
| 42498148 | IVECO |
| 42498619 | IVECO |
| 45-1368 | ELSTOCK |
| 45-2459 | ELSTOCK |
| 455522 | VALEO |
| 4784445 | FIAT |
| 4784745 | FIAT |
| 4784747 | FIAT |
| 5110042 | MEAT & DORIA |
| 6010622 | SANDO |
| 6010634 | SANDO |
| 611466642 | IVECO |
| 61583669 | FIAT |
| 81466052 | MONARK |
| 860516GB | PRESTOLITE |
| 8704 | CEVAM |
| 8813420 | FRIESEN |
| 88212396 | POWERMAX |
| 8EA726150-001 | HELLA |
| AES9186 | AUTOELECTRO |
| ANM15640X | ANDEL |
| CGB-11552 | AINDE |
| CS502 | HC PARTS |
| CST10622AS | CASCO |
| CST10622ES | CASCO |
| CST10622RS | CASCO |
| CST10634AS | CASCO |
| CST10634ES | CASCO |
| CST10634GS | CASCO |
| CST10634RS | CASCO |
| DRS3420 | DELCO |
| DRS8420 | DELCO |
| F032110582 | CARGO |
| IM511 | AVF |
| LRS00986 | LUCAS |
| LRS986 | LUCAS |
| MAV126340 | SIOM |
| MAV1306 | SIOM |
| MAV2070 | SIOM |
| PRSL316 | 3EFFE |
| PTC-4040 | POWER TRUCK |
| R20K1 | ELMOT |
| S0221 | AS-PL |
| S24BH0039A2 | SIDAT |
| S24BH0040A2 | SIDAT |
| STR1644 | ELECTROLOG |
| STR22057 | WOODAUTO |
| STRL316 | 3EFFE |
| UD102942S | AS-PL |
Video/Publications
S0221View your shopping basket or Browse other items in Starter Motors.
