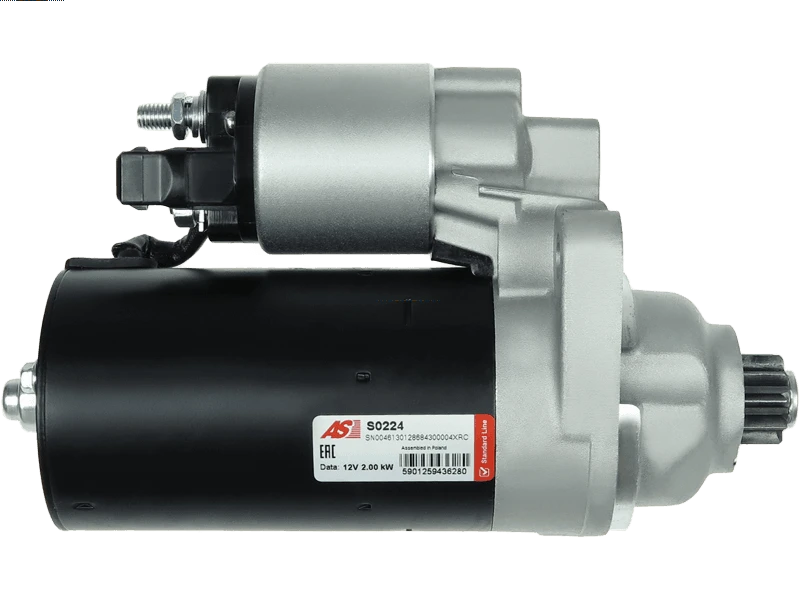

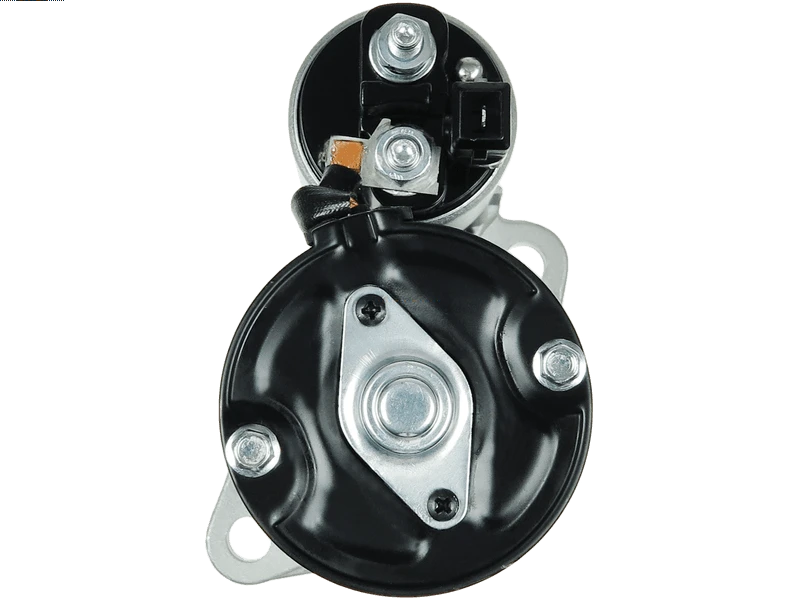

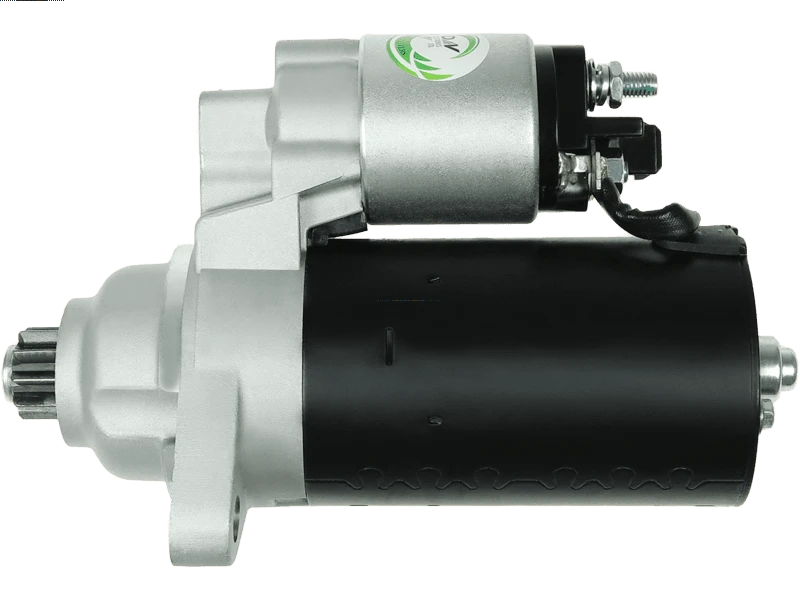

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 256.00 including GST
NZ$ 222.61 excluding GST
or four payments of $64.00
with
Learn More
each
S0224
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001125051Associated Numbers
0001125021 0001125022 0001125051 0001125052 02T911023C 02T911023H 02T911023HX 063721200010 0986018500 101200 101200B 112438 116335 11940 20401561BN 20401561OE 20401561RC 22.1200 220212 25-2474 300.542.102 3026 31231N 458586 6010165 8018500 8213060 88213060 8EA011610-091 8EA737856-001 943212001010 943253160010 944280185000 AES2221 BOS0001125051 CS1200 CST10165AS CST10165GS CST10165RS DRS8500 DS9610 EAA-121157 LRT00221 MQS1200 MRS18500 MSR5360 MSRC1200 S0224 SG0017 SS464 STB1200 STR50299Specifications
| Kilowatt | 2 kW |
| Length (L.1) | 235 mm |
| Mount Hole Center - Center (O.1) | 112 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 52.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SEAT | Cordoba 1.9 SDi | [ASY] | 09.2002- |
| SEAT | Cordoba 1.9 SDi | [ASY] | 09.2002-11.2009 |
| SKODA | Fabia 1.4 TDi | [BNV] | 06.2007- |
| SKODA | Fabia 1.9 SDi | [ASY] | 04.2000-12.2007 |
| SKODA | Fabia 1.9 SDi | [ASY] | 11.1999-12.2007 |
| SKODA | Fabia 1.9 SDi | [ASY] | 12.1999- |
| SKODA | Fabia 1.9 SDi | [ASY] | 12.1999-03.2008 |
| SKODA | Fabia Praktik 1.9 SDi | [ASY] | 07.2001-12.2007 |
| SKODA | Roomster 1.4 TDi | [BMS] | 09.2006- |
| SKODA | Roomster 1.4 TDi | [BNV] | 09.2006- |
| SKODA | Roomster 1.9 TDi | [AXR] | 03.2006-05.2006 |
| SKODA | Roomster 1.9 TDi | [BLS] | 09.2006- |
| SKODA | Roomster 1.9 TDi | [BSW] | 09.2006- |
| SKODA | Roomster Praktik 1.4 TDi | [BMS] | 03.2007-03.2010 |
| SKODA | Roomster Praktik 1.4 TDi | [BNV] | 03.2007-03.2010 |
| VW | Fox 1.4 TDi | [BNM] | 04.2005- |
| VW | Fox 1.4 TDi | [BNM] | 04.2005-12.2009 |
| VW | Polo 1.9 SDi | [ASY] | 09.2002- |
| VW | Polo 1.9 SDi | [ASY] | 10.2001-11.2009 |
| VW | Spacefox 1.9 SDi | [ASY] | 09.2007- |
Reference Information
| 0001125021 | BOSCH |
| 0001125022 | BOSCH |
| 0001125051 | BOSCH |
| 0001125052 | BOSCH |
| 011-001-000442R | REMANTE |
| 02T911023C | VW |
| 02T911023CX | VW |
| 02T911023H | VW |
| 02T911023HX | VW |
| 063721200010 | MAGNETI MARELLI |
| 0986018500 | BOSCH |
| 10010165AV | ITAB AUTOMOTIVE |
| 10010165OV | ITAB AUTOMOTIVE |
| 101200 | KUHNER |
| 101200B | KUHNER |
| 10440876 | ALANKO |
| 104574 | FARCOM |
| 11018500 | EUROTEC |
| 112438 | CARGO |
| 11490 | OSSCA |
| 116335 | CARGO |
| 11940 | EAI |
| 1638127280 | EUROREPAR |
| 1986S00813 | BOSCH |
| 20401561BN | REAL |
| 20401561OE | REAL |
| 20401561RC | REAL |
| 220212 | ERA |
| 220212A | ERA |
| 220212R | ERA |
| 25-2474 | ELSTOCK |
| 25-2474CT | AINDE |
| 2S0248 | RIDEX |
| 2S0248R | RIDEX |
| 2T911023C | VW |
| 2T911023CX | VW |
| 2T911023H | VW |
| 2T911023HX | VW |
| 300.542.102.010 | PSH |
| 300.542.102.018 | PSH |
| 300.542.102.280 | PSH |
| 300.542.102.461 | PSH |
| 300.542.102.550 | PSH |
| 3026 | CEVAM |
| 311082102 | DRI |
| 3116797 | HENKEL PARTS |
| 3116798 | HENKEL PARTS |
| 3116799 | HENKEL PARTS |
| 31231N | WAI / TRANSPO |
| 332257 | LOGISTIK |
| 458586 | VALEO |
| 4747008 | NK |
| 5010216G | MEAT & DORIA |
| 6010165.0 | SANDO |
| 6010165.1 | SANDO |
| 6010165.2 | SANDO |
| 8018500 | FRIESEN |
| 88213060 | POWERMAX |
| 8EA011610-091 | HELLA |
| 8EA737856-001 | HELLA |
| 940ST11 | STARTCAR |
| 943212001010 | MAGNETI MARELLI |
| 943253160010 | MAGNETI MARELLI |
| 944280185000 | MAGNETI MARELLI |
| A18500 | ATL AUTOTECHNIK |
| AC-CBS1200 | ACAUTO |
| AES2221 | AUTOELECTRO |
| ANM10720 | ANDEL |
| ANM10720X | ANDEL |
| ASM1069 | APEC |
| AZMT-53-010-1132 | A.Z. MEISTERTEILE |
| B001126064 | BOSCH |
| BOS0001125051 | WOODAUTO |
| BST2203 | BORG & BECK |
| CGB-28500 | AINDE |
| CMA-621157 | COMLINE |
| CS1200 | HC PARTS |
| CST10165AS | CASCO |
| CST10165GS | CASCO |
| CST10165RS | CASCO |
| DRS8500 | DELCO |
| DS9610 | DELCO |
| EZ0070 | ELTA AUTOMOTIVE |
| F032112438 | CARGO |
| F032116335 | CARGO |
| H5010216G | HOFFER |
| IR9388 | PROTECH |
| LES0414 | LE PART |
| LRT00221 | LUCAS |
| LRT221 | LUCAS |
| MAV121650 | SIOM |
| MAV121650A | SIOM |
| MAV121650R | SIOM |
| MQS1200 | MAGNETI MARELLI |
| MRS18500 | MAGNETI MARELLI |
| MSR5360 | MAGNETI MARELLI |
| MSRC1200 | MAGNETI MARELLI |
| NPANSM1069 | NAPA |
| QRS2020 | QUINTON HAZELL |
| RE83668N | THE NEWLINE |
| S0224 | AS-PL |
| S12BH0175 | SIDAT |
| S12BH0175A2 | SIDAT |
| S-50299 | DTS |
| S510857 | BTS TURBO |
| SBO165 | AUTOTEAM |
| SBO165A | AUTOTEAM |
| SEG0001125051 | WOODAUTO |
| SG0017 | GHIBAUDI |
| SKSTR-0330247 | STARK |
| ST01077 | TMI |
| STB1200 | KRAUF |
| STR1569 | ELECTROLOG |
| STR50299 | WOODAUTO |
| STR52014 | WOODAUTO |
| STX200096 | STARDAX |
| STX200096R | STARDAX |
| TT15284PRO | TESLA TECHNICS |
| V10-12-25051 | VEMO |
| VW9059 | SNRA |
| WG2012839 | WILMINK GROUP |
Video/Publications
