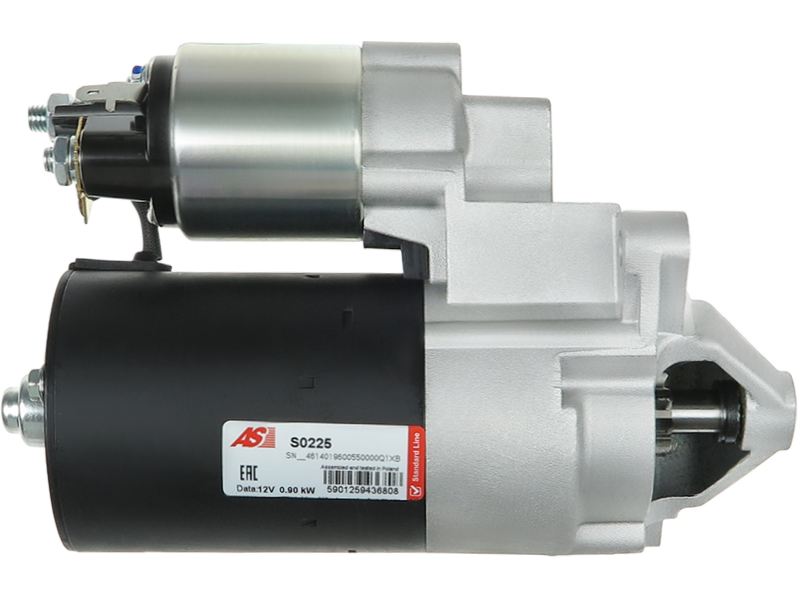

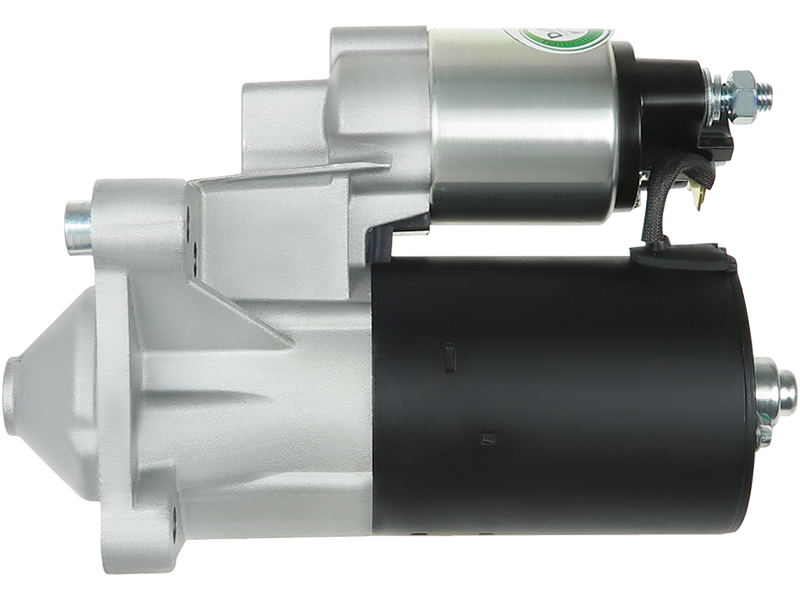

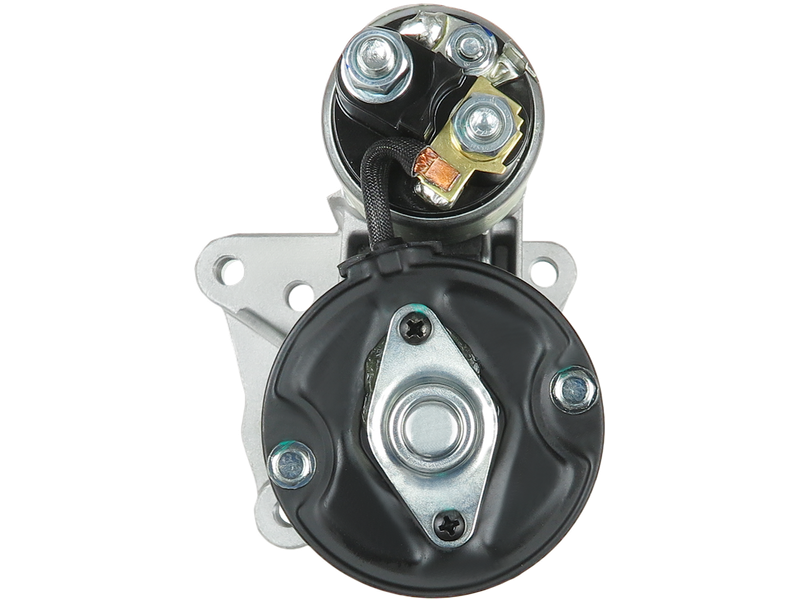

S0225 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 239.37 including GST

NZ$ 208.15 excluding GST
each
S0225
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

0001106012 0001106017 0001106022 0986018360 0986018770 0986021030 101179 101179B 11914 20401952BN 20401952OE 22.1179 25-2493 25-3161 3000 458189 458263 6010259 7700115294 7700875450 8018770 8200050150 8200186144 8212553 8253505 88212553 8EA737763-001 AES2235 B001109104 CS1179 CST10259AS CST10259GS DRS8770 LRS01632 LRT00235 S0225 SS608 STR50213 31235N 31235R
Kilowatt0.9 kW
Length (L.1)207 mm
Mount Hole Center - Center (O.1)93 mm
Mount Hole Center - Center (O.2)22 mm
Mount Hole Center - Center (O.3)64 mm
Mount Hole Center - Center (O.4)105 mm
Mount Hole Diameter (C.1)M10x1.5 mm
Mount Hole Diameter (C.2)M10x1.5 mm
Mount Hole Diameter (C.3)M10x1.5 mm
Mount Hole Diameter (C.4)M10x1.5 mm
No./Mount holes4 qty
No./Mount holes with thread4 qty
No./Teeth9 qty
No./Teeth (Replaces)9 qty
Pinion at Rest (B)0 mm
RotationCW
Spigot Diameter (A)66 mm
Unit TypeBOSCH
Voltage12 V
Make Model Type Year
RENAULT Clio 2.0 16V [F4736] 06.2001-
RENAULT Clio 2.0 16V Sport [F4730] 02.2000-
RENAULT Clio 2.0 16V Sport [F4738] 01.2004-10.2007
RENAULT Espace 2.0 [F4700] 09.2001-10.2002
RENAULT Espace 2.0 [F4701] 09.2001-10.2002
RENAULT Espace 2.0 16V [F4700] 10.1998-10.2002
RENAULT Espace 2.0 16V [F4701] 07.2000-10.2002
RENAULT Laguna 1.8 16V [F4P760] 04.1998-03.2001
RENAULT Laguna 1.8 16V [F4P770] 03.2001-
RENAULT Laguna 1.8 16V [F4P771] 03.2001-
RENAULT Laguna 1.8 16V [F4P773] 03.2001-
RENAULT Laguna 1.8 16V [F4P774] 03.2001-
RENAULT Laguna 1.8 16V [F4P775] 03.2001-
RENAULT Laguna 2.0 [F4780] 09.1999-02.2001
RENAULT Laguna 2.0 16V [F4715] 09.2001-
RENAULT Laguna 2.0 16V [F4780] 09.1999-03.2001
RENAULT Megane 1.8 16V [F4P720] 03.1999-09.2003
RENAULT Megane 1.8 16V [F4P722] 03.1999-09.2003
RENAULT Megane 2.0 16V [F4746] 09.2001-10.2002
RENAULT Megane 2.0 16V [F4770] 10.2003-
RENAULT Megane 2.0 16V [F7714] 03.1999-10.2002
RENAULT Megane 2.0 IDE 16V [F5740] 11.1999-
RENAULT Scenic 1.8 16V [F4P720] 11.2000-04.2003
RENAULT Scenic 1.8 16V [F4P722] 09.2000-04.2003
RENAULT Scenic 1.8 4x4 [F4P722] 07.2000-04.2001
RENAULT Scenic 2.0 16V [F4740] 03.1999-
RENAULT Scenic 2.0 16V [F4741] 03.1999-04.2003
RENAULT Scenic 2.0 16V RX4 [F4744] 06.1999-04.2003
RENAULT Scenic 2.0 IDE 16V [F4740] 03.2000-08.2003
RENAULT Scenic 2.0 IDE 16V [F4741] 03.2000-08.2003
RENAULT Scenic 2.0 IDE 16V [F4744] 03.2000-08.2003
8200186144 CST10259GS 000986021030 101179B STA0293R 0001106012 1106012 3000 331331 AES2235 CS1179 STR50213 8200724786 986018770 8200466761 22.1179 25-3161 000986018770 1106017 6010259 STR1221 STR1706 S0225 7700872450 11914 986021030 LRS1632 7700115294 ANM10990X B001109104 8018770 000986018360 STRS154 7711134301 31235N 5010452 31235R 8253505 S12BH0475A2 7700875450 8EA737763-001 88212553 25-2493 DRS8770 8200466744 8200050150 8212553 220923 0001106022 20401952BN 1106022 SS608 986018360 LRT00235 LRS01632 000B001109104 MAV122590 101179 458263 458189 8200724817 20401952OE CST10259AS 0001106017
0001106012 0001106017 0001106022 0986018360 0986018770 0986021030 101179 101179B 11914 20401952BN 20401952OE 22.1179 25-2493 25-3161 3000 31235N 31235R 458189 458263 6010259 7700115294 7700875450 8018770 8200050150 8200186144 8212553 8253505 88212553 8EA737763-001 AES2235 B001109104 CS1179 CST10259AS CST10259GS DRS8770 LRS01632 LRS1632 LRT00235 MAV122590 S0225 SS608 STR50213 STRS154 220923
