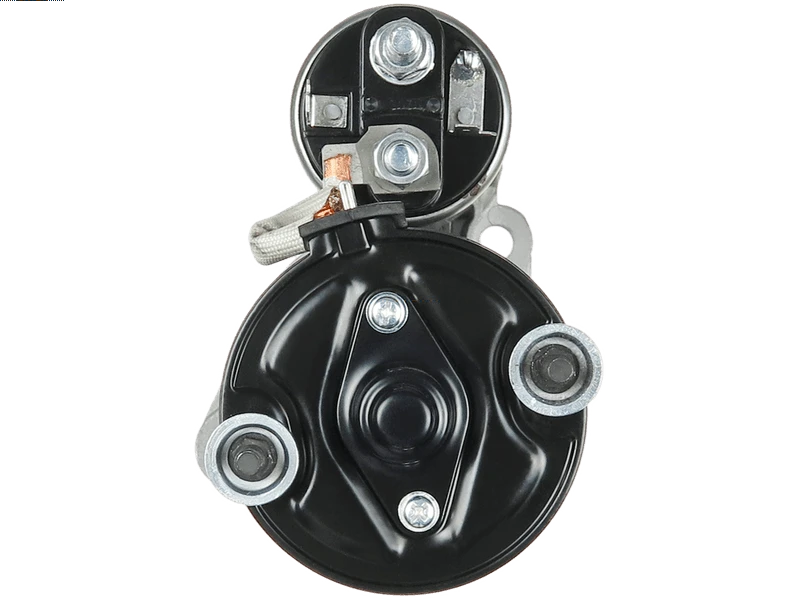

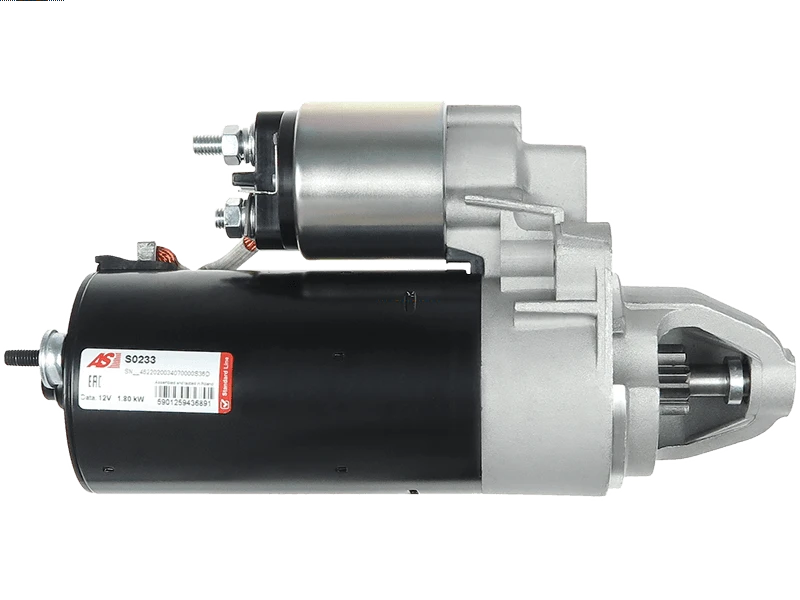

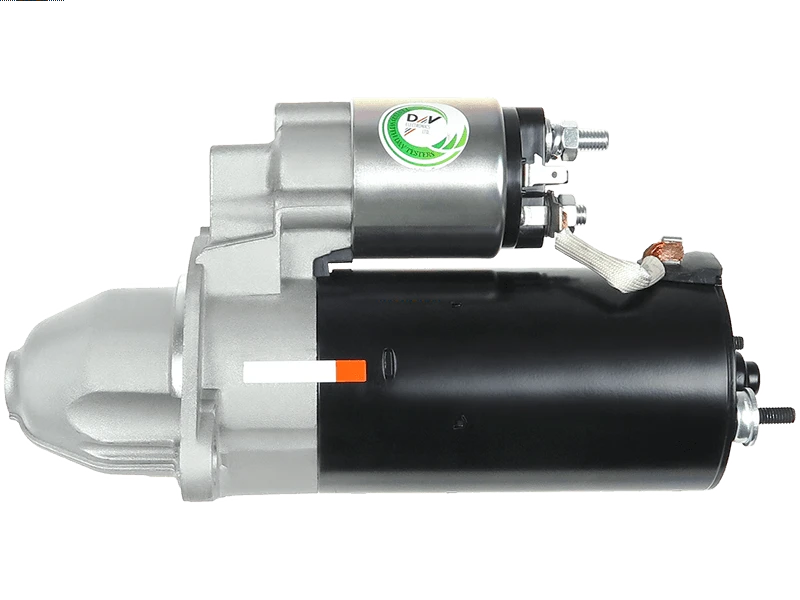

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 274.51 including GST
NZ$ 238.70 excluding GST
or four payments of $68.63
with
Learn More
each
S0233
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001110100Associated Numbers
0001110100 0001110101 077911023E 077911023EX 0986018060 101041 111817 11796 17752R 200.511.092 20401495 26-2104 3373 42018060 458513 88213078 8EA737290-001 91-15-7111 943253145010 AEU1041 CS1041 CST10594 CST10594AS CST10594ES CST10594GS CST10594OS CST10594RS DRS8060 DS9170 EAA-121354 LRS01777 MSR5345 S-6173 S0233 STB1041 STR50096Specifications
| Kilowatt | 1.80 kW |
| Length (L.1) | 268 mm |
| Mount Hole Center - Center (O.1) | 101 mm |
| Mount Hole Diameter (C.1) | M12x1.75 mm |
| Mount Hole Diameter (C.2) | 16 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 29 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | A6 4.2 Quattro | [ARS] | 11.1998-01.2005 |
| AUDI | A6 4.2 Quattro | [ASG] | 11.1998-01.2005 |
| AUDI | A8 3.7 | [AEW] | 07.1995-12.1998 |
| AUDI | A8 3.7 | [AKC] | 11.1998-09.2002 |
| AUDI | A8 3.7 | [AQG] | 11.1998-09.2002 |
| AUDI | A8 3.7 Quattro | [AEW] | 07.1995-11.1998 |
| AUDI | A8 3.7 Quattro | [AKC] | 11.1998-09.2002 |
| AUDI | A8 3.7 Quattro | [AKJ] | 07.1995-11.1998 |
| AUDI | A8 3.7 Quattro | [AQG] | 11.1998-09.2002 |
| AUDI | A8 4.2 Quattro | [ABZ] | 03.1994-11.1998 |
| AUDI | A8 4.2 Quattro | [AEM] | 03.1994-07.1996 |
| AUDI | A8 4.2 Quattro | [AKG] | 03.1994-11.1998 |
| AUDI | A8 4.2 Quattro | [AQF] | 11.1998-09.2002 |
| AUDI | A8 4.2 Quattro | [ARU] | 02.1999-04.2000 |
| AUDI | A8 4.2 Quattro | [AUW] | 11.1998-09.2002 |
| AUDI | A8 4.2 Quattro | [AUX] | 11.1998-09.2002 |
| AUDI | S6 4.2 Quattro | [ANK] | 09.1999-01.2005 |
| AUDI | S6 4.2 Quattro | [AQJ] | 09.1999-01.2005 |
| AUDI | S8 4.2 Quattro | [AHC] | 07.1996-06.1999 |
| AUDI | S8 4.2 Quattro | [AKH] | 07.1996-06.1999 |
| AUDI | S8 4.2 Quattro | [AQH] | 06.1999-09.2002 |
| AUDI | S8 4.2 Quattro | [AVP] | 06.1999-09.2002 |
| AUDI | S8 4.2 Quattro | [BCS] | 06.1999-09.2002 |
Reference Information
| 0001110100 | BOSCH |
| 0001110101 | BOSCH |
| 077911023E | VW |
| 077911023EX | VW |
| 0986018060 | BOSCH |
| 101041 | KUHNER |
| 111817 | CARGO |
| 11796 | EAI |
| 17752R | WAI / TRANSPO |
| 200.511.092 | PSH |
| 20401495 | REAL |
| 26-2104 | ELSTOCK |
| 3373 | CEVAM |
| 42018060 | HERTH+BUSS |
| 458513 | VALEO |
| 77911023E | VW |
| 77911023EX | VW |
| 88213078 | POWERMAX |
| 8EA737290-001 | HELLA |
| 91-15-7111 | WILSON |
| 943253145010 | MAGNETI MARELLI |
| AEU1041 | AUTOELECTRO |
| ANM10280X | ANDEL |
| CS1041 | HC PARTS |
| CST10594 | CASCO |
| CST10594AS | CASCO |
| CST10594ES | CASCO |
| CST10594GS | CASCO |
| CST10594OS | CASCO |
| CST10594RS | CASCO |
| DRS8060 | DELCO |
| DS9170 | DELCO |
| F032111817 | CARGO |
| LRS01777 | LUCAS |
| LRS1777 | LUCAS |
| MSR5345 | MAGNETI MARELLI |
| S0233 | AS-PL |
| S131.135 | PSH |
| S-6173 | DIXIE |
| STA0226R | BOVEZ |
| STB1041 | KRAUF |
| STR10128 | ELECTROLOG |
| STR50096 | WOODAUTO |
| STRF038 | 3EFFE |
| STX200346 | STARDAX |
Video/Publications
