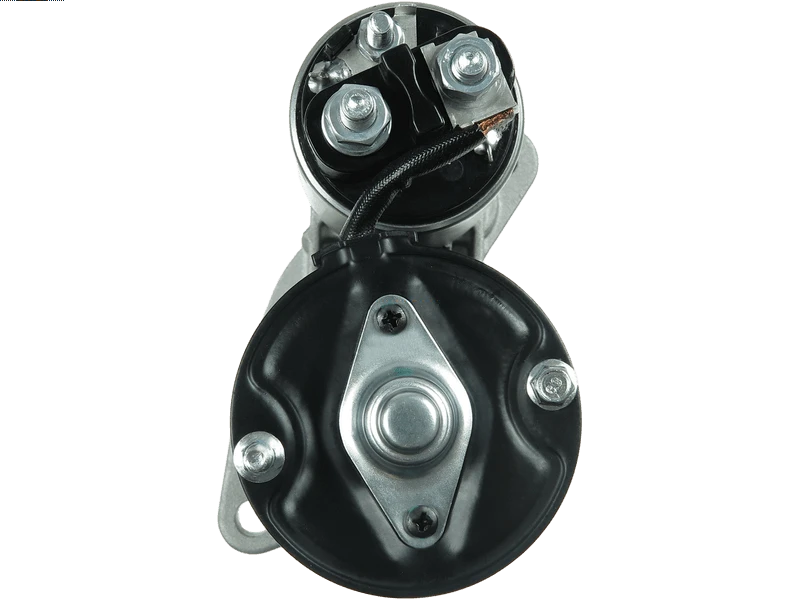

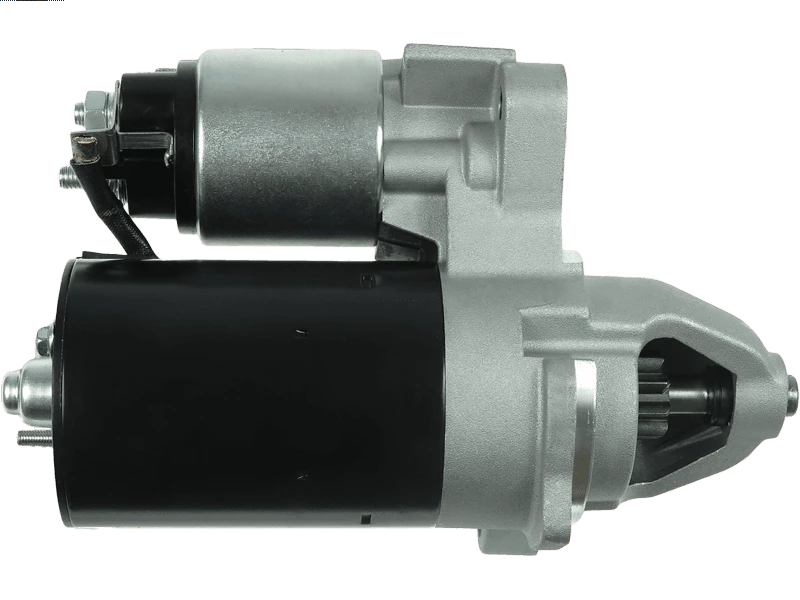

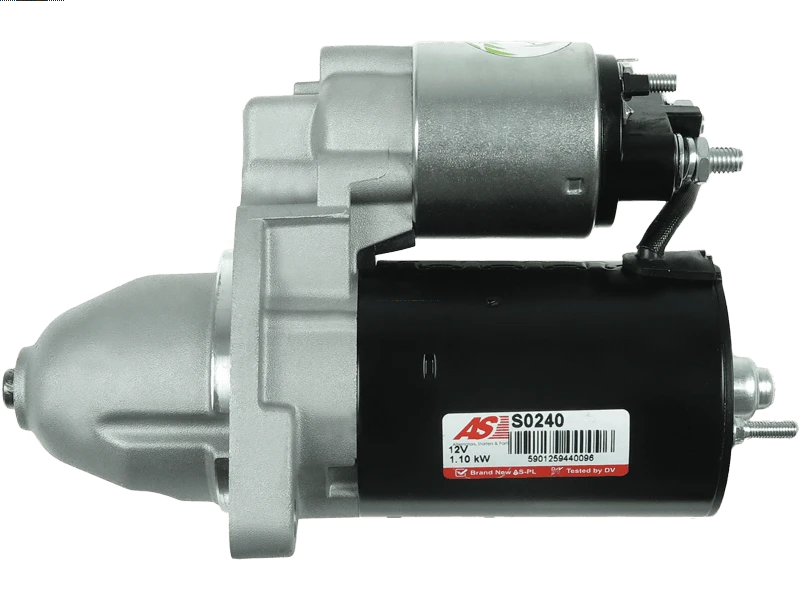

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 247.56 including GST
NZ$ 215.27 excluding GST
or four payments of $61.89
with
Learn More
each
S0240
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001107070Associated Numbers
0001107070 0001107071 012911023 0986020850 101064 111868 12221 20401642BN 20401642RC 22.1064 25-2374 32448R 6010246 8080084 88212683 8EA737408-001 AEU1064 CS1064 CST10246AS CST10246RS DRS3807 LRS01448 SS278 STR50324 UD12073SSpecifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 220 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 31 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VW | Passat 2.3 V5 | [AZX] | 11.2000-05.2005 |
| VW | Passat 2.3 V5 4-Motion | [AZX] | 11.2000-05.2005 |
| VW | Passat 2.3 VR5 | [AGZ] | 10.1996-11.2000 |
| VW | Passat 2.3 VR5 | [AZX] | 11.2000-05.2005 |
| VW | Passat 2.3 VR5 4-Motion | [AZX] | 11.2000-05.2005 |
| VW | Passat 2.3 VR5 Syncro 4-Motion | [AGZ] | 10.1996-11.2000 |
Reference Information
| 0001107070 | BOSCH |
| 0001107071 | BOSCH |
| 012911023 | VW |
| 012911023X | VW |
| 0986020850 | BOSCH |
| 101064 | KUHNER |
| 111868 | CARGO |
| 12221 | EAI |
| 20401642BN | REAL |
| 20401642RC | REAL |
| 22.1064 | LAUBER |
| 25-2374 | ELSTOCK |
| 32448R | WAI / TRANSPO |
| 330835 | LOGISTIK |
| 6010246 | SANDO |
| 8080084 | FRIESEN |
| 88212683 | POWERMAX |
| 8EA737408-001 | HELLA |
| AEU1064 | AUTOELECTRO |
| CS1064 | HC PARTS |
| CST10246AS | CASCO |
| CST10246RS | CASCO |
| DRS3807 | DELCO |
| F032111868 | CARGO |
| LRS01448 | LUCAS |
| LRS1448 | LUCAS |
| MAV122460 | SIOM |
| SS278 | SOVEREIGN |
| STR1185 | ELECTROLOG |
| STR50324 | WOODAUTO |
| STRF318 | 3EFFE |
| STX200957 | STARDAX |
| UD12073S | AS-PL |
