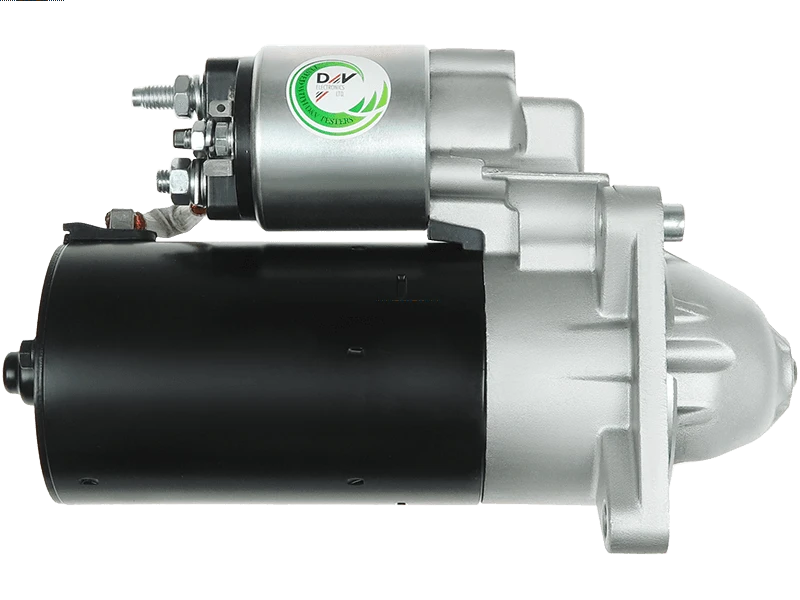

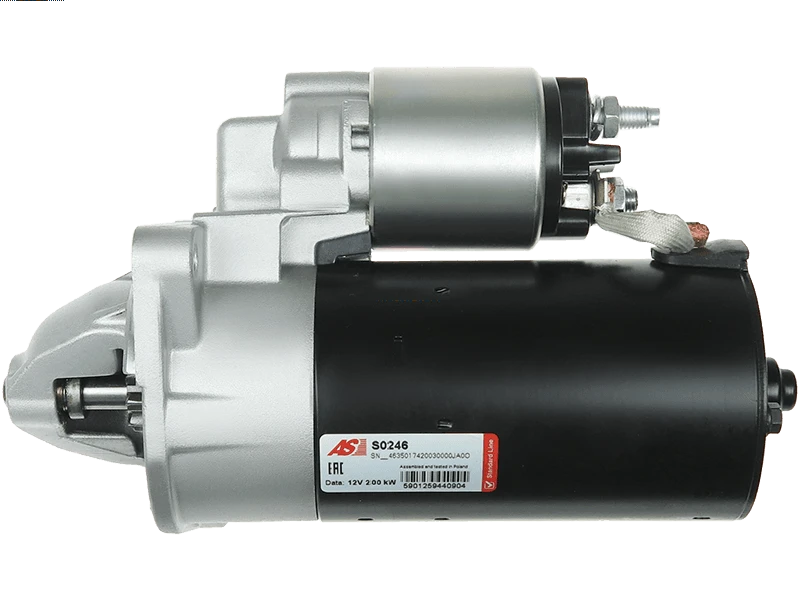

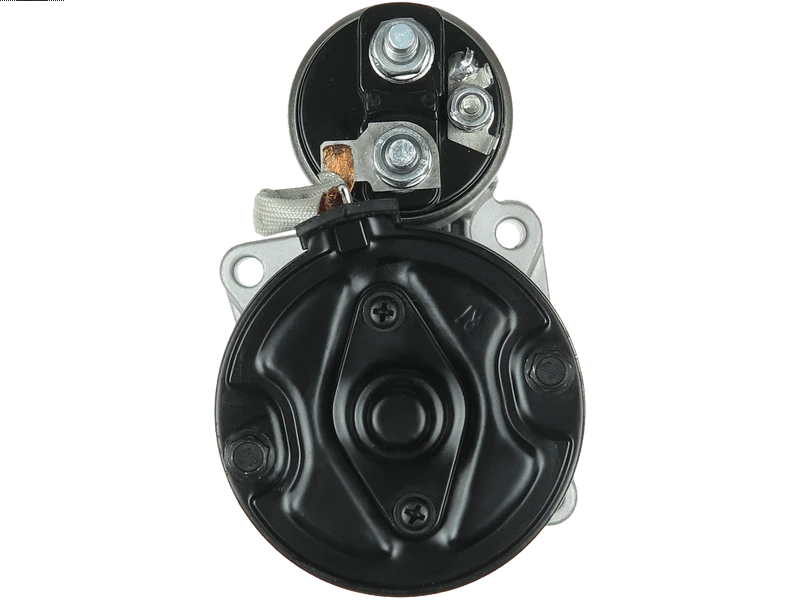

S0246 - Brand new AS-PL Starter motor

Associated Numbers

0001108204 0001109048 0986018450 101212 101212B 11.130.996 112379 11948 20401853BN 20401853OE 20404211RC 22.1212 22.1212M 25-3175 3014 31200R 31202N 458585 46437520 46522234 46830212 6010358 6030112 63113003 8018450 88213194 8EA011610-961 8EA737901-001 AES2200 AZE2110 CS1212 CST10358AS CST10358GS CST30112RS DRS8450 DSN581 EAA-121183 GS109048-A LRT00200 RNL1845 S0246 STR4518

Specifications

Kilowatt	2 kW
Length (L.1)	239 mm
Mount Hole Center - Center (O.1)	83 mm
Mount Hole Center - Center (O.2)	116 mm
Mount Hole Center - Center (O.3)	83 mm
Mount Hole Diameter (C.1)	8.50 mm
Mount Hole Diameter (C.2)	8.50 mm
Mount Hole Diameter (C.3)	8.50 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9. 11 qty
OEM Product	No
Pinion at Rest (B)	9.50 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FIAT	Doblo 1.9 Diesel	[223A6.000]	03.2001-
FIAT	Palio 1.9 Diesel	[223A6.000]	03.2001-
FIAT	Palio 1.9 Diesel	[223A6.000]	09.2000-09.2001
FIAT	Punto 1.9 Diesel	[188A3.000]	09.1999-
FIAT	Punto Van 1.9 Diesel	[188AX]	02.2000-
FIAT	Strada 1.9 Diesel	[223A6.000]	11.2000-03.2003

Reference Information

0001108204	BOSCH
0001108247	BOSCH
0001109048	BOSCH
011-001-000488R	REMANTE
063521082040	MAGNETI MARELLI
063721432110	MAGNETI MARELLI
0986018450	BOSCH
10010358AV	ITAB AUTOMOTIVE
10010358OV	ITAB AUTOMOTIVE
101212	KUHNER
101212B	KUHNER
101212R	KUHNER
101212S	KUHNER
10440859	ALANKO
104571	FARCOM
11010099	KRAFTVOLL GERMANY
11018450	EUROTEC
11.130.996	ISKRA / LETRIKA
112379	CARGO
114321	CARGO
11948	EAI
1265046	CTR
1638124480	EUROREPAR
1986S00701	BOSCH
201112	VALEO
20401853BN	REAL
20401853OE	REAL
2131391	OMNICRAFT
220155	ERA
220155A	ERA
220155R	ERA
22.1212	CQ
22.1212M	CQ
25-3175	ELSTOCK
25-3175CT	AINDE
2S0173	RIDEX
3014	CEVAM
3118742	HENKEL PARTS
3118743	HENKEL PARTS
3118745	HENKEL PARTS
31200R	WAI / TRANSPO
31202N	WAI / TRANSPO
318086092	DRI
331364	LOGISTIK
42018450	HERTH+BUSS
458264	VALEO
458585	VALEO
46437520	FIAT
46522234	FIAT
46830212	FIAT
46835091	FIAT
4718450	NK
500.531.093.010	PSH
500.531.093.011	PSH
500.531.093.210	PSH
500.531.093.212	PSH
500.531.093.216	PSH
500.531.093.266	PSH
500.531.093.280	PSH
500.531.093.312	PSH
500.531.093.340	PSH
500.531.093.341	PSH
500.531.093.395	PSH
5010007	MEAT & DORIA
5010007G	MEAT & DORIA
6010358.0	SANDO
6010358.1	SANDO
63113003	MAGNETI MARELLI
71723351	FIAT
71723352	FIAT
71723814	FIAT
71782397	FIAT
726905	VALEO
72736000	MAHLE
8018450	FRIESEN
8550505935	MOTRIO
88213194	POWERMAX
88215064	POWERMAX
8EA011610-961	HELLA
8EA737901-001	HELLA
944280184500	MAGNETI MARELLI
948ST11	STARTCAR
A18450	ATL AUTOTECHNIK
AC-CBS1212	ACAUTO
AES2200	AUTOELECTRO
AI-80134	AINDE
ANM10670	ALANKO
ANM10670X	ANDEL
AZE2110	ISKRA / LETRIKA
AZMT-53-010-1583	A.Z. MEISTERTEILE
BREF0321986S00701	CARWOOD GROUP
BST2163	BORG & BECK
CMA-621183	COMLINE
CS1212	HC PARTS
CST10358AS	CASCO
CST10358GS	CASCO
DRS8450	DELCO
F032112379	CARGO
F032114321	CARGO
FI9072	SNRA
GS109048-A	GPARTS
H5010007	HOFFER
H5010007G	HOFFER
IR9396	PROTECH
IS0996	ISKRA / LETRIKA
LRT00200	LUCAS
LRT200	LUCAS
MAV123580	SIOM
MAV123580A	SIOM
MQS14321	MAGNETI MARELLI
MRS18450	MAGNETI MARELLI
MS372	MAHLE
MSN2001	MAGNETI MARELLI
PRSL099	3EFFE
QRS1512	QUINTON HAZELL
RNL1845	RNL
S0246	AS-PL
S100154	BTS TURBO
S101572	BTS TURBO
S12BH0074	SIDAT
S12BH0074A2	SIDAT
S132.856	PSH
S144.298	PSH
S148.927	PSH
SBO358	AUTOTEAM
SBO358A	AUTOTEAM
SG0134	GHIBAUDI
SG0134RB	GHIBAUDI
SKSTR-0330172	STARK
ST01248	TMI
STB1212	KRAUF
STM1278	ROLLCO
STR1495	ELECTROLOG
STR52059	WOODAUTO
STR79102	ELECTROLOG
STRJ380	3EFFE
STRL099	3EFFE
STX200109	STARDAX
STX200109R	STARDAX
STX201365	STARDAX
STX201365R	STARDAX
SV36BH0074.0	7 SEVEN PARTS
WG2012781	WILMINK GROUP
WG2012782	WILMINK GROUP
WG2045138	WILMINK GROUP
WG2196558	WILMINK GROUP
WOOSTR4518	WOODAUTO
WOOSTR52059	WOODAUTO
