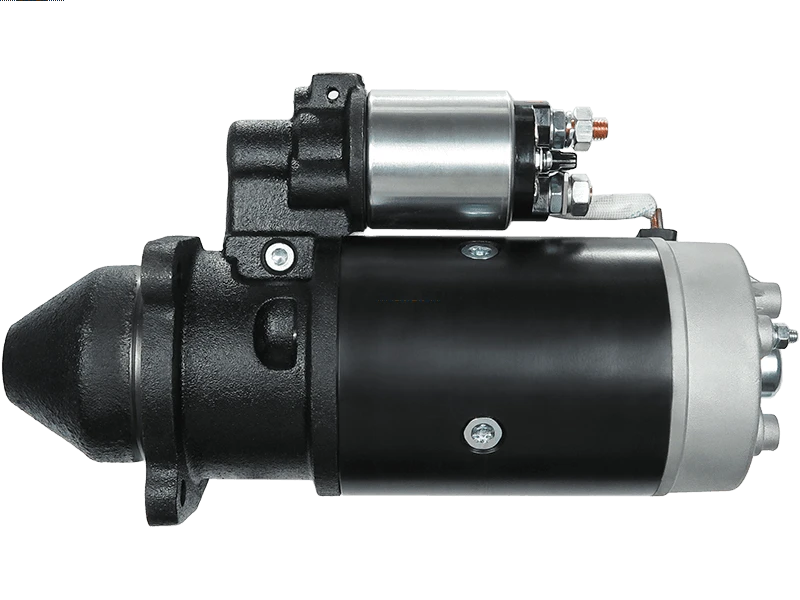

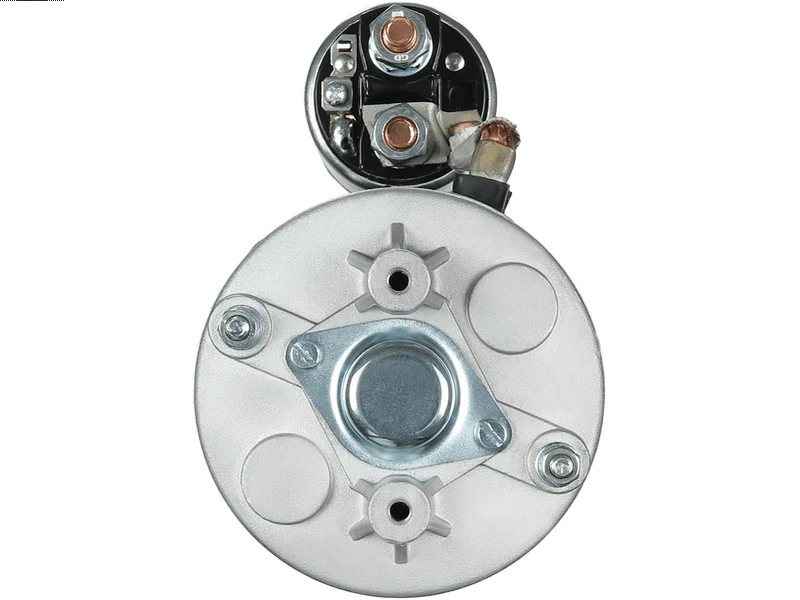

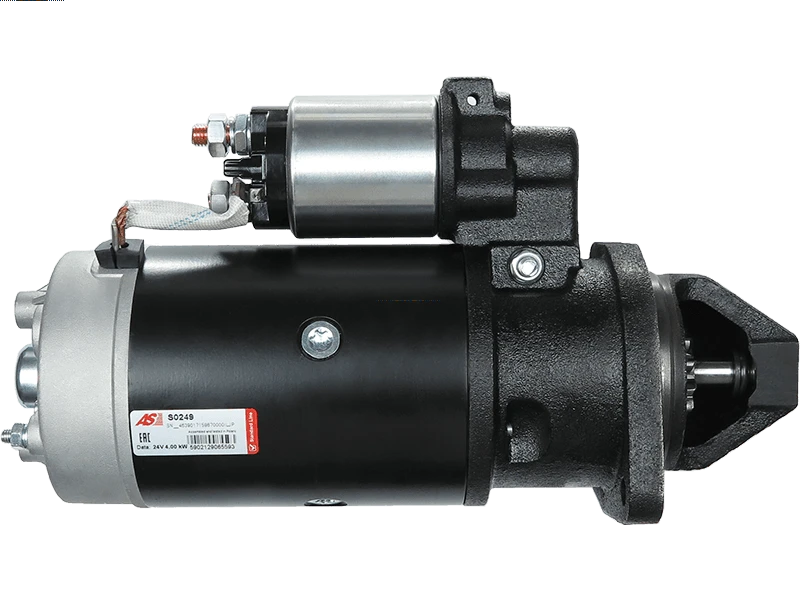

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 486.02 including GST
NZ$ 422.63 excluding GST
or four payments of $121.51
with
Learn More
each
S0249
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001368082Associated Numbers
0001368082 063523680820 0986017880 101261 101261R 11.131.086 1516698R 19024265 20401076 260-67221 45-3052 458254 4854185 501.004.103 6010670 72735957 8126 8EA738022-001 AZJ3375 CS1261 CST10670 CST10670AS CST10670ES CST10670GS CST10670OS CST10670RS DRS7880 DS8990 IS1029 LRS01937 MAHMS329 MS329 MSN2057 SG9138 STB1261 STR22073 UD16606S UNIT BOM 120-6125Specifications
| Kilowatt | 4 kW |
| Length (L.1) | 340 mm |
| Mount Hole Center - Center (O.1) | 89.50 mm |
| Mount Hole Center - Center (O.2) | 89.50 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| IVECO | 150 E 27 7.7 | [8360.46.417TCA] | 01.1992-07.2000 |
| IVECO | 170 E 27 7.7 | [8360.46.417TCA] | 01.1994-07.2000 |
| IVECO | 180 E 24 7.7 | [8360.46.416TCA] | 07.1992-12.1996 |
| IVECO | 180 E 27 7.7 | [8360.46.417TCA] | 07.1992-07.2000 |
| IVECO | 190 E 24 7.7 | [8360.46.416TCA] | 01.1997-08.1998 |
| IVECO | 190 E 27 7.7 | [8360.46.417TCA] | 01.1997-08.1998 |
| IVECO | 320 E 27 7.7 | [8360.46.417] | 01.1992-08.2000 |
Reference Information
| 0001368082 | BOSCH |
| 063523680820 | MAGNETI MARELLI |
| 0986017880 | BOSCH |
| 101261 | KUHNER |
| 101261R | KUHNER |
| 11.131.086 | ISKRA / LETRIKA |
| 1516698R | DAF |
| 19024265 | DELCO |
| 20401076 | REAL |
| 20401076BN | REAL |
| 260-67221 | DIXIE |
| 2995126 | IVECO |
| 331386 | LOGISTIK |
| 45-3052 | ELSTOCK |
| 458254 | VALEO |
| 4854185 | IVECO |
| 501.004.103 | PSH |
| 6010670 | SANDO |
| 72735957 | MAHLE |
| 8126 | CEVAM |
| 8EA738022-001 | HELLA |
| ANM10100X | ANDEL |
| AZJ3375 | ISKRA / LETRIKA |
| CGB-27880 | AINDE |
| CS1261 | HC PARTS |
| CST10670 | CASCO |
| CST10670AS | CASCO |
| CST10670ES | CASCO |
| CST10670GS | CASCO |
| CST10670OS | CASCO |
| CST10670RS | CASCO |
| DRS7880 | DELCO |
| DS8990 | DELCO |
| IS1029 | ISKRA / LETRIKA |
| LRS01937 | LUCAS |
| LRS1937 | LUCAS |
| MAHMS329 | WOODAUTO |
| MAV6750 | SIOM |
| MS329 | MAHLE |
| MS 329 | MAHLE |
| MSN2057 | MAGNETI MARELLI |
| S24BH0038A2 | SIDAT |
| SG9138 | GHIBAUDI |
| STB1261 | KRAUF |
| STR1634 | ELECTROLOG |
| STR22073 | WOODAUTO |
| STR79127 | ELECTROLOG |
| STRS059 | 3EFFE |
| UD16606S | AS-PL |
| UNIT BOM 120-6125 | WAI / TRANSPO |
