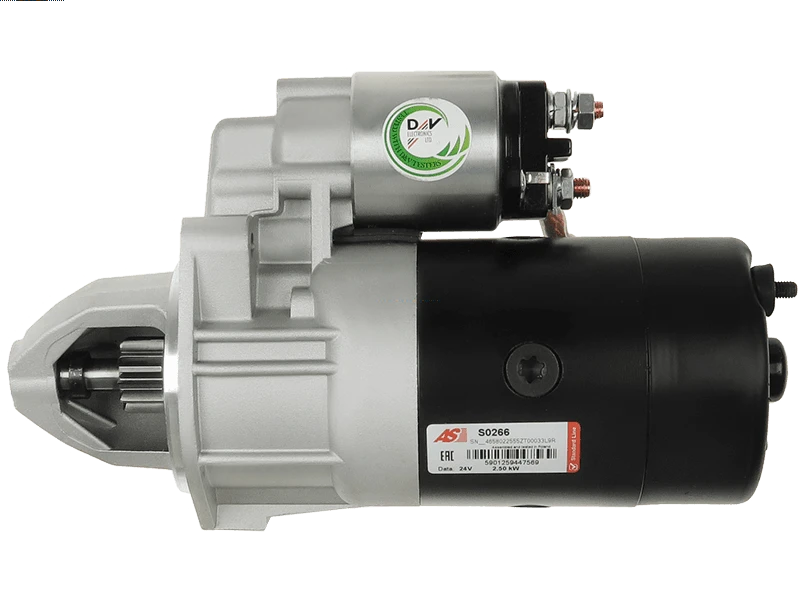

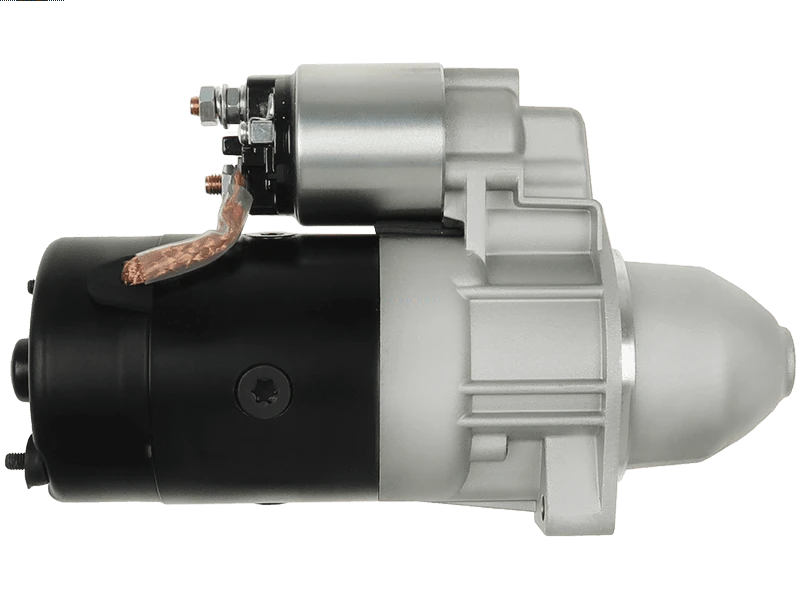

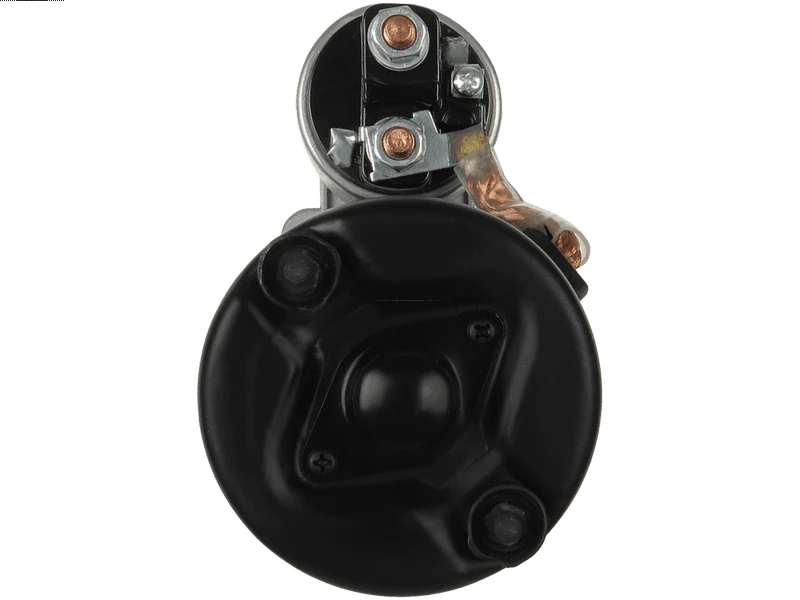

S0266 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.5 kW
Length (L.1)	275 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	26 mm
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	BOSCH
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
MERCEDES BENZ	G 250 2.5 Diesel	(460)[OM602.930]	01.1987-12.1992
MERCEDES BENZ	G 250 GD 2.5 Diesel	(463)[OM602.931]	01.1989-12.1993
MERCEDES BENZ	G 290 GD 2.9 Diesel	(461)[OM602.983]	01.1997-12.2001
MERCEDES BENZ TRUCKS & BUSES	Unimog U100L	[OM602.948]	01.1992-
MERCEDES BENZ TRUCKS & BUSES	Unimog U90	[OM602.941]	01.1992-

Reference Information

A0031519301 4619062200 458304 A0041519301 STR1599 STRF119 A004151310180 000986013390 A0041513101 A0041513201 41510201 61516601 000B001235014 CST10742GS 0001219007 1219009 CST10742AS A006151660180 20401247BN 45-2173 A0061516601 0001219009 331105 B001235014 S24BH0135A2 254285 6151660180 986013390 114319 331103 RNL219009 LRS01895 41513201 A4619062200 41513101 4151930180 4151310180 41519301 458003 S0266 31519401 1219007 6010742 31519301 20401247OE LRS1895 A004151930180

Video/Publications

0001219007 0001219009 0031519301 0041513101 0986013390 114319 20401247BN 20401247OE 254285 45-2173 458003 458304 6010742 A0031519301 A0041513101 B001235014 CST10742AS CST10742GS LRS01895 LRS1895 RNL219009 S0266 STRF119
