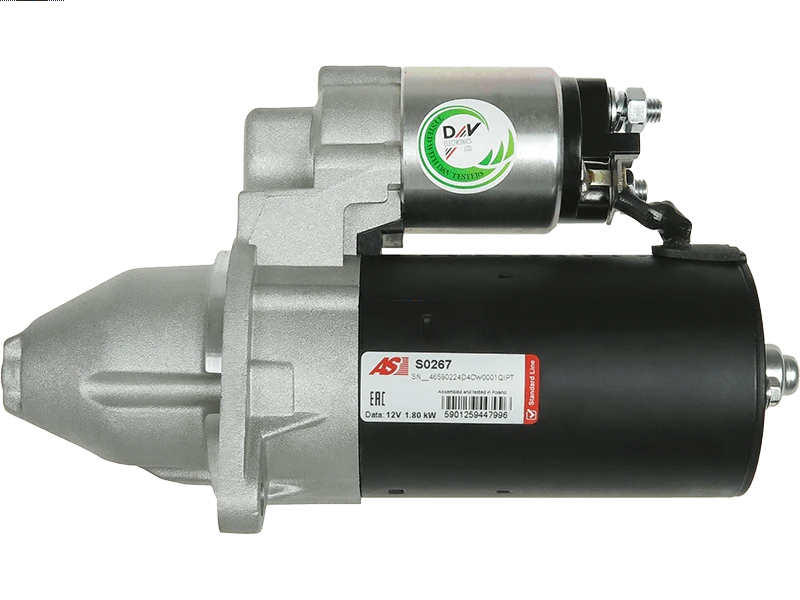

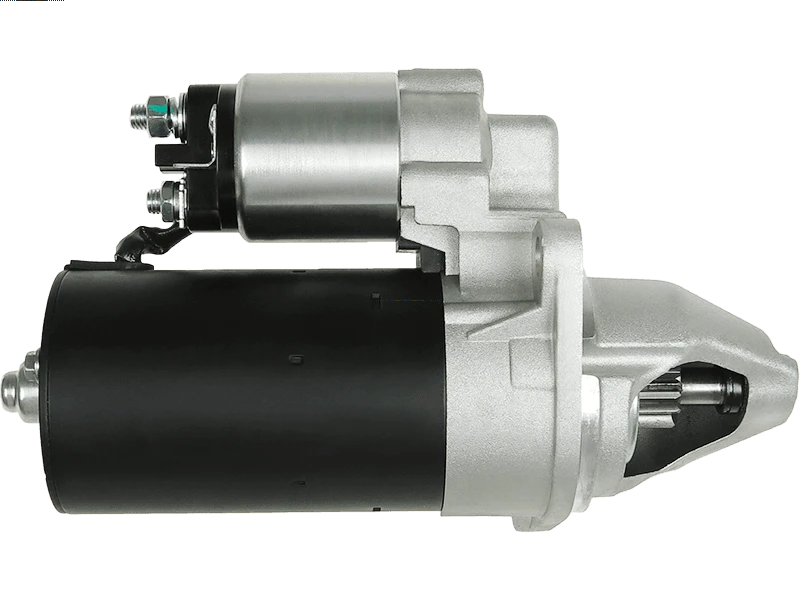

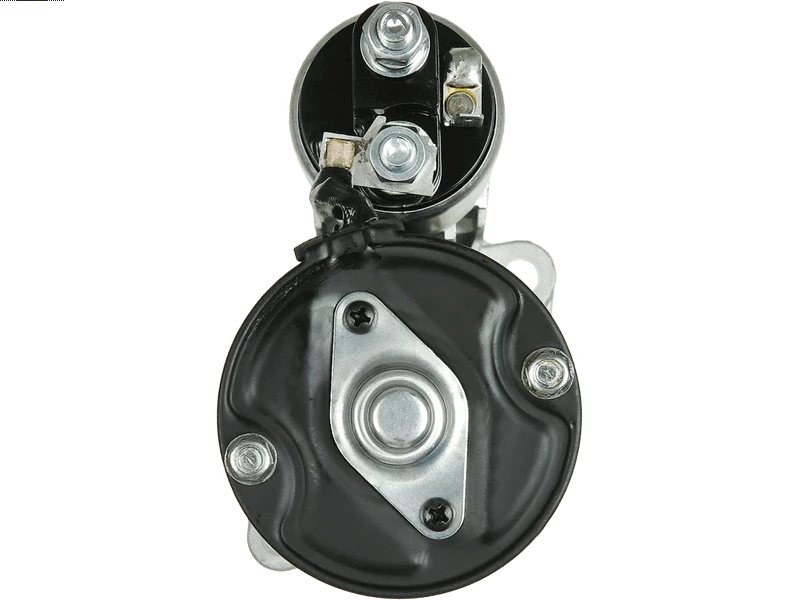

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 240.06 including GST
NZ$ 208.75 excluding GST
or four payments of $60.02
with
Learn More
each
S0267
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001108203Associated Numbers
0001108203 101182 11.130.417 112304 11917 20401584OE 20410101BN 2110-3708010 22.1182 25-2348 25-3478 3021 33306N 5702.3708 6010485 6049101 8212939 8EA737773-001 AZE2502 CS1182 CST10485GS CST49101AS DRS3715 IS0417 LRS01435 LRS02306 STR50442 STR61000Specifications
| Kilowatt | 1.80 kW |
| Length (L.1) | 242 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 35 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LADA | Kalina 1.4 1119 | 01.2007- | |
| LADA | Kalina 1.4 16V 1117 | 01.2008- | |
| LADA | Kalina 1.4 16V 1118 | 01.2008- | |
| LADA | Kalina 1.6 1117 | 01.2004- | |
| LADA | Kalina 1.6 1118 | 01.2004- | |
| LADA | Kalina 1.6 1119 | 01.2004- | |
| LADA | Kalina 1.6 16V 1119 | 01.2004- | |
| LADA | Priora 1.6 2170 | 01.2008- | |
| LADA | Priora 1.6 2171 | 01.2009- | |
| LADA | Priora 1.6 2172 | 01.2008- |
Reference Information
| 0001108203 | BOSCH |
| 101182 | KUHNER |
| 11.130.417 | ISKRA / LETRIKA |
| 112304 | CARGO |
| 11917 | EAI |
| 20401584OE | REAL |
| 20410101BN | REAL |
| 211003708010 | LADA |
| 211003708010002 | LADA |
| 21100370801002 | LADA |
| 21100370801003 | LADA |
| 2110370801 | LADA |
| 2110-3708010 | LADA |
| 2110370801003 | LADA |
| 2110370810 | LADA |
| 2110-3708-10 | LADA |
| 21103807010 | LADA |
| 2110-3807010 | LADA |
| 21110370801003 | LADA |
| 22.1182 | LAUBER |
| 25-2348 | ELSTOCK |
| 25-3478 | ELSTOCK |
| 3021 | CEVAM |
| 33306N | WAI / TRANSPO |
| 37460091 | LADA |
| 5702 | LADA |
| 5702.3708 | LADA |
| 5702370812B | LADA |
| 5702.370812B | LADA |
| 6010485 | SANDO |
| 6049101 | SANDO |
| 8212939 | POWERMAX |
| 8EA737773-001 | HELLA |
| ANM15935X | ANDEL |
| AZE2502 | ISKRA / LETRIKA |
| CGB-23708 | AINDE |
| CS1182 | HC PARTS |
| CST10485GS | CASCO |
| CST49101AS | CASCO |
| DRS3715 | DELCO |
| F032112304 | CARGO |
| IS0417 | ISKRA / LETRIKA |
| LRS01435 | LUCAS |
| LRS02306 | LUCAS |
| LRS1435 | LUCAS |
| LRS2306 | LUCAS |
| MAV511010 | SIOM |
| MS 189 | MAHLE |
| STR1461 | ELECTROLOG |
| STR50442 | WOODAUTO |
| STR61000 | WOODAUTO |
| STR79013 | ELECTROLOG |
| STRL739 | 3EFFE |
| STRS885 | 3EFFE |
| STX201003 | STARDAX |
