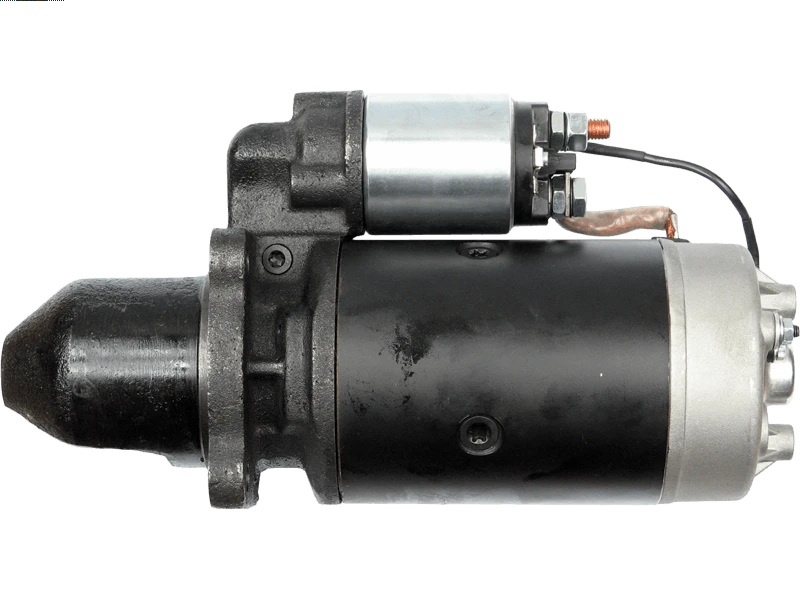

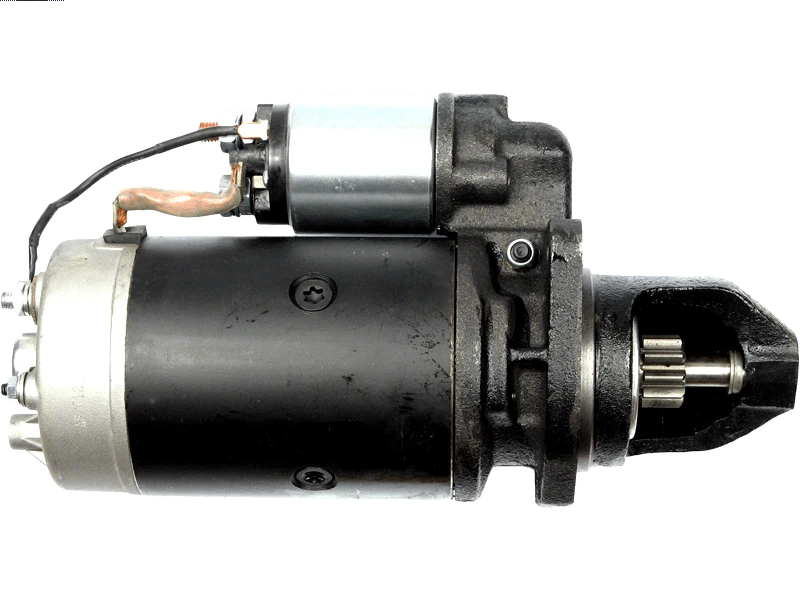

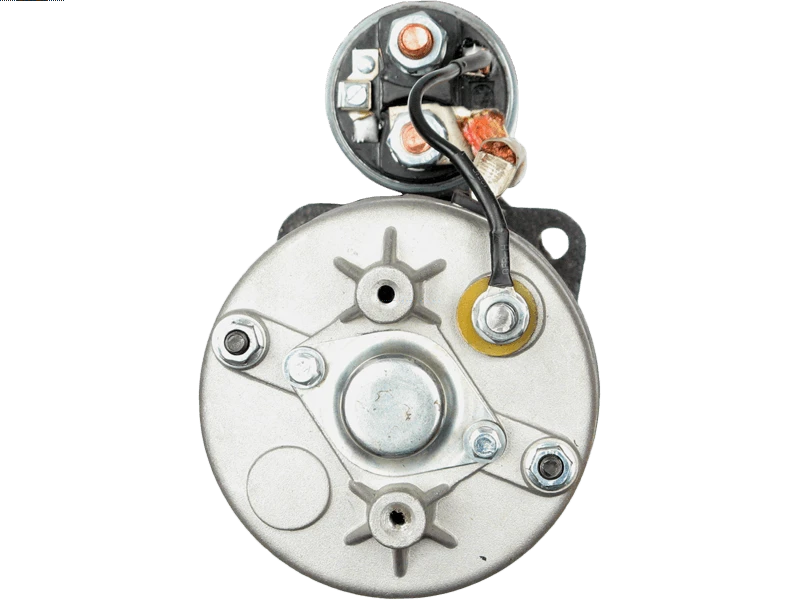

S0268 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 521.95 including GST

NZ$ 453.87 excluding GST
each
S0268
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

0001368067 19024294 20401777BN 20550103 254265 3283721 6010777 AELD190 B001816422 CST10777AS DRS0315 EAA-121560 STR22111 UNIT BOM 902-390 S0268
Insulated EarthYes
Kilowatt4 kW
Length (L.1)342 mm
Mount Hole Center - Center (O.1)90 mm
Mount Hole Center - Center (O.2)127 mm
Mount Hole Center - Center (O.3)90 mm
Mount Hole Diameter (C.1)10.5 mm
Mount Hole Diameter (C.2)10.5 mm
Mount Hole Diameter (C.3)10.5 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
No./Teeth (Replaces)10 qty
Pinion at Rest (B)47 mm
RotationCW
Spigot Diameter (A)89 mm
Unit TypeBOSCH
Voltage24 V
Make Model Type Year
CUMMINS Various Models
CST10777AS 3283721 BOM STR1821 EAA-121560 UNIT 0001368067 1368067 AELD190 B001816422 ANM12535X DRS0315 STR22111 CGB-68067 254265 332095 902-390 20550103 6010777 000B001816422 19024294 20401777BN S0268
0001368067 19024294 20401777BN 20550103 254265 3283721 6010777 AELD190 B001816422 CGB-68067 CST10777AS DRS0315 EAA-121560 S0268 STR22111 UNIT BOM 902-390
