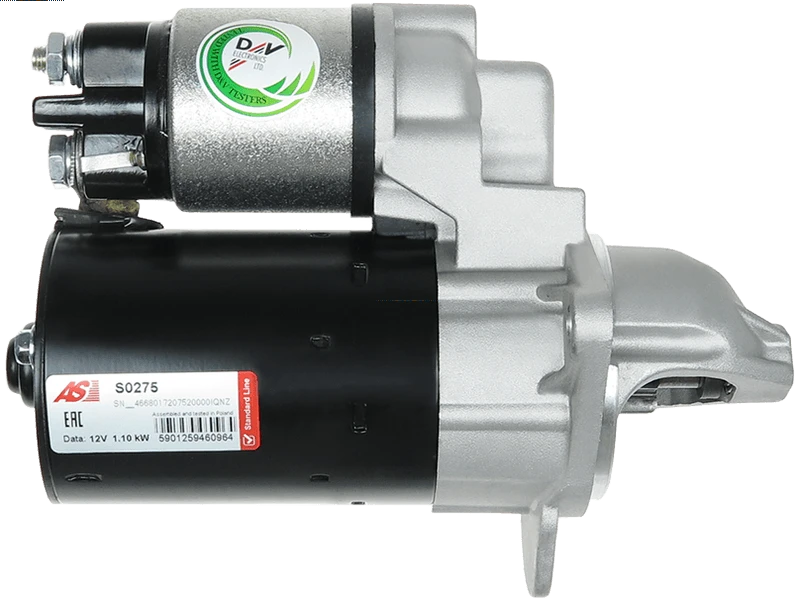

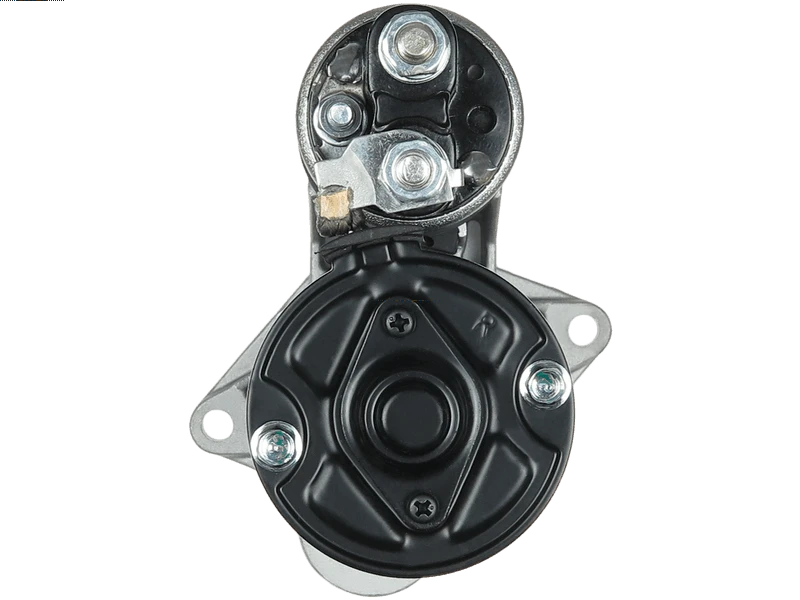

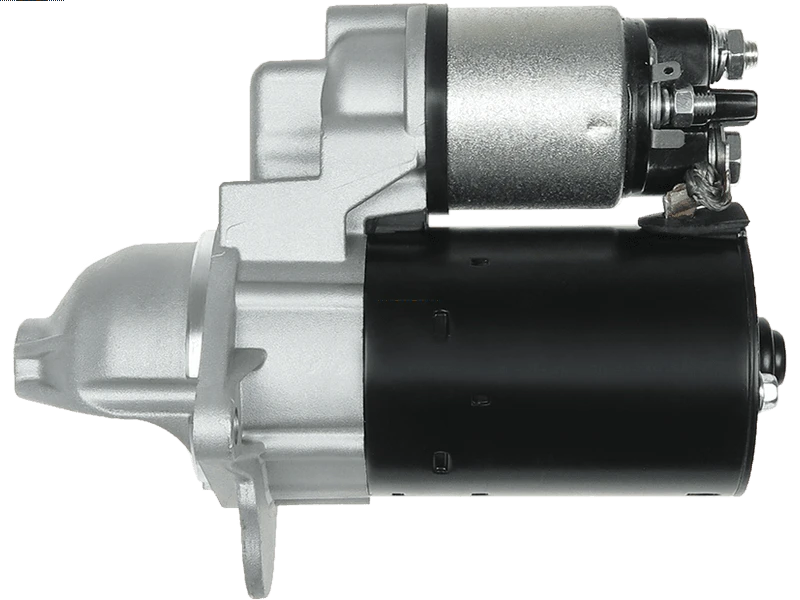

S0275 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.1 kW
Length (L.1)	202 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	8.5 mm
Mount Hole Diameter (C.2)	8.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	19 mm
Rotation	CW
Spigot Diameter (A)	68 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
OPEL	Agila 1.0	[Z10XEP]	08.2003-12.2007
OPEL	Agila 1.2 16V Twinport	[Z12XEP]	07.2004-12.2007
OPEL	Astra G 1.4	[Z14XEP]	09.2007-12.2009
OPEL	Astra G 1.4 Classic	[Z14XEP]	10.2007-07.2009
OPEL	Astra G 1.6	[Z16XEP]	01.2003-10.2005
OPEL	Astra G 1.6	[Z16XEP]	11.2002-01.2005
OPEL	Astra G 1.6	[Z16XEP]	12.2002-05.2004
OPEL	Astra G 1.6	[Z16XEP]	12.2002-12.2009
OPEL	Astra G 1.6 16V	[Z16XE]	03.2000-05.2005
OPEL	Astra G 1.6 16V	[Z16XEP]	03.2000-05.2005
OPEL	Astra G 1.6 Classic	[Z16XEP]	02.2006-07.2009
OPEL	Astra G 1.8 16V	[X18XE1]	02.1998-09.2000
OPEL	Astra G 1.8 16V	[X18XE1]	09.1998-09.2000
OPEL	Astra G 1.8 16V	[Z18XE]	06.2000-01.2005
OPEL	Astra G 1.8 16V	[Z18XE]	09.2000-01.2005
OPEL	Astra G 1.8 16V	[Z18XE]	09.2000-07.2004
OPEL	Astra H 1.4	[Z14XEL]	04.2004-10.2004
OPEL	Astra H 1.4	[Z14XEL]	08.2004-10.2010
OPEL	Astra H 1.4	[Z14XEP]	03.2004-10.2010
OPEL	Astra H 1.4	[Z14XEP]	08.2004-10.2010
OPEL	Astra H 1.4 Classic	[Z14XEP]	01.2009-
OPEL	Astra H 1.4 Family	[Z14XEP]	01.2009-
OPEL	Astra H 1.4 GTC	[Z14XEL]	03.2005-10.2010
OPEL	Astra H 1.4 GTC	[Z14XEP]	03.2005-10.2010
OPEL	Astra H 1.4 LPG	[Z14XEP]	08.2009-10.2010
OPEL	Astra H 1.6	[Z16XE1]	03.2004-10.2010
OPEL	Astra H 1.6	[Z16XE1]	08.2004-10.2010
OPEL	Astra H 1.6	[Z16XEP]	03.2004-10.2010
OPEL	Astra H 1.6	[Z16XEP]	08.2004-10.2010
OPEL	Astra H 1.6 GTC	[Z16XE1]	03.2005-10.2010
OPEL	Astra H 1.6 GTC	[Z16XEP]	03.2005-10.2010
OPEL	Astra H 1.6 TwinTop	[Z16XE1]	09.2005-10.2010
OPEL	Astra H 1.6 TwinTop	[Z16XEP]	09.2005-10.2010
OPEL	Astra H 1.8	[Z18XE]	01.2004-10.2010
OPEL	Astra H 1.8	[Z18XE]	08.2004-10.2010
OPEL	Astra H 1.8 GTC	[Z18XE]	03.2005-10.2010
OPEL	Astra H 1.8 TwinTop	[Z18XE]	09.2005-10.2010
OPEL	Combo 1.4 16V	[Z14XEP]	08.2005-
OPEL	Combo 1.4 Tour	[Z14XEP]	10.2004-12.2011
OPEL	Combo 1.6 CNG 16V	[Z16YNG]	04.2005-
OPEL	Combo 1.6 CNG 16V	[Z16YNG]	06.2006-
OPEL	Combo 1.6 CNG Tour	[Z16YNG]	04.2005-01.2011
OPEL	Combo 1.6 CNG Tour	[Z16YNG]	06.2006-12.2011
OPEL	Corsa C 1.0	[Z10XEP]	06.2003-12.2009
OPEL	Corsa C 1.2	[Z12XEP]	07.2005-06.2006
OPEL	Corsa C 1.2 Twinport	[Z12XEP]	07.2004-12.2009
OPEL	Corsa C 1.4 Twinport	[Z14XEP]	06.2003-12.2009
OPEL	Corsa C 1.8	[Z18XE]	09.2000-12.2009
OPEL	Corsa D 1.0	[A10XEP]	01.2010-08.2014
OPEL	Corsa D 1.0	[A10XEP]	08.2006-08.2014
OPEL	Corsa D 1.0	[A10XEP]	12.2009-08.2014
OPEL	Corsa D 1.0	[Z10XEP]	07.2006-12.2010
OPEL	Corsa D 1.2	[Z12XEP]	07.2006-08.2014
OPEL	Corsa D 1.2	[Z12XEP]	08.2006-08.2014
OPEL	Corsa D 1.2 LPG	[Z12XEP]	08.2006-08.2014
OPEL	Corsa D 1.2 LPG	[Z12XEP]	09.2009-12.2011
OPEL	Corsa D 1.4	[Z14XEP]	07.2006-08.2014
OPEL	Corsa D 1.4 LPG	[A14XEL]	09.2009-08.2014
OPEL	Corsa D 1.4 LPG	[Z14XEP]	08.2006-12.2011
OPEL	Meriva A 1.4 16V Twinport	[Z14XEP]	07.2004-05.2010
OPEL	Meriva A 1.4 16V Twinport LPG	[Z14XEP]	07.2004-05.2010
OPEL	Meriva A 1.6	[Z16XEP]	01.2006-05.2010
OPEL	Meriva A 1.8	[Z18XE]	05.2003-05.2010
OPEL	Signum 1.8	[Z18XE]	05.2003-07.2005
OPEL	Tigra 1.4 TwinTop	[Z14XEP]	06.2004-12.2010
OPEL	Tigra 1.8 TwinTop	[Z18XE]	06.2004-12.2010
OPEL	Vectra C 1.6	[Z16XEP]	08.2005-08.2008
OPEL	Vectra C 1.6	[Z16XEP]	12.2005-08.2008
OPEL	Vectra C 1.6 16V	[Z16XE]	06.2004-09.2005
OPEL	Vectra C 1.6 GTS	[Z16XE]	08.2005-08.2008
OPEL	Vectra C 1.6 GTS	[Z16XEP]	01.2006-08.2008
OPEL	Vectra C 1.8	[Z18XE]	10.2003-09.2006
OPEL	Vectra C 1.8	[Z18XEL]	04.2002-07.2008
OPEL	Vectra C 1.8 16V	[Z18XE]	04.2002-09.2008
OPEL	Vectra C 1.8 16V GTS	[Z18XE]	08.2002-09.2008
OPEL	Vectra C 1.8 16V GTS	[Z18XEL]	08.2002-12.2006
OPEL	Zafira A 1.8 16V	[Z18XE]	09.2000-06.2005
OPEL	Zafira B 1.6	[Z16XE1]	07.2005-09.2012
OPEL	Zafira B 1.6	[Z16XEP]	07.2005-09.2012
OPEL	Zafira B 1.6 Family	[Z16XE1]	07.2005-09.2012
OPEL	Zafira B 1.6 Family	[Z16XEP]	07.2005-09.2012
SAAB	9-3 1.8 i	[Z18XE]	01.2004-02.2015
SAAB	9-3 1.8 i	[Z18XE]	03.2005-02.2015

Reference Information

MSN2175 115719 93178167 000986026120 8020870 6202079 95520115 R1540011 25192447 55568572 55578921 STR50570 LRS2494 S0275 24437136 93175885 0001192086 BOM 986026120 UD13761S UNIT 1107495 0001192080 1107494 55556130 1192080 0001107495 0001107494 93176051 0001107493 0001107492 1107493 1107492 91-15-7302 220226 9.4428E+11 1202421 93184535 25200067 STB1257 130.532.092 25198414 STR50569 6010248.1 0001107408 1192086 55576954 25-4166 55351608 93175996 12330 STB9257 120-6406A 3145 55566800 20401842BN 63524163010 95524894 1202110 6202050 20401842OE R1540024 LRS02494 STD1257 STV1257 1107408 STR1395 93175903 CST10248AS 25196021 CST10248GS STM1303 9199321 DS4946 9115192 71739864 9115190 11020870 RAS34947 6202064 S114907 19112N 6202061 MRS20870 1202281 88212104 STM1343 MAV3210 SG0924 STR10360 6010248

Video/Publications

0001107492 0001107493 0001192080 0001192086 063524163010 0986026120 11020870 115719 1202110 12330 130.532.092 19112N 20401842BN 20401842OE 220226 25-4166 3145 55566800 55576954 55578921 6010248.0 6010248.1 8020870 88212104 91-15-7302 944280208700 CST10248AS CST10248GS DS4946 LRS02494 LRS2494 MAV3210 MRS20870 MSN2175 RAS34947 SG0924 STB1257 STB9257 STD1257 STM1303 STR50569 STR50570 STV1257 UD13761S UNIT BOM 120-6406A
