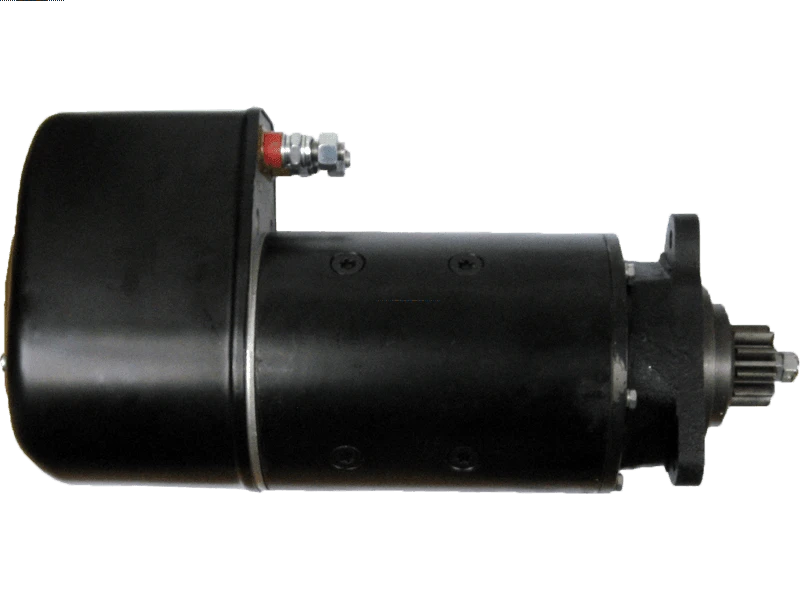

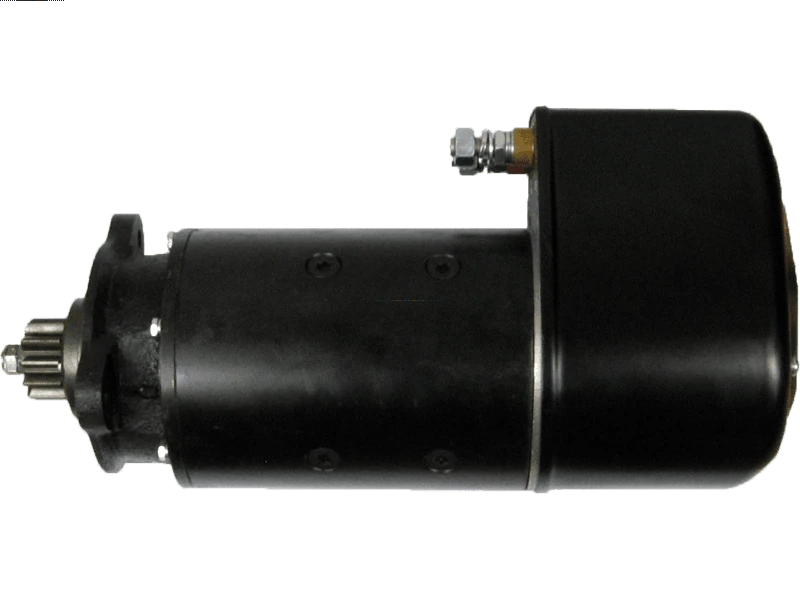

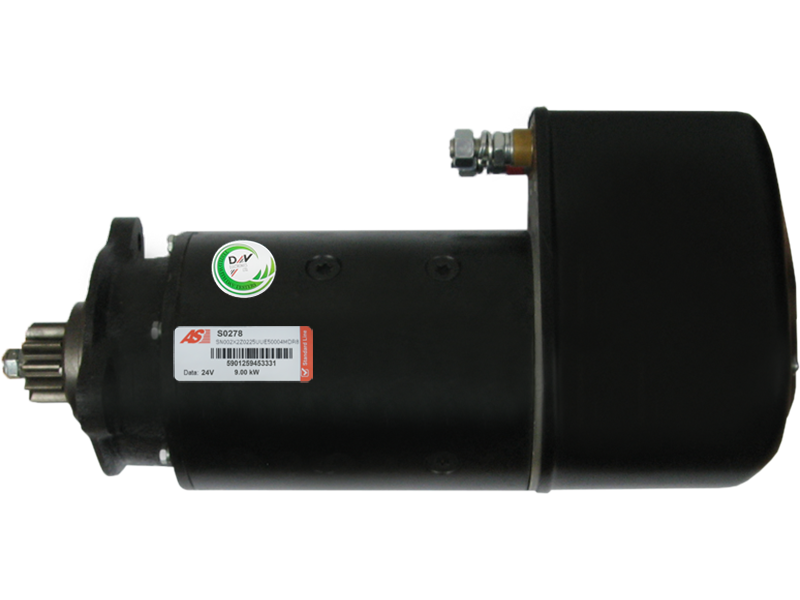

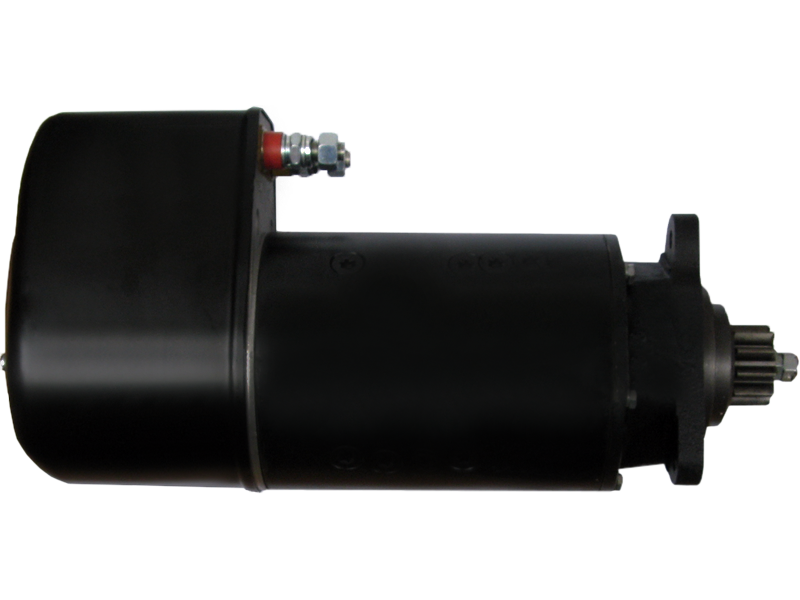

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 2,007.34 including GST
NZ$ 1,745.51 excluding GST
or four payments of $501.84
with
Learn More
each
S0278
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001510039Associated Numbers
0001510039 20401757BN 20401757OE 229312 254310 6010757 861048 CST10757AS CST10757GS EAA-121566 STR50291Specifications
| Kilowatt | 9 kW |
| Length (L.1) | 456 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| Mount Hole Diameter (C.3) | 11.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 91.50 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KHD | Various Models |
Reference Information
| 0001350027 | BOSCH |
| 0001510039 | BOSCH |
| 1234788 | JENBACHER WERKE |
| 20401757BN | REAL |
| 20401757OE | REAL |
| 229312 | JENBACHER WERKE |
| 2-3362-2W | WAI / TRANSPO |
| 254310 | KUHNER |
| 332068 | LOGISTIK |
| 6010757 | SANDO |
| 861048 | PRESTOLITE |
| CST10757AS | CASCO |
| CST10757GS | CASCO |
| STB4139 | KRAUF |
| STR1665 | ELECTROLOG |
| STR50291 | WOODAUTO |
| STRS444 | 3EFFE |
Video/Publications
