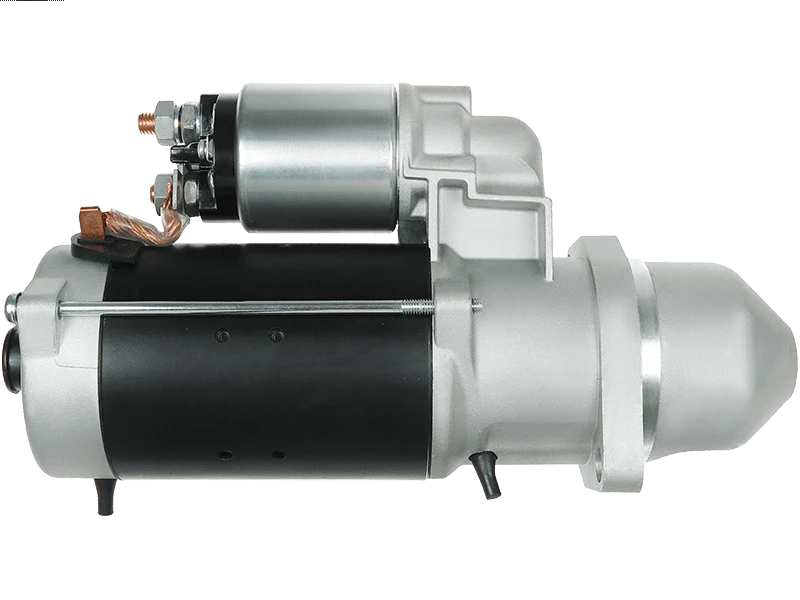

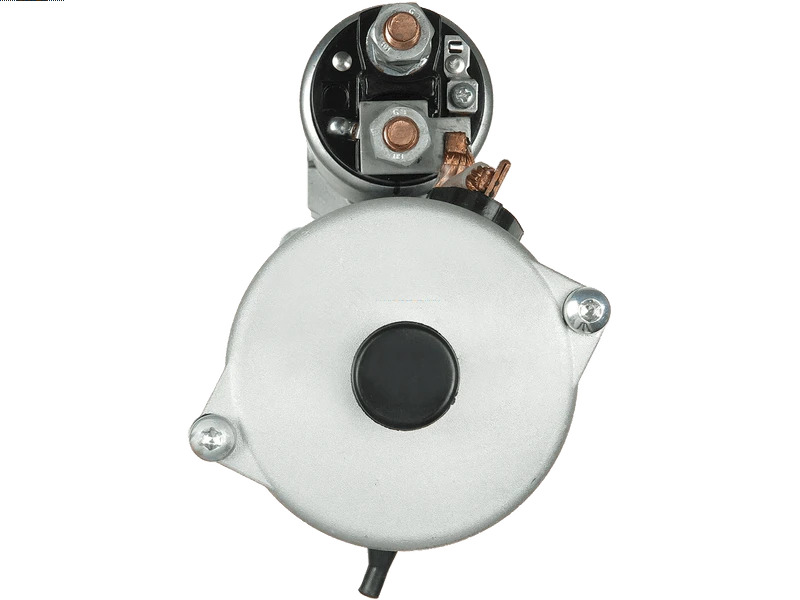

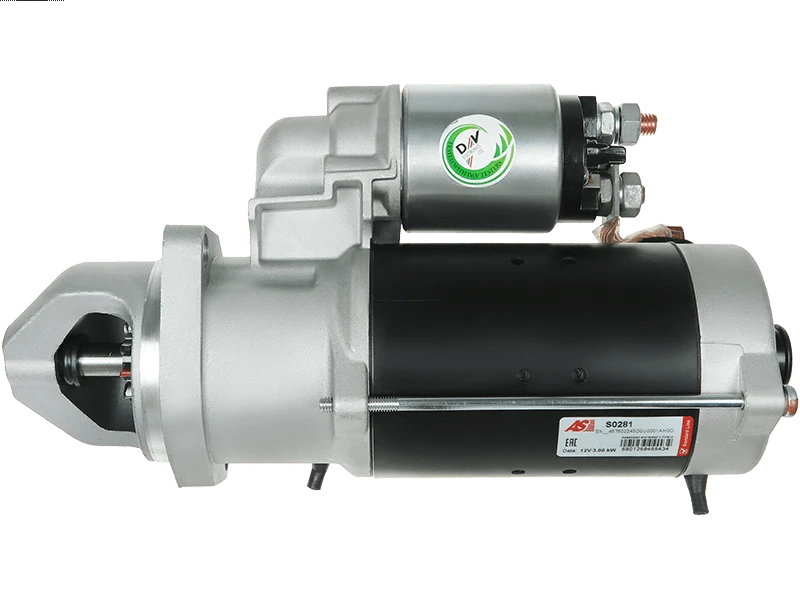

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 542.85 including GST
NZ$ 472.04 excluding GST
or four payments of $135.71
with
Learn More
each
S0281
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001230012Associated Numbers
0001230012 0001262030 0001358005 0001359038 0001359056 0001359083 0001359113 0001362023 0001362036 0001367005 0986024080 10718 10718B 11.130.254 11.130.898 11.131.829 111001 19024250 25-0270 25-0275 25-0287 254072 254072K 255527 29619390 60811 60811D 60811K 60811M 63216816 760.001.092 9144820 943216852 AZF4220 AZJ3320 AZJ3557 CS718 DRS3326 EAA-121279 GS367005-A IS0254 IS0548 IS0671 LRS00949 LRS01053 MT68R MT68RA STR50157Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 316 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9. 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 21 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LAMBORGHINI | 105 Diesel Formula | [1004.4] | 03.1989-12.1999 |
| LAMBORGHINI | 1106 5.5 Diesel 2M | [916.6] | 01.1984-12.1999 |
| LAMBORGHINI | 115 6.0 Diesel Formula | [1000.6] | 12.1989-12.1999 |
| LAMBORGHINI | 1306 5.5 TD DT | [916.6] | 01.1984-12.1999 |
| LAMBORGHINI | 1506 6.8 TD | [1106HT] | 01.1984-12.1999 |
| LAMBORGHINI | 1706 6.8 TD | [1106] | 01.1984-12.1999 |
| LAMBORGHINI | 660 3.1 Diesel | [105.3] | 01.1987-12.1999 |
| LAMBORGHINI | 660 F 3.0 Diesel | [1000.3] | 06.1987-12.1999 |
| LAMBORGHINI | 775 F 3.0 Diesel Plus | [1000.3] | 05.1991-12.1999 |
| LAMBORGHINI | 956-2 RM 5.5 Diesel | [916.6] | 01.1984-12.1999 |
| LAMBORGHINI | 956 DT 5.5 Diesel | [916.6] | 01.1984-12.1999 |
| LAMBORGHINI | C 664 3.1 Diesel | 06.1987-12.2000 | |
| SAME | Explorer 70 4.0 Diesel | 07.1986- | |
| SAME | Explorer 80 4.0 Diesel | 07.1986- | |
| SAME | Explorer 90 4.0 Diesel | 06.1986- | |
| SAME | Frutteto 75 3.0 Diesel | 05.1991- | |
| SAME | Laser 110 5.7 Diesel | 01.1988- | |
| SAME | Laser 130 6.2 Diesel | 01.1988- | |
| SAME | Laser 150 6.2 Diesel | 01.1988- | |
| SAME | Solar 60 3.1 Diesel | 06.1986- | |
| STEYR | 8110 5.2 | [WD 611..] | 07.1984- |
| STEYR | 8110 5.2 | [WD611..] | 07.1984- |
| STEYR | 8130 5.2 | [WD 611..] | 07.1984- |
| STEYR | 8130 5.2 | [WD611..] | 07.1984- |
Reference Information
| 0001230012 | BOSCH |
| 0001262029 | BOSCH |
| 0001367005 | BOSCH |
| 10718 | KUHNER |
| 10718B | KUHNER |
| 19024250 | DELCO |
| 20401165BN | REAL |
| 20401165OE | REAL |
| 220281 | ERA |
| 260-23107 | DIXIE |
| 296192300 | SAME |
| 296192900 | SAME |
| 29619390 | SAME |
| 29619560 | LAMBORGHINI |
| 296195600 | SAME |
| 29619560010 | SAME |
| 33906 | EAI |
| 6010561.0 | SANDO |
| 6010561.1 | SANDO |
| 760.501.092.010 | PSH |
| 8693R | CEVAM |
| AZF4220 | ISKRA / LETRIKA |
| AZJ3320 | ISKRA / LETRIKA |
| AZJ3557 | ISKRA / LETRIKA |
| CGB-23326 | AINDE |
| CST10561AS | CASCO |
| CST10561GS | CASCO |
| DRS3326 | DELCO |
| DS4436 | DELCO |
| MT68R | MAGNETI MARELLI |
| MT68RA | MAGNETI MARELLI |
| PRSL091 | 3EFFE |
| S0281 | AS-PL |
| S12BH0304A2 | SIDAT |
| S12BH0493A2 | SIDAT |
| SG0046 | GHIBAUDI |
| STB0718 | KRAUF |
| STM1115 | ROLLCO |
| STR10226 | ELECTROLOG |
| STR50157 | WOODAUTO |
| STRL091 | 3EFFE |
| TS-6197 | DIXIE |
Video/Publications
