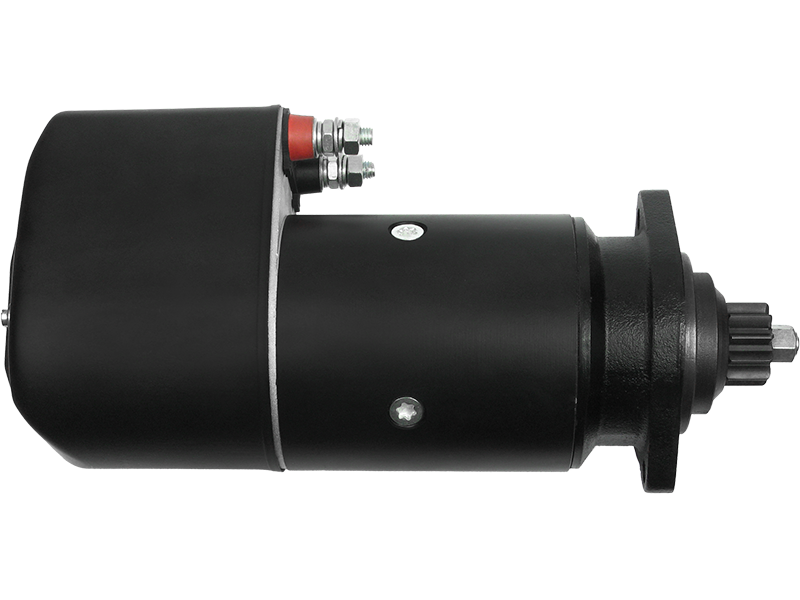

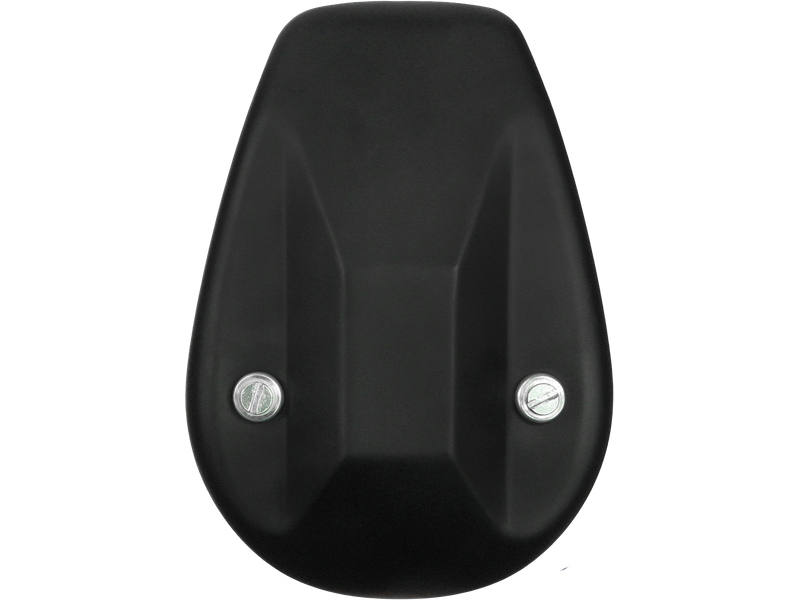

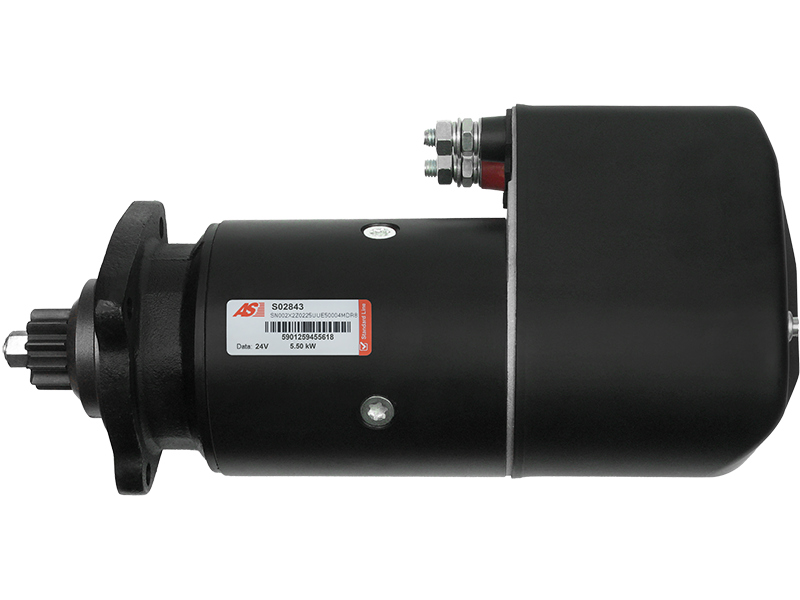

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 808.84 including GST
NZ$ 703.34 excluding GST
or four payments of $202.21
with
Learn More
each
S0283
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001416071Associated Numbers
0001410087 0001416032 0001416071 0001417055 0986011480 1174637 20401726BN 20401726EL 254015 254448 45-1468 6010627 860657GB 860672GB 9125390 CST10627AS CST10627ES EAA-121342 EAA-121615 LRS01883 STR50051Specifications
| Insulated Earth | Yes |
| Kilowatt | 5.50 kW |
| Length (L.1) | 385 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| LIEBHERR | A 902 Wheel Excavator | [D904TB] | 01.1991- |
Reference Information
| 0001410087 | BOSCH |
| 0001416032 | BOSCH |
| 0001416071 | BOSCH |
| 00174637 | KHD |
| 01163558 | KHD |
| 0174637 | KHD |
| 0986011480 | BOSCH |
| 114438 | CARGO |
| 1163558 | KHD |
| 1174634 | KHD |
| 1174637 | KHD |
| 1174663 | KHD |
| 1701052 | FAUN |
| 1701071 | FAUN |
| 18118N | WAI / TRANSPO |
| 20401726BN | REAL |
| 20401726EL | REAL |
| 220257 | ERA |
| 254015 | KUHNER |
| 254448 | KUHNER |
| 331765 | LOGISTIK |
| 45-1468 | ELSTOCK |
| 6000970 | LIEBHERR |
| 6010627 | SANDO |
| 860672GB | PRESTOLITE |
| 9125390 | MAGNETON |
| CGB-11532 | AINDE |
| CST10627AS | CASCO |
| CST10627ES | CASCO |
| F032114438 | CARGO |
| LRS01883 | LUCAS |
| LRS1883 | LUCAS |
| MAV126270 | SIOM |
| RNL416071 | RNL |
| RNL417055 | RNL |
| S0283 | AS-PL |
| S24BH0098A2 | SIDAT |
| STR10113 | ELECTROLOG |
| STR10157 | ELECTROLOG |
| STR50051 | WOODAUTO |
| STRF819 | 3EFFE |
| STRS676 | 3EFFE |
Video/Publications
