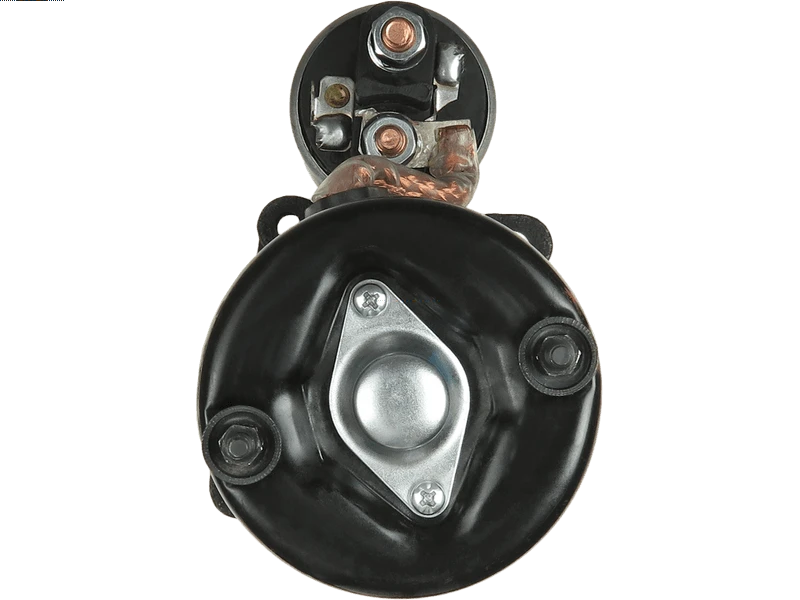

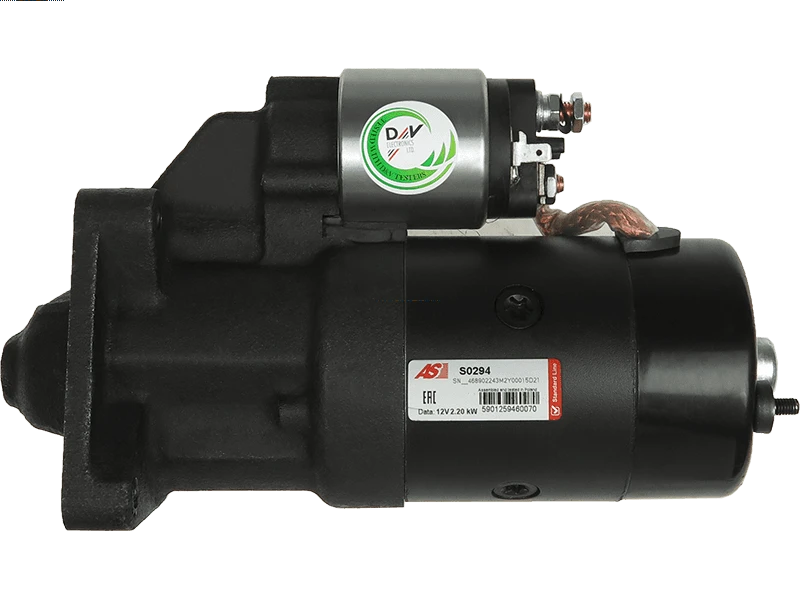

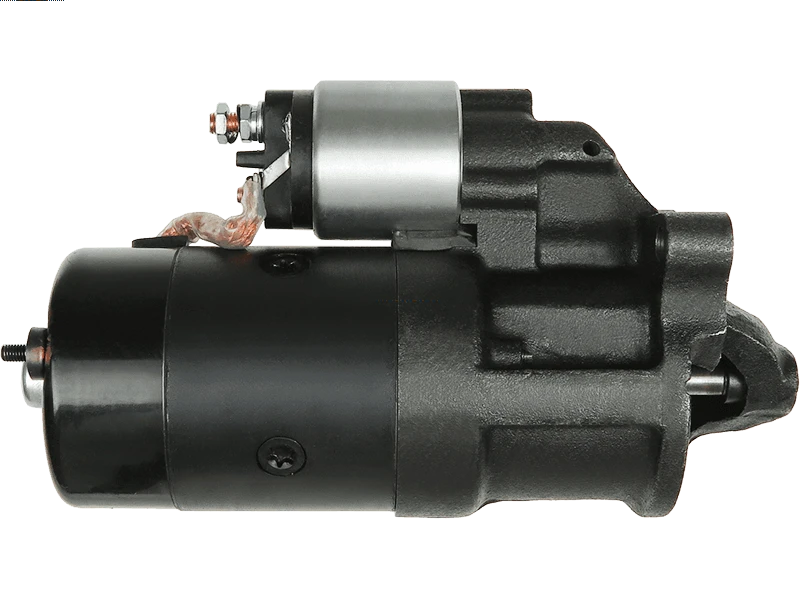

S0294 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.2 kW
Length (L.1)	272 mm
Mount Hole Center - Center (O.1)	91 mm
Mount Hole Center - Center (O.2)	126 mm
Mount Hole Center - Center (O.3)	77 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	-6 mm
Rotation	CW
Spigot Diameter (A)	70 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
RENAULT	Espace 2.2 dCi	[G9T642]	10.2000-10.2002
RENAULT	Espace 2.2 dCi	[G9T710]	10.2000-10.2002
RENAULT	Espace 2.2 Diesel	[G8T716]	11.1997-01.2000
RENAULT	Espace 2.2 TD	[G8T714]	11.1996-10.2000
RENAULT	Espace 2.2 TD	[G8T716]	11.1996-10.2000
RENAULT	Laguna 2.2 Diesel	[G8T760]	03.1996-03.2001
RENAULT	Laguna 2.2 TD	[G8T740]	07.1996-12.2000
RENAULT	Laguna 2.2 TD	[G8T760]	03.1996-03.2001
RENAULT	Safrane 2.2 TD	[G8T?..]	01.1996-12.1999

Reference Information

PRSS307 STA0493R 570.511.093.225 22.1055 7700858375 ANM19690X 000986017470 220099 CGB-52229 7700858114 7711134200 LRT00142 SS432 STR1998 MAV171580 986018611 AES1242 CS1055 11804 0001218153 7701499614 STV1055 STR50234 000986018611 570.511.093.018 570.511.093.215 331207 570.511.093.010 570.511.093.550 25-2229 BOS0986017470 986017470 9.4428E+11 1218153 8EA737342-001 DRS7470 LRT142 8017470 STRS307 3846

Video/Publications

0001218153 0986017470 0986018611 101055 11804 20479851OE 22.1055 25-2229 255708 255708V 3012 30132R 3846 455745 6015158 7700858114 7700858375 7701499614 7711134200 8017470 8212612 944280174700 944280186110 AES1242 CS1055 CST15158GS D7R23 DRS7470 DRS8611 LRT00142 MAV171580 ND215 SS432 STR50234 STRS307 220099
