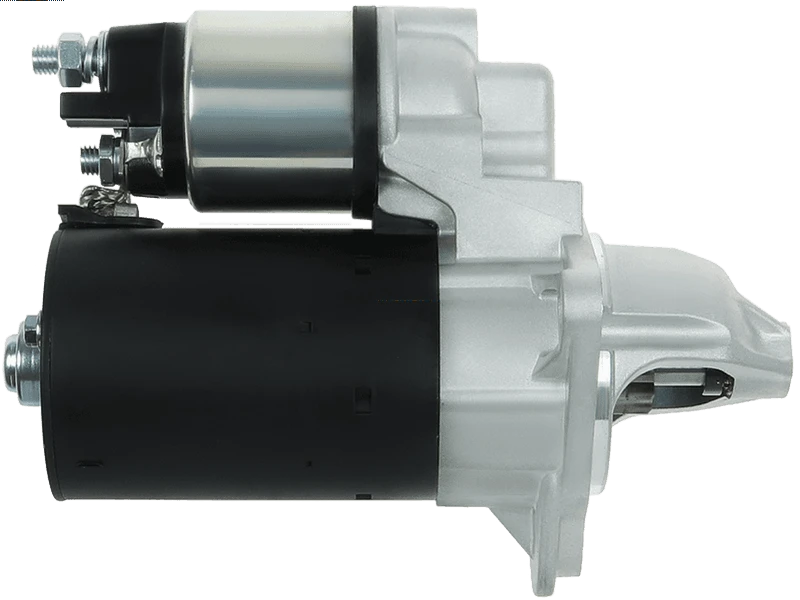

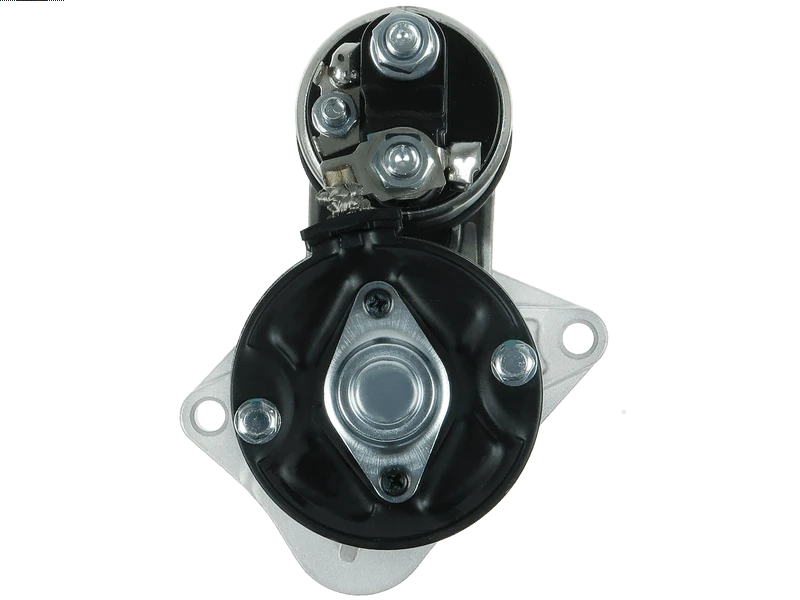

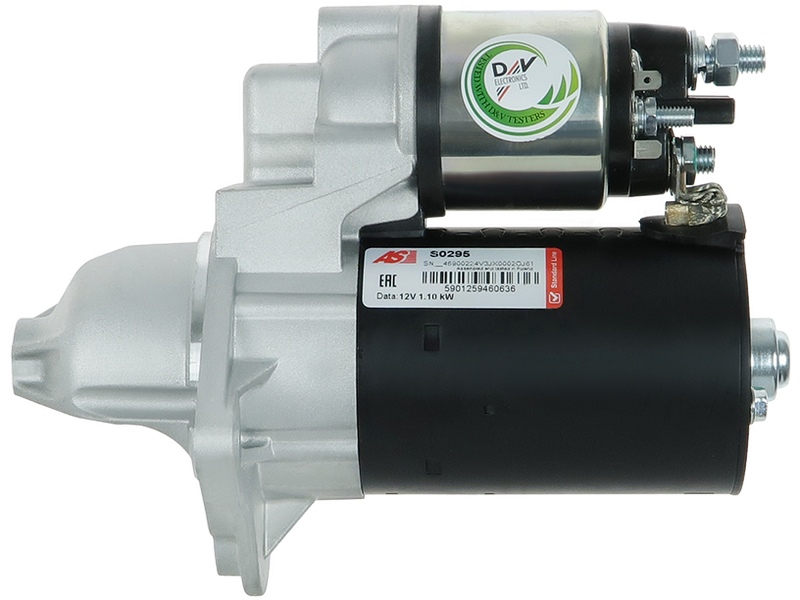

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 221.06 including GST
NZ$ 192.23 excluding GST
or four payments of $55.27
with
Learn More
each
S0088,S0275(SEG),S0275
S0295
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001107522Associated Numbers
0001107521 0001107522 115395 1202217 19112N 25-4174 254675 55578921 6010512 AEY2502 CST10512GS DRS0611 LRS02502
snb050 70-6211-3 0001192081
Specifications
| Kilowatt | 1.10 kW |
| Length (L.1) | 200 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 8.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 18 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 68 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| OPEL | Astra J 1.4 | [A14XEL] | 12.2009- |
| OPEL | Astra J 1.4 | [A14XER] | 12.2009- |
| OPEL | Astra J 1.4 Turbo | [A14NEL] | 12.2009- |
| OPEL | Astra J 1.4 Turbo | [A14NET] | 12.2009- |
| VAUXHALL | Astra J 1.4 | [A14XEL] | 12.2009- |
| VAUXHALL | Astra J 1.4 | [A14XER] | 12.2009- |
| VAUXHALL | Astra J 1.4 Turbo | [A14NEL] | 12.2009- |
| VAUXHALL | Astra J 1.4 Turbo | [A14NET] | 12.2009- |
Reference Information
| 0001107401 | BOSCH |
| 0001107408 | BOSCH |
| 0001107492 | BOSCH |
| 0001107493 | BOSCH |
| 0001107494 | BOSCH |
| 0001107495 | BOSCH |
| 0001107521 | BOSCH |
| 0001107522 | BOSCH |
| 0001192009 | BOSCH |
| 0001192068 | BOSCH |
| 0001192069 | BOSCH |
| 0001192080 | BOSCH |
| 0001192081 | BOSCH |
| 0001192086 | BOSCH |
| 0001192087 | BOSCH |
| 0986026120 | BOSCH |
| 10439559 | ALANKO |
| 10439560 | ALANKO |
| 11090202 | EUROTEC |
| 115395 | CARGO |
| 1202217 | OPEL |
| 12330 | EAI |
| 130.566.092.010 | PSH |
| 130.566.092.216 | PSH |
| 19112N | WAI / TRANSPO |
| 19112NOE | ROBERT'S |
| 20401215OE | REAL |
| 220648 | ERA |
| 220648A | ERA |
| 25192447 | GM |
| 25196021 | GM |
| 25198414 | OPEL |
| 25200067 | GM |
| 25-4174 | ELSTOCK |
| 254675 | KUHNER |
| 254675B | KUHNER |
| 3110807 | HENKEL PARTS |
| 3110809 | HENKEL PARTS |
| 3145 | CEVAM |
| 330ST21 | STARTCAR |
| 332099 | LOGISTIK |
| 42020870 | HERTH+BUSS |
| 5010355 | MEAT & DORIA |
| 555566800 | OPEL |
| 55576954 | CHEVROLET |
| 55578921 | OPEL |
| 6010512.1 | SANDO |
| 8000188 | DELCO |
| 88214433 | POWERMAX |
| 8EA011611-491 | HELLA |
| 91-15-7302 | WILSON |
| 91-15-7302N | WILSON |
| 9897 | CEVAM |
| A26120 | ATL AUTOTECHNIK |
| AC-CBS5794 | ACAUTO |
| AEY2502 | AUTOELECTRO |
| ANM12831 | ANDEL |
| ANM12831X | ANDEL |
| ASM1212 | APEC |
| BST2651 | BORG & BECK |
| CGB-20611 | AINDE |
| CGB-20611R | AINDE |
| CGB-54174 | AINDE |
| CST10512GS | CASCO |
| DRS0611 | DELCO |
| DSN3009 | DENSO |
| EZ0203 | ELTA AUTOMOTIVE |
| F032115395 | CARGO |
| LRS02502 | LUCAS |
| LRS2502 | LUCAS |
| M000T39173ZC | MITSUBISHI |
| M0T39173ZC | MITSUBISHI |
| MAV125120 | SIOM |
| NPANSM1212 | NAPA |
| OP9047 | SNRA |
| R1540011 | VAUXHALL |
| RE83661N | THE NEW LINE |
| S0295 | AS-PL |
| S129.848 | PSH |
| S12BH0206A2 | SIDAT |
| S149.154 | PSH |
| SG0924 | GHIBAUDI |
| ST01685 | TMI |
| STB3921 | KRAUF |
| STM1303 | ROLLCO |
| STM1343 | ROLLCO |
| STR10211 | ELECTROLOG |
| STR50569 | WOODAUTO |
| STR50570 | WOODAUTO |
| STX200601 | STARDAX |
| TT16672 | TESLA |
| WG2013202 | WILMINK GROUP |
| WOOSTR50570 | WOODAUTO |
Video/Publications
