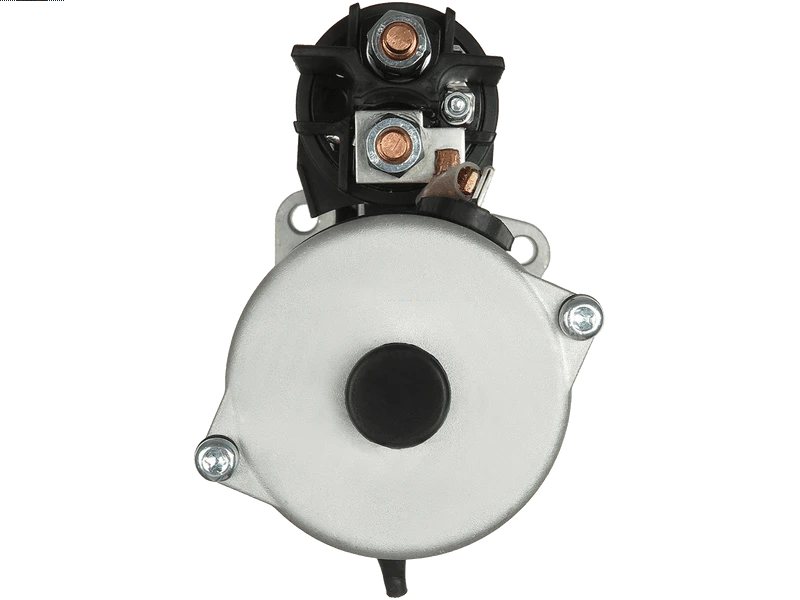

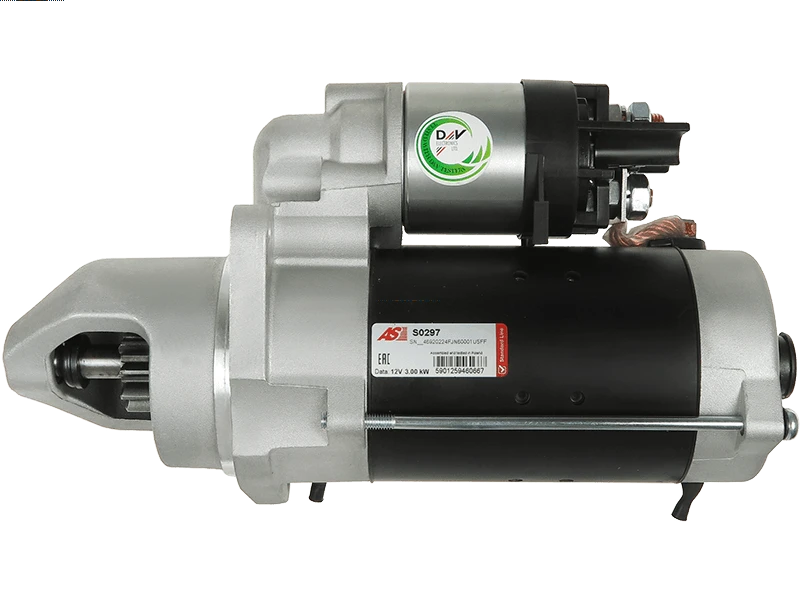

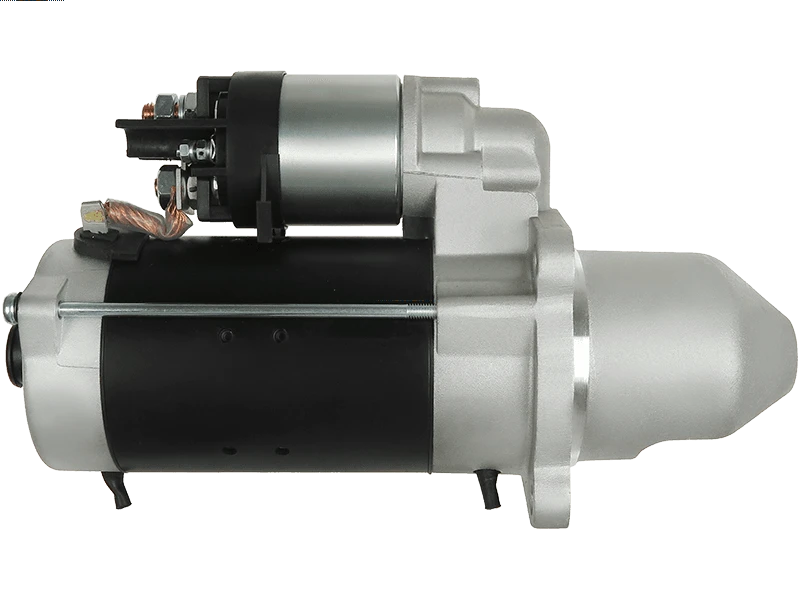

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 505.13 including GST
NZ$ 439.24 excluding GST
or four payments of $126.28
with
Learn More
each
S0297
1
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001230002Associated Numbers
0001230002 0986023990 101376 115609 18361N 18361R 19083002 19655N 19655R 20401822BN 20401822OE 22.1376 22.1376M 220915 25-3062 260-23109 6010228 630.501.113 8146 8212692 88212692 91-15-7296 AL81154 BOS0001230002 CS1376 CST10228 CST10228AS CST10228ES CST10228GS CST10228OS CST10228RS DRS0067 DRS0067N EAA-121274 LRS01563 RE503226 STB1376 STI1376 STR50133 TS-6230 BOSCHList BOSCH CARGO CASCO CEVAM DELCO DIXIE EAA ELSTOCK ERA HC PARTS JOHN DEERE DEEREList KRAUF KUHNER LAUBER LUCAS POWERMAX PSH REAL SANDO WAI / TRANSPO WILSON WOODAUTO Bosch show 0001367077 ruil 11090152 EuroTec 11131237 Mahle 112442 Cargo 1206111 PIC 18361 Lester 4812SP Spidan 630501113 910067 EDR DEM707 ADI DEM707P Remy HCS1376 IS1157 LES0490 Lucas MS416 John Deere RE504807 RE519975 SE501855 STR1263sa Electrolog STR7818SA MAHLE References: Arrowhead SBO0203 11.131.257 Picture ID 120-6111 11.131.237 AZF4570 Substitutes: J&N 410-29048 410-24090 Bobcat 6632415 Delco 503226 AL70852 RE50322 19655 LRS01622 snb141 702607 0001367054 11130731 112175 120545 135125 Hyster 18035 252078 Elstock 3042511 326460 345433 4376SP Valeo 5084041 640001103 910467 A71470 ATL AZJ3254 DEM011 EF17640 IS0731 LRS01313 STR2681sa US835Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 316 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 10. 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 6205 | 01.1994- | |
| JOHN DEERE | 6505 | 01.1994- | |
| JOHN DEERE | 6506 | ||
| JOHN DEERE | 6510 | 01.1994- | |
| JOHN DEERE | 6520 | 01.1994- | |
| JOHN DEERE | 6610 | 01.1994- | |
| JOHN DEERE | 6620 | 01.1994- | |
| JOHN DEERE | 6810 10.0 | 08.1991- | |
| JOHN DEERE | 6820 | 01.1994- | |
| JOHN DEERE | 6910 | 01.1994- | |
| JOHN DEERE | 6920 | 01.1994- |
Reference Information
| 0001230002 | BOSCH |
| 101376 | KUHNER |
| 18361N | WAI / TRANSPO |
| 18361R | WAI / TRANSPO |
| 19083002 | DELCO |
| 19655N | WAI / TRANSPO |
| 19655R | WAI / TRANSPO |
| 1986S10057 | BOSCH |
| 20401822BN | REAL |
| 20401822OE | REAL |
| 220915 | ERA |
| 22.1376 | CQ |
| 22.1376M | CQ |
| 25-3062 | ELSTOCK |
| 260-23109 | DIXIE |
| 331496 | LOGISTIK |
| 6010228.0 | SANDO |
| 6010228.1 | SANDO |
| 630.501.113.010 | PSH |
| 630.501.113.460 | PSH |
| 7700045291 | RENAULT |
| 8146 | CEVAM |
| 8212692 | POWERMAX |
| 87524725 | IVECO |
| 88212692 | POWERMAX |
| 91-15-7296 | WILSON |
| AL81154 | JOHN DEERE |
| ANM12287X | ANDEL |
| BOS0001230002 | WOODAUTO |
| CGB-20002 | AINDE |
| CS1376 | HC PARTS |
| CST10228AS | CASCO |
| CST10228GS | CASCO |
| DRS0067N | DELCO |
| F032115609 | BOSCH |
| MAV122280 | SIOM |
| PRSL886 | 3EFFE |
| RE501157 | JOHN DEERE |
| RE503226 | JOHN DEERE |
| RE504807 | JOHN DEERE |
| S0297 | AS-PL |
| STB1376 | KRAUF |
| STI1376 | KRAUF |
| STR1263 | ELECTROLOG |
| STRL886 | 3EFFE |
| STX200383 | STARDAX |
| STX200904 | STARDAX |
| STX201006 | STARDAX |
| STX201072 | STARDAX |
| TS-6230 | DIXIE |
| WOOSTR50133 | WOODAUTO |
| WOOSTR60631 | WOODAUTO |
