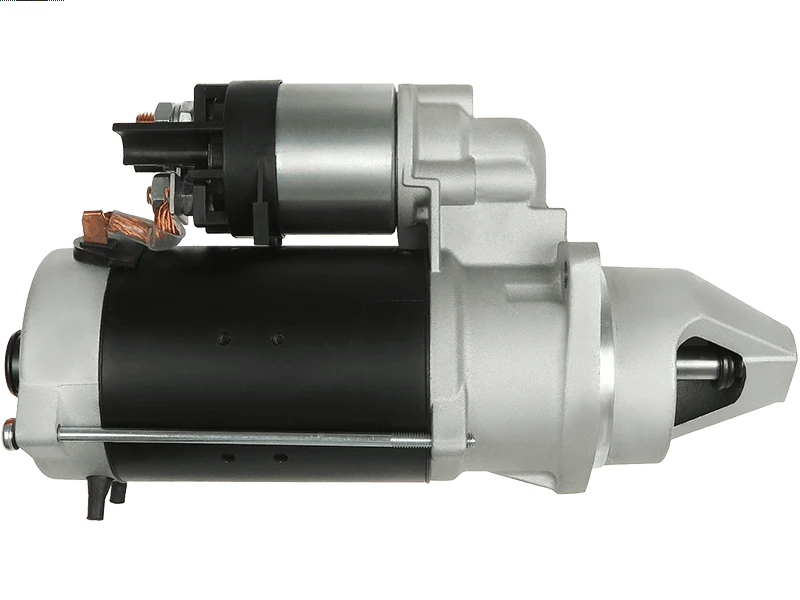

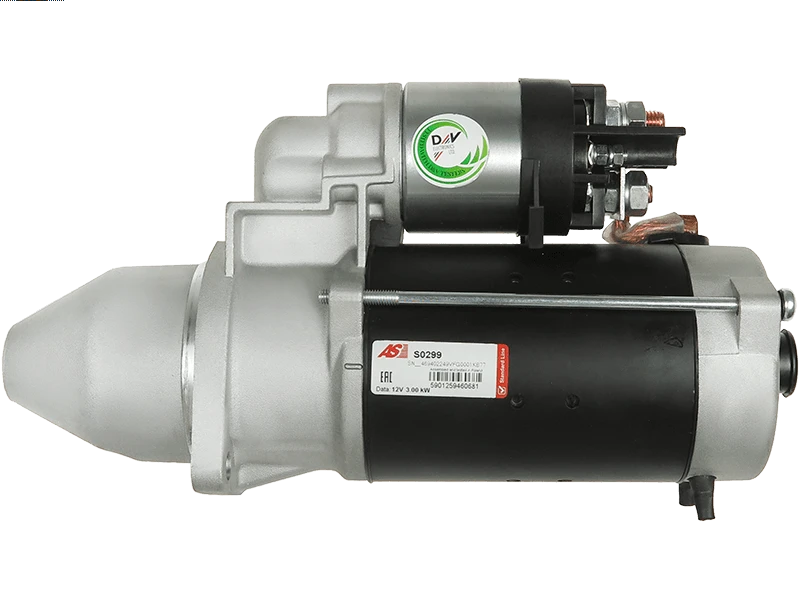

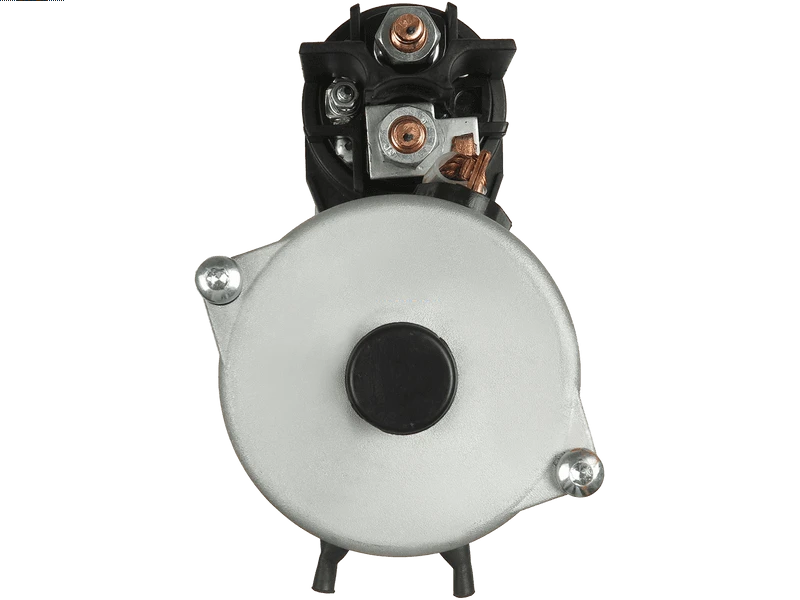

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 495.68 including GST
NZ$ 431.03 excluding GST
or four payments of $123.92
with
Learn More
each
S0299
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001230005Associated Numbers
0001230005 18359N 254242 254242I EAA-121463 M100R2017SE RE500819 STR50343Specifications
| Kilowatt | 3 kW |
| Length (L.1) | 316 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 10 mm |
| Mount Hole Diameter (C.2) | 10 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 35 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 5510 4.5 | [4045HF..] | 01.1997-12.2006 |
| JOHN DEERE | 5520 4.5 | [4045HF..] | 01.1997-12.2006 |
| JOHN DEERE | 5720 4.5 | [4045HF..] | 01.2005-12.2006 |
| JOHN DEERE | 6020 4.5 | [4045HF..] | 01.1997-12.2006 |
| JOHN DEERE | 6120 4.5 | [4045HF..] | 01.2001-12.2006 |
| JOHN DEERE | 6215 4.5 | [4045HF..] | 01.2001-12.2006 |
| JOHN DEERE | 6320 4.5 | [4045HF..] | 01.2001-12.2006 |
| JOHN DEERE | 6420 4.5 | [4045HF..] | 01.2001-12.2006 |
Reference Information
STX200819 AL110598 20401922BN STR1410 STR1671 SE501854 8EA015642-391 MAV123600 ANM12372 630.511.112.010 RE506589 CST10229AS 20401922OE RE71505 25-4139 CST10360GS 0001230005 20401063OE 120-20118 STR50454 STX200520 0001230003 DRS0152 CST10229GS LRS2467 RE519975 RE500819 254242 CGB-54139 RE501689 220820 LRS02467 BOS0001230003 STX200520R 220820A 91-15-7088 18359N 630.511.112.018 R500819 6010229.1 CGB-21187 6010229.0 6010360.1Video/Publications
S0299View your shopping basket or Browse other items in Starter Motors.
