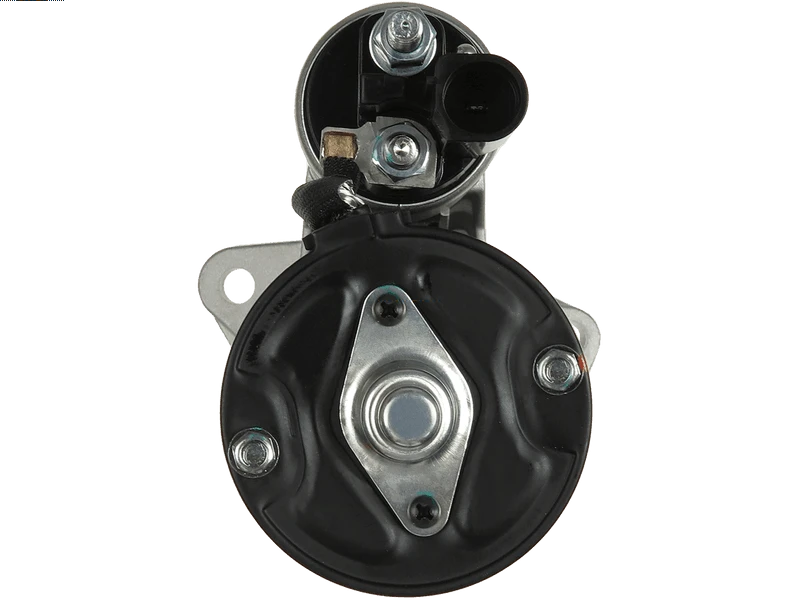

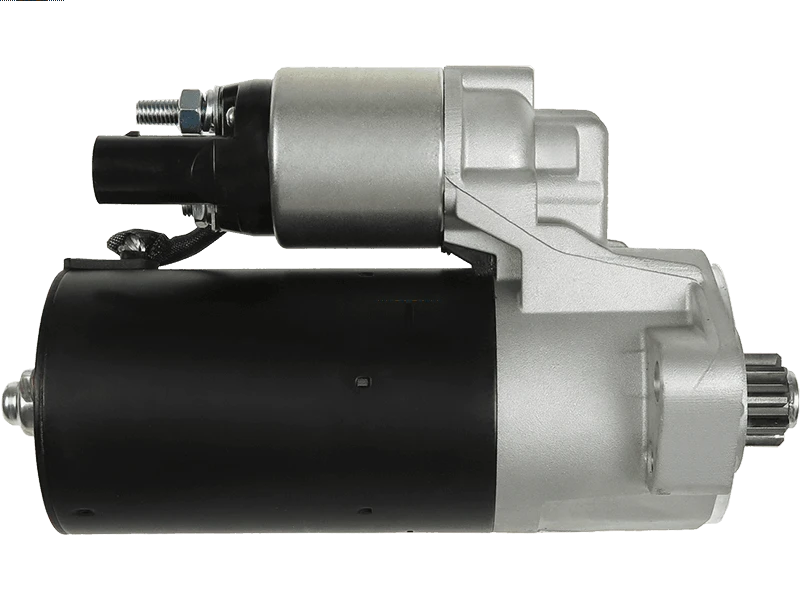

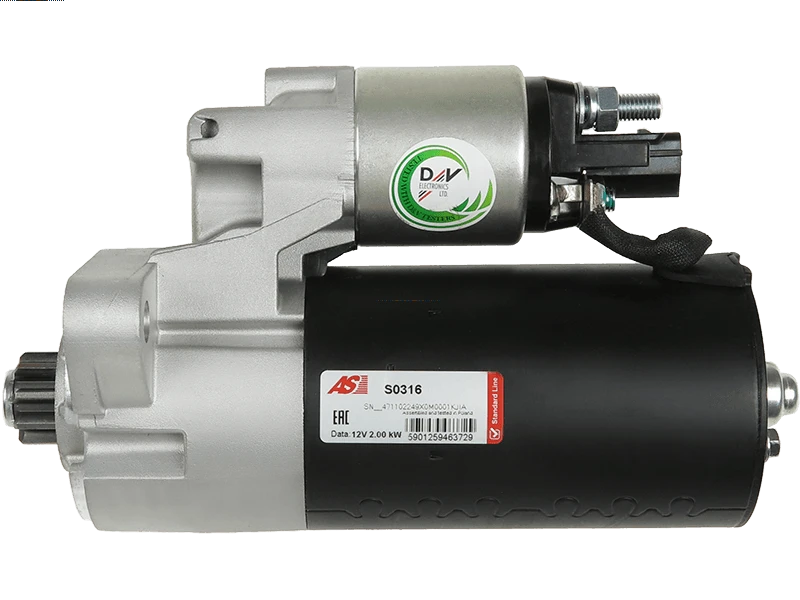

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 272.95 including GST
NZ$ 237.35 excluding GST
or four payments of $68.24
with
Learn More
each
S0316
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001125521Associated Numbers
0001125519 0001125520 0001125521 059911023S 059911023SX 059911024C 059911024JX 25-4002 254305 254305B 254430 254430B AEY2330 DRS0566 EAA-121157 EAA-122022 LRS02330 STR50544 33330RSpecifications
| Kilowatt | 2 kW |
| Length (L.1) | 235 mm |
| Mount Hole Center - Center (O.1) | 104.50 mm |
| Mount Hole Center - Center (O.2) | 101 mm |
| Mount Hole Center - Center (O.3) | 24 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | Q7 3.0 TDi | 08.2006-05.2008 | |
| VW | Touareg 3.0 TDi | [BKS] | 01.2004-12.2007 |
| VW | Touareg 3.0 TDi | [BUN] | 01.2004-12.2007 |
Reference Information
| 0001125519 | BOSCH |
| 0001125520 | BOSCH |
| 0001125521 | BOSCH |
| 056911024J | VW |
| 059911023J | VW |
| 059911023S | VW |
| 059911023SX | VW |
| 059911024C | VW |
| 059911024CX | VW |
| 059911024E | VW |
| 059911024EX | VW |
| 059911024H | VW |
| 059911024HX | VW |
| 059911024J | VW |
| 059911024JX | VW |
| 10010368AV | ITAB AUTOMOTIVE |
| 103ST21 | STARTCAR |
| 10439623 | ALANKO |
| 11090174 | EUROTEC |
| 114690 | CARGO |
| 12103 | EAI |
| 12138049 | MTR |
| 1638121280 | EUROREPAR |
| 1986S00820 | BOSCH |
| 20401863BN | REAL |
| 20401863OE | REAL |
| 220683 | ERA |
| 220683A | ERA |
| 22.3082M | CQ |
| 25-4002 | ELSTOCK |
| 254305 | KUHNER |
| 254305B | KUHNER |
| 254305S | KUHNER |
| 254373 | KUHNER |
| 254373B | KUHNER |
| 254430 | KUHNER |
| 254430B | KUHNER |
| 2S0168 | RIDEX |
| 300.577.093.010 | PSH |
| 300.577.093.281 | PSH |
| 3066 | CEVAM |
| 311246092 | DRI |
| 3116919 | HENKEL PARTS |
| 332265 | LOGISTIK |
| 33330R | WAI / TRANSPO |
| 5010381 | MEAT & DORIA |
| 5010381G | MEAT & DORIA |
| 6010368.0 | SANDO |
| 6010368.1 | SANDO |
| 8080392 | FRIESEN |
| 943215211010 | MAGNETI MARELLI |
| 944280803920 | MAGNETI MARELLI |
| 95560410800 | PORSCHE |
| A79140 | ATL AUTOTECHNIK |
| AC-CBS1521 | ACAUTO |
| AC-CBS5786 | ACAUTO |
| AEY2330 | AUTOELECTRO |
| ANM12786 | ANDEL |
| ANM12786X | ANDEL |
| AZMT-53-010-1352 | A.Z. MEISTERTEILE |
| BOS0001125519 | WOODAUTO |
| CMA-621104 | COMLINE |
| CS1521 | HC PARTS |
| CST10368AS | CASCO |
| CST10368GS | CASCO |
| DRS0566 | DELCO |
| F032114690 | CARGO |
| H5010381 | HOFFER |
| IR8018 | PROTECH |
| LRS02330 | LUCAS |
| LRS2330 | LUCAS |
| MRS80392 | MAGNETI MARELLI |
| PRSS320 | 3EFFE |
| RNL125519 | RNL |
| S0316 | AS-PL |
| S100422 | BTS TURBO |
| S104699 | BTS TURBO |
| S12BH0252 | SIDAT |
| S12BH0252A2 | SIDAT |
| S132.510 | PSH |
| S145.725 | PSH |
| SBO368 | AUTOTEAM |
| SBO368A | AUTOTEAM |
| SG0595 | GHIBAUDI |
| ST01529 | TMI |
| STR1751 | ELECTROLOG |
| STR1762 | ELECTROLOG |
| STR50544 | WOODAUTO |
| STRS320 | 3EFFE |
| STX200189 | STARDAX |
| STX200189R | STARDAX |
| STX200201 | STARDAX |
| STX200201R | STARDAX |
| STX200214 | STARDAX |
| STX200600 | STARDAX |
| UNIT BOM 120-5035 | WAI / TRANSPO |
| VW9086 | SNRA |
| WG2013245 | WILMINK GROUP |
Video/Publications
