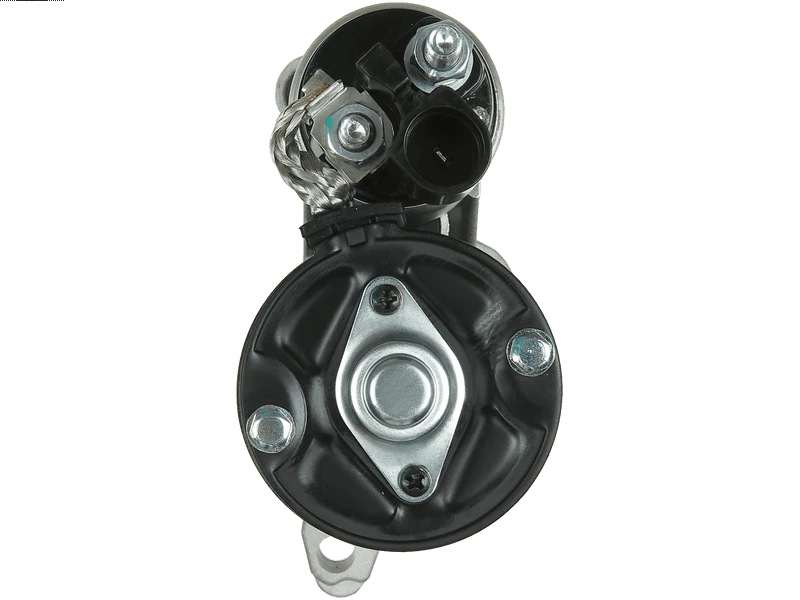

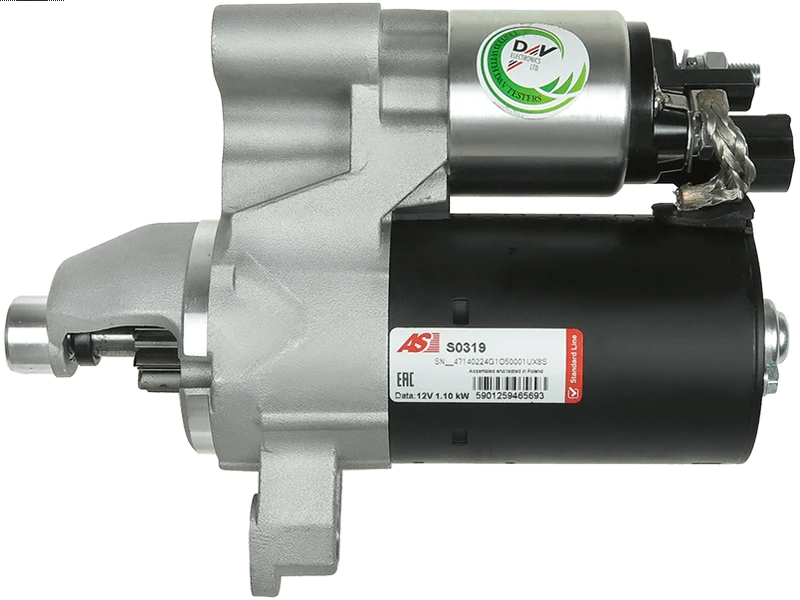

S0319 - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S0319
Price: 227.18 NZD
Availability: BackOrder

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

BOSCH

Price:

NZ$ 227.18 including GST

NZ$ 197.55 excluding GST

or four payments of $56.80 with
Learn More

UOM:

each

Alternative Item:

S0319(SEG)

Product Code:

S0319

Quantity In Stock Nationally:

No stock in NZ - Call us for possible procurement options

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Information
Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications

0001107508

0001107450 0001107451 0001107508 0001107509 0001107534 06D911021B 06D911021BX 06D911021D 06D911023B 06H911021A 06H911021AX 06H911021E 06H911021EX 0986024010 101437 101437B 115394 12147 16189 17677R 200.534.102 20401834OE 220604 25-4115 3054 33292N 6010438 8080307 AEY2443 BOS0001107534 CS1437 CST10438 CST10438AS CST10438ES CST10438GS CST10438OS CST10438RS DRS0178 LRS02443 RAS31289 S-6307 S1001B S1002B SS710 STR50543 UD12028S 7013131 7013131G AS-PL AUTOELECTRO BOSCHList BOSCH CARGO CASCO CEVAM DELCO DIXIE EAI ELSTOCK ERA FRIESEN HC PARTS LUCAS PRESTOLITE PSH REAL SANDO SOVEREIGN VW WAI / TRANSPO WOODAUTO bxs0158 snb166 Bosch 0001107535 ruil 11090181 EuroTec 120600 PIC 17677 Lester 200534102 254115 Elstock 33292R 4891SP Spidan 8080307F Friesen 910178 EDR A24010 ATL Remy DRS0188 HCS1437 Lucas MS684 Mahle OSM11968 Optimum STM1238 Rolling Components STR1541sa Electrolog References: Volkswagen Substitutes: J N 41024302 Arrowhead SBO0298 33292 Picture ID 1205110 1205151 06H911021D Wilson 91157300 J& Beck Arnley 1871058 Fiat 9949609 Light Duty Toyota 28160OD130 ASPL S6307 200534102280 S0319 LRS2443 STRS354

Kilowatt	1.10 kW
Length (L.1)	215 mm
Mount Hole Center - Center (O.1)	134 mm
Mount Hole Diameter (C.1)	M12x1.75 mm
Mount Hole Diameter (C.2)	11 mm
No./Mount holes	2 qty
No./Mount holes with thread	1 qty
No./Teeth	10 qty
OEM Product	No
Pinion at Rest (B)	24 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	66 mm
Unit Type	BOSCH
Voltage	12 V

Make	Model	Type	Year
AUDI	A4 1.8 TFSi	[CABA]	01.2008-05.2008
AUDI	A4 1.8 TFSi	[CABB]	04.2008-
AUDI	A4 1.8 TFSi	[CABB]	11.2007-05.2008
AUDI	A4 1.8 TFSi	[CDHA]	06.2008-
AUDI	A4 1.8 TFSi	[CDHB]	04.2008-
AUDI	A4 1.8 TFSi	[CDHB]	05.2008-
AUDI	A4 1.8 TFSi	[CJEB]	11.2011-
AUDI	A4 1.8 TFSi Quattro	[CDHB]	09.2008-
AUDI	A4 1.8 TFSi Quattro	[CJEB]	11.2011-
AUDI	A4 2.0 TFSi	[CAEA]	06.2008-
AUDI	A4 2.0 TFSi	[CAEB]	06.2008-
AUDI	A4 2.0 TFSi	[CDNB]	06.2008-
AUDI	A4 2.0 TFSi	[CDNC]	06.2008-
AUDI	A4 2.0 TFSi	[CDZA]	06.2008-
AUDI	A4 2.0 TFSi Flexible fuel	[CFKA]	11.2009-
AUDI	A4 2.0 TFSi Flexible fuel Quattro	[CFKA]	11.2009-
AUDI	A4 2.0 TFSi Quattro	[CDNC]	06.2008-
AUDI	A4 2.0 TFSi Quattro	[CPMA]	04.2009-
AUDI	A4 2.0 TFSi Quattro	[CPMA]	06.2008-
AUDI	A5 1.8 TFSi	[CABD]	10.2007-
AUDI	A5 1.8 TFSi	[CABD]	10.2011-
AUDI	A5 1.8 TFSi	[CDHB]	05.2009-
AUDI	A5 1.8 TFSi	[CDHB]	09.2009-
AUDI	A5 1.8 TFSi	[CJEB]	10.2011-
AUDI	A5 1.8 TFSi Sportback	[CDHB]	11.2009-
AUDI	A5 1.8 TFSi Sportback	[CJEB]	10.2011-
AUDI	A5 2.0 TFSi	[CAEA]	03.2009-
AUDI	A5 2.0 TFSi	[CDNB]	03.2009-
AUDI	A5 2.0 TFSi	[CDNB]	09.2009-
AUDI	A5 2.0 TFSi	[CDNB]	11.2008-
AUDI	A5 2.0 TFSi	[CDNC]	03.2009-
AUDI	A5 2.0 TFSi	[CDNC]	06.2008-
AUDI	A5 2.0 TFSi Quattro	[CAEB]	03.2009-
AUDI	A5 2.0 TFSi Quattro	[CDNC]	06.2008-
AUDI	A5 2.0 TFSi Sportback	[CDNC]	09.2009-
AUDI	A5 2.0 TFSi Sportback Quattro	[CDNC]	09.2009-
AUDI	A6 2.0 TFSi	[CDNB]	05.2011-
AUDI	A6 2.0 TFSi	[CDNB]	06.2011-
AUDI	Q5 2.0 TFSi	[CDNB]	08.2009-
AUDI	Q5 2.0 TFSi	[CPMA]	11.2008-
AUDI	Q5 2.0 TFSi Quattro	[CNCD]	06.2012-

0001107450	BOSCH
0001107451	BOSCH
0001107508	BOSCH
0001107509	BOSCH
0001107534	BOSCH
06B911021B	VW
06D911021B	VW
06D911021BX	VW
06D911021D	VW
06D911023B	VW
06H911021A	VW
06H911021AX	VW
06H911021B	VW
06H911021E	VW
06H911021EX	VW
06H911021H	VW
0986024010	BOSCH
101437	KUHNER
101437B	KUHNER
115394	CARGO
12147	EAI
147ST21	STARTCAR
16189	DELCO
17677R	WAI / TRANSPO
1986S00684	BOSCH
1986S00689	BOSCH
200.534.102.010	PSH
200.534.102.212	PSH
200.534.102.280	PSH
20401834BN	REAL
20401834OE	REAL
220604	ERA
25-4115	ELSTOCK
3054	CEVAM
332189	LOGISTIK
33292N	WAI / TRANSPO
460275	VALEO
5010376	MEAT & DORIA
6010438.0	SANDO
6010438.1	SANDO
8080307	FRIESEN
AC-CBS1437	ACAUTO
AEY2443	AUTOELECTRO
ANM12398X	ANDEL
AU9038	SNRA
AZMT-53-010-1208	A.Z. MEISTERTEILE
BOS0001107534	WOODAUTO
CS1437	HC PARTS
CST10438AS	CASCO
CST10438GS	CASCO
DRS0178	DELCO
F032115394	CARGO
IR9622	PROTECH
LES0495	LE PART
LRS02443	LUCAS
LRS2443	LUCAS
PRSS354	3EFFE
RAS31289	DELCO
S0319	AS-PL
S1001B	PRESTOLITE
S1002B	PRESTOLITE
S12BH0233	SIDAT
S12BH0233A2	SIDAT
S-6307	DIXIE
SS710	SOVEREIGN
ST01633	TMI
STB0118	KRAUF
STR1541	ELECTROLOG
STR50543	WOODAUTO
STRS354	3EFFE
STX201057	STARDAX
STX201057R	STARDAX
TT16538	TESLA
UD12028S	AS-PL

S0319
