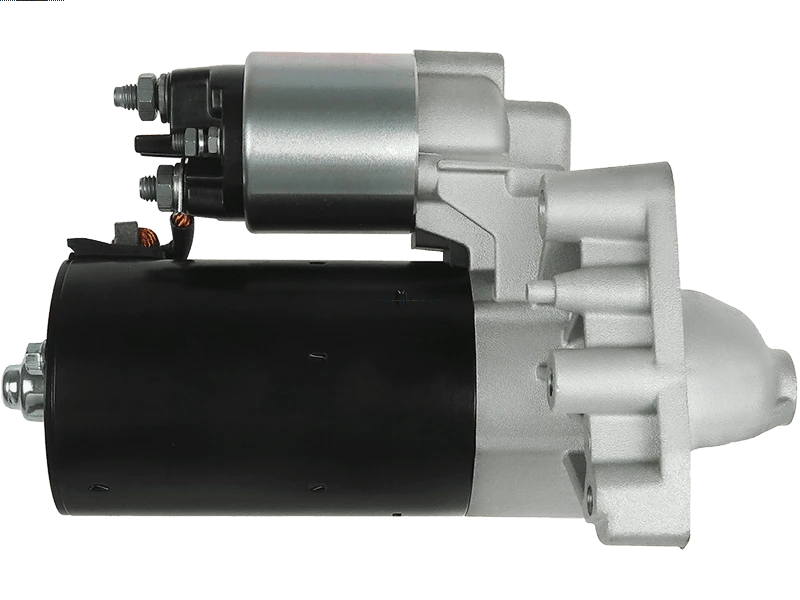

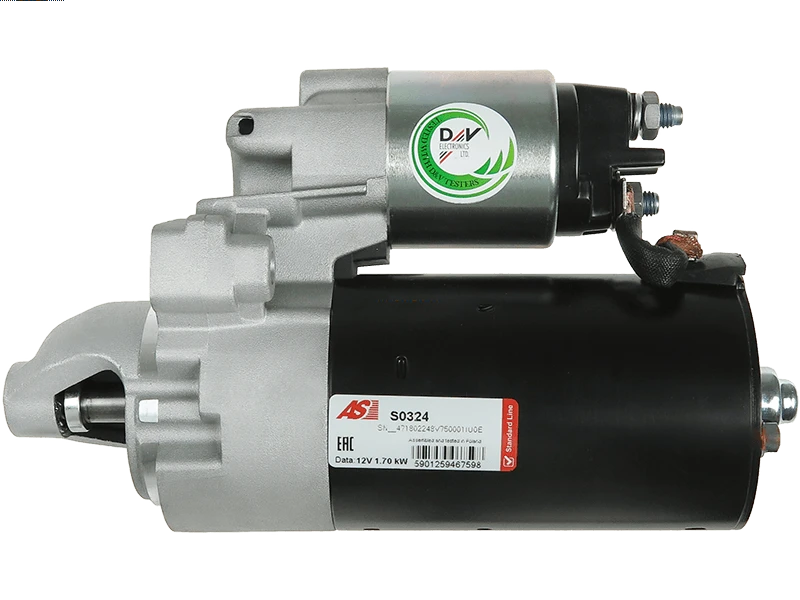

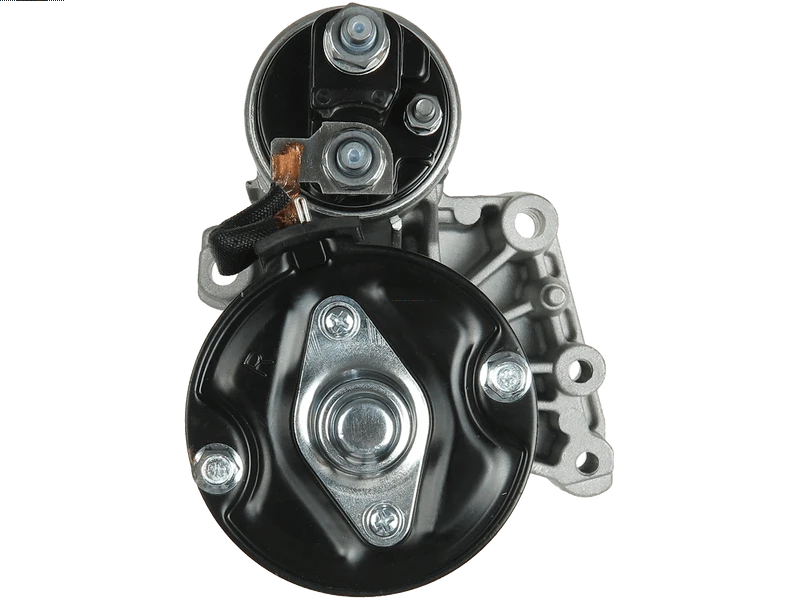

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 292.72 including GST
NZ$ 254.54 excluding GST
or four payments of $73.18
with
Learn More
each
S0324
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001138005Associated Numbers
0001138005 0001138006 12417802945 12417812070 12417812071 20401904OE 25-4082 254646 254646B 6010409 AEY2410 CST10409GS DRS0216 EAA-121930 LRS02410 S-13153 STR50575Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 227 mm |
| Mount Hole Center - Center (O.1) | 123.50 mm |
| Mount Hole Center - Center (O.2) | 30 mm |
| Mount Hole Center - Center (O.3) | 46.50 mm |
| Mount Hole Center - Center (O.4) | 92 mm |
| Mount Hole Diameter (C.2) | M8x1.25 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 14 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 60 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MINI | Cooper 1.6 | [DV6TED4] | 03.2007- |
| MINI | Cooper 1.6 Clubman | [DV6TED4] | 10.2007- |
| MINI | One 1.6 | [DV6TED4] | 06.2009-07.2010 |
Reference Information
114849 PRSL651 12417812071 STR1574 254646B 6010409 CS1518 12417812070 RNL2406 0001138005 S-13153 0001138006 20401904OE DRS0216 254646 LRS02410 STR50575 LRS2410 AEY2410 ANM12436X S0324 STRL651 12417803514 7803514 12417802945 25-4082 CST10409GSVideo/Publications
