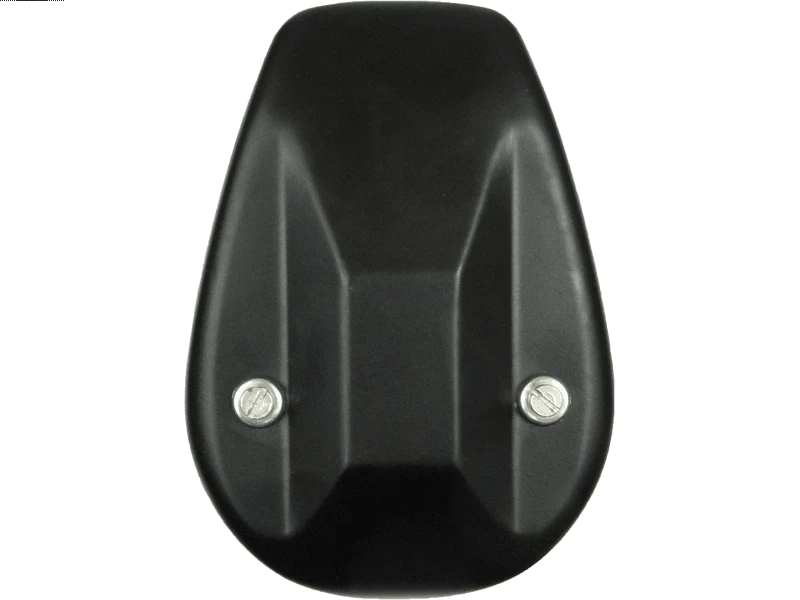

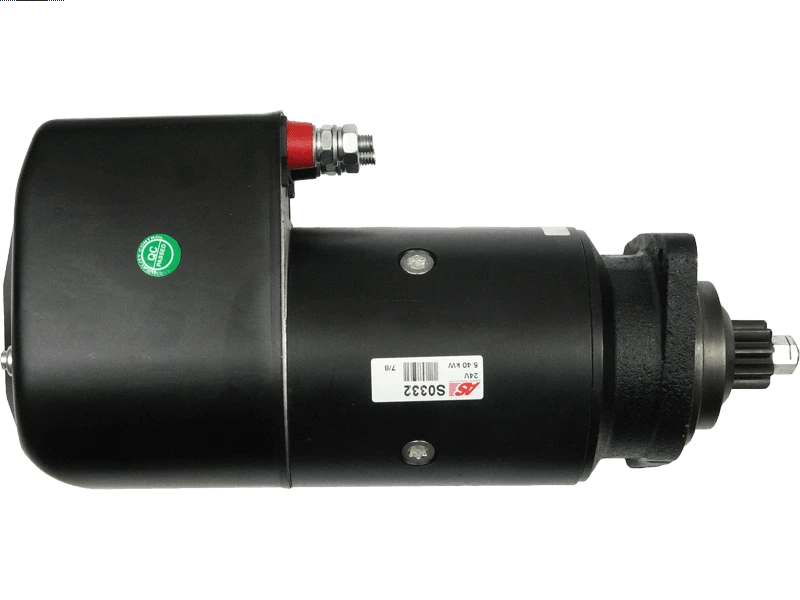

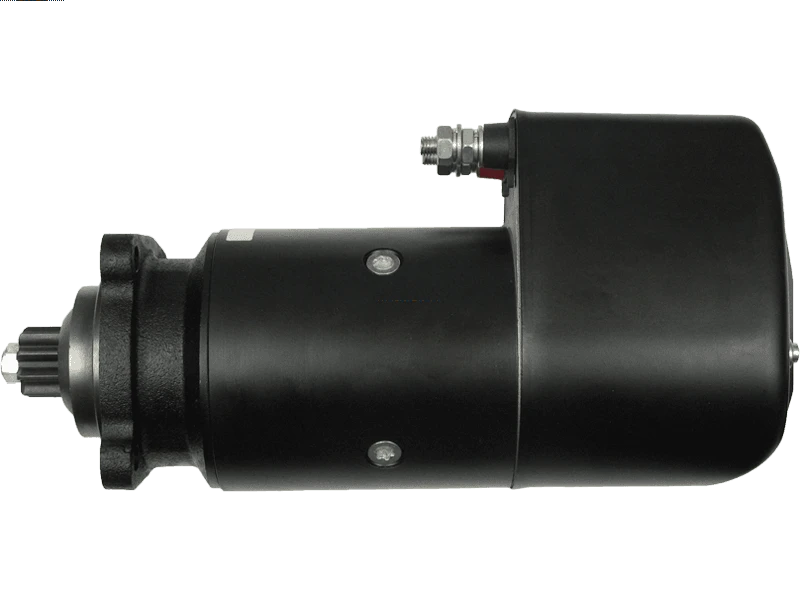

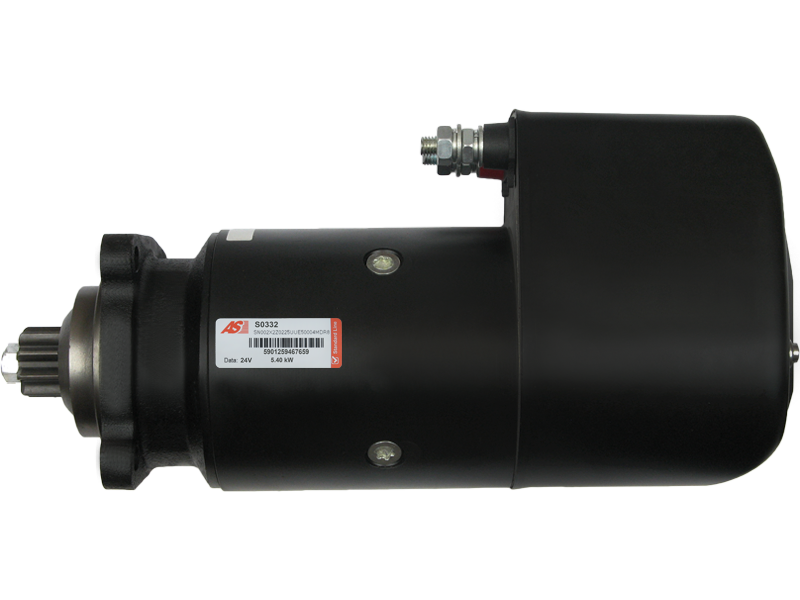

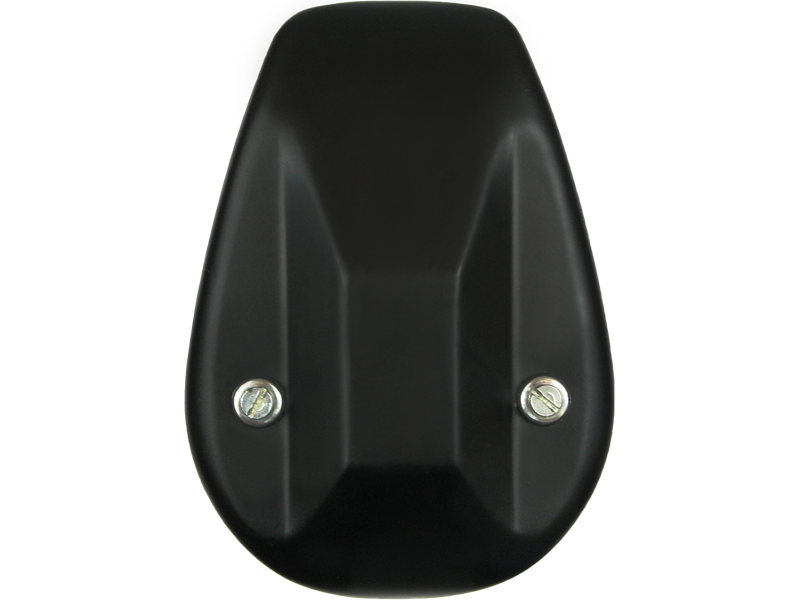

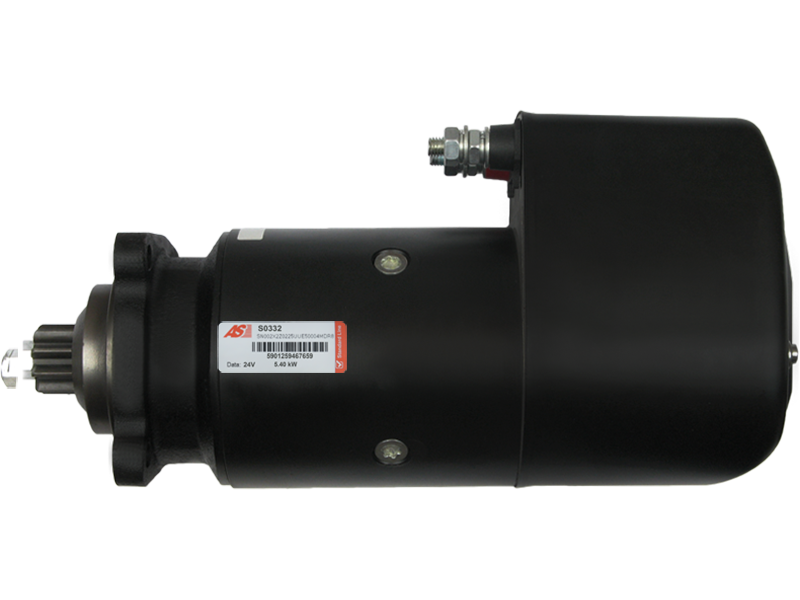

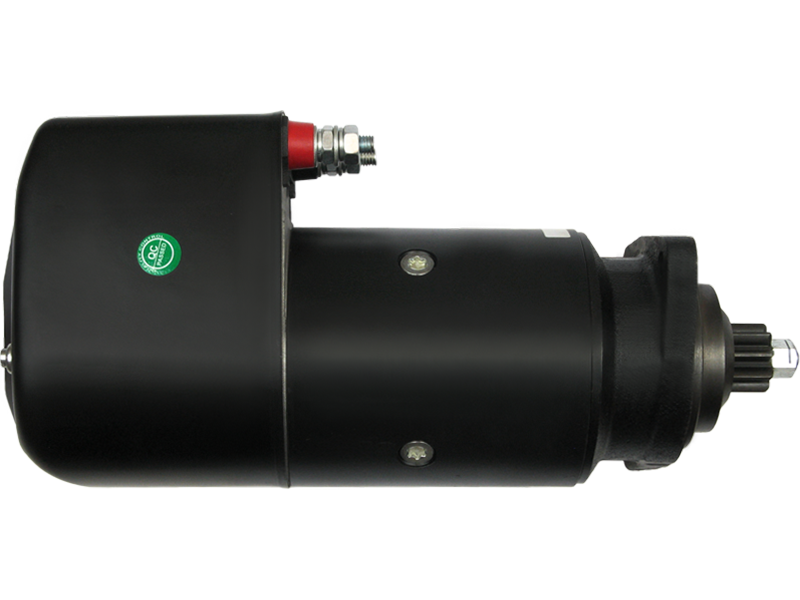

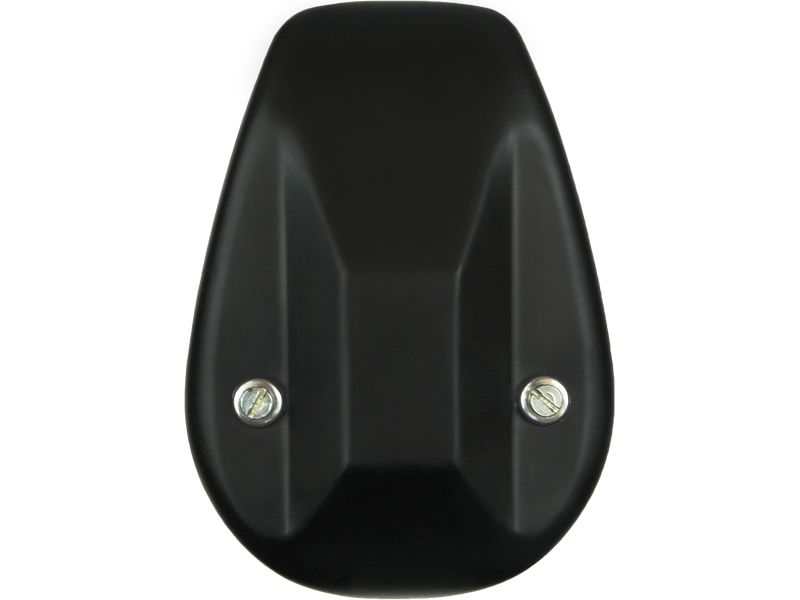

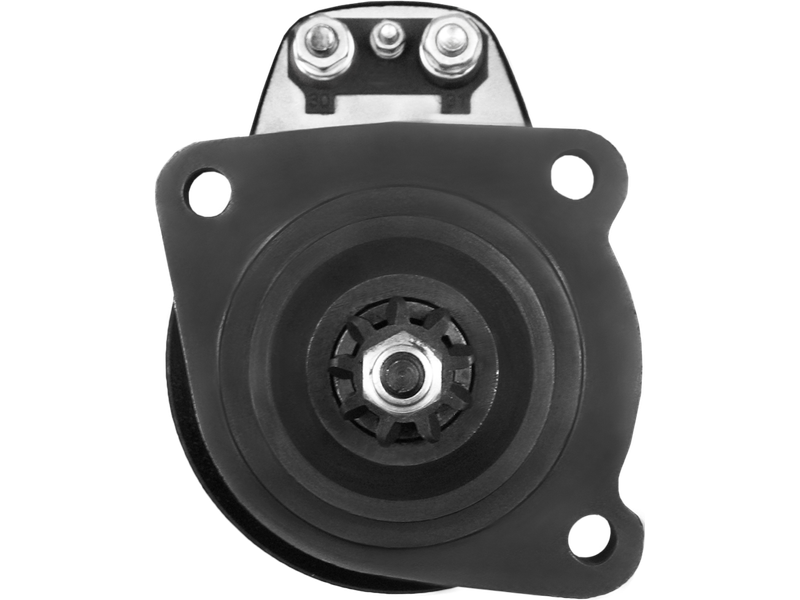

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 715.65 including GST
NZ$ 622.30 excluding GST
or four payments of $178.91
with
Learn More
each
S0332
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001416017Associated Numbers
0001402011 0001402056 0001402058 0001414018 0001416017 0001416027 10955 10955P 111249 19024027 19024554 20401677EL 254021D 254021K 254021L 254021M 256019 6010776 6140000 860657GB 9125300 CST10776ES IS9064 R23.14 UNIT BOM 120-6009BSpecifications
| Kilowatt | 5.40 kW |
| Length (L.1) | 385 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 128 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAIMLER | Various Models | [WD610.16] | 03.1971-07.1983 |
| STEYR | Various Models | [WD610.16] | 03.1971-07.1983 |
Reference Information
| 0001402011 | BOSCH |
| 0001402056 | BOSCH |
| 0001414017 | BOSCH |
| 0001414018 | BOSCH |
| 0001416013 | BOSCH |
| 0001416017 | BOSCH |
| 0001416027 | BOSCH |
| 0001416213 | BOSCH |
| 05710926 | BOMAG |
| 10010839AV | ITAB AUTOMOTIVE |
| 103806 | FARCOM |
| 10440223 | ALANKO |
| 10440468 | ALANKO |
| 10955 | KUHNER |
| 10955P | KUHNER |
| 110601 | CARGO |
| 11090165 | EUROTEC |
| 11.139.538 | ISKRA / LETRIKA |
| 1178720 | KHD |
| 161500090030 | CASE |
| 20401938BN | REAL |
| 220253 | ERA |
| 22609 | ERA |
| 2-7101-1W | WAI / TRANSPO |
| 33449 | EAI |
| 449ST33 | STARTCAR |
| 45-0331 | ELSTOCK |
| 4.65040 | DT SPARE PARTS |
| 51262017014 | MAN |
| 6010839.0 | SANDO |
| 60520796 | CASE |
| 61500090030 | STEYR |
| 688018094 | DRI |
| 72492698 | MAHLE |
| 781.201.093.010 | PSH |
| 781.201.093.016 | PSH |
| 82224044 | FIAT |
| 860657GB | PRESTOLITE |
| 8802 | CEVAM |
| 90801105110 | MAN |
| A72200 | ATL AUTOTECHNIK |
| AC-CBS5015 | ACAUTO |
| AZK5579 | ISKRA / LETRIKA |
| CST10839AS | CASCO |
| F032110601 | CARGO |
| IS9051 | ISKRA / LETRIKA |
| LRS01820 | LUCAS |
| LRS1820 | LUCAS |
| MS536 | MAHLE |
| PL9112 | SNRA |
| S-50138 | DTS |
| S511172 | BTS TURBO |
| SBO839A | AUTOTEAM |
| SG0506 | GHIBAUDI |
| ST02467 | TMI |
| STB2249 | KRAUF |
