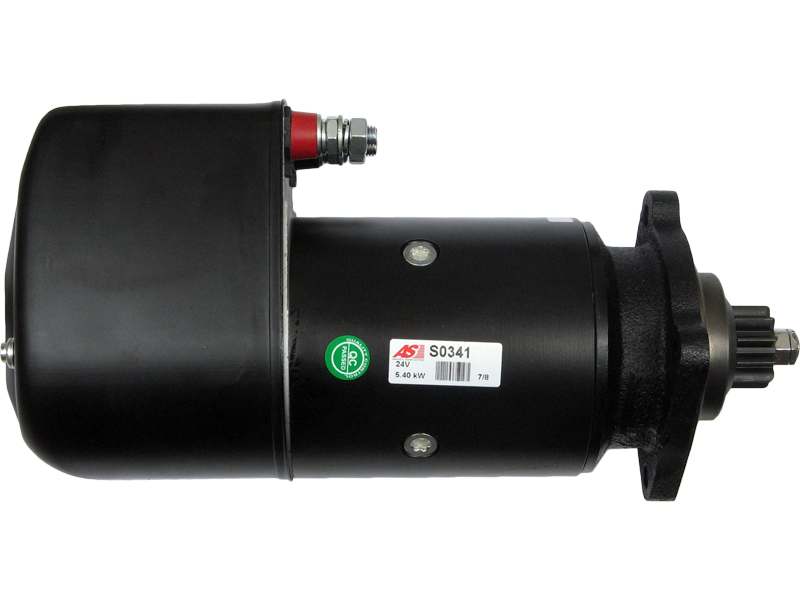

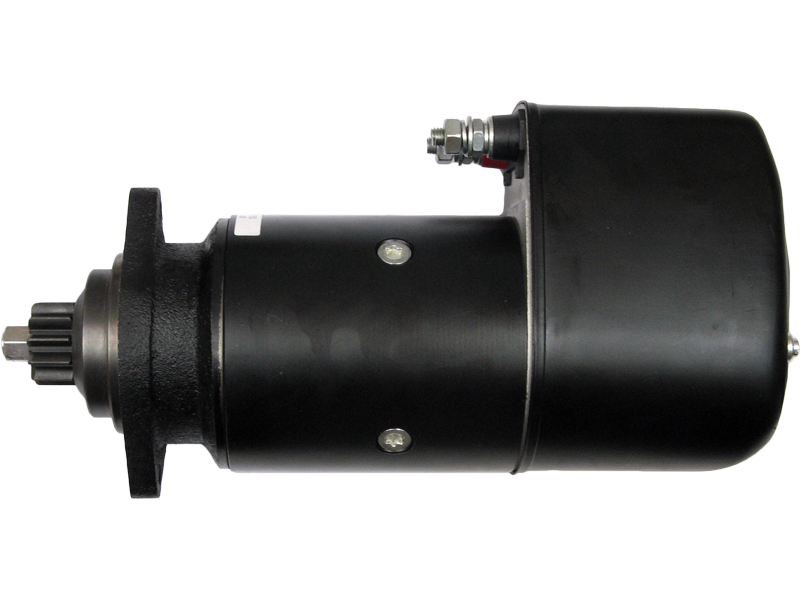

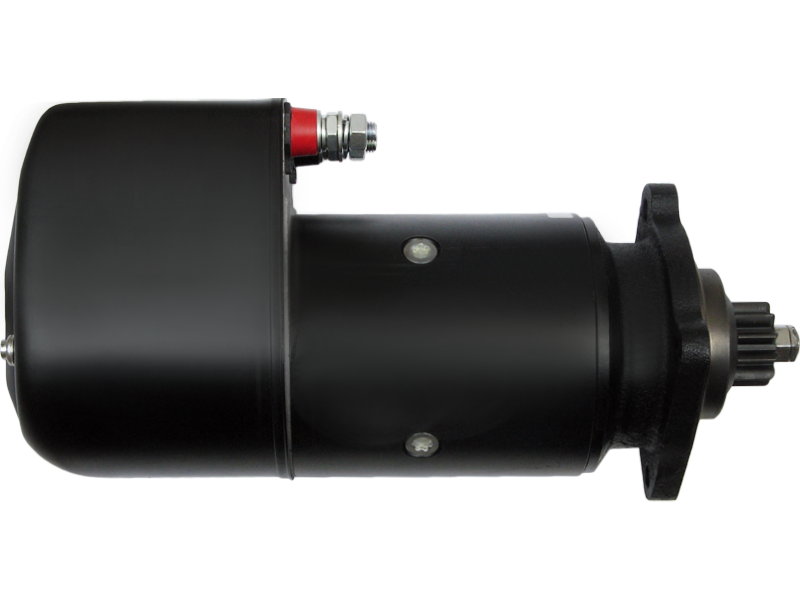

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 752.35 including GST
NZ$ 654.22 excluding GST
or four payments of $188.09
with
Learn More
UOM:
each
Product Code:
S0341
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001416033Associated Numbers
0001416033 10384 1174639 19024033 20401018BN 6010810 860656GB CST10810AS IS9058 UD16620S UNIT BOM 120-5065ASpecifications
| Kilowatt | 5.40 kW |
| Length (L.1) | 386 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Center - Center (O.2) | 89 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| IVECO | Various Models | ||
| IVECO | Various Models | - | |
| POCLAIN | Various Models | PPM-680-ATT | |
| POCLAIN | Various Models | PPM-680-ATT | - |
| VOLVO | B12 B12 | TD122FH | 01.1992- |
| VOLVO | B12 B12 | TD122FL | 01.1992- |
| VOLVO | B12 B12 | TD123ES | 01.1992- |
| VOLVO | F10 F 10/260 | TD100G | 01.1983-06.1985 |
| VOLVO | F10 F 10/260 | TD100G | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD100G | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD100G | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD100G | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD100G | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD100G | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD100GA | 01.1983-06.1985 |
| VOLVO | F10 F 10/260 | TD100GA | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD100GA | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD100GA | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD100GA | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD100GA | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD100GA | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD101G | 01.1983-06.1985 |
| VOLVO | F10 F 10/260 | TD101G | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD101G | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD101G | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD101G | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD101G | 02.1982-06.1985 |
| VOLVO | F10 F 10/260 | TD101G | 02.1982-06.1985 |
| VOLVO | F10 F 10/300 | TD101F | 01.1984-12.1986 |
| VOLVO | F10 F 10/300 | TD101F | 01.1984-12.1986 |
| VOLVO | F10 F 10/300 | TD101F | 01.1984-12.1986 |
| VOLVO | F10 F 10/300 | TD101F | 01.1987-12.1987 |
| VOLVO | F10 F 10/300 | TD101F | 01.1987-12.1987 |
| VOLVO | F10 F 10/300 | TD101F | 10.1983-12.1986 |
| VOLVO | F10 F 10/300 | TD101FA | 01.1984-12.1986 |
| VOLVO | F10 F 10/300 | TD101FA | 01.1984-12.1986 |
| VOLVO | F10 F 10/300 | TD101FA | 01.1984-12.1986 |
| VOLVO | F10 F 10/300 | TD101FA | 01.1987-12.1987 |
| VOLVO | F10 F 10/300 | TD101FA | 01.1987-12.1987 |
| VOLVO | F10 F 10/300 | TD101FA | 10.1983-12.1986 |
| VOLVO | F10 F 10/320 | TD102F | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102F | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102F | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102F | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102F | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102F | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102F | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102F | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102F | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102F | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102F | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FBQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FBQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FBQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FBQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FBQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FBQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FBQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FBQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FBQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FBQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FBQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FDQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FDQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FDQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FDQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FDQ | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FDQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FDQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FDQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FDQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FDQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FDQ | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FF | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FF | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FF | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FF | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FF | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FF | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FF | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FF | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FF | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FF | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FF | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FL | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FL | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FL | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FL | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FL | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FL | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FL | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FL | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FL | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FL | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FL | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FM | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FM | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FM | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FM | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FM | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD102FM | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FM | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FM | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FM | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD102FM | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103E | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103E | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103E | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103E | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103E | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103E | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103E | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103E | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103E | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103E | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103E | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103ES | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103ES | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103ES | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103ES | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103ES | 10.1987-12.1990 |
| VOLVO | F10 F 10/320 | TD103ES | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103ES | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103ES | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103ES | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103ES | 12.1990-12.1994 |
| VOLVO | F10 F 10/320 | TD103ES | 12.1990-12.1994 |
| VOLVO | F12 F 12/320 | TD121G | 01.1987-12.1987 |
| VOLVO | F12 F 12/320 | TD121G | 01.1987-12.1987 |
| VOLVO | F12 F 12/320 | TD121G | 01.1987-12.1987 |
| VOLVO | F12 F 12/320 | TD121G | 01.1987-12.1987 |
| VOLVO | F12 F 12/320 | TD121G | 01.1987-12.1987 |
| VOLVO | F12 F 12/320 | TD121G | 01.1987-12.1987 |
| VOLVO | F12 F 12/360 | TD122F | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122F | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122F | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122F | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122F | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122F | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122F | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122F | 01.1991-12.1994 |
| VOLVO | F12 F 12/360 | TD122F | 10.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122F | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122F | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122F | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122F | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122F | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122F | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122FH | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122FH | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122FH | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122FH | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122FH | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122FH | 01.1988-12.1990 |
| VOLVO | F12 F 12/360 | TD122FH | 01.1991-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 10.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 12.1990-12.1994 |
| VOLVO | F12 F 12/360 | TD122FH | 12.1990-12.1994 |
| VOLVO | F12 F 12/370 | TD121F | 01.1987-12.1987 |
| VOLVO | F12 F 12/370 | TD121F | 01.1987-12.1987 |
| VOLVO | F12 F 12/370 | TD121F | 01.1987-12.1987 |
| VOLVO | F12 F 12/370 | TD121F | 01.1987-12.1987 |
| VOLVO | F12 F 12/370 | TD121F | 01.1987-12.1987 |
| VOLVO | F12 F 12/370 | TD121F | 01.1987-12.1987 |
| VOLVO | F12 F 12/400 | TD122FL | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FL | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FL | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FL | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FL | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FL | 12.1990-12.1994 |
| VOLVO | F12 F 12/400 | TD122FL | 12.1990-12.1994 |
| VOLVO | F12 F 12/400 | TD122FS | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FS | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FS | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FS | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FS | 01.1988-12.1990 |
| VOLVO | F12 F 12/400 | TD122FS | 12.1990-12.1994 |
| VOLVO | F12 F 12/400 | TD122FS | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FL | 01.1988-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FL | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FL | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FL | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FL | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FS | 01.1988-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FS | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FS | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FS | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD122FS | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD123ES | 01.1988-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD123ES | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD123ES | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD123ES | 12.1990-12.1994 |
| VOLVO | F12 F 12/400,F 12/410 | TD123ES | 12.1990-12.1994 |
| VOLVO | FL10 FL 10/280 | TD101G | 09.1985-12.1990 |
| VOLVO | FL10 FL 10/280 | TD101G | 09.1985-12.1990 |
| VOLVO | FL10 FL 10/280 | TD101G | 09.1985-12.1990 |
| VOLVO | FL10 FL 10/280 | TD101G | 09.1985-12.1990 |
| VOLVO | FL10 FL 10/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10H/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10H/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10H/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10H/320 | D10A320 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10H/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10H/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10H/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FL10 FL 10H/360 | D10A360 | 12.1995-09.1998 |
| VOLVO | FM10 FM 10/320 | D10A320 | 04.1999-12.2001 |
| VOLVO | FM10 FM 10/320 | D10B320 | 04.1999-12.2001 |
| VOLVO | FM10 FM 10/320 | D10B320 | 04.1999-12.2001 |
| VOLVO | FM10 FM 10/360 | D10B360 | 04.1999-12.2001 |
| VOLVO | FM10 FM 10/360 | D10B360 | 04.1999-12.2001 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD100B | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
| VOLVO | N10 N 10/300 | TD101F | 01.1973-12.1989 |
Reference Information
| 0001416033 | BOSCH |
| 0746399 | KHD |
| 1174639 | KHD |
| 19024033 | DELCO |
| 20401018BN | REAL |
| 220318 | ERA |
| 6010810 | SANDO |
| 860656GB | PRESTOLITE |
| AM-2203 | AUTO MAGNETO |
| CST10810AS | CASCO |
| IS9058 | ISKRA / LETRIKA |
| MAV126280 | SIOM |
| MS 470 | MAHLE |
| STR1647 | ELECTROLOG |
| STRF824 | 3EFFE |
| UD16620S | AS-PL |
| UNIT BOM 120-5065A | WAI |
Video/Publications
S0341View your shopping basket or Browse other items in Starter Motors.
