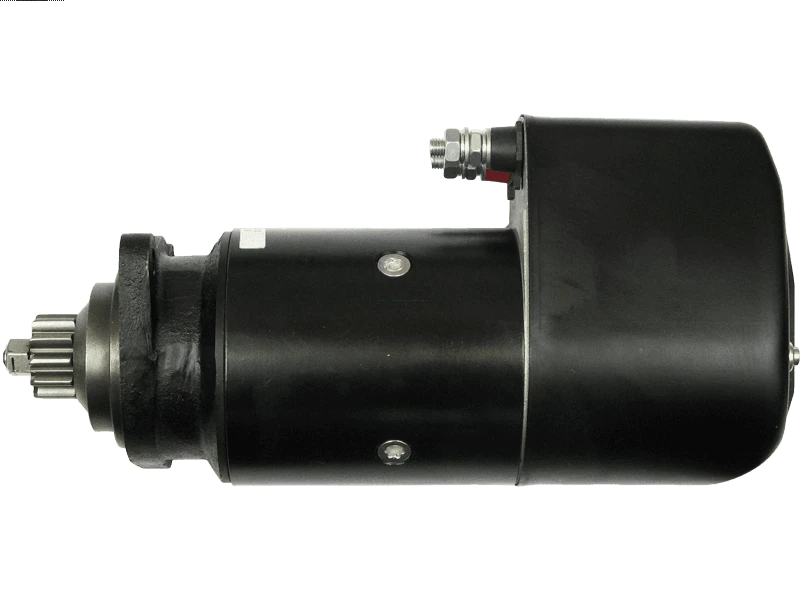

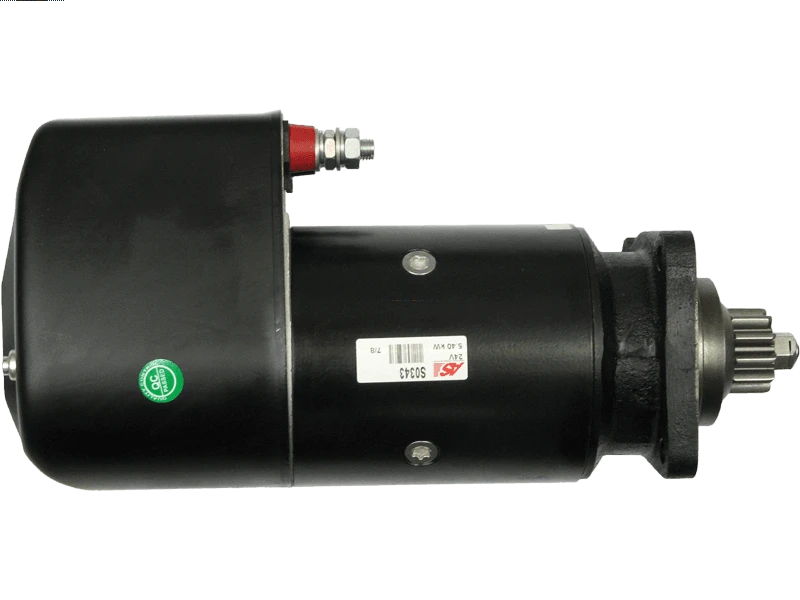

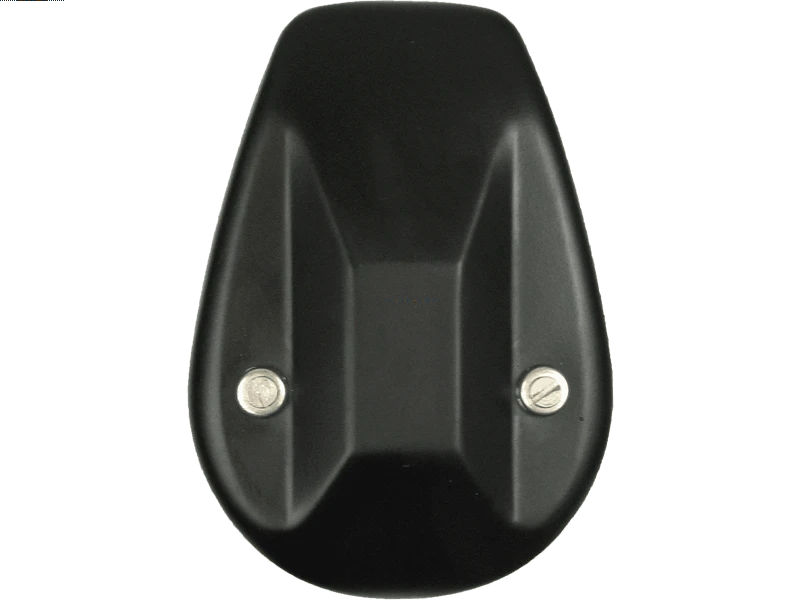

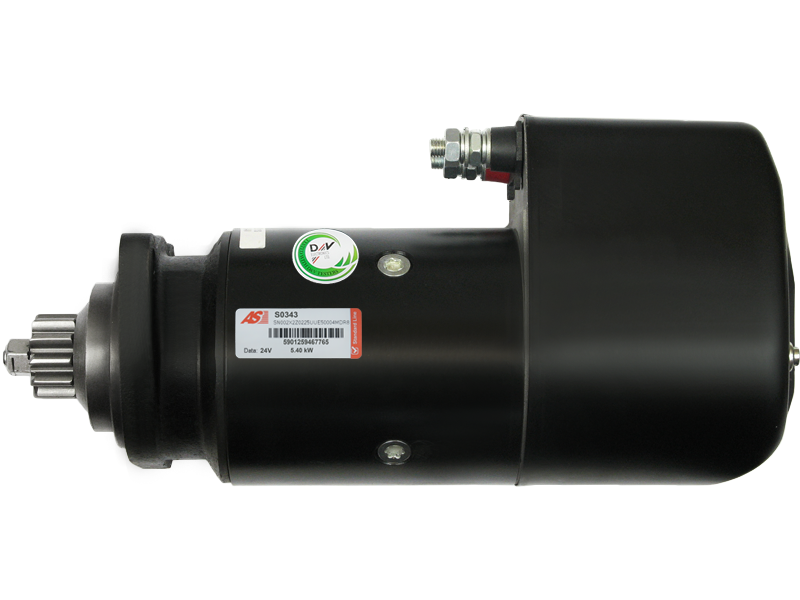

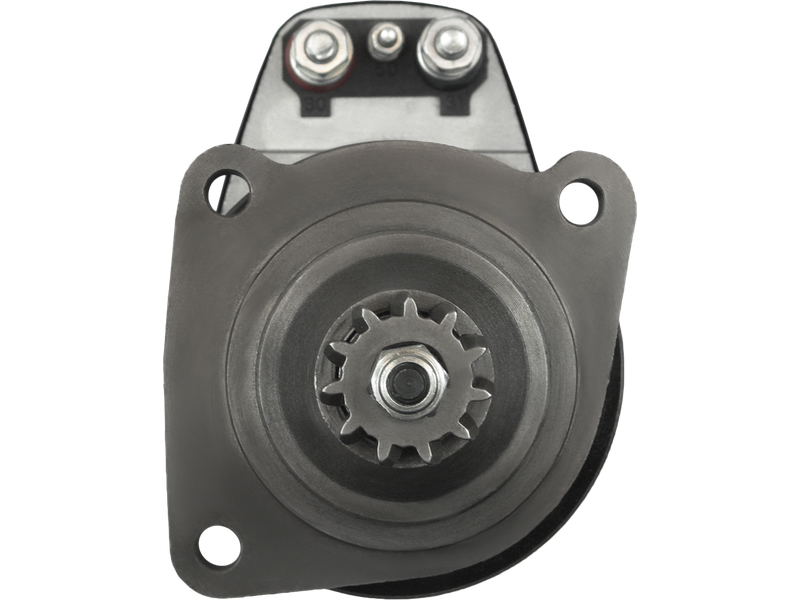

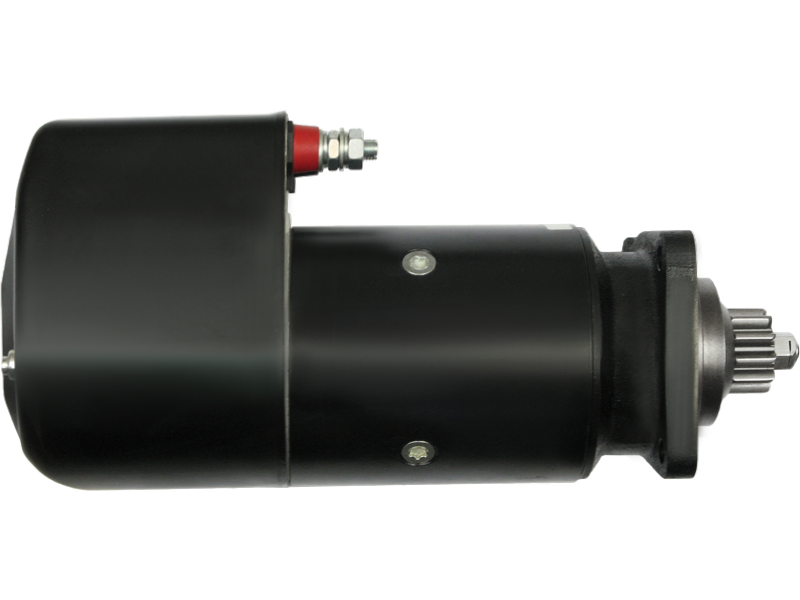

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 722.75 including GST
NZ$ 628.48 excluding GST
or four payments of $180.69
with
Learn More
each
S0343
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001416038Associated Numbers
UD16621S 0001410116 0986013260 CST10770AS 8193 293020 D293020 081466038 19024036 19082018 45-0382 CS506 8EA726154-001 8EA012586-571 11.139.079 AZK5433 IS9070 STB0506 6000733 LRS01824 MS513 72736141 51262017100 88213836 860674GB 860674 901.205.113 20401077BN 6010770.0 81500090049 458340 465929 5003027 18253N STR50182 PRE860674GB 0001416038Specifications
| Kilowatt | 5.40 kW |
| Length (L.1) | 385 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | B10 9.6 | [DH10A360] | 01.1996-12.2001 |
| VOLVO | B10 9.6 | [THD100DA] | 01.1978-12.2003 |
| VOLVO | B10 9.6 | [THD100EA] | 01.1978-12.2003 |
| VOLVO | B10 9.6 | [THD101GB] | 01.1985-12.2003 |
| VOLVO | B10 9.6 | [THD101GD] | 01.1985-12.2003 |
| VOLVO | B10 9.6 | [THD101GD] | 01.1990-12.2001 |
| VOLVO | B10 9.6 | [THD101KC] | 01.1985-12.2003 |
| VOLVO | B10 9.6 | [THD102KD] | 01.1988-12.2003 |
| VOLVO | B10 9.6 | [THD102KD] | 01.1990-12.2001 |
| VOLVO | B10 9.6 | [THD103KD] | 01.1988-12.2003 |
| VOLVO | B10 9.6 | [THD103KD] | 01.1990-12.2001 |
Reference Information
| 0001410116 | BOSCH |
| 0001416038 | BOSCH |
| 081466038 | DAF |
| 11.139.079 | ISKRA / LETRIKA |
| 19024036 | DELCO |
| 19082018 | DELCO |
| 20401077BN | REAL |
| 220251 | ERA |
| 30051600022 | DOOSAN |
| 45-0382 | ELSTOCK |
| 51262017100 | MAN |
| 6010770.0 | SANDO |
| 72736141 | MAHLE |
| 8193 | CEVAM |
| 85000438 | VOLVO |
| 85000450 | VOLVO |
| 860674 | PRESTOLITE |
| 860674GB | PRESTOLITE |
| 88213836 | POWERMAX |
| 8EA012586-571 | HELLA |
| 8EA726154-001 | HELLA |
| 901.205.113 | PSH |
| AZK5433 | ISKRA / LETRIKA |
| CST10770AS | CASCO |
| IS9070 | ISKRA / LETRIKA |
| LRS01824 | LUCAS |
| LRS1824 | LUCAS |
| MS513 | MAHLE |
| MS 513 | MAHLE |
| PRE860674GB | WOODAUTO |
| STB0506 | KRAUF |
| STR1437 | ELECTROLOG |
| STR50182 | WOODAUTO |
| STR79509 | ELECTROLOG |
| STRL210 | 3EFFE |
| UD16621S | AS-PL |
Video/Publications
