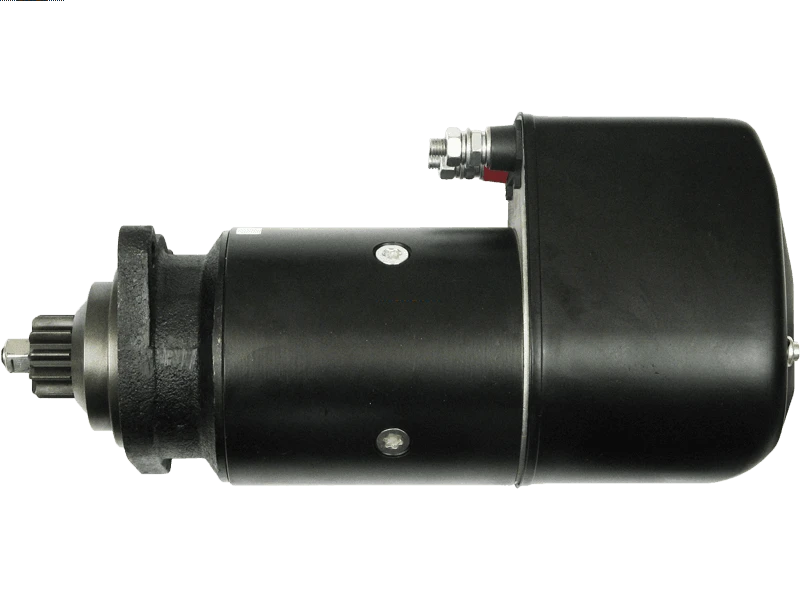

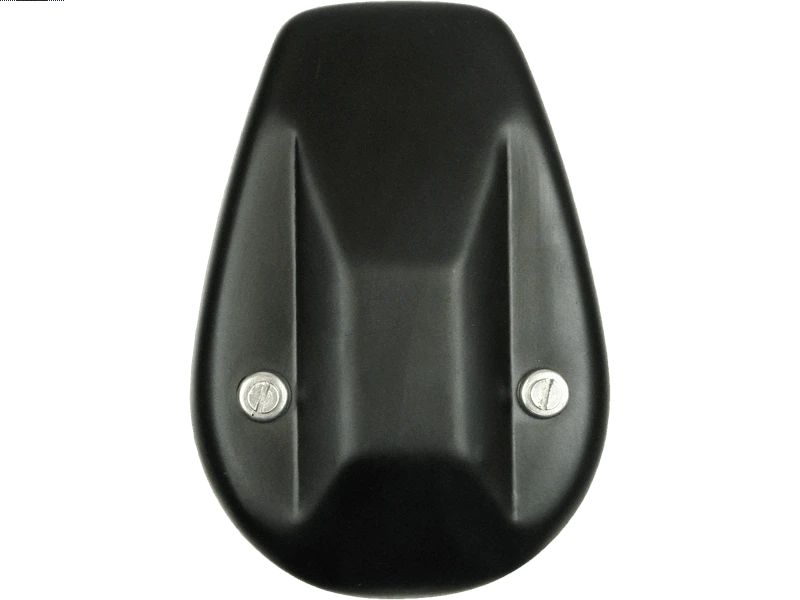

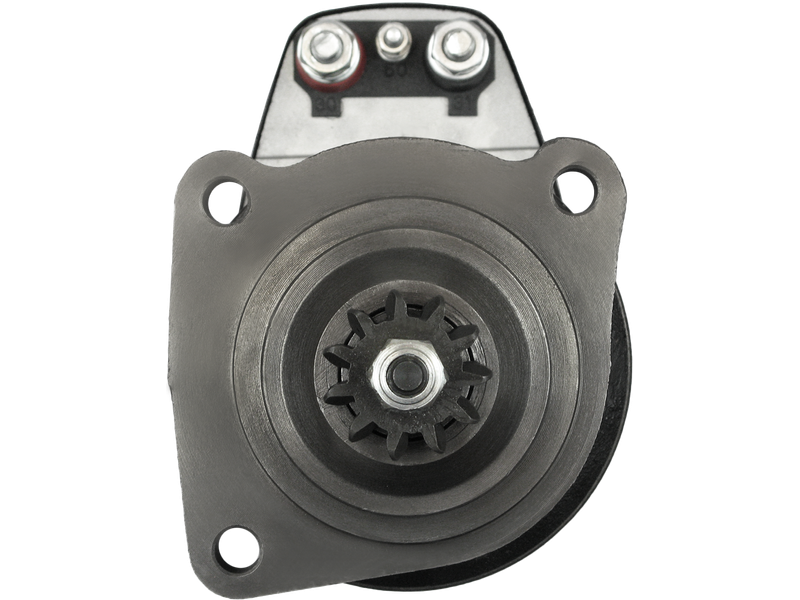

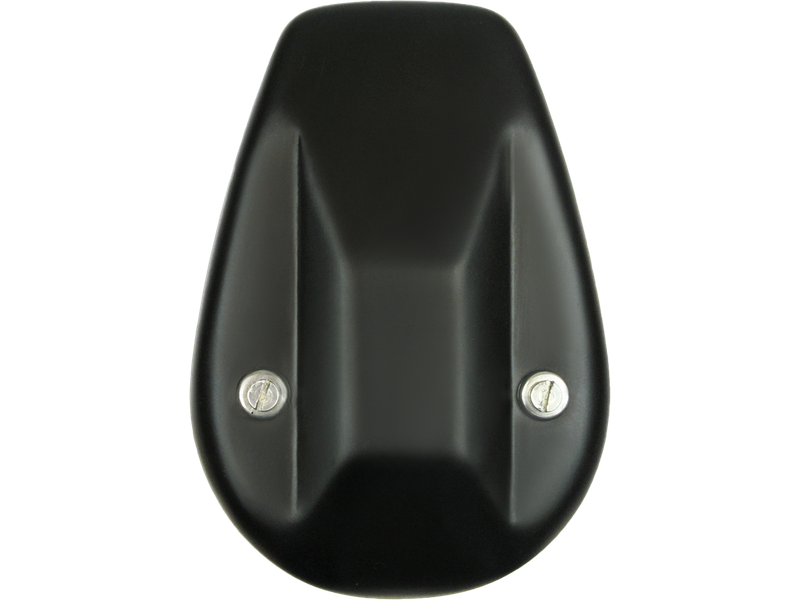

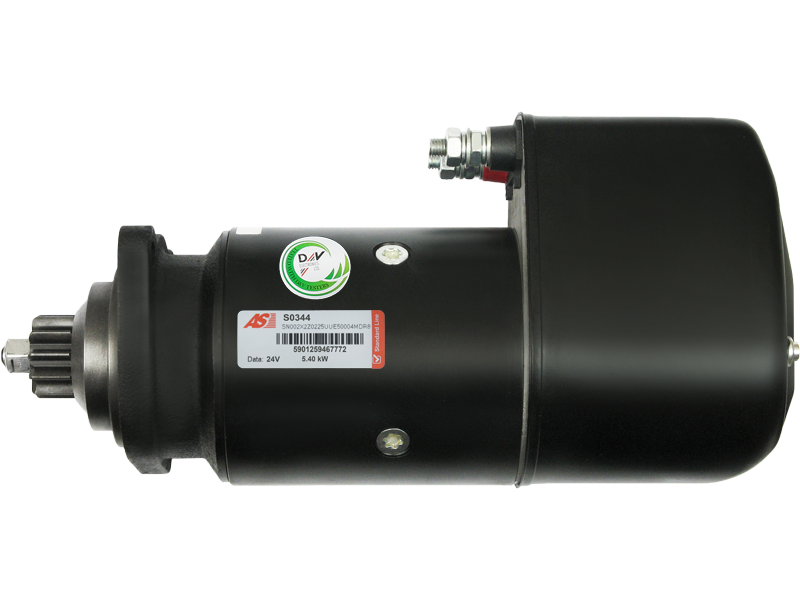

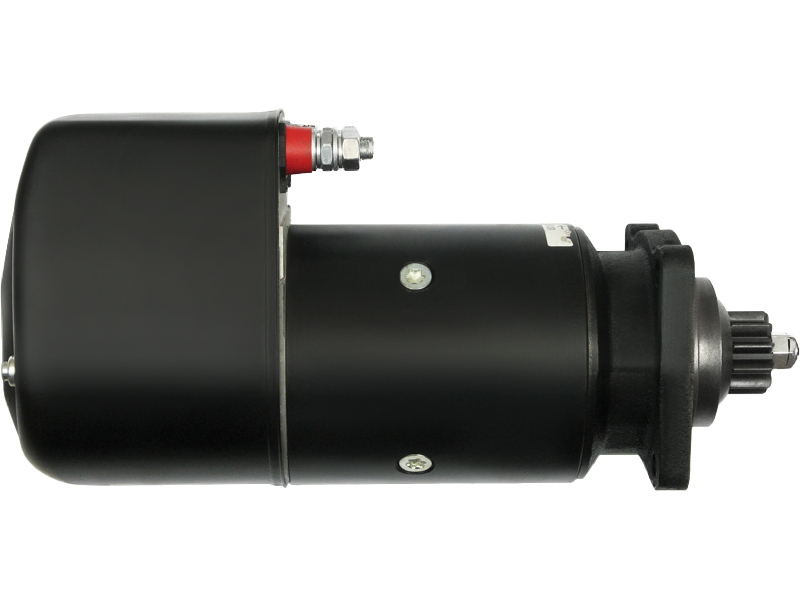

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 783.18 including GST
NZ$ 681.03 excluding GST
or four payments of $195.80
with
Learn More
each
S0344
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001416039Associated Numbers
0001416039 UD16622S 51262017050 0001414020 0001402074 0001402022 0001402023 0001402049 0001402068 B001450194 19024037 260-46256 11.139.080 AZK5434 IS9071 MS546 72736174 UNIT BOM 900-100Specifications
| Insulated Earth | Yes |
| Kilowatt | 5.40 kW |
| Length (L.1) | 386.50 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | B10M 9.6 | [THD100DA] | |
| VOLVO | B10M 9.6 | [THD100DC] | |
| VOLVO | B10M 9.6 | [THD100DD] | |
| VOLVO | B10M 9.6 | [THD100EA] |
Reference Information
0001402022 BOM 220305 0001402074 UNIT IS9071 0001402068 MS 0001402023 B001450194 UD16622S 11.139.080 AZK5434 0001414020 MS546 19024037 0001416039 72736174 51262017050 546 260-46256 900-100 0001402049 STR79510Video/Publications
