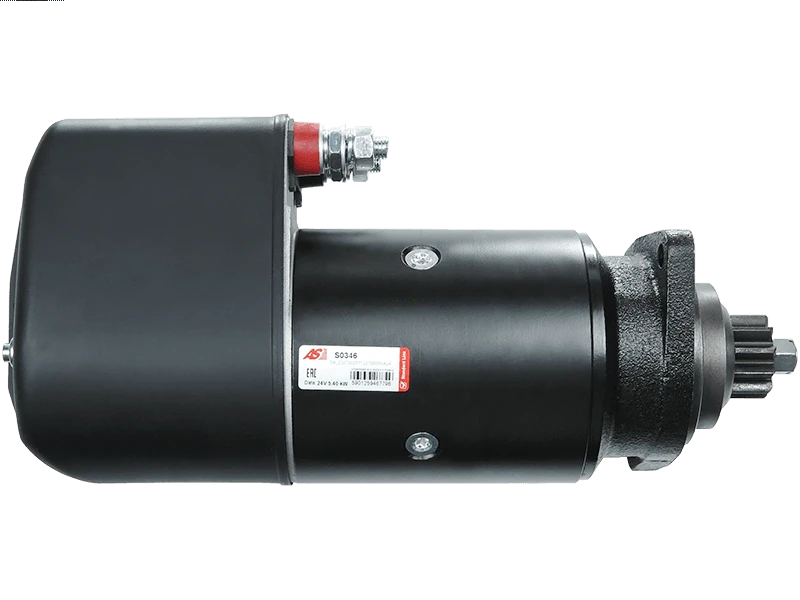

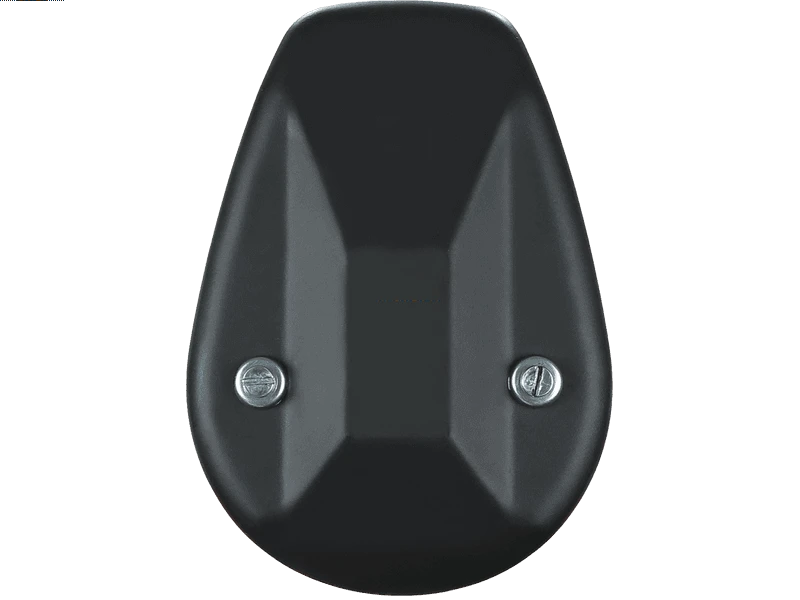

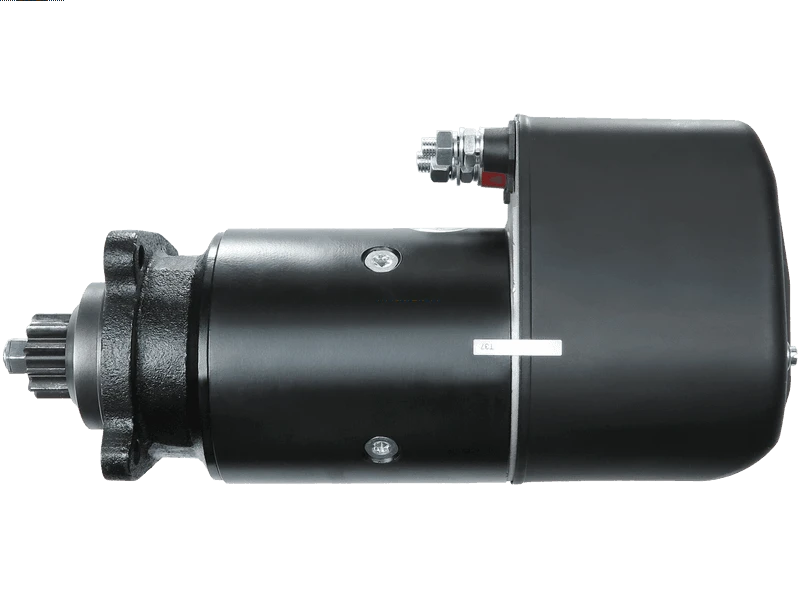

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 720.75 including GST
NZ$ 626.74 excluding GST
or four payments of $180.19
with
Learn More
each
S0346
No stock in NZ
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001416043Associated Numbers
0001410060 0001410067 0001416043 10546 110209 11206 18223N 20401036BN 20401036EL 22622 254327 28.3006 2998009 6010630 6230000 8045 860546GB 860669GB 9000084008 9125420 CST10630AS CST10630ES EAA-121591 IM327 IM543 R23.23Specifications
| Kilowatt | 5.4 kW |
| Length (L.1) | 387 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAF | F 2600 11.6 | [DKB1160] | 02.1972-12.1973 |
| DAF | F 2800 11.6 | [DKA1160] | 01.1974-08.1980 |
| DAF | F 2800 11.6 | [DKA1160] | 01.1974-11.1980 |
| DAF | F 2800 11.6 | [DKS1160] | 01.1974-09.1986 |
| DAF | F 2800 11.6 | [DKS1160E] | 01.1980-09.1986 |
| DAF | F 2800 11.6 | [DKS1160E] | 01.1980-09.1991 |
| DAF | F 2800 11.6 | [DKS1160E] | 05.1983-09.1991 |
| DAF | F 2800 11.6 | [DKT1160] | 01.1974-11.1980 |
| DAF | F 2800 11.6 | [DKT1160] | 01.1980-09.1986 |
| DAF | F 2800 11.6 | [DKTD1160] | 01.1974-09.1986 |
| DAF | F 2800 11.6 | [DKTD1160] | 06.1986-09.1991 |
| DAF | F 2800 11.6 | [DKV1160] | 01.1980-09.1991 |
| DAF | F 2800 11.6 | [DKV1160] | 05.1983-09.1991 |
| DAF | F 2800 11.6 | [DKXE1160] | 01.1980-09.1991 |
| DAF | F 2800 11.6 | [DKXE1160] | 05.1983-09.1991 |
| DAF | F 2803 11.6 | [DKS1160] | 01.1974-09.1986 |
| DAF | F 2803 11.6 | [DKS1160] | 06.1986-09.1991 |
| DAF | F 2803 11.6 | [DKS1160E] | 01.1980-07.1990 |
| DAF | F 2803 11.6 | [DKS1160E] | 05.1983-09.1991 |
| DAF | F 2803 11.6 | [DKTD1160] | 01.1974-09.1991 |
| DAF | F 2803 11.6 | [DKTD1160] | 06.1986-09.1991 |
| DAF | F 2803 11.6 | [DKV1160] | 05.1983-09.1991 |
| DAF | F 2803 11.6 | [DKXE1160] | 05.1983-09.1991 |
| DAF | F 2804 11.6 | [DKS1160E] | 01.1980-09.1986 |
| DAF | F 2804 11.6 | [DKS1160E] | 05.1983-09.1991 |
| DAF | F 2804 11.6 | [DKT1160] | 01.1980-09.1986 |
| DAF | F 2804 11.6 | [DKV1160] | 05.1983-09.1991 |
| DAF | F 2804 11.6 | [DKXE1160] | 05.1983-09.1991 |
| DAF | F 2805 11.6 | [DKS1160] | 01.1974-09.1986 |
| DAF | F 2805 11.6 | [DKS1160] | 06.1986-09.1991 |
| DAF | F 2805 11.6 | [DKS1160E] | 05.1983-09.1991 |
| DAF | F 2805 11.6 | [DKTD1160] | 01.1974-06.1986 |
| DAF | F 2805 11.6 | [DKTD1160] | 01.1974-09.1986 |
| DAF | F 2805 11.6 | [DKTD1160] | 06.1986-09.1991 |
| DAF | F 2805 11.6 | [DKV1160] | 05.1983-09.1991 |
| DAF | F 2805 11.6 | [DKXE1160] | 05.1983-09.1991 |
| DAF | F 2815 11.6 | [DKS1160] | 06.1986-09.1991 |
| DAF | F 2825 11.6 | [DKTD1160] | 01.1974-09.1991 |
| DAF | F 2825 11.6 | [DKTD1160] | 06.1986-09.1991 |
| DAF | F 2825 11.6 | [DKV1160] | 05.1983-09.1991 |
| DAF | F 2825 11.6 | 05.1983-09.1991 | |
| DAF | F 3300 11.6 | [DKX1160] | 06.1981-09.1986 |
| DAF | F 3300 11.6 | [DKX1160 ATI] | 06.1985-09.1991 |
| DAF | F 3300 11.6 | [DKX1160ATI] | 06.1985-09.1991 |
| DAF | F 3303 11.6 | [DKX1160] | 06.1981-09.1986 |
| DAF | F 3303 11.6 | [DKX1160 ATI] | 06.1985-09.1991 |
| DAF | F 3303 11.6 | [DKX1160ATI] | 06.1985-09.1991 |
| DAF | F 3304 11.6 | [DKX1160 ATI] | 06.1985-09.1991 |
| DAF | F 3304 11.6 | [DKX1160ATI] | 06.1985-09.1991 |
| DAF | F 3305 11.6 | [DKX1160] | 06.1981-09.1986 |
| DAF | F 3305 11.6 | [DKX1160] | 06.1985-09.1991 |
| DAF | F 3305 11.6 | [DKX1160 ATI] | 06.1985-09.1991 |
| DAF | F 3305 11.6 | [DKX1160ATI] | 06.1985-09.1991 |
| DAF | F 3325 11.6 | [DKX1160] | 06.1981-09.1986 |
| DAF | F 3325 11.6 | [DKX1160] | 06.1985-09.1991 |
| DAF | F 3325 11.6 | [DKX1160 ATI] | 06.1985-09.1991 |
| DAF | F 3325 11.6 | [DKX1160ATI] | 06.1985-09.1991 |
| DAF | F 3600 11.6 | [DKZ1160 ATI] | 06.1985-09.1991 |
| DAF | F 3600 11.6 | [DKZ1160ATI] | 06.1985-09.1991 |
| DAF | F 3603 11.6 | [DKZ1160 ATI] | 06.1985-09.1991 |
| DAF | F 3603 11.6 | [DKZ1160ATI] | 06.1985-09.1991 |
| DAF | F 3603 11.6 | [DKZE1160] | 06.1985-09.1991 |
| DAF | F 3604 11.6 | [DKZ1160 ATI] | 06.1985-09.1991 |
| DAF | F 3604 11.6 | [DKZ1160ATI] | 06.1985-09.1991 |
| DAF | F 3604 11.6 | [DKZE1160] | 06.1985-09.1991 |
| DAF | F 3605 11.6 | [DKZ1160 ATI] | 06.1985-09.1991 |
| DAF | F 3605 11.6 | [DKZ1160ATI] | 06.1985-09.1991 |
| DAF | F 3605 11.6 | [DKZE1160] | 06.1985-09.1991 |
| DAF | F 3625 11.6 | [DKZ1160 ATI] | 06.1985-09.1991 |
| DAF | F 3625 11.6 | [DKZ1160ATI] | 06.1985-09.1991 |
| DAF | N 2826 11.6 | [DKS1160] | 01.1981-09.1991 |
| DAF | N 3326 11.6 | [DKX1160] | 01.1981-09.1991 |
Reference Information
293019 1301834 622621 330668 CST10630ES 9000084008 20401036EL 110209 9125420 0293019R 0001410060 11206 51262019062 7701012243 0001410067 6010630 51262017062 243482 0001416043 STRF068 860546GB 220327 0300582 241787 8045 14401B2420 STR10138 293884 367022 20401036BN 18223N 241707 2998009 01301834 28.3006 22622 CGB-11543 241789 10546 CST10630AS IM543 S24BH0025A2 239858 R23.23 IM327 3367093 6230000Video/Publications
S0346View your shopping basket or Browse other items in Starter Motors.
