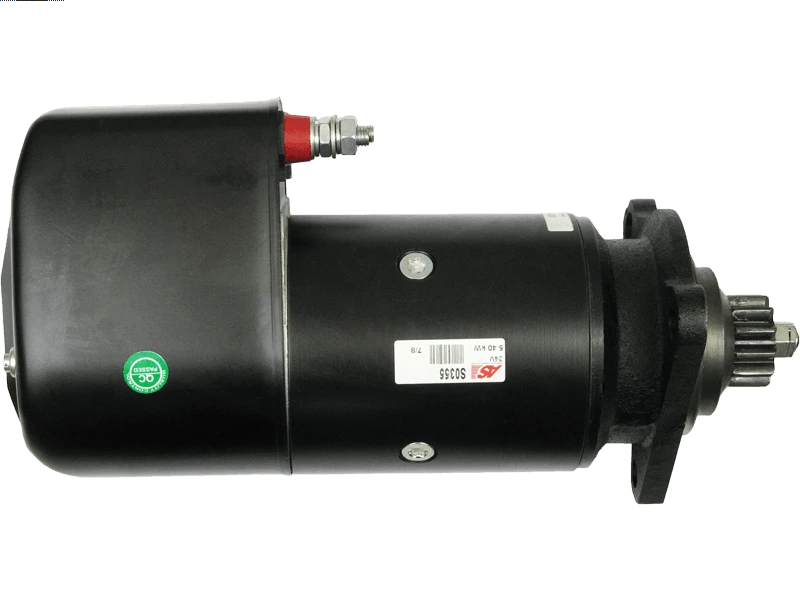

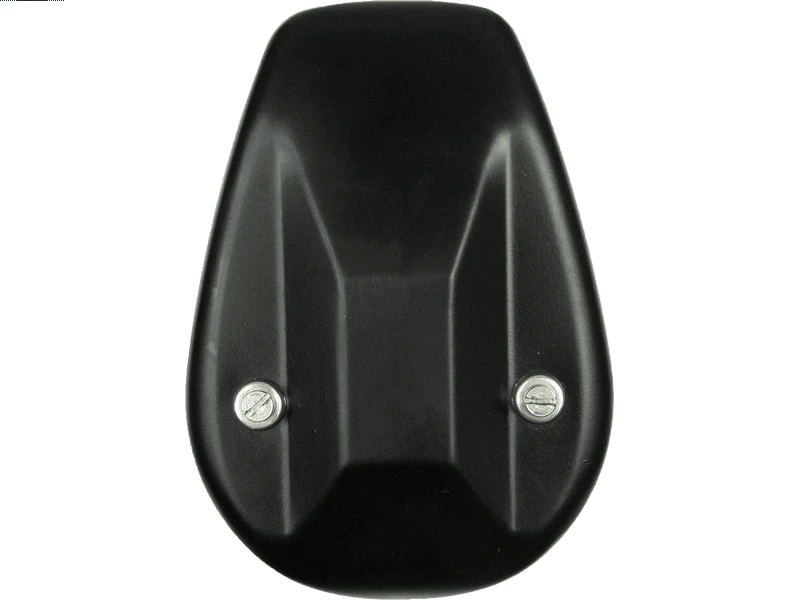

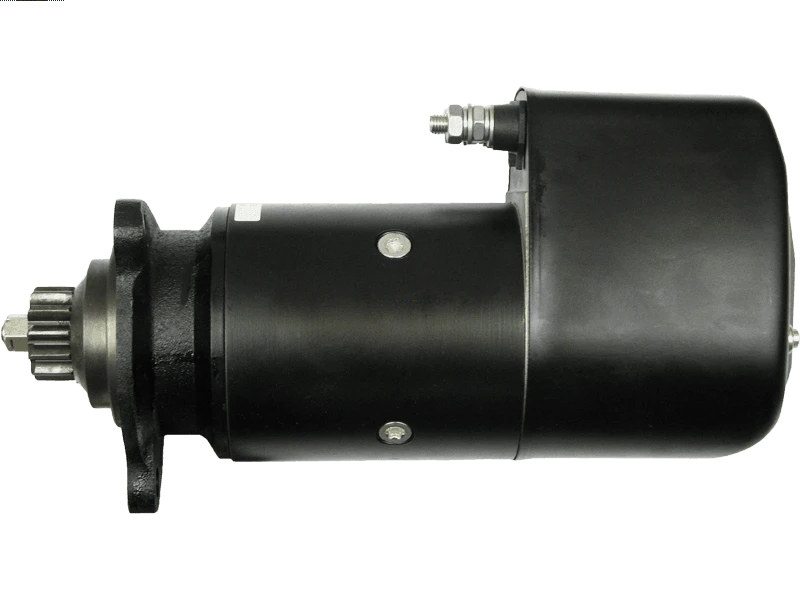

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 807.90 including GST
NZ$ 702.52 excluding GST
or four payments of $201.98
with
Learn More
UOM:
each
Product Code:
S0355
Quantity In Stock Nationally
No stock in NZ currently
No stock in NZ currently
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001416061Associated Numbers
0001416061 10699 11.139.029 18376N 19024048 20401636BN 20401636EL 28.0699 33897 45-1366 471638 477049 5003312 6010636 6340000 8113907 8212921 85000440 860512GB 8741 8815430 AZK5188 CS699 CST10636AS CST10636ES DRS5430 EAA-121382 IS9029 M9T81979 R23.34Specifications
| Kilowatt | 5.40 kW |
| Length (L.1) | 386 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| No./Teeth (Replaces) | 12 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | FL7 | D7A230 | 12.1993-10.1999 |
| VOLVO | FL7 | D7A230 | 12.1993-10.1999 |
| VOLVO | FL7 | D7A230 | 12.1993-10.1999 |
| VOLVO | FL7 | D7A230 | 12.1993-10.1999 |
| VOLVO | FL7 | D7A230 | 12.1993-10.1999 |
| VOLVO | FL7 | D7A230 | 12.1993-10.1999 |
| VOLVO | FL7 | D7A260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7A260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7A260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7A260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7A260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7A260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7A260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7A260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7A260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B230 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B230 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B230 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B230 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B230 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B230 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B260 | 12.1993-10.1999 |
| VOLVO | FL7 | D7B260 | 12.1993-10.1999 |
| VOLVO | FL 7/230 6.7 | [D7B230] | 09.1985-09.1998 |
| VOLVO | FL 7/230 6.7 | [TD71F] | 09.1985-09.1998 |
| VOLVO | FL 7/230 6.7 | [TD71FQ] | 09.1985-09.1998 |
| VOLVO | FL 7/230 6.7 | [TD73E] | 09.1985-09.1998 |
| VOLVO | FL 7/260 6.7 | [D7B260] | 11.1991-09.1998 |
| VOLVO | FL 7/260 6.7 | [TD73ES] | 11.1991-09.1998 |
| VOLVO | FL 7/290 6.7 | [D7A285] | 10.1993-09.1998 |
| VOLVO | FL7 FL 7/230 | D7A230 | 09.1985-10.1999 |
| VOLVO | FL7 FL 7/230 | D7A230 | 09.1985-10.1999 |
| VOLVO | FL7 FL 7/230 | D7B230 | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | D7B230 | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | D7B230 | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | D7B230 | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | D7B230 | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | D7B230 | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | D7B230 | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | D7B230 | 09.1985-10.1999 |
| VOLVO | FL7 FL 7/230 | D7B230 | 09.1985-10.1999 |
| VOLVO | FL7 FL 7/230 | TD71F | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD71F | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD71F | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD71F | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD71F | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD71F | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD71F | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD71F | 09.1985-10.1999 |
| VOLVO | FL7 FL 7/230 | TD71F | 09.1985-10.1999 |
| VOLVO | FL7 FL 7/230 | TD71FQ | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD71FQ | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD71FQ | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD71FQ | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD71FQ | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD71FQ | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD71FQ | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD71FQ | 09.1985-10.1999 |
| VOLVO | FL7 FL 7/230 | TD71FQ | 09.1985-10.1999 |
| VOLVO | FL7 FL 7/230 | TD73E | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD73E | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD73E | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD73E | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD73E | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD73E | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD73E | 09.1985-09.1998 |
| VOLVO | FL7 FL 7/230 | TD73E | 09.1985-10.1999 |
| VOLVO | FL7 FL 7/230 | TD73E | 09.1985-10.1999 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FD | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FS | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/245 | TD71FSQ | 09.1985-10.1994 |
| VOLVO | FL7 FL 7/260 | D7A260 | 11.1991-10.1999 |
| VOLVO | FL7 FL 7/260 | D7B260 | 11.1991-09.1998 |
| VOLVO | FL7 FL 7/260 | D7B260 | 11.1991-09.1998 |
| VOLVO | FL7 FL 7/260 | D7B260 | 11.1991-09.1998 |
| VOLVO | FL7 FL 7/260 | D7B260 | 11.1991-09.1998 |
| VOLVO | FL7 FL 7/260 | D7B260 | 11.1991-09.1998 |
| VOLVO | FL7 FL 7/260 | D7B260 | 11.1991-09.1998 |
| VOLVO | FL7 FL 7/260 | D7B260 | 11.1991-09.1998 |
| VOLVO | FL7 FL 7/260 | D7B260 | 11.1991-10.1999 |
| VOLVO | FL7 FL 7/260 | TD73ES | 11.1991-09.1998 |
| VOLVO | FL7 FL 7/260 | TD73ES | 11.1991-09.1998 |
| VOLVO | FL7 FL 7/260 | TD73ES | 11.1991-09.1998 |
| VOLVO | FL7 FL 7/260 | TD73ES | 11.1991-09.1998 |
| VOLVO | FL7 FL 7/260 | TD73ES | 11.1991-09.1998 |
| VOLVO | FL7 FL 7/260 | TD73ES | 11.1991-09.1998 |
| VOLVO | FL7 FL 7/260 | TD73ES | 11.1991-09.1998 |
| VOLVO | FL7 FL 7/260 | TD73ES | 11.1991-10.1999 |
| VOLVO | FL7 FL 7/285 | D7A285 | 12.1993-10.1999 |
| VOLVO | FL7 FL 7/285 | D7A285 | 12.1993-10.1999 |
| VOLVO | FL7 FL 7/285 | D7A285 | 12.1993-10.1999 |
| VOLVO | FL7 FL 7/285 | D7A285 | 12.1993-10.1999 |
| VOLVO | FL7 FL 7/290 | D7A285 | 10.1993-09.1998 |
| VOLVO | FL7 FL 7/290 | D7A285 | 10.1993-09.1998 |
| VOLVO | FL7 FL 7/290 | D7A285 | 10.1993-09.1998 |
| VOLVO | FL7 FL 7/290 | D7A285 | 10.1993-09.1998 |
| VOLVO | FL7 FL 7/290 | D7A285 | 10.1993-09.1998 |
| VOLVO | FL7 FL 7/290 | D7A285 | 10.1993-09.1998 |
| VOLVO | FL7 FL 7/290 | D7A285 | 10.1993-09.1998 |
| VOLVO | FL7 FL 7/290 | D7A285 | 10.1993-09.1998 |
| VOLVO | FM 7/250 7.3 | [D7C250] | 08.1998-12.2001 |
| VOLVO | FM 7/290 7.3 | [D7C290] | 08.1998-12.2001 |
| VOLVO | FM7 FM 7/250 | D7C250 | 08.1998-12.2001 |
| VOLVO | FM7 FM 7/250 | D7C250 | 08.1998-12.2001 |
| VOLVO | FM7 FM 7/250 | D7C250 | 08.1998-12.2001 |
| VOLVO | FM7 FM 7/250 | D7C250 | 08.1998-12.2001 |
| VOLVO | FM7 FM 7/250 | D7C250 | 08.1998-12.2001 |
| VOLVO | FM7 FM 7/250 | D7C250 | 08.1998-12.2001 |
| VOLVO | FM7 FM 7/290 | D7C290 | 08.1998-12.2001 |
| VOLVO | FM7 FM 7/290 | D7C290 | 08.1998-12.2001 |
| VOLVO | FM7 FM 7/290 | D7C290 | 08.1998-12.2001 |
| VOLVO | FM7 FM 7/290 | D7C290 | 08.1998-12.2001 |
| VOLVO | FM7 FM 7/290 | D7C290 | 08.1998-12.2001 |
| VOLVO | FM7 FM 7/290 | D7C290 | 08.1998-12.2001 |
| VOLVO | FM7 FM 7/290 | D7C290 | 08.1998-12.2001 |
| VOLVO | FM7 FM 7/290 | D7C290 | 08.1998-12.2001 |
| VOLVO | FS 718/260 6.7 | [D7B230] | 09.1994-03.1996 |
| VOLVO | FS 718/260 6.7 | [D7B260] | 09.1994-03.1996 |
| VOLVO | FS7 FS 718/230 | D7B230 | 09.1994-03.1996 |
| VOLVO | FS7 FS 718/260 | D7B260 | 09.1994-03.1996 |
Reference Information
| 0001416061 | BOSCH |
| 0001416065 | MERCEDES |
| 10699 | KUHNER |
| 110980 | CARGO |
| 11.139.029 | ISKRA / LETRIKA |
| 1326960 | CLAAS |
| 1516796R | DAF |
| 18376N | WAI |
| 19024048 | DELCO |
| 20401636BN | REAL |
| 20401636EL | REAL |
| 220291 | ERA |
| 254191B | KUHNER |
| 28.0699 | LAUBER |
| 33897 | EAI |
| 420731 | VOLVO |
| 45-1366 | ELSTOCK |
| 471638 | VOLVO |
| 477049 | VOLVO |
| 5003312 | VOLVO |
| 6010636 | SANDO |
| 6340000 | ELMOT |
| 8113230 | VOLVO |
| 8113907 | VOLVO |
| 8192965 | VOLVO |
| 8212921 | POWERMAX |
| 85000440 | VOLVO |
| 860512GB | PRESTOLITE |
| 8741 | CEVAM |
| 874304 | VOLVO |
| 8815430 | FRIESEN |
| ANM17650X | ANDEL |
| AZK5188 | ISKRA / LETRIKA |
| CGB-11561 | AINDE |
| CS699 | HC PARTS |
| CST10636AS | CASCO |
| CST10636ES | CASCO |
| DRS5430 | DELCO |
| F032110980 | CARGO |
| IS9029 | ISKRA / LETRIKA |
| M009T081979 | MITSUBISHI |
| M009T81979 | MITSUBISHI |
| M9T081979 | MITSUBISHI |
| M9T81979 | MITSUBISHI |
| MAV126360 | SIOM |
| MS 540 | MAHLE |
| R23.34 | ELMOT |
| STR1265 | ELECTROLOG |
| STR79468 | ELECTROLOG |
| STRL650 | 3EFFE |
Video/Publications
S0355View your shopping basket or Browse other items in Starter Motors.
