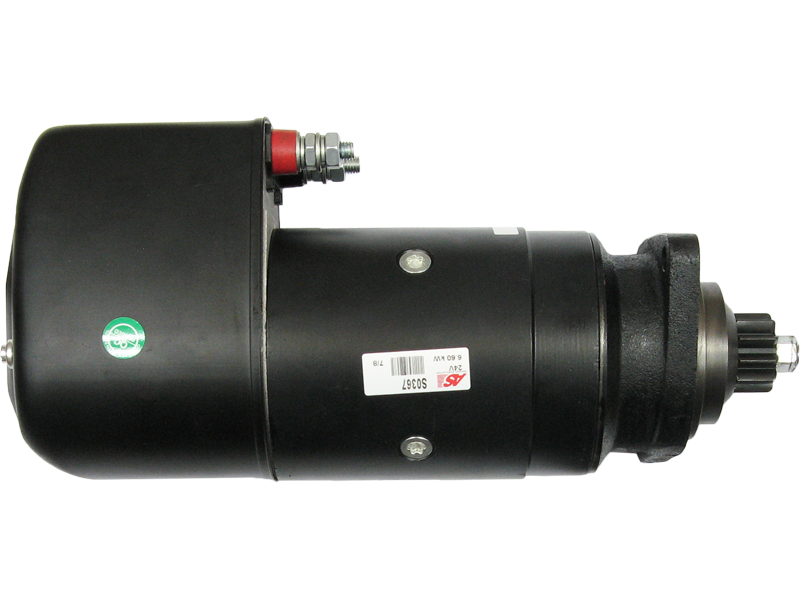

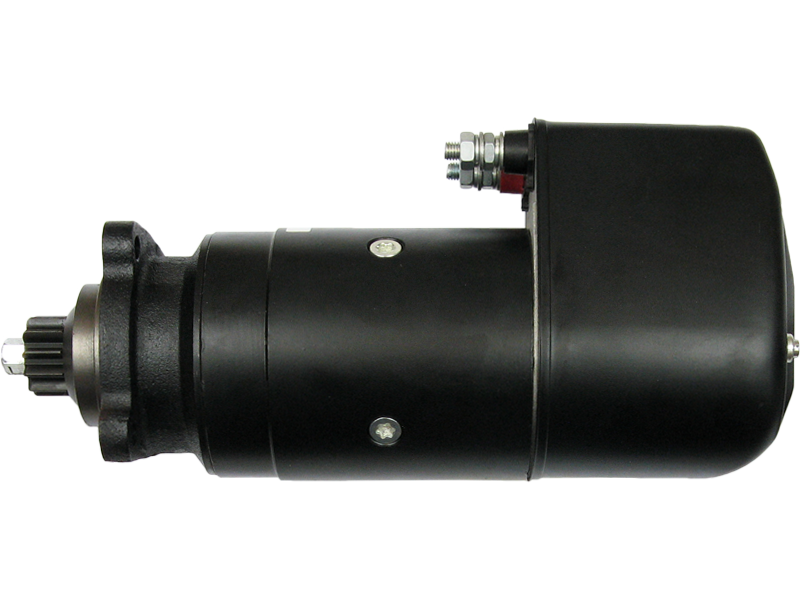

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 754.08 including GST
NZ$ 655.72 excluding GST
or four payments of $188.52
with
Learn More
each
S0367
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001417041Associated Numbers
0001411008 0001411012 0001417041 0220000 1099 1099P 11.139.028 110205 18930N 18931N 19024075 20401126BN 20401126EL 20401446EL 22.0099 240340 33377 33523 45-0133 465931 468202 5001686 5003029 51262017029 6010621 6010644 6686461 81262019029 8212512 860500GB 860664GB 8814920 9000084019 9000084024 9125100 AZK5187 CS99 CST10621AS CST10621ES CST10644ES D13E101 D13E101TE IS9028 LRS00928 PBNS1666 R22.22 UNIT BOM 120-6088BSpecifications
| Kilowatt | 6.60 kW |
| Length (L.1) | 410 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 127 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
| Water Proof | Yes |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | F 10/280 9.6 | [TD100B] | 08.1977-02.1982 |
| VOLVO | F 12/320 12.0 | [TD120G] | 08.1977-12.1986 |
| VOLVO | F 12/320 12.0 | [TD121G] | 01.1987-12.1987 |
| VOLVO | F 12/320 12.0 | [TD121G] | 08.1977-12.1986 |
| VOLVO | F 12/320 12.0 | [TD121GD] | 08.1977-12.1986 |
| VOLVO | F 12/330 12.0 | [TD120G] | 08.1977-12.1986 |
| VOLVO | F 12/330 12.0 | [TD121G] | 08.1977-12.1986 |
| VOLVO | F 12/330 12.0 | [TD121GD] | 08.1977-12.1986 |
| VOLVO | F 12/370 12.0 | [TD121F] | 01.1987-12.1987 |
| VOLVO | F 12/370 12.0 | [TD121F] | 08.1977-12.1986 |
Reference Information
| 0001411008 | BOSCH |
| 0001411012 | BOSCH |
| 0001417041 | BOSCH |
| 0220000 | ELMOT |
| 1099 | KUHNER |
| 1099P | KUHNER |
| 110205 | CARGO |
| 11.139.028 | ISKRA / LETRIKA |
| 18930N | WAI / TRANSPO |
| 19024075 | DELCO |
| 20401446EL | REAL |
| 22.0099 | LAUBER |
| 220254 | ERA |
| 240340 | VOLVO |
| 243010 | VOLVO |
| 2Y1920 | CATERPILLAR |
| 331142 | LOGISTIK |
| 33377 | EAI |
| 33523 | EAI |
| 3352839 | CUMMINS |
| 45-0133 | ELSTOCK |
| 465931 | VOLVO |
| 467919 | VOLVO |
| 468202 | VOLVO |
| 5001686 | VOLVO |
| 5003029 | VOLVO |
| 6010621 | SANDO |
| 6010644 | SANDO |
| 6686461 | VOLVO |
| 6886461 | VOLVO |
| 75204899 | FIAT |
| 8010103 | ZM |
| 8212512 | POWERMAX |
| 8280 | EFEL |
| 860664GB | PRESTOLITE |
| 8814920 | FRIESEN |
| 9000084024 | BOSCH |
| 9125100 | MAGNETON |
| AZK5187 | ISKRA / LETRIKA |
| CGB-11641 | AINDE |
| CS99 | HC PARTS |
| CST10644ES | CASCO |
| D13E101 | VALEO |
| D13E101TE | VALEO |
| E156159 | CASE |
| F032110205 | CARGO |
| IS9028 | ISKRA / LETRIKA |
| LRS00928 | LUCAS |
| LRS928 | LUCAS |
| MAV126440 | SIOM |
| MAV1310 | SIOM |
| MS 553 | MAHLE |
| PBNS1666 | PRESTOLITE |
| R22.22 | ELMOT |
| S0367 | AS-PL |
| STR1427 | ELECTROLOG |
| STR79467 | ELECTROLOG |
| UNIT BOM 120-6088B | WAI / TRANSPO |
| ZM8010103 | ZM |
