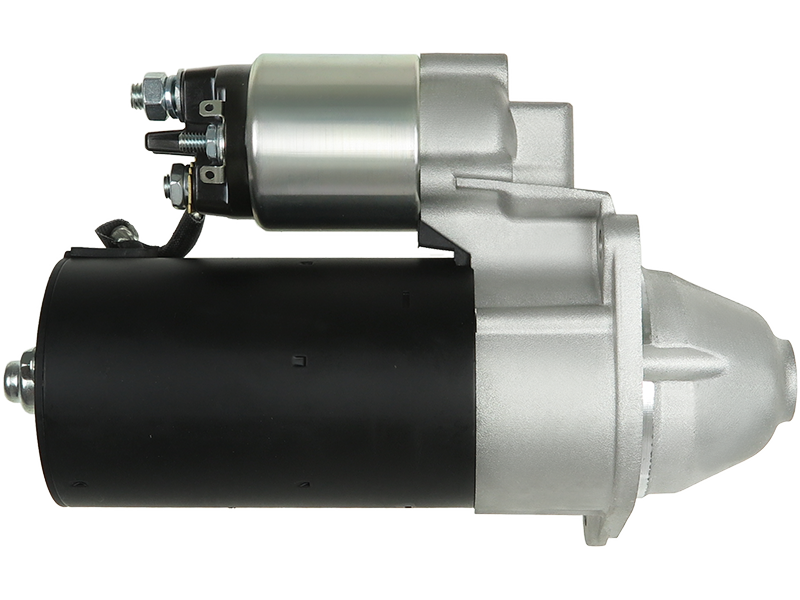

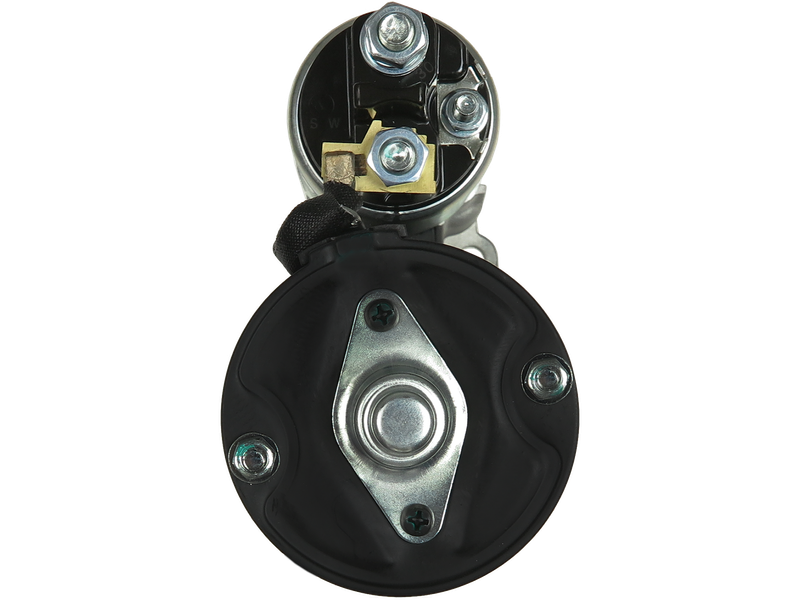

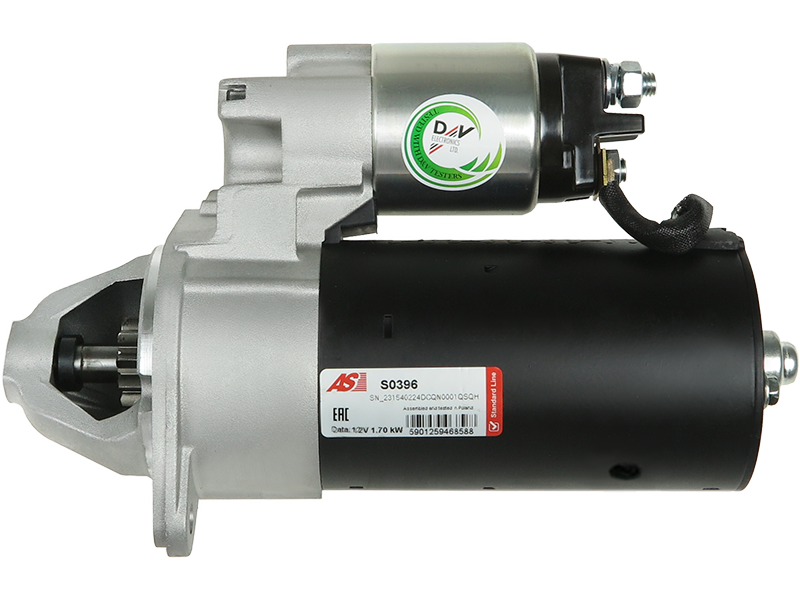

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 263.84 including GST
NZ$ 229.43 excluding GST
or four payments of $65.96
with
Learn More
each
S0396
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001115008Associated Numbers
0001108217 0001115008 0051511601 005151160180 0051517401 063521082170 0986018180 0986021260 101172 101172B 11937 20401372 220146 25-2358 32439N 3870 42018180 458223 550.513.102 6010273 88213234 8EA012526-341 8EA737708-001 944280181800 A0051511601 A005151160180 A0051517401 AEU1172 BOS0001108217 CS1172 CST10273 CST10273AS CST10273ES CST10273GS CST10273OS CST10273RS DRS8180 DS9290 EAA-121258 GS108217-A LRS01440 MRS18180 MSN2081 S0396 SG0581 SS561 SS576 STB1172 STR50362 Bosch show 0001108218 Mercedes-Benz 00515160180 005151740180 01108217 Andre Niermann ruil 0986018181 104564 FARC 11018180 EuroTec 11021260 112220 Cargo EAI 120404 PIC 120479 252358 Elstock 253329 32439 Lester 32440 325029102 DRI CEVAM Herth Buss Valeo 458642 4617SP Spidan 51517401 550513102 PSH 737708001 Hella 8018180 Friesen 8018180F 8021260F 8EA737708001 918180 EDR 921260 Magneti Marelli A005151740180 A18180 ATL A21260 HC CS1564 Remy DRT1260 HCS1172 Lucas LRS01967 LRS1440 QRS1649 QH SP4617Specifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 235 mm |
| Mount Hole Center - Center (O.1) | 99 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 8.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 14.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 70 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MERCEDES BENZ | A 160 1.7 CDi | (168)[OM668.941] | 01.1998-12.2001 |
| MERCEDES BENZ | A 160 1.7 CDi | (168)[OM668.942] | 01.2001- |
| MERCEDES BENZ | A 170 1.7 CDi | (168)[OM668.940] | 01.1998-12.2001 |
| MERCEDES BENZ | A 170 1.7 CDi | (168)[OM668.942] | 01.2001-12.2004 |
| MERCEDES BENZ | Vaneo 1.7 CDi | (414)[OM668.914] | 01.2002-12.2005 |
Reference Information
| 0001108217 | BOSCH |
| 0001115008 | BOSCH |
| 0051511601 | MERCEDES |
| 005151160180 | MERCEDES |
| 0051517401 | MERCEDES |
| 005151740180 | MERCEDES |
| 063521082170 | MAGNETI MARELLI |
| 0986018180 | BOSCH |
| 0986021260 | BOSCH |
| 101172 | KUHNER |
| 101172B | KUHNER |
| 11937 | EAI |
| 20401372 | REAL |
| 220146 | ERA |
| 25-2358 | ELSTOCK |
| 32439N | WAI / TRANSPO |
| 3870 | CEVAM |
| 42018180 | HERTH+BUSS |
| 458223 | VALEO |
| 550.513.102 | PSH |
| 6010273 | SANDO |
| 88213234 | POWERMAX |
| 8EA012526-341 | HELLA |
| 8EA737708-001 | HELLA |
| 944280181800 | MAGNETI MARELLI |
| A0051511601 | MERCEDES |
| A005151160180 | MERCEDES |
| A0051517401 | MERCEDES |
| A005151740180 | MERCEDES |
| AEU1172 | AUTOELECTRO |
| ANM10400X | ANDEL |
| ASM1089 | APEC |
| BOS0001108217 | WOODAUTO |
| CS1172 | HC PARTS |
| CST10273 | CASCO |
| CST10273AS | CASCO |
| CST10273ES | CASCO |
| CST10273GS | CASCO |
| CST10273OS | CASCO |
| CST10273RS | CASCO |
| DRS8180 | DELCO |
| DS9290 | DELCO |
| GS108217-A | GPARTS |
| LRS01440 | LUCAS |
| LRS1440 | LUCAS |
| MAV122730 | SIOM |
| MAV123290 | SIOM |
| MRS18180 | MAGNETI MARELLI |
| MSN2081 | MAGNETI MARELLI |
| NPANSM1089 | NAPA |
| RNL1818 | RNL |
| S0396 | AS-PL |
| S12BH0100 | SIDAT |
| S12BH0100A2 | SIDAT |
| S133.218 | PSH |
| S145.224 | PSH |
| SG0581 | GHIBAUDI |
| SS561 | SOVEREIGN |
| SS576 | SOVEREIGN |
| STA0544R | BOVEZ |
| STB1172 | KRAUF |
| STR1496 | ELECTROLOG |
| STR50362 | WOODAUTO |
| STRL152 | 3EFFE |
| STX200122 | STARDAX |
| STX200122R | STARDAX |
