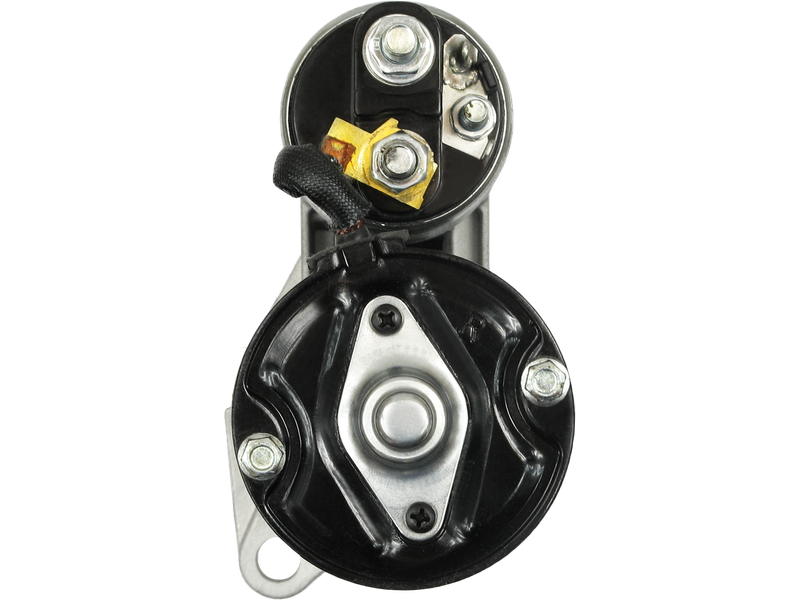

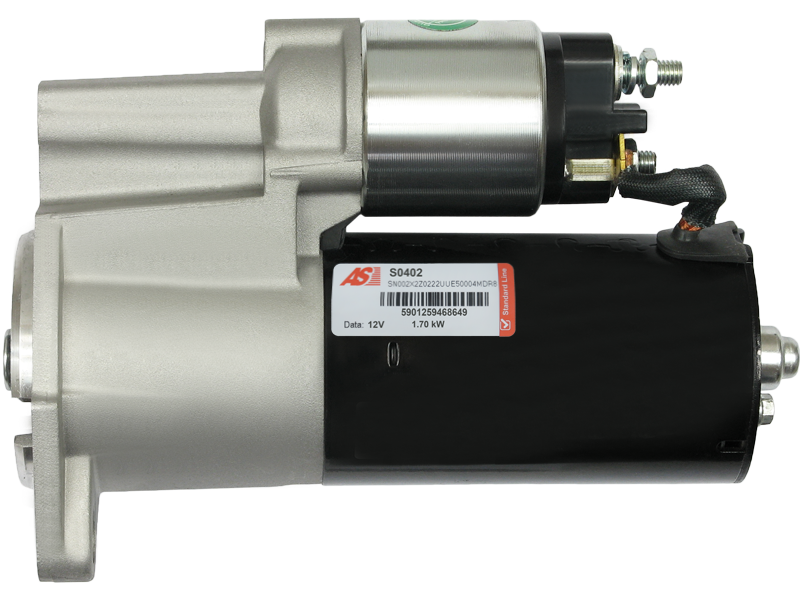

S0402 - Brand new AS-PL Starter motor

Associated Numbers

0001123002 0001123003 012911023E 012911023F 012911023FX 0986021910 101327 101327B 116039 120-10131 12071 17926N 20401843BN 25-3295 300.558.092 3051 6010348 8212302 88212302 91-15-7237 944280801120 95560410700 AEU1327 BOS0001123002 CST10348 CST10348AS CST10348ES CST10348GS CST10348OS CST10348RS DRT1910 DT3020 LRS01736 LRS1736 MRS80112 S-6276 STB1327 STR50627

Specifications

Kilowatt	1.7 kW
Length (L.1)	233 mm
Mount Hole Center - Center (O.1)	118.5 mm
Mount Hole Diameter (C.1)	M12x1.75 mm
Mount Hole Diameter (C.2)	12.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	1 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
OEM Product	No
Pinion at Rest (B)	9 mm
Product Line	Standard Line
Product Type	Brand new
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	BOSCH
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
AUDI	Q7 3.6 FSi	[BHK]	08.2006-05.2010
PORSCHE	Cayenne 3.2	[M02.2Y]	10.2003-09.2007
PORSCHE	Cayenne 3.6	[M55.01]	02.2007-09.2010
VW	Touareg 3.2 V6	[AZZ]	10.2002-
VW	Touareg 3.2 V6	[BKJ]	10.2002-
VW	Touareg 3.2 V6	[BMV]	10.2002-
VW	Touareg 3.2 V6	[BMV]	11.2004-
VW	Touareg 3.2 V6	[BMX]	10.2002-
VW	Touareg 3.2 V6	[BRJ]	10.2002-
VW	Touareg 3.6 FSi V6	[BHK]	03.2006-
VW	Touareg 3.6 FSi V6	[BHL]	03.2006-

Reference Information

012911023FX 12071 STR1557 8212302 0986021910 DRT1910 MRS80112 20401843BN 91-15-7237 ANM24130X STX201035 CST10348OS STRS577 0001123002 0001123003 300.558.092 STB1327 012911023E 101327 012911023F 120-10131 AEU1327 CST10348 S-6276 331405 944280801120 17926N 116039 CST10348AS DT3020 CST10348GS 95560410700 3051 CST10348ES MAV123480 STR50627 101327B 88212302 CST10348RS LRS1736 LRS01736 6010348 BOS0001123002 25-3295
