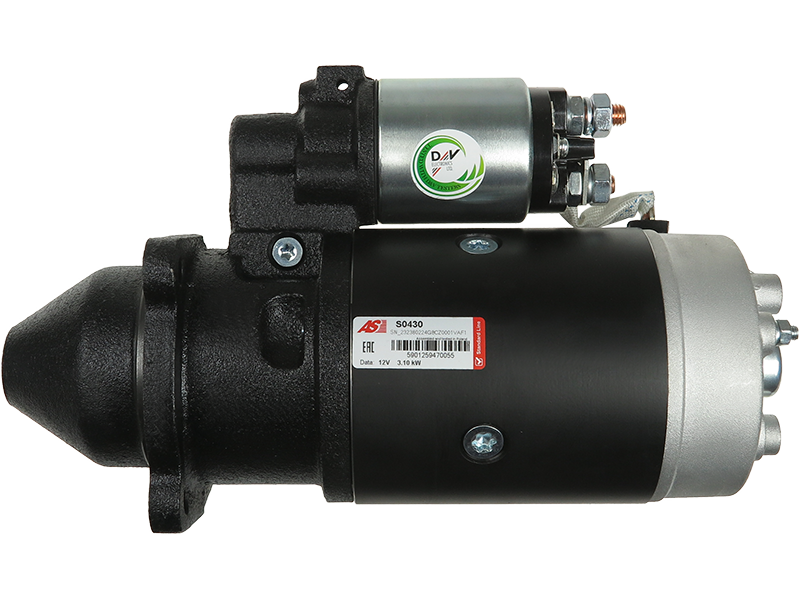

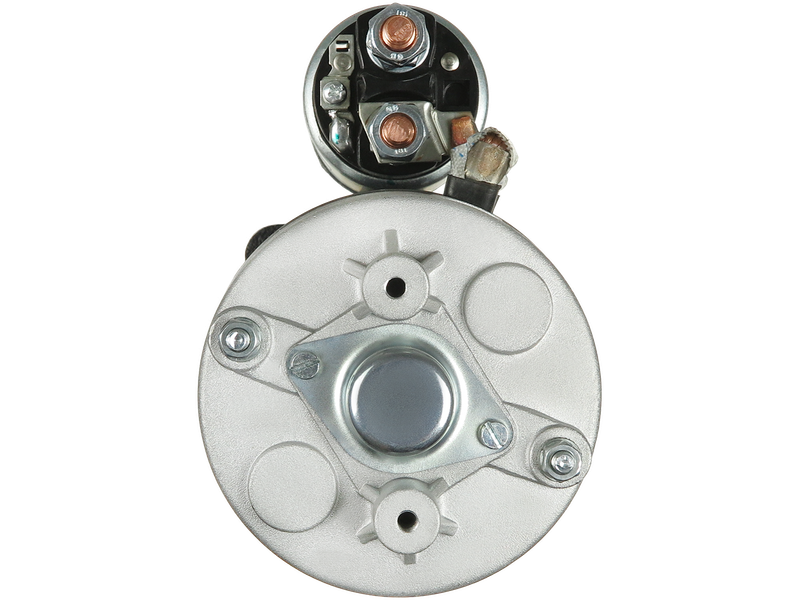

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 443.36 including GST
NZ$ 385.53 excluding GST
or four payments of $110.84
with
Learn More
each
S0430
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001369018Associated Numbers
0001359019 0001359075 0001362064 0001362301 0001369018 10511 10511M 11.130.705 11.130.895 112135 17093N 20401291BN 20401291EL 33375 540.002.113 6010192 8213355 8691 8691R 8812680 9142885 A186180 AZJ3243 AZJ3317 CS511 CST10192AS CST10192ES DRS7290 IS0705 STR50174 UNIT BOM 120-6136 S0430Specifications
| Kilowatt | 3.10 kW |
| Length (L.1) | 325 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | 433 | 02.1977- | |
| CASE | 533 | 02.1977- | |
| CASE | 833 | 09.1981- | |
| CASE | 833 A | 09.1981- | |
| CASE | E833 | 01.1986- | |
| CASE | E833 A | 01.1986- | |
| CASE | V433 | 01.1986- | |
| CASE | V533 | 01.1986- |
Reference Information
| 0001359019 | BOSCH |
| 0001359075 | BOSCH |
| 0001369018 | BOSCH |
| 0986017290 | BOSCH |
| 11.130.705 | ISKRA / LETRIKA |
| 112135 | CARGO |
| 138207A1 | CASE |
| 19155N | WAI / TRANSPO |
| 20401291BN | REAL |
| 20401291EL | REAL |
| 220301 | ERA |
| 25-5208 | ELSTOCK |
| 33375 | EAI |
| 5010392 | MEAT & DORIA |
| 540.011.113.010 | PSH |
| 540.011.113.260 | PSH |
| 6005706639 | CLAAS |
| 6010192.0 | SANDO |
| 6010192.3 | SANDO |
| 72735983 | MAHLE |
| 8691 | CEVAM |
| 8691R | CEVAM |
| 8812680 | FRIESEN |
| A186180 | CASE |
| AZJ3243 | ISKRA / LETRIKA |
| CGB-27290 | AINDE |
| CST10192AS | CASCO |
| CST10192ES | CASCO |
| DRS7290 | DELCO |
| F032112135 | CARGO |
| IS0705 | ISKRA / LETRIKA |
| LRS04045 | LUCAS |
| LRS4045 | LUCAS |
| MAV121920 | SIOM |
| MS355 | MAHLE |
| PRSF244 | 3EFFE |
| S0430 | AS-PL |
| S133.329 | PSH |
| STR1432 | ELECTROLOG |
| STR50174 | WOODAUTO |
| STR7948 | ELECTROLOG |
| STR7953 | ELECTROLOG |
| STRF244 | 3EFFE |
| STX210073 | STARDAX |
Video/Publications
