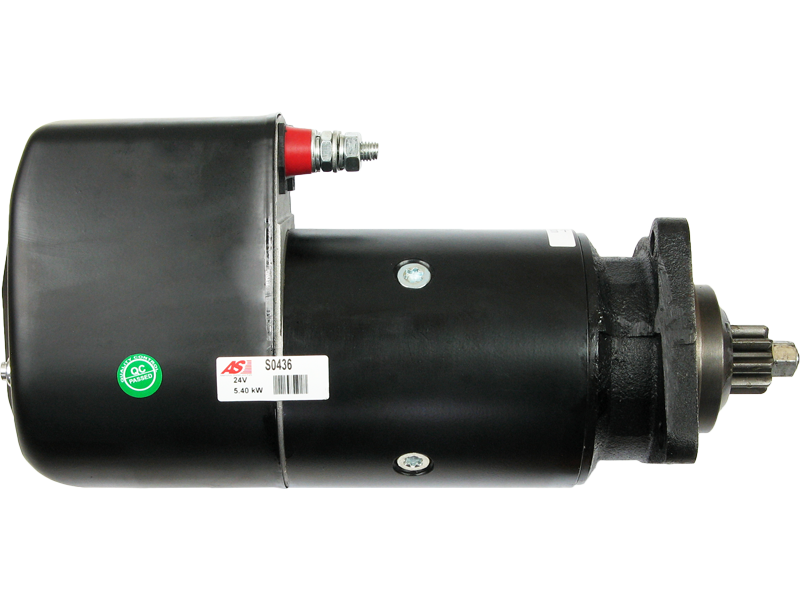

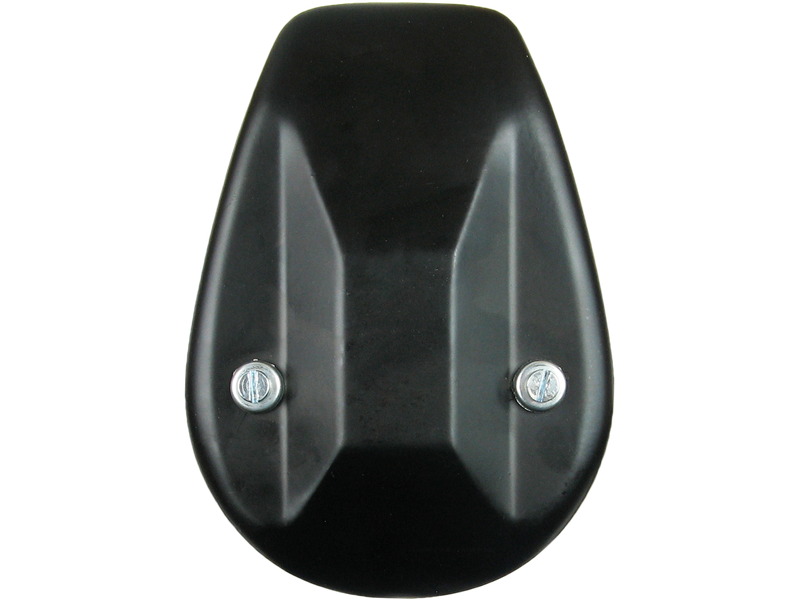

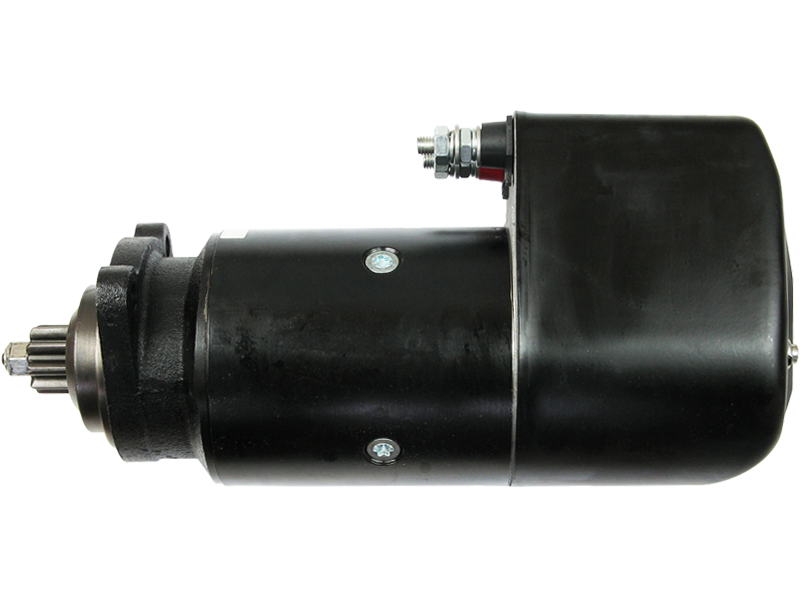

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 796.69 including GST
NZ$ 692.77 excluding GST
or four payments of $199.17
with
Learn More
each
S0436
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
0001416026Associated Numbers
0001414022 0001416026 112507 19024026 20401326BN 20401326EL 254322 254322M 255242 28.3048 45-2360 45-3089 4774617 4881097 6010623 860520 860520GB 8682 9004881097 CST10623AS CST10623ES DRS0171 IS9099 LRS01918 LRS01940 STR50369 UD00213S UNIT BOM 120-6077 UNIT BOM 120-6077ASpecifications
| Kilowatt | 5.40 kW |
| Length (L.1) | 385 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Oil Sealed | Yes |
| Pinion at Rest (B) | 47 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| VOLVO | F 613 5.5 | [TD60B] | 09.1975-02.1986 |
| VOLVO | F 614 5.5 | [TD60B] | 09.1975-02.1986 |
| VOLVO | F 615 S 5.5 | [TD60B] | 12.1978-10.1981 |
| VOLVO | F 616 5.5 | [TD60B] | 02.1981-02.1986 |
| VOLVO | F 617 S 5.5 | [TD60B] | 12.1978-02.1986 |
| VOLVO PENTA | Engine 5.5 | [TD60.] | 01.1982-06.1986 |
Reference Information
| 0001414022 | BOSCH |
| 0001416026 | BOSCH |
| 112507 | CARGO |
| 19024026 | DELCO |
| 20401326BN | REAL |
| 20401326EL | REAL |
| 220310 | ERA |
| 254322 | KUHNER |
| 254322M | KUHNER |
| 255242 | KUHNER |
| 28.3048 | LAUBER |
| 331989 | LOGISTIK |
| 45-2360 | ELSTOCK |
| 45-3089 | ELSTOCK |
| 4774617 | VOLVO |
| 4881097 | VOLVO |
| 6010623 | SANDO |
| 860520 | PRESTOLITE |
| 860520GB | PRESTOLITE |
| 8682 | CEVAM |
| 9004881097 | VOLVO |
| CGB-11526 | AINDE |
| CST10623AS | CASCO |
| CST10623ES | CASCO |
| DRS0171 | DELCO |
| F032112507 | CARGO |
| IS9099 | ISKRA / LETRIKA |
| LRS01918 | LUCAS |
| LRS01940 | LUCAS |
| LRS1918 | LUCAS |
| LRS1940 | LUCAS |
| MAV126230 | SIOM |
| MS 499 | MAHLE |
| STR1425 | ELECTROLOG |
| STR50369 | WOODAUTO |
| STRF109 | 3EFFE |
| UD00213S | AS-PL |
| UNIT BOM 120-6077 | WAI / TRANSPO |
| UNIT BOM 120-6077A | WAI / TRANSPO |
Video/Publications
